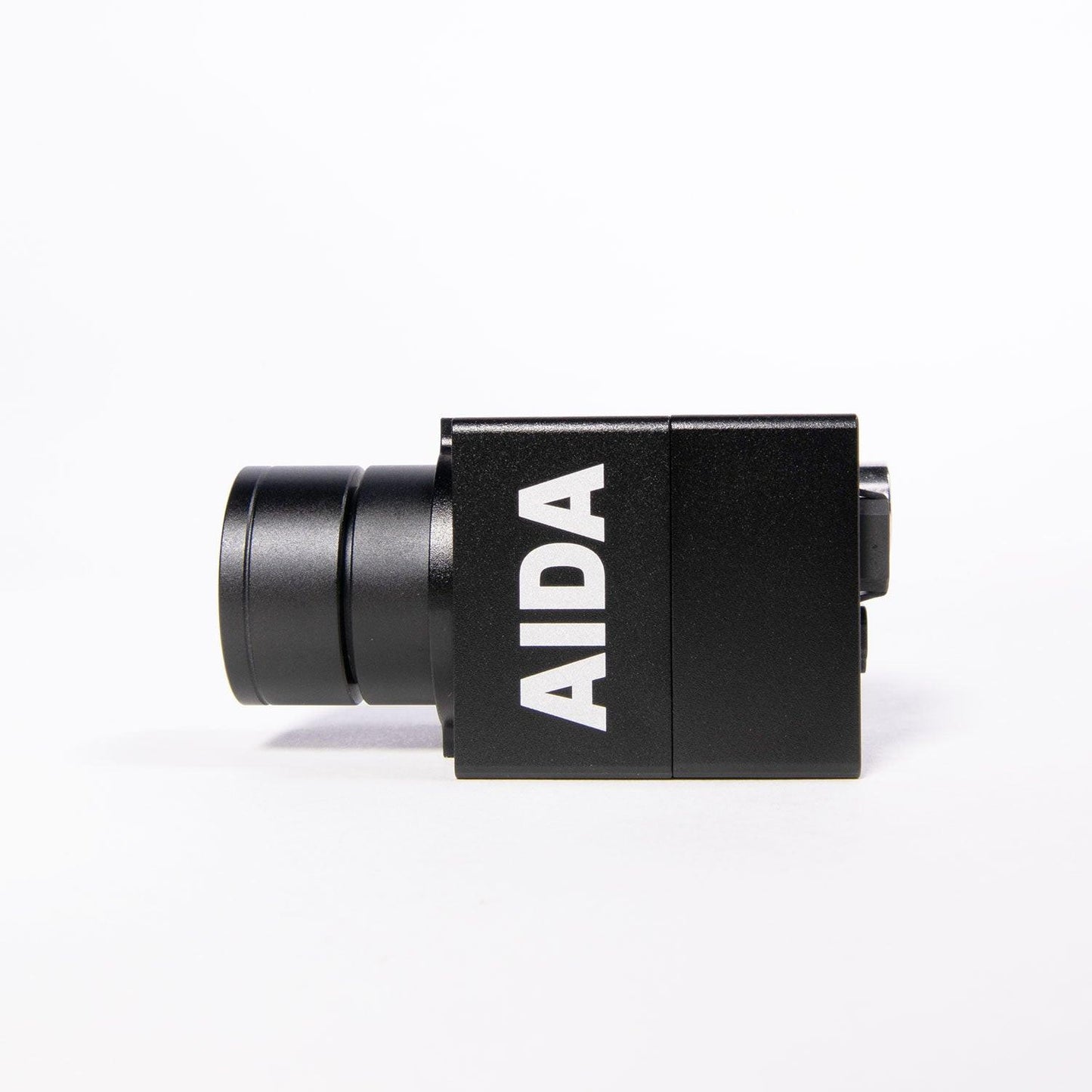

The AIDA Imaging Full HD HDMI Camera with TRS Stereo Audio Input is an ultracompact camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications.
Key Features
- Up to Full HD Resolution Video at 60 fps
- C/CS Mount with 4mm Lens Included
- Auto Iris Lens Connector
- HDMI Output
- RS-485 Input via Included Breakout Cable
- Wide Dynamic Range
- Digital Image Stabilization
- 2D/3D Image Noise Reduction
- 2 x 1/4″-20 Threaded Mounting Holes
Specifications
| Image Sensor | 1/3″ CMOS |
| Effective Pixels | H x V: 1920 x 1080 |
| Pixel Size | 2.75 µm (H) x 2.75 µm (V) |
| Resolution | 1080p: 60/59.94/50/30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Color Space | 4:2:2 (YCbCr) 10-Bit |
| Min Illumination | Day: 0.2 Lux Night: 0.1 Lux Slow Shutter: 0.005 Lux |
| Audio Bit Rate | 16/24/32-Bit |
| Connections | Video Output: 1 x HDMI 1.3a Type A I/O: 1 x 4-Pin (Power and RS-485) Auto-Iris: 1 x 4-Pin Audio Input: 1 x 3.5mm TRS (Mic & Line via Breakout Cable) |
| Lens | Lens Mount: C/CS Included: 4mm |
| Mount Type | 2 x 1/4″-20 Threaded Hole |
| Power | 6 W at 12 VDC (9 to 15 VDC) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 1.53 x 1.53 x 1.99″ / 3.9 x 3.9 x 5.05 cm |
| Weight | 0.3 lb / 140 g (Camera Only) 6.35 oz / 180 g (Camera and Lens) |
