Full Bandwidth NDI®, 12G-SDI & SFP+!
Adding to your arsenal is our newly introduced Full Bandwidth NDI®, 12G-SDI, and SFP+ camera. Getting 4K video with immense quality has never been easier!
Visually Stunning
Built to last, the PTZ4K12G-FNDI-X30’s hardened aluminum build and size are meant to outlast any competition.
Auto-Tracking Enabled!
Seen in our PTZ4K / PTZ-NDI3 cameras, Auto-Tracking feature can be enabled via the web UI!

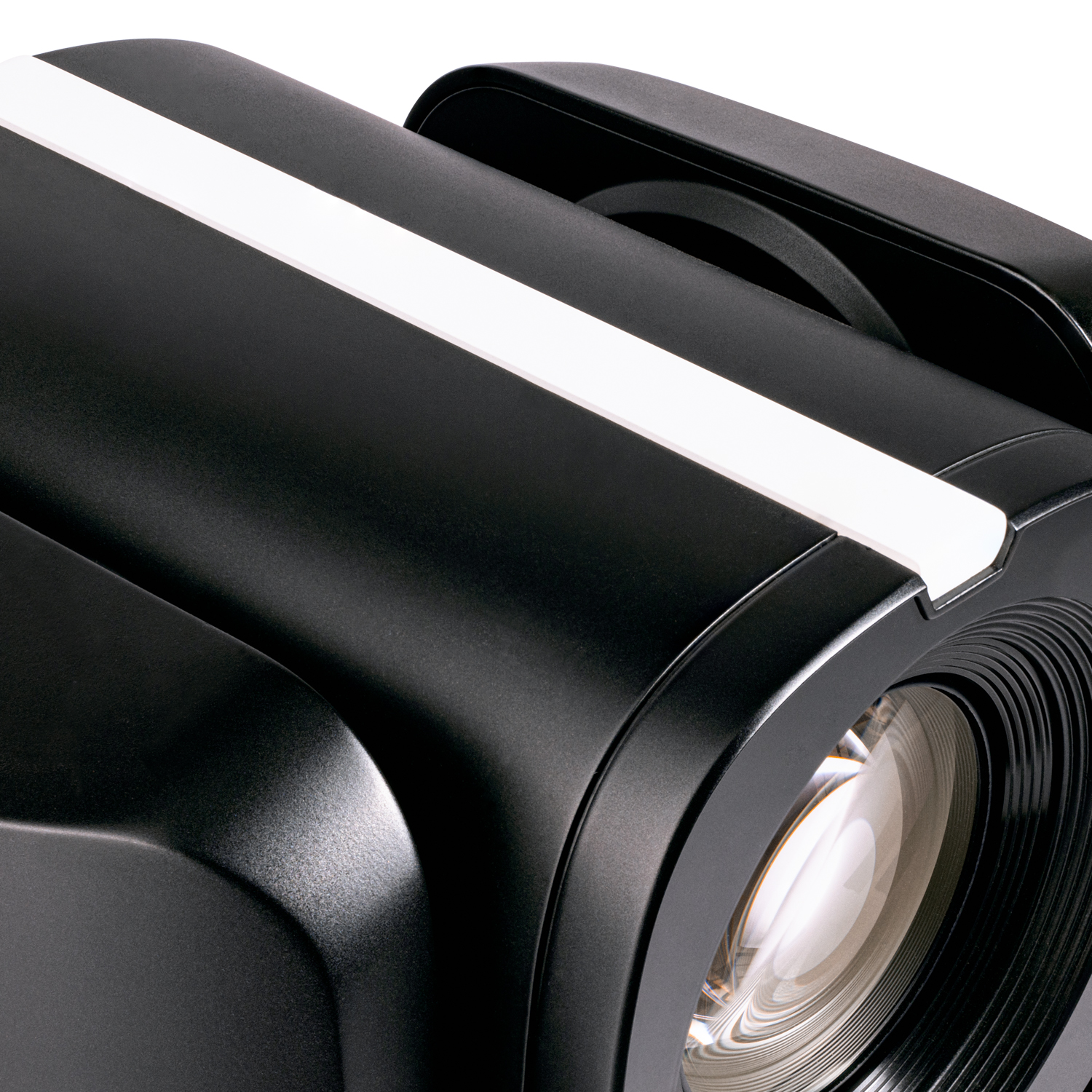

It’s got Talent!
To further ease production workflows, a giant-colored tally above the lens lets your talent know when it’s time to shine.

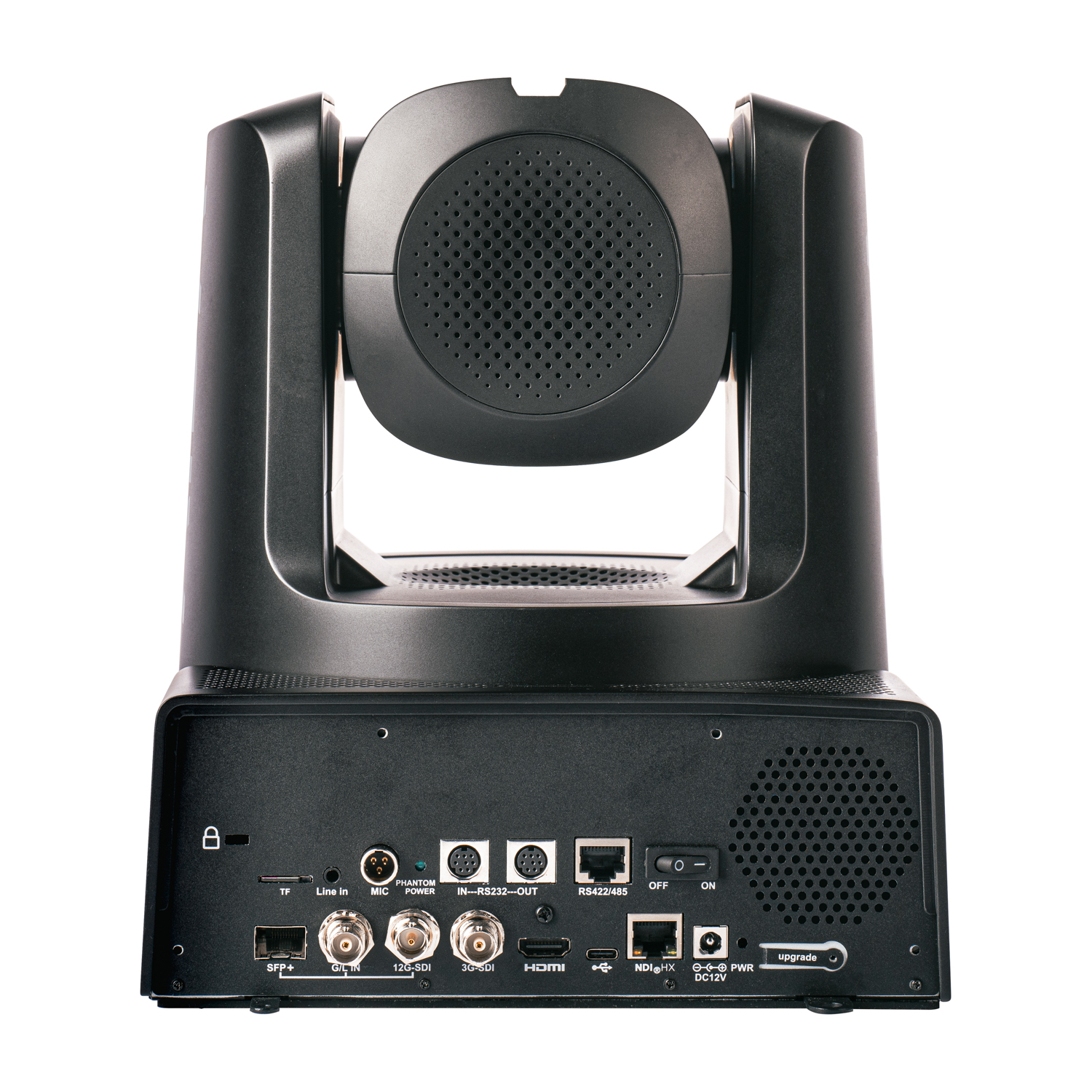

Finally, we got ears.
After lots of feedback, we realize line level input wasn’t enough, so feel free to use the new mini XLR input in the back to embed over your favorite way to stream.
Eye like a Hawk.
Near or Far, the 4K 30X optical zoom module will find you wherever you are!
Let your imagination be FreeD!
Let it all out with Intel’s Free Dimensional Protocol, utilizing PTZ coordinates to create an “unreal” level of immersion to 3D and virtual workflows.
Never out of Sync.
Utilize the genlock port on our PTZ to keep all cameras and hardware in sync at all times!
Tell me you got that, right??
Direct SD recording at timed intervals, or on the fly, is the best thing since sliced bread!
Easier to control than a TV remote
With UDP, TCP, ONVIF, PELCO, VISCA, VISCA-over-IP, NDI® and HTTP, getting this camera to do your dirty work is simple and effective!
There’s never just 1…
The PTZ4K12G-FNDI-X30 comes in both Black and White, aesthetically matching that dream workflow you’ve been cooking up.
Specifications
Video
| Image Sensor | 1/1.8″ Progressive Sony CMOS |
| Signal-to-Noise Ratio | ≥50dB |
| Resolution | 2160p, 1080p, 1080i, 720p |
| Video Resolution Supported | 12G-SDI, SFP+, and HDMI 2.0: 2160p 60/50/30/29.97/25/24/23.98 fps 3G-SDI: 1080p 60/50/30/29.97/25/24/23.98 fps USB Type C: MJPG 2160p30/1080p60/720p60/360p60 Full Bandwidth NDI® / NDI® HX3 / NDI® HX: 2160p 60/50/30/29.97/25 fps |
| Video Outputs | 12G-SDI, 3G-SDI, HDMI, USB, SFP+ slot, RJ45 (NDI®, IP, SRT) |
| Minimum Illumination | 0.5Lux (50 IRE Max AGC,1/30, F1.8) |
| White Balance | Auto/Manual/AT/Push/Indoor/Outdoor/Color Temp |
| Recording | TF card slot |
| Genlock | Tri-level sync |
| VR/AR Tracking | Intel FreeD tracking data transmission over IP |
PTZ
| Pan Rotation Angle | -170° ~+ 170° |
| Tilt Rotation Angle | -90° ~+ 90° |
| Pan Rotation Speed | 0.1° ~+ 80° |
| Tilt Rotation Angle | 0.1° ~+ 60° |
Audio
| Line-in | 3.5mm stereo analog audio input |
| Microphone Input | -90° ~+ 90° |
Optics
| Zoom | 30X UHD Optical Zoom |
| Lens | f=6.91mm ~ 214.64mm |
| F-Stop | F1.35 ~ F4.6 |
| H-FOV | 60°(wide) ~ 2° (tele) |
| Minimum Focus Distance | 5 feet (tele/wide) |
Streaming
| Protocols | UDP/TCP/IP/ONVIF/PELCO/VISCA/VISCAOVERIP/SRT/RTSP/RTMP/NDI®/HTTP |
Camera Control
| Protocols | VISCA over Serial (RS-232, RS-422, or RS-485), VISCA over IP (LAN), NDI PTZ control |
Physical
| Operation Temperature | 32°F – 104°F (0°C – 40°C) |
| Dimensions | 266.7mm x 228mm x 305mm 10.5” x 9” x 12” (when module is straight up) |
| Weight | 4.59 kg / 10.12lb |
| Power | 12VDC (+9 – +15VDC) PoE++ Standard (802.3bt) |
| Package Contents | Remote controller, Camera mounting bracket, Power adapter and cable, Safety harness |
