Science Image NDI HD mini – 3G-SDI 4Kp30 HDMI Full NDI Encoder and Decoder


High-bandwidth NDI converter with encoding and decoding up to 4Kp30, plus 3G-SDI and HDMI inputs and outputs, tally light, and PTZ control over USB.

In stock

  • Free US shipping on all orders over $200
  • 30 day returns (restock fee applies for some items)
  • In stock items ship next business day
Guaranteed Safe Checkout

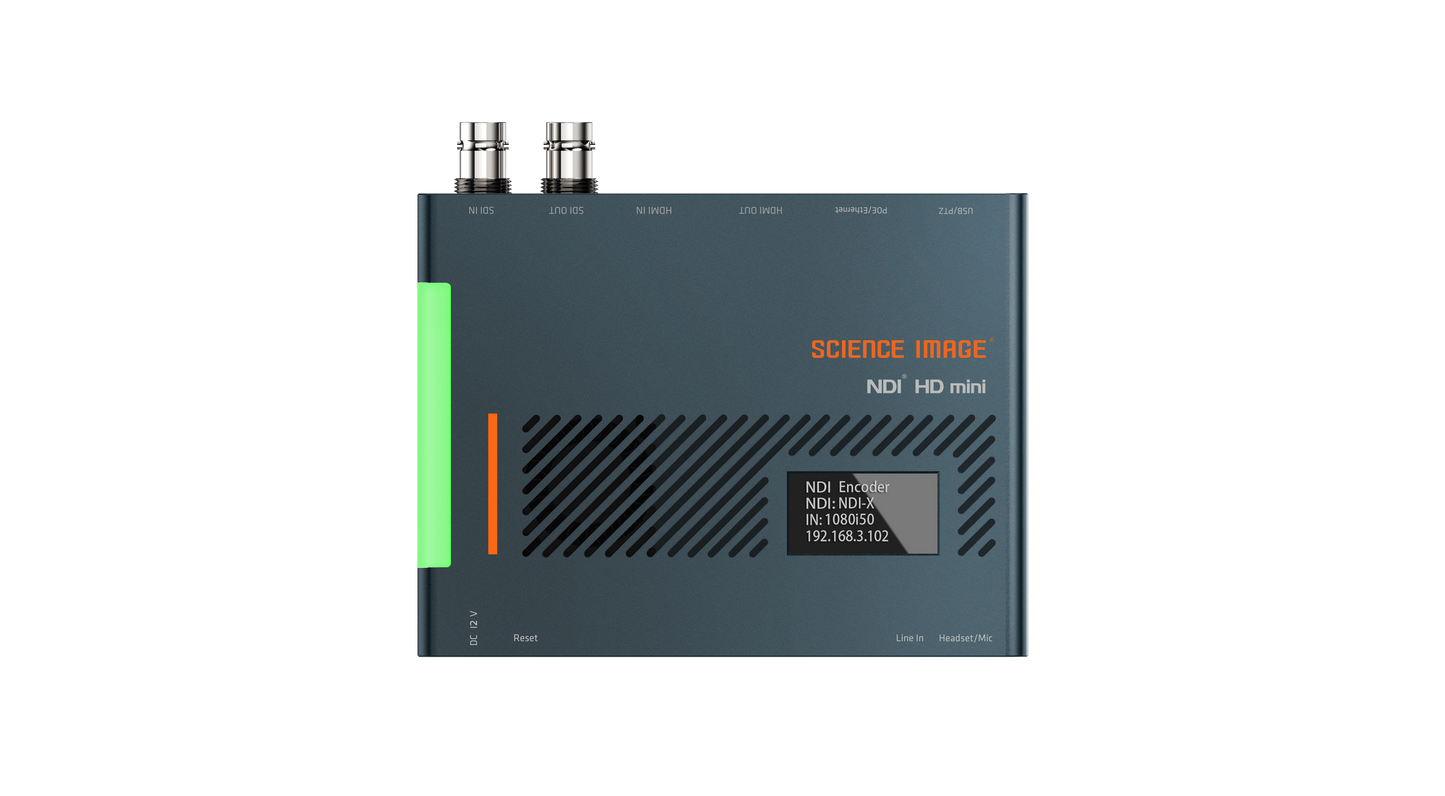

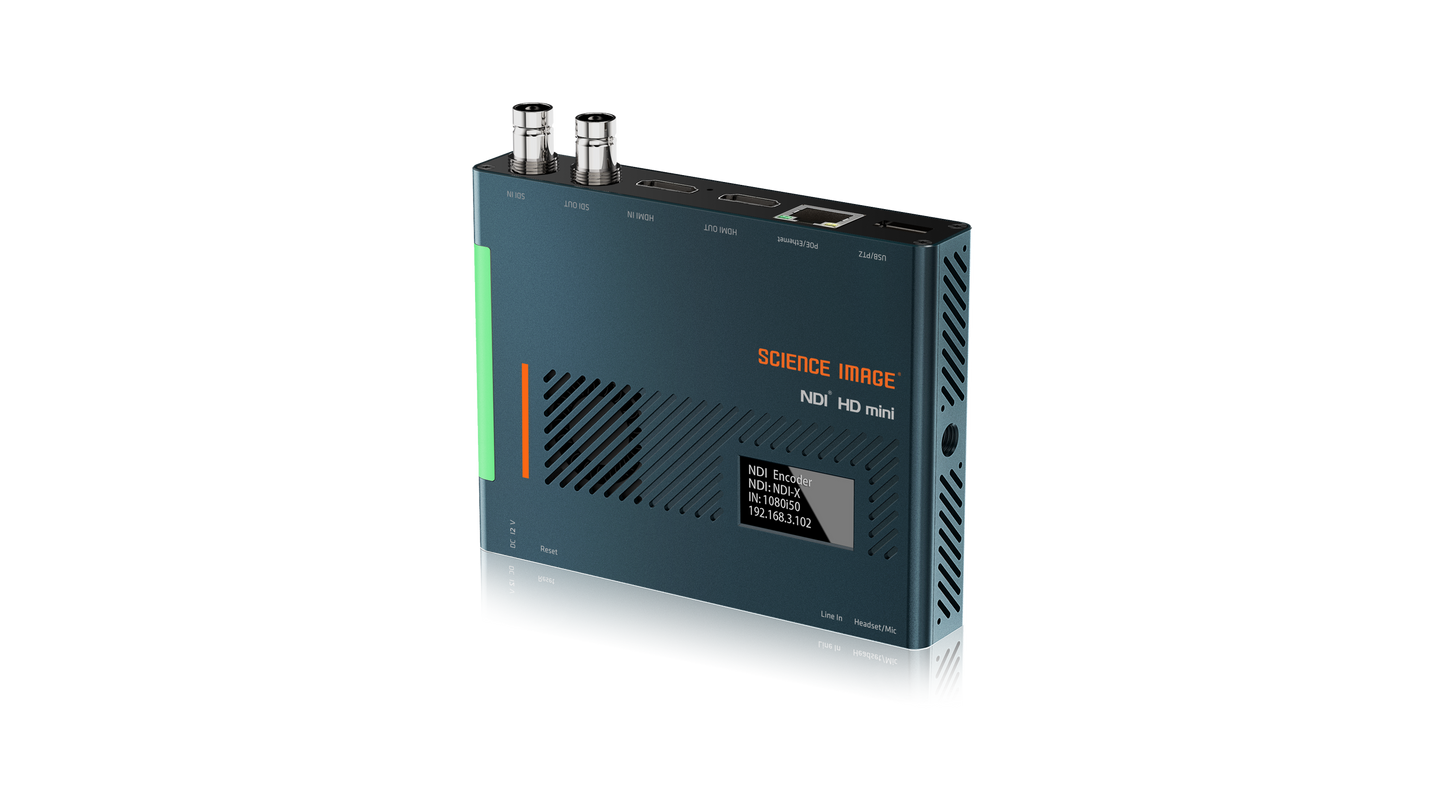

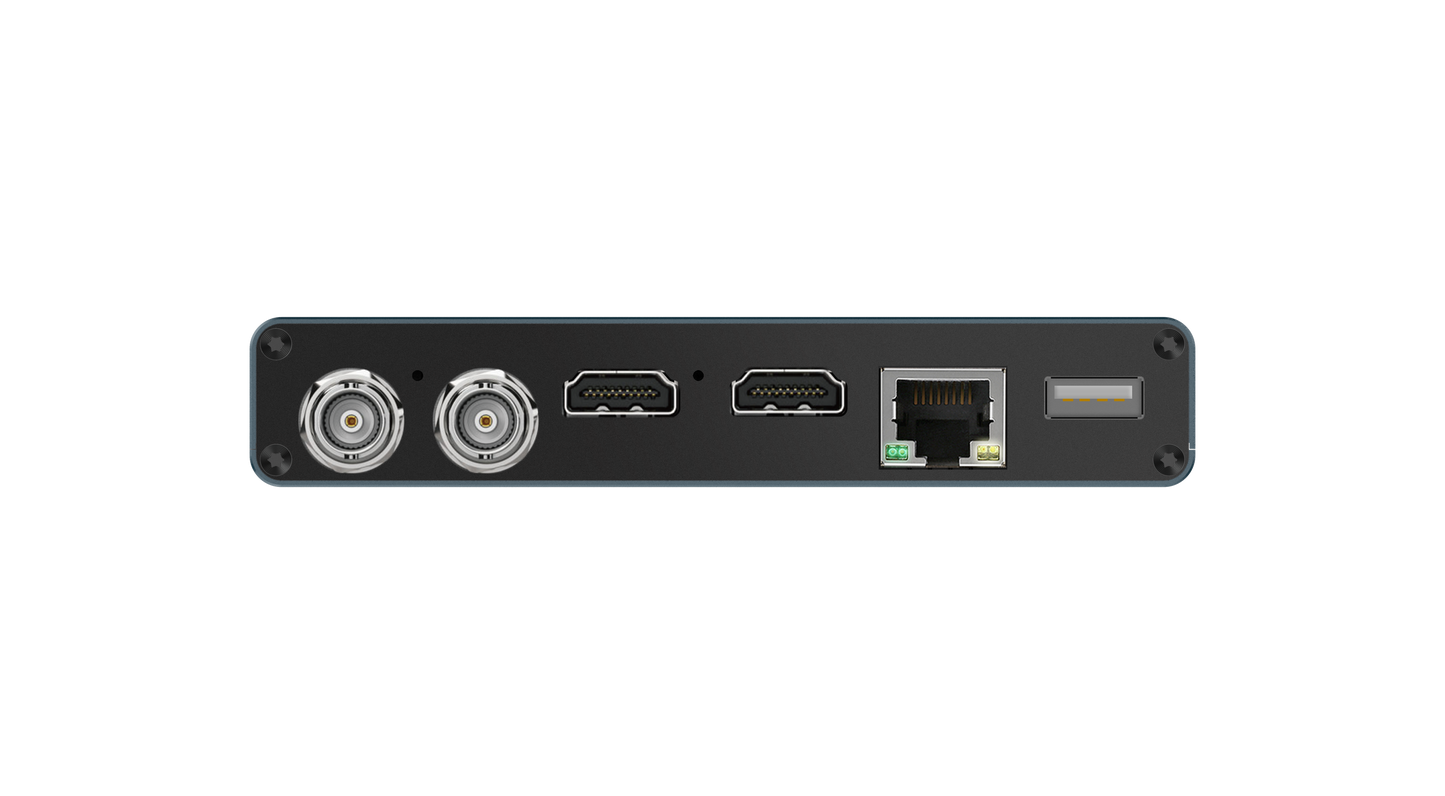

The NDI HD mini from Science Image is compact and rugged bi-directional NDI video encoder and decoder. The NDI HD mini features both 3G-SDI and HDMI 1.4 connections for both input and output, making it capable of both encoding and decoding Full NDI video at up to 2160p30.

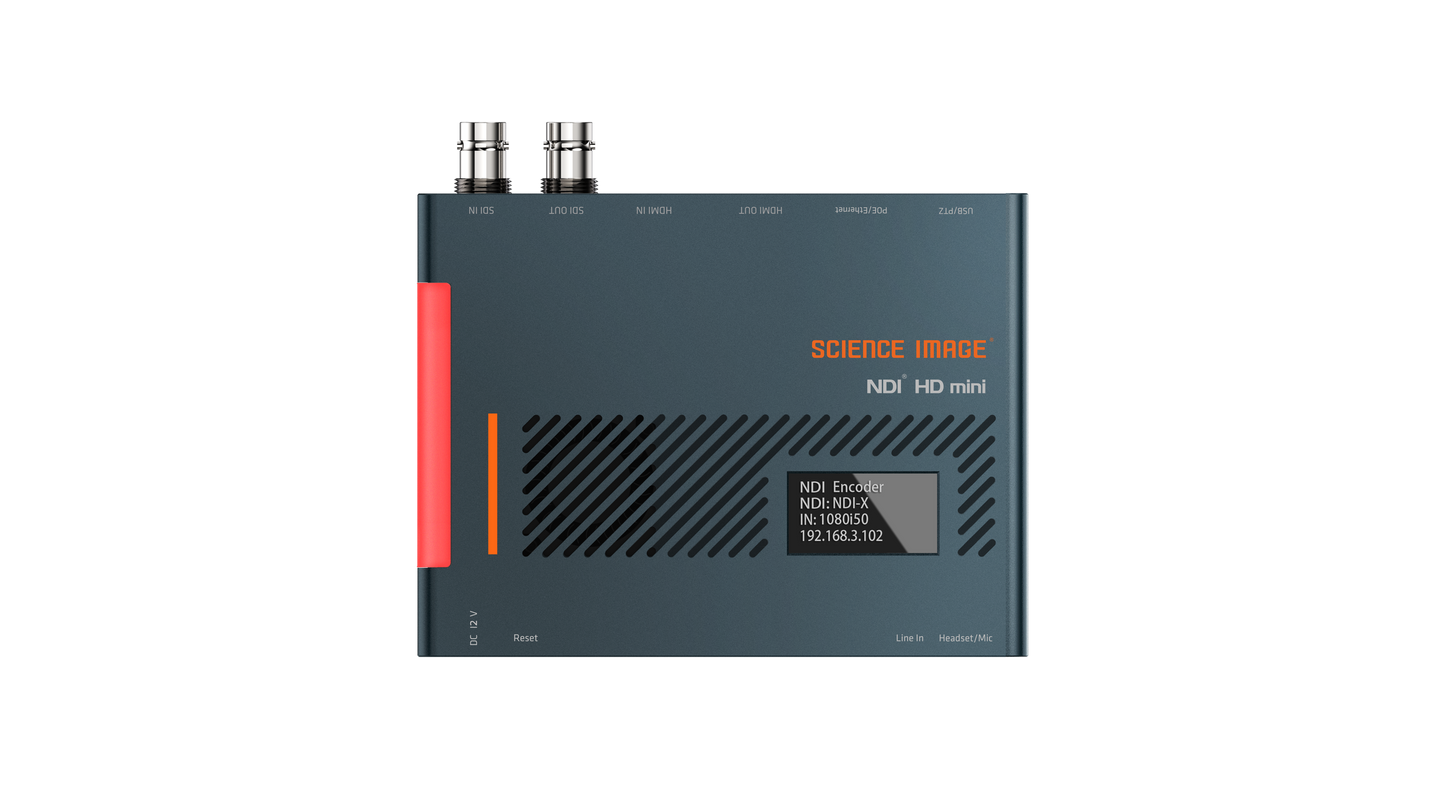

The large built-in tally light is also controlled by NDI, making the NDI HD mini even more handy in a live production environment. Additionally, the device includes a USB PTZ camera control port, allowing it to receive PTZ commands over NDI even if the camera itself is not NDI compatible.

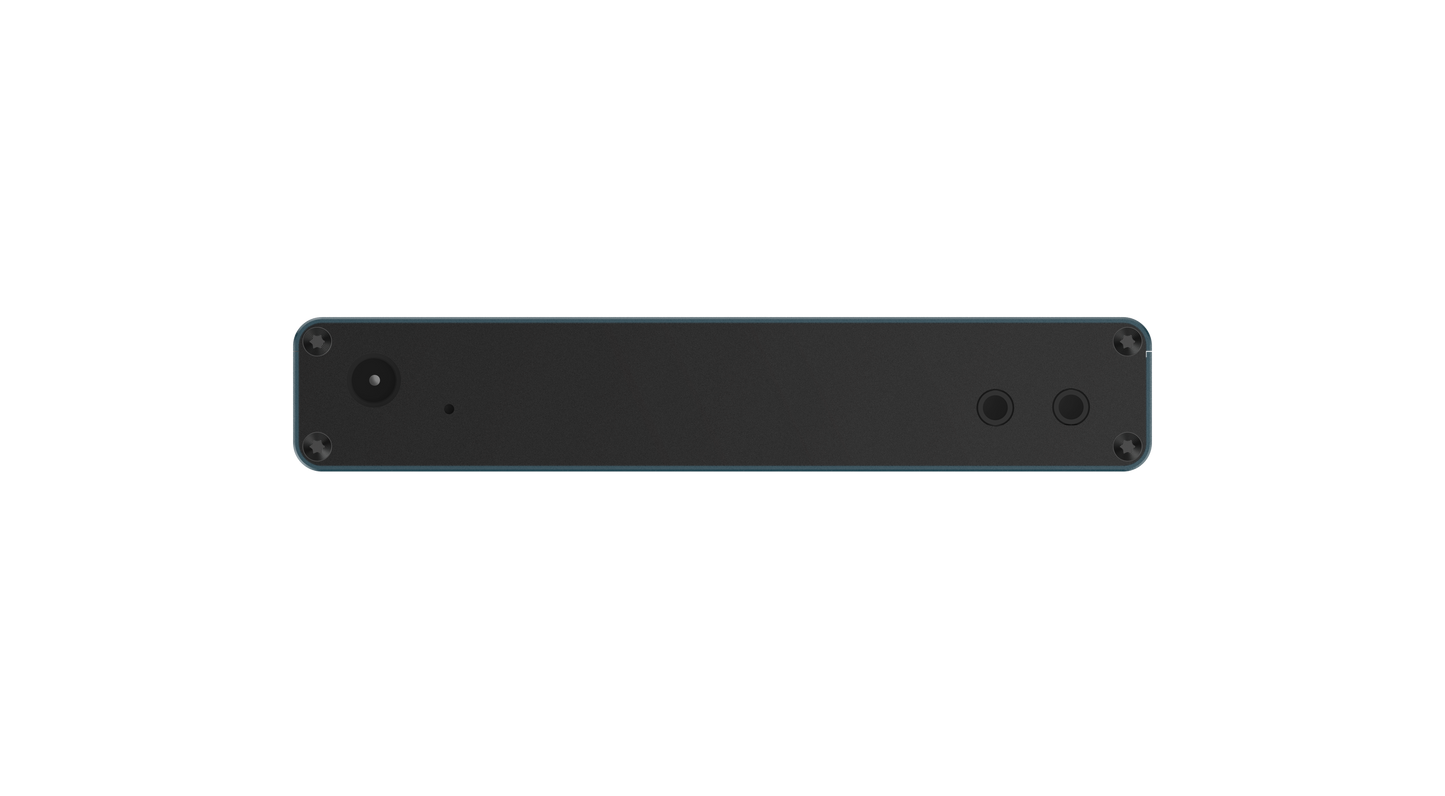

For audio input and output, the Science Image NDI HD mini has stereo audio line-level input and headphone output, both using standard 3.5mm (1/8″) jacks.

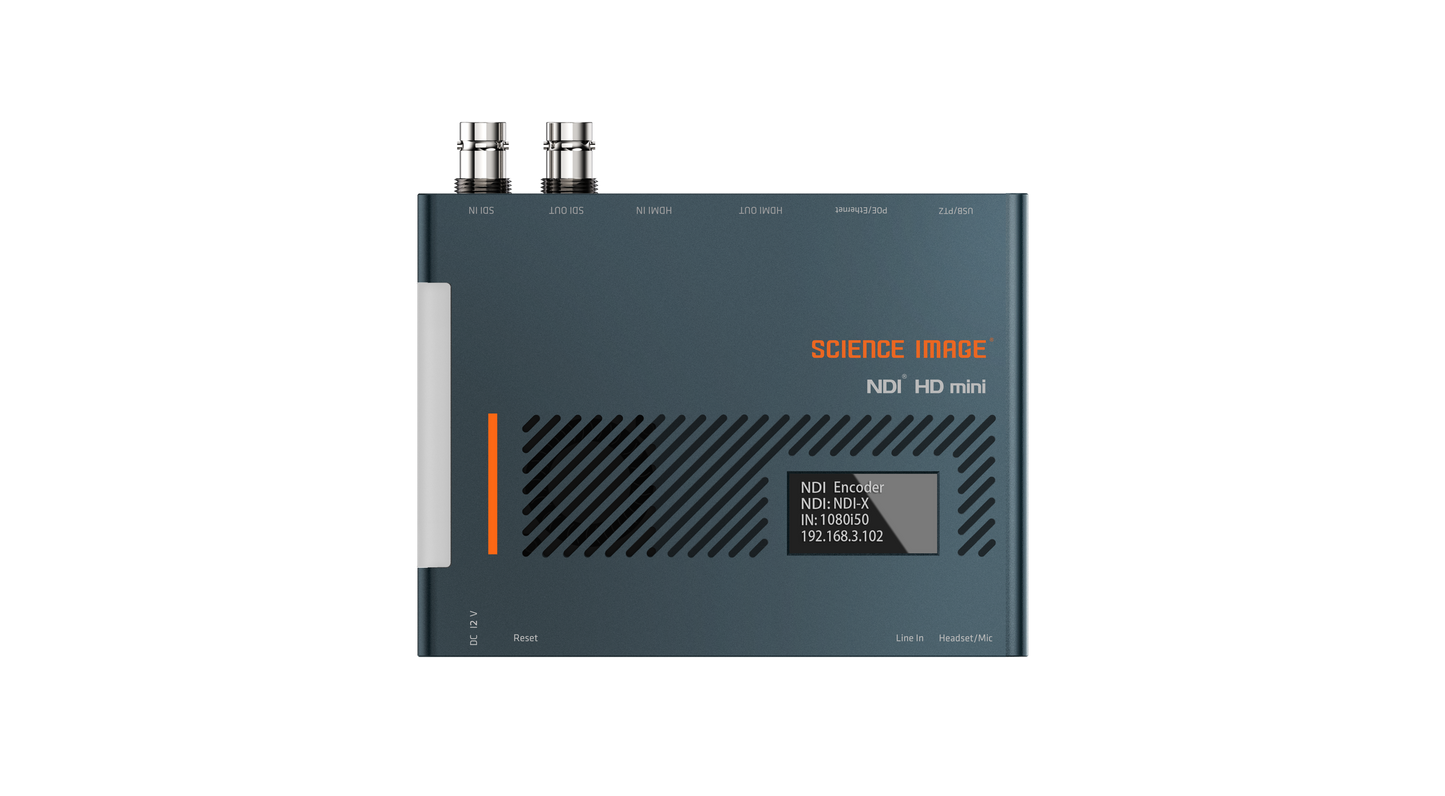

To quickly view the device’s settings, a convenient 1.3-inch OLED screen displays the unit’s working status and parameters, input/output format and other content in real time.

Video Format

SDI video format
SD/HD/3G-SDI video formats525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
SDI specificationSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
SDI video sampling4:4:4
SDI audio sampling rate48kHz, 24-bit
SDI color accuracy4:4:4
SDI color spaceYUV and RGB
 HDMI video format
HDMI HD video formats525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
4K video format2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
HDMI color spaceYUV
HDMI color accuracy4:4:4
SDI video input1 x 1.5G/3G-SDI, adaptive input, automatic switching
SDI video output1 x 1.5G/3G-SDI, adaptive output, automatic switching
HDMI video input1 x HDMI 1.4 Type A interface supports up to HDMI 4K30p input, backward compatible
HDMI video output1 x HDMI 1.4 Type A interface supports maximum HDMI 4K30p output, backward compatible
LINE IN audio input port1 x LINE IN 3.5mm audio input port for external analog audio embedding
MIC Intercom input and output port1 x Mic 3.5mm audio input and output port (De-Embed), used for NDI Intercom (with Laudo software required)
USB 2.0 Type A port1 x USB 2.0 Type A interface, used to control a third-party PTZ camera
1.3 inch OLED screen1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate
Tally LightLarge-size semi-transparent matte TALLY light guide block with three TALLY states transmitted through NDI in real time:  Green/Preview, Red/Program
Network and requirementsGigabit Ethernet switch and Gigabit Ethernet card.
Software, operating system, support platformBuilt-in Linux, application control software Science Image Laudo.
Supports Windows 8.1 and 10 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher.
Support IE/Edge/Firefox/Chrome/Safari/Opera and other browsers.

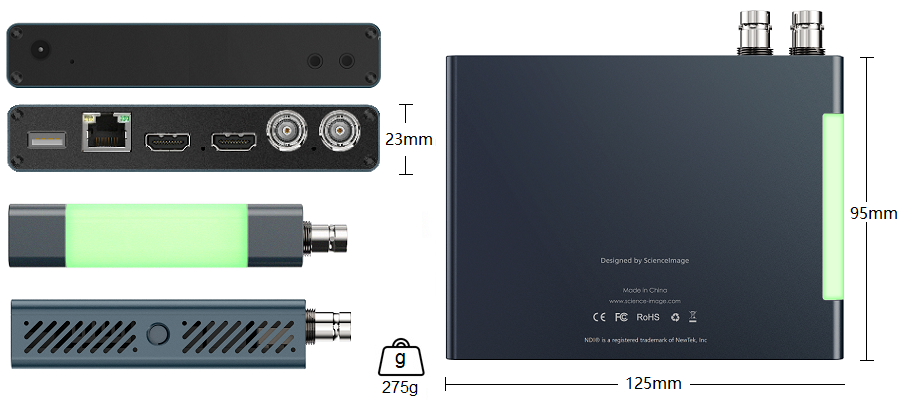

size125mm x 95mm x 22mm
materialaviation-grade milled aluminum
Power supply
power supply requirementsThree power supply modes: 5-18V DC, POE (802.11af/at), USB
power consumption10W
Operating temperature5°C to 40°C
Storage temperature-20° to 60° C (-4° to 140° F)
Relative humidity0% to 90% non-condensing
Packing ListNDI HD mini
Quick start manual

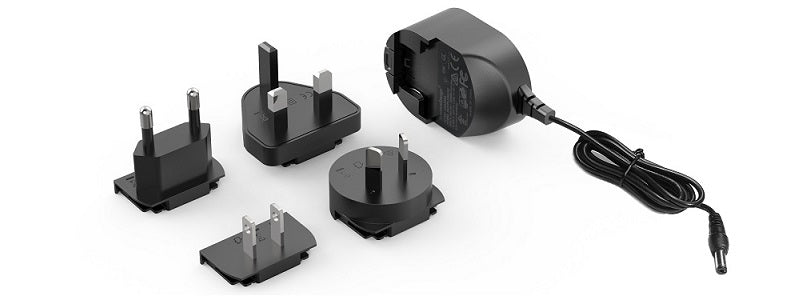

12V universal power supply (includes four sets of international conversion plugs)
Warranty1 year limited manufacturer’s warranty

Additional information

Weight3 lbs
Dimensions8 × 6 × 4 in
