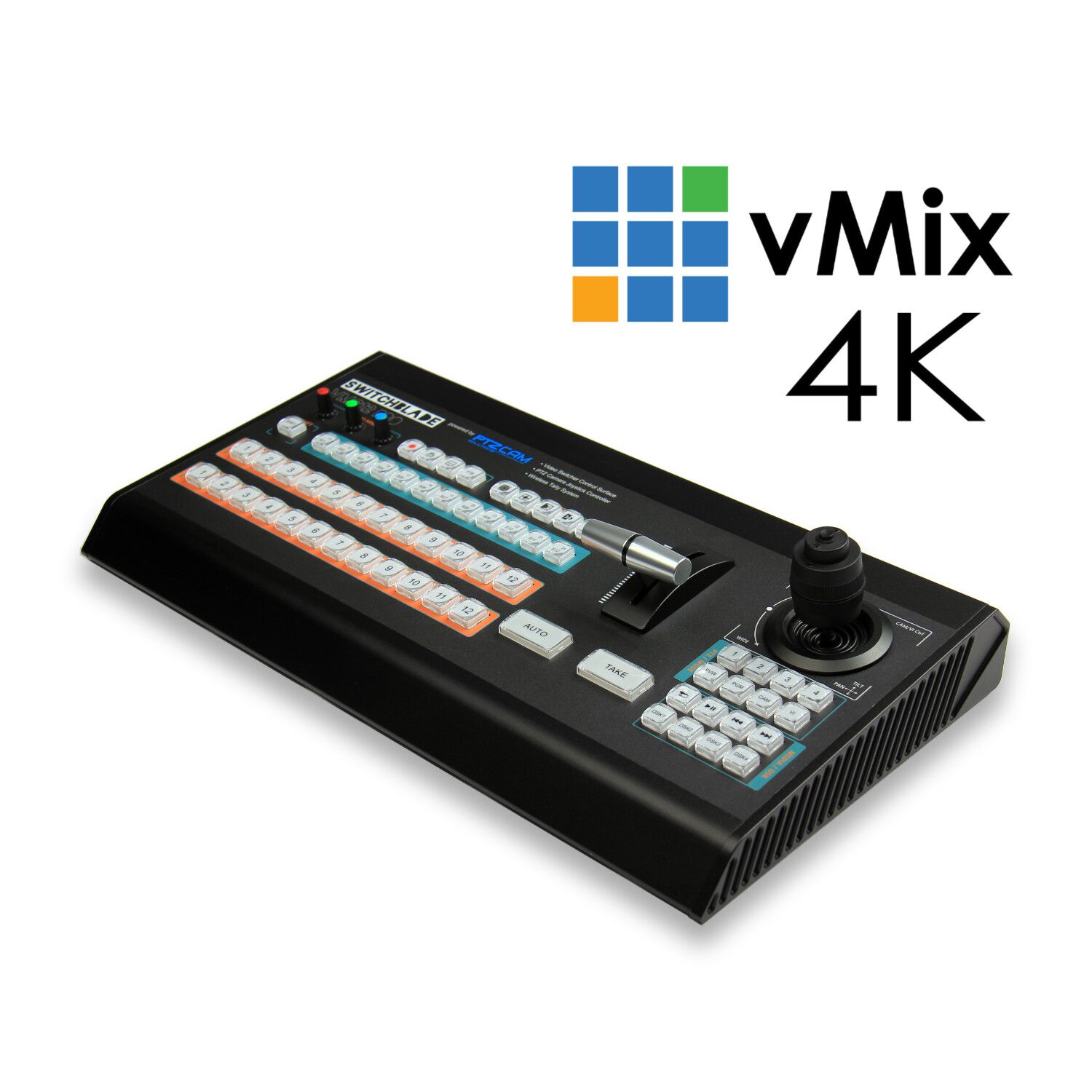

Take control of your live streaming events with vMix 4K and the Switchblade VMC12 PRO control surface. The VMC12 PRO features 12-channel preview/program buttons and PTZ camera controls. This discounted bundle includes the VMC12 PRO and a perpetual license of vMix 4K.
More about the VMC12 PRO switcher and PTZ controller:
The Switchblade VMC12 PRO is a compact hardware control surface for vMix. With all the essential features of vMix at the touch of a button, your live productions will be easy to manage without resorting to a mouse and keyboard. The VMC12 PRO is ideal for productions that use PTZ cameras in conjunction with vMix, making it a valuable tool for high schools, colleges, and churches in particular.
The VMC12 PRO features preview and program rows for 12 channels, audio knobs, T-bar, and a high-quality PTZ joystick. The controller requires only a single USB cable connected to your computer’s USB port where it receives power and data. Only a MIDI configuration file is required to map all the buttons to vMix, which can also be customized to your liking.
Key Features:
- 64 high-quality, LED backlit buttons, including:
- Two rows of 12-channel preview and program buttons
- Shift button to access additional channels 13-24
- 12 title/overlay buttons for both preview and program
- Four shortcut function buttons for record, stream, external screen output, and fade-to-black
- Five auto-transition buttons
- Large Auto and Take channel switching buttons
- Four Media/DSK1 shortcut buttons
- Media playback buttons, including Play/Pause, Previous, Next, and Loop
- Built-in PTZ control section, including:
- High-quality PTZ joystick
- 4 camera preset buttons
- Preview, Program, Camera, and VI
- USB powered from the host computer
- RS232 for serial PTZ camera control
- Optional wireless tally lights
Technical Specifications:
- Input Voltage: USB 5V 300mA
- Ports: USB Type-B, DB-9 RS232, WiFi (for wireless tally)
- Communication Protocols: USB, MIDI, RS232
- PTZ Protocols: VISCA, VISCA over IP*, PELCO-D, PELCO-P, and NDI*
* Requires vMix and LAN connection to cameras through the host computer - Power Source: USB port, nominal voltage 5 VDC
- Material: Aluminum and Steel
- Weight: 6.6 lbs / 3 kg
- Dimensions: 18″ W x 9.5″ D x 3″ high (not including PTZ joystick) / 457.2mm x 241.3mm x 76.2mm
More about vMix 4K streaming software:
| BASIC HD | HD | 4K | PRO | |
|---|---|---|---|---|
Free Updates  | First 12 months | First 12 months | First 12 months | First 12 months |
| Total Inputs | 4 | 1000 | 1000 | 1000 |
| Camera / NDI Inputs | 3 | 1000 | 1000 | 1000 |
| Maximum Resolution | 1920 x 1080 | 1920 x 1080 | 4096 x 2160 | 4096 x 2160 |
| Overlay Channels | 1 | 4 | 4 | 4 |
| Recording | ✔ | ✔ | ✔ 2 Recorders | ✔ 2 Recorders |
| Streaming Including 3 simultaneous live streams | ✔ | ✔ | ✔ | ✔ |
| Fullscreen Output | ✔ | ✔ | ✔ | ✔ |
| External Output | ✔ | ✔ | ✔ | ✔ |
| GT Designer Standard 100+ Built-In Animated Titles, ScoreBoards, Tickers | ✔ | ✔ | ✔ | ✔ |
| GT Designer Advanced Custom Animated Titles and Import PSD’s | ✗ | ✗ | ✔ | ✔ |
| Playlist | ✔ | ✔ | ✔ | ✔ |
| Professional Color Correction | ✔ | ✔ | ✔ | ✔ |
| Video List | ✗ | ✔ | ✔ | ✔ |
| vMix Call | ✗ | ✔ 1 Caller | ✔ 4 Callers | ✔ 8 Callers |
| MultiCorder | ✗ | ✗ | ✔ | ✔ |
| Instant Replay | ✗ | ✗ | ✔ 1 Camera | ✔ 8 Cameras |
| Two External Outputs Two Fullscreen Outputs Four Virtual Outputs | ✗ | ✗ | ✔ | ✔ |
| Scripting | ✗ | ✗ | ✔ | ✔ |
| PTZ Control | ✗ | ✗ | ✔ | ✔ |
| SRT Outputs | ✔ 1 | ✔ 1 | ✔ 4 | ✔ 4 |
| Vertical HD (1920p) | ✗ | ✗ | ✔ | ✔ |
