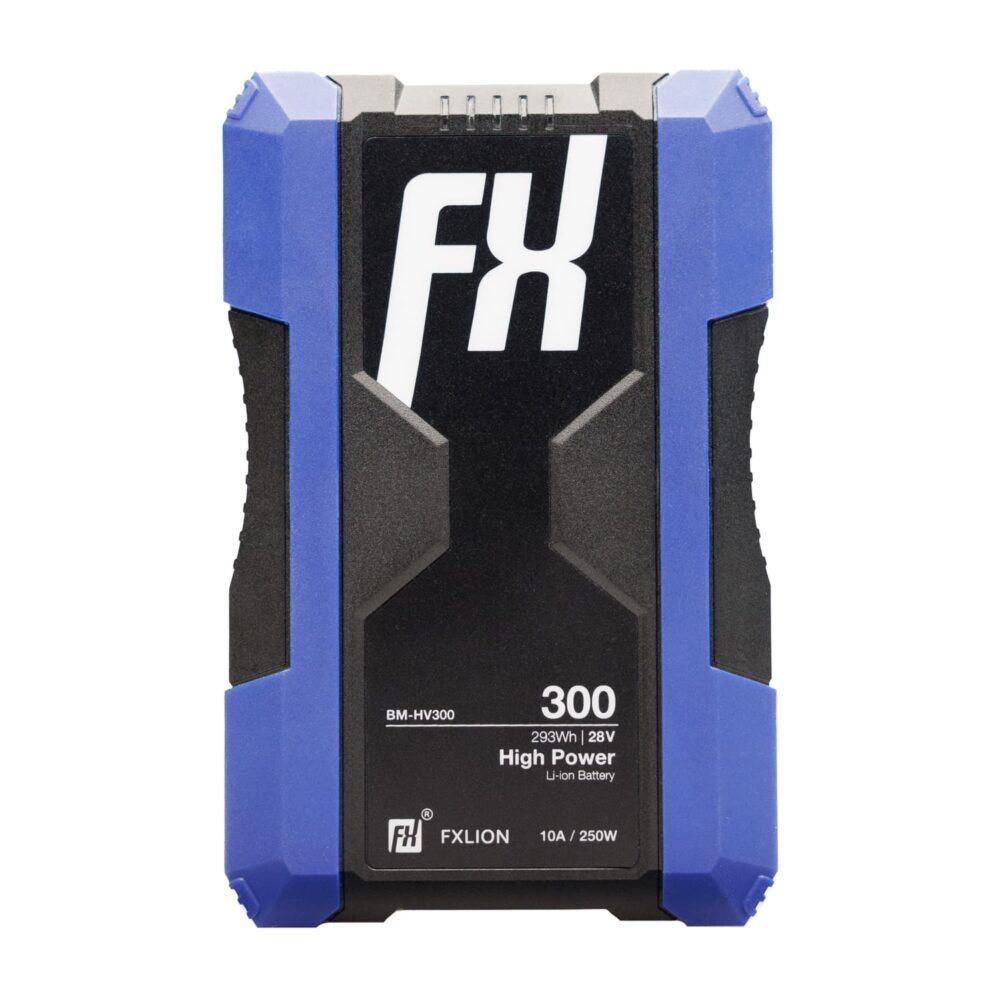

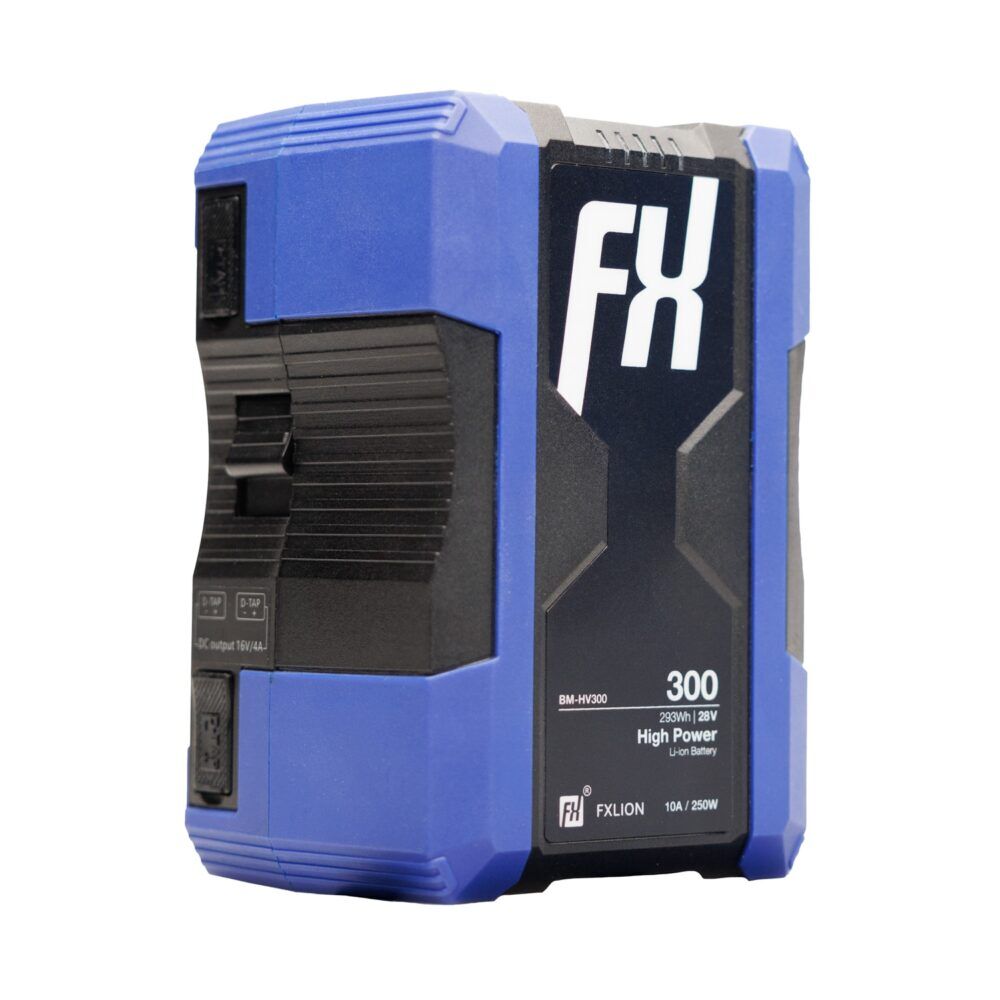

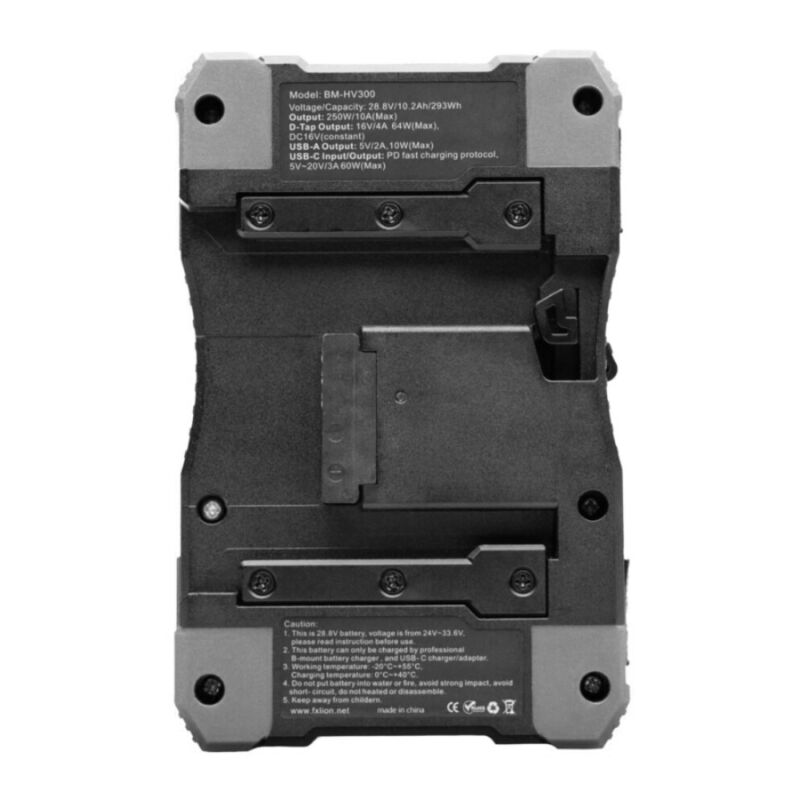

High-power 28.8V/293Wh B-mount battery for MS XL system (FXLION BM-HV300)
Description
The B-Mount Battery is a cutting-edge design jointly developed by ARRI and Bebob. It has been created to establish a new, future-proof industry standard. Compared to V- and Gold-Mount batteries, the B-Mount Battery offers several advantages:
With additional data pins, the B-Mount Battery allows communication between the camera or luminaire and the battery. For example, it can report the status of battery capacity and cycles.
The internal release mechanism of the B-Mount Battery allows for even smaller battery plates than with V- or Gold-Mount plates. This is a significant advantage, especially as cameras continue to shrink in size. The new release mechanism also facilitates quick battery changes while on set.
B-Mount batteries are available in various designs and power specifications, with a minimum output of 15 amps at 24 Volts. Our chargers can charge the batteries with up to 4 Amps of current.
Specifications
| Capacity | 10.2Ah/293Wh |
|---|---|
| Voltage | 28.8V |
| Load | 10A / 250W (max.) |
| D-Tap Outputs | Yes (2x) 16V 60W (max.) |
| USB-A Output | 5V/2A 10W (max.) |
| USB-C In-&Output | 5V~20V/3A 60W(max.) |
| Dimensions | 154mm x 100mm x 87mm (LxWxH) |
