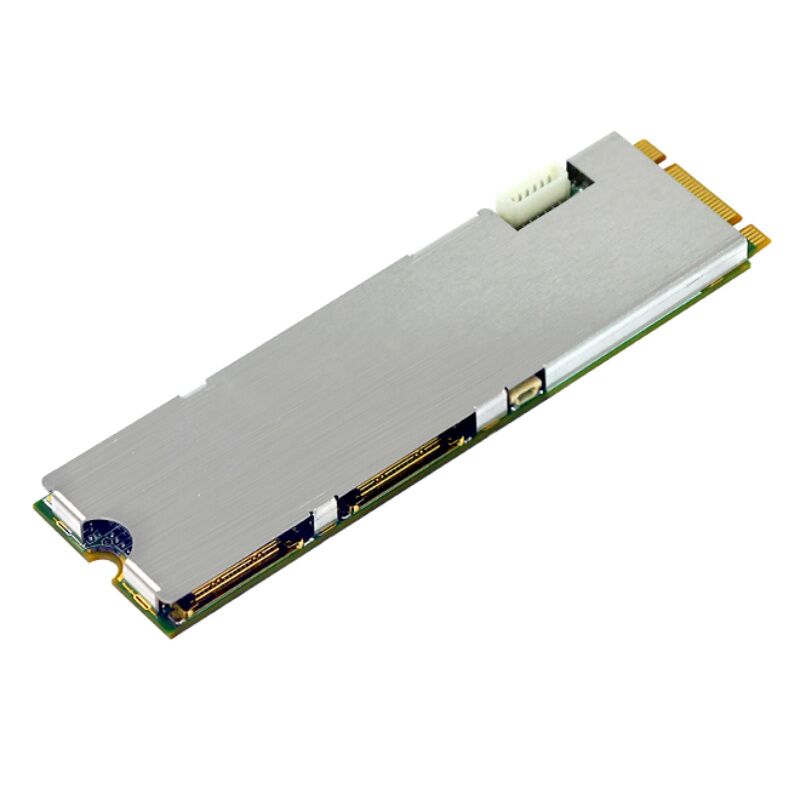

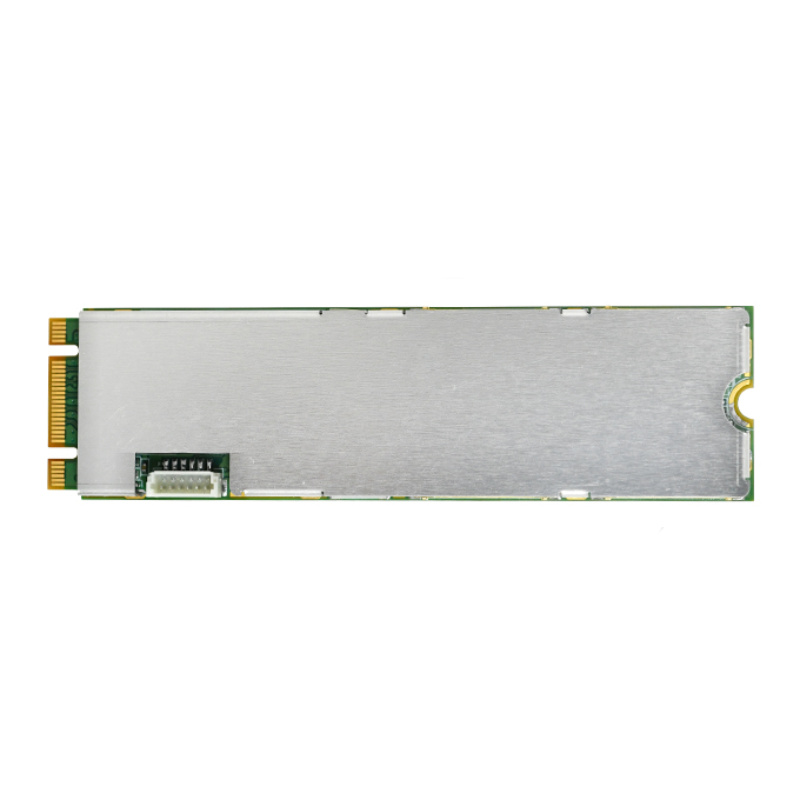

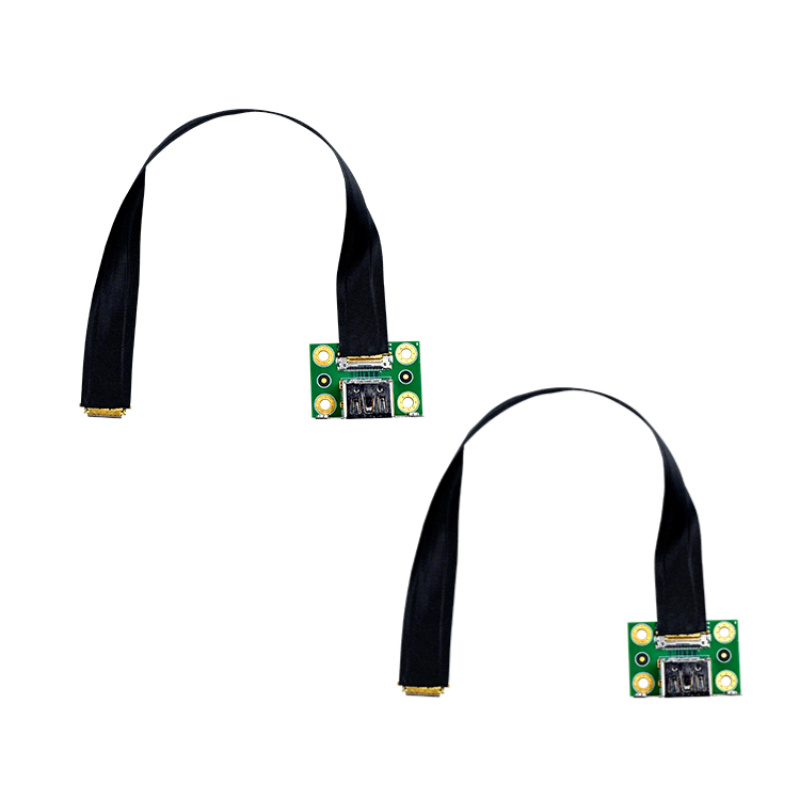

2-channel HDMI capture card with cables and connectors. Up to 1080p60, M.2 2280 PCI Express x4 interface
Technical Specifications
Main
| Max. Input Resolution |
1920×1080p@60/50fps |
| Video Input |
2×HDMI |
| Dimension |
22×80 ( mm )
M.2 Type B/M |
| Interface |
M.2 ( PCIe×2 ) |
| Feature |
Multi Instances
Multi Devices |
Video
| Video Input Detail |
HDMI |
| Video Output |
N/A |
| Color Format |
Capture/Preview:
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode |
N/A |
| Video Processing |
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances |
| Video Resolutions |
HDMI:
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps※More resolution supported by SDK |
Audio
| Audio Input |
2×Stereo Embedded Audio |
| Audio Format |
Stereo / 16-bit / 32000 ~ 48000Hz |
Software
| Supported Software Applications |
vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting※DirectShow/V4L2 Compatable Software Supported |
| SDK |
Windows and Linux SDK |
| OS Support |
Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
