Yuan SC410 N4 6G-SDI – 4-channel 4Kp30 PCIe x4 capture card

$699.00

Reliable and affordable 4-channel 6G-SDI capture card supporting 4K resolutions up to 30 fps

Special Order

Yuan SC410 N4 6G-SDI - 4-channel 4Kp30 PCIe x4 capture card $699.00
  • Free US shipping on all orders over $200
  • 30 day returns (restock fee applies for some items)
  • In stock items ship next business day
Guaranteed Safe Checkout

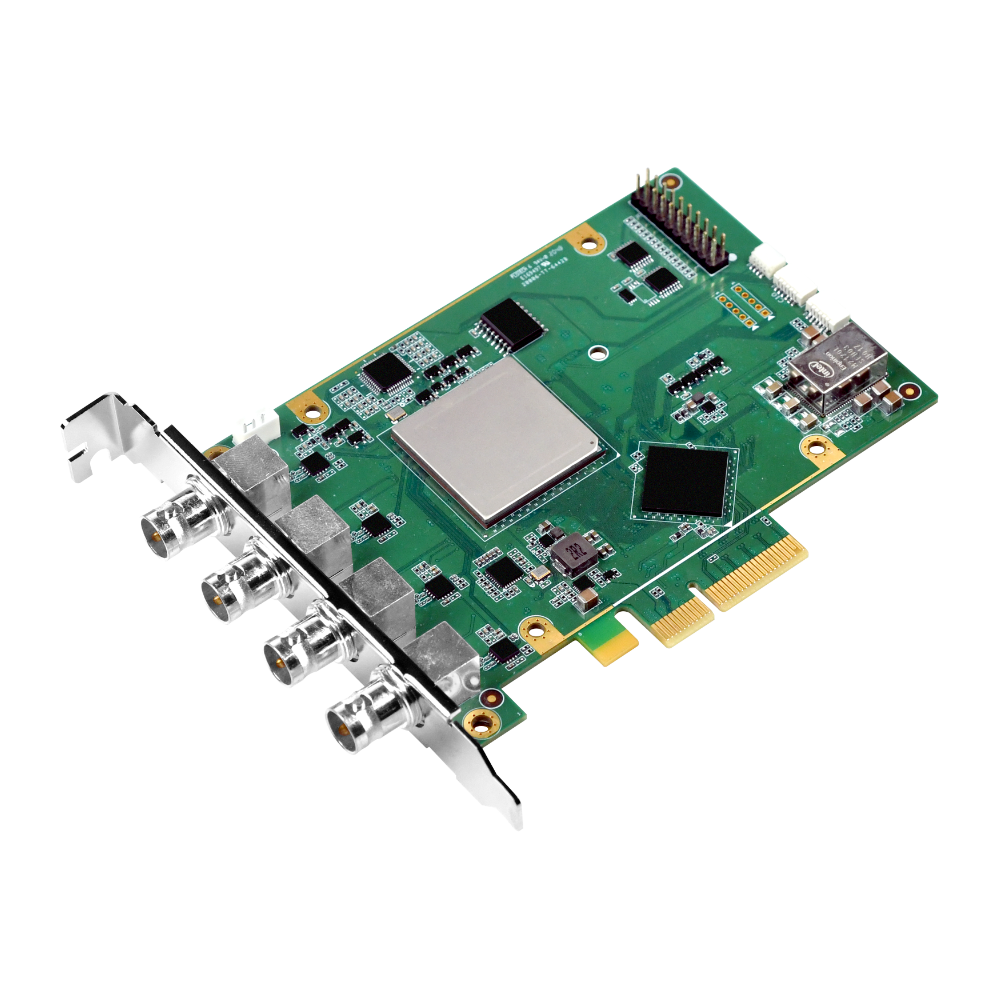

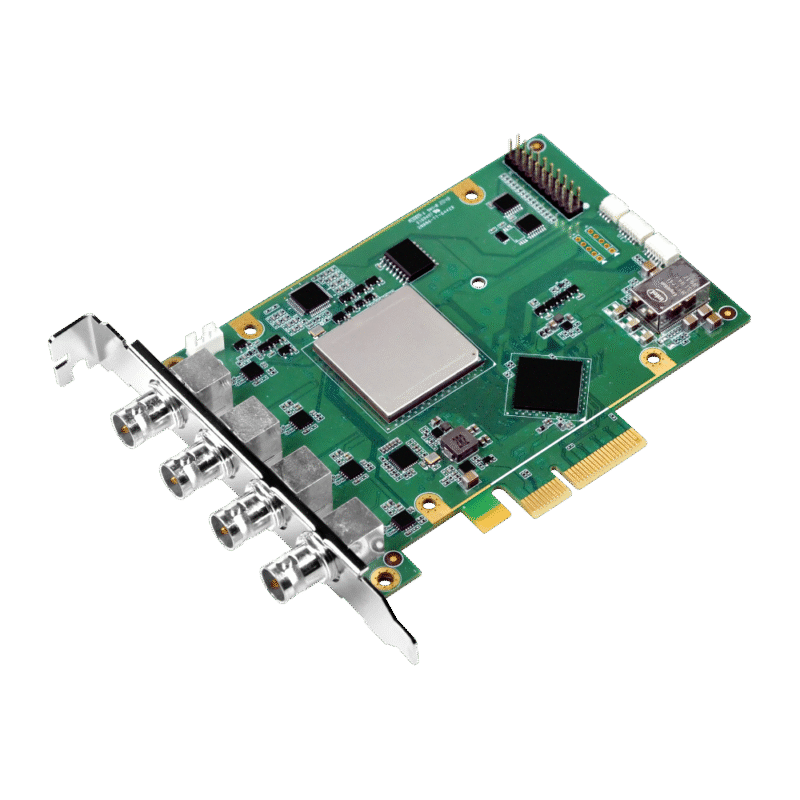

The SC410N4 6G-SDI from Yuan High-Tech is a PCI Express Gen2 x4 video capture card capable of ingesting up to four (4) channels of simultaneous video and audio from SDI sources. With this board installed in any computer you can capture high-quality video into any supported streaming and recording software, such as vMix, OBS, Zoom, or Skype.

Each input supports up to 4K (4096×2160) resolution at 30 fps and Full HD (1920×1080) at 60 fps. The SC410N4 6G-SDI also supports high color depth at up to 4:4:4 8-bit RGB32 and 4:2:0 10-bit P010. This ensures that you are able to capture the most accurate reproduction of your video sources without quality loss.

Technical Specifications

Inputs:

4x 6G-SDI

Computer Interface:

PCI Express 2.0 x4

Dimensions:

3.6-in (H) x 4.873-in (L) (91.5mm  × 123.79mm)

Supported Video Resolutions:

6G-SDI:
3840×2160p@30/25fps

3G-SDI:
1920×1080p@60/50fps

HD-SDI:
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps

SD-SDI:
720×480i@60fps
720×576i@50fps

Video Processing:

Video, Audio and VANC Capture
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances

Color Formats:

4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010

Audio:

4x Embedded Stereo Audio Channels, Up to 16-bit / 48KHz

Supported Software:

vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting
(Other software applications that support Windows DirectShow or Linux V4L2 drivers are also generally compatible)

Operating System Support:

Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 2.6.14 or Higher (32-bit and 64-bit)
Linux ARM
NVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX



Additional information

Weight1 lbs
Dimensions10 × 7 × 3 in

Brand

YUAN High-Tech
