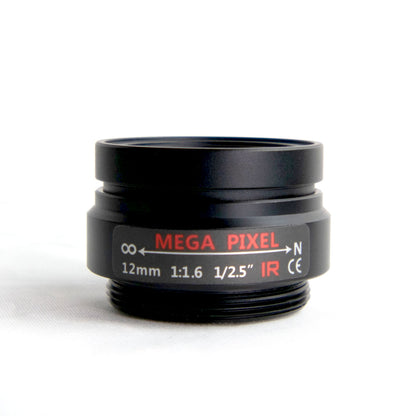

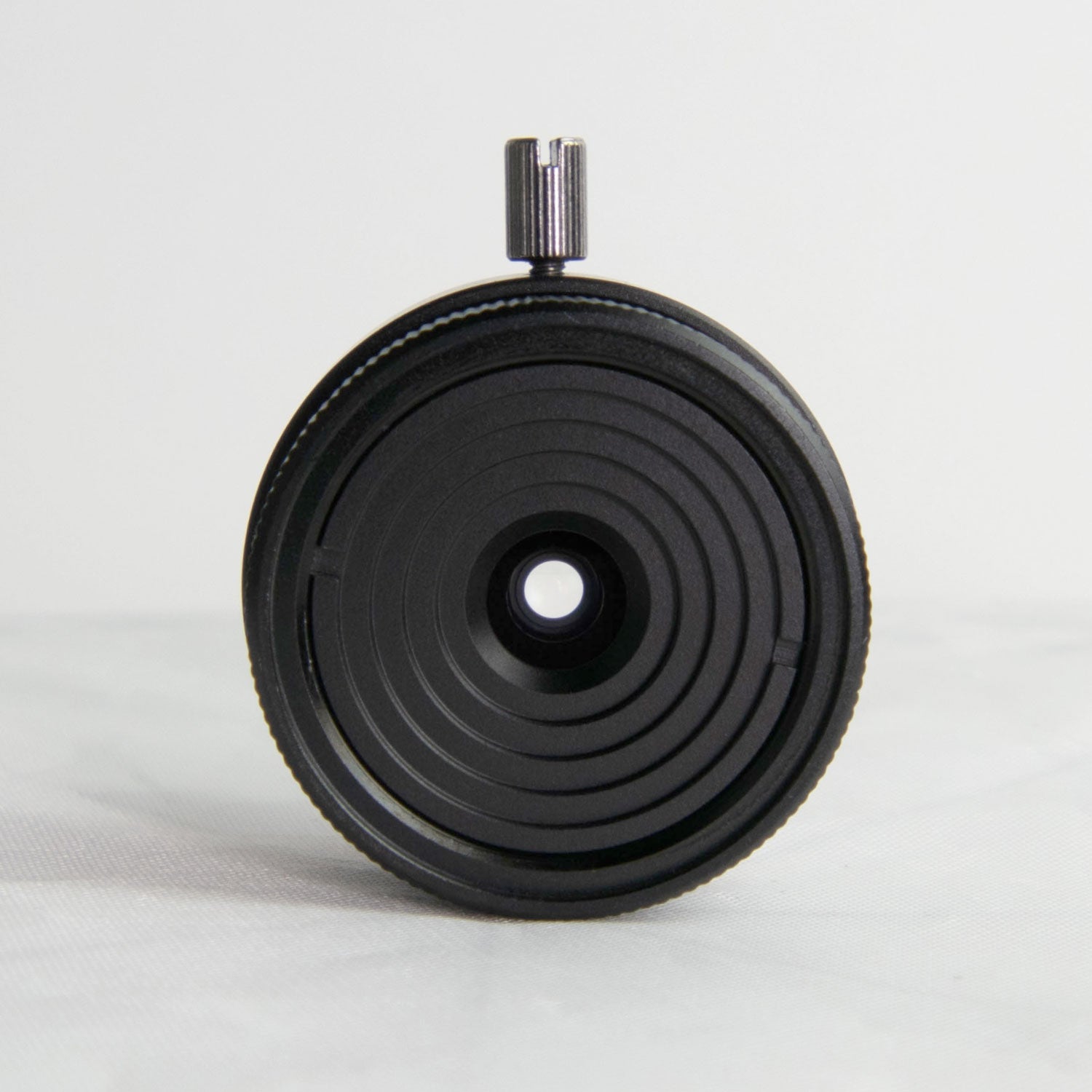

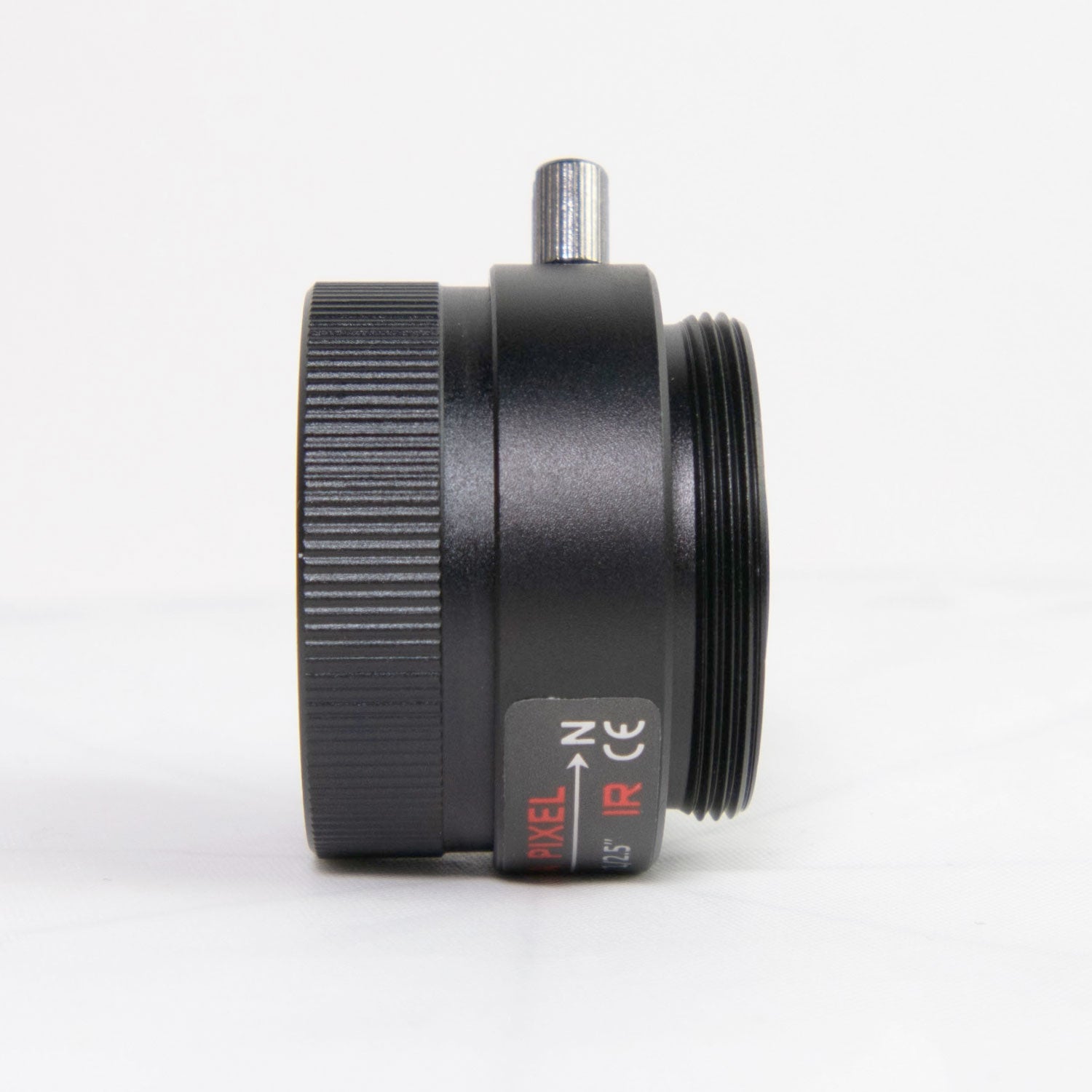

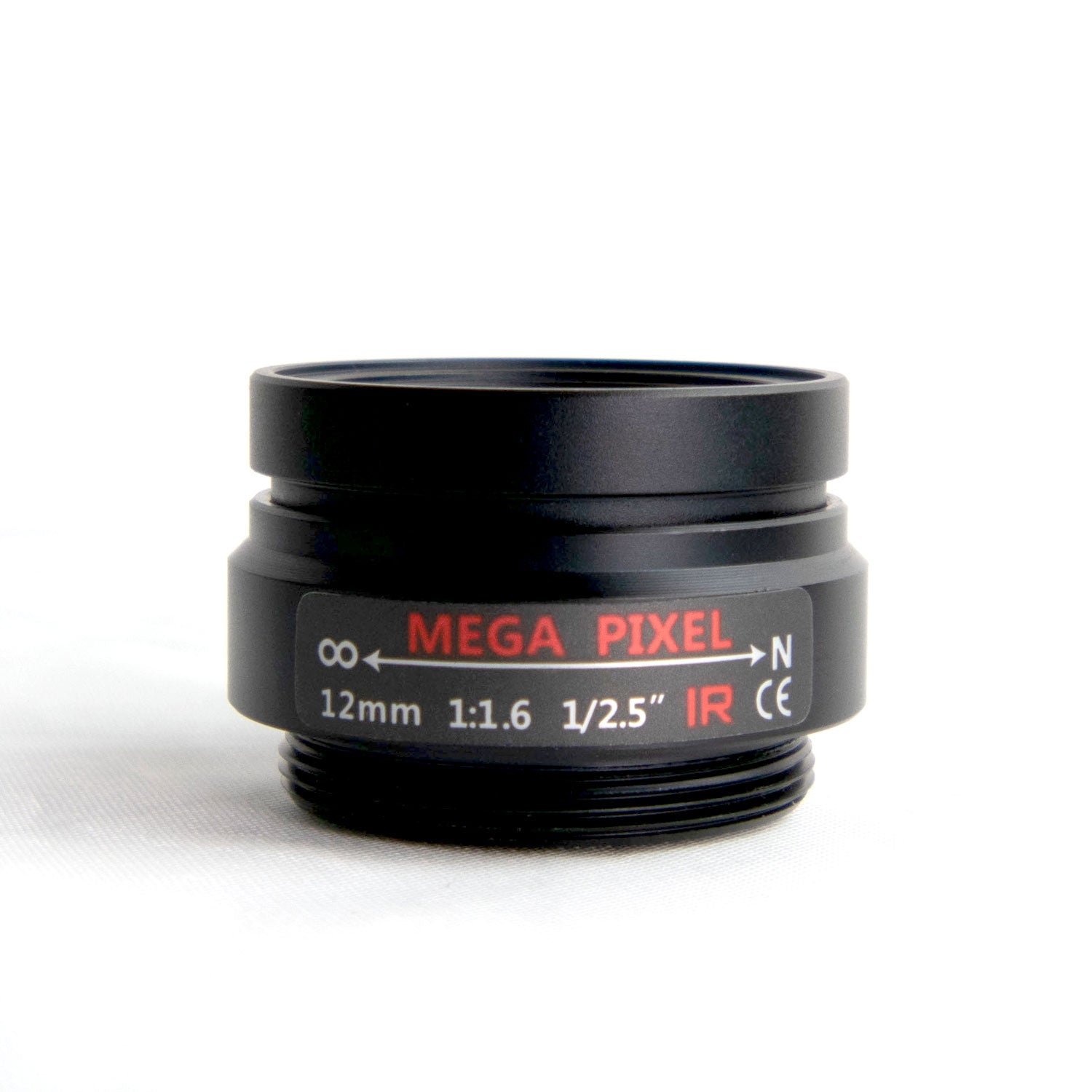

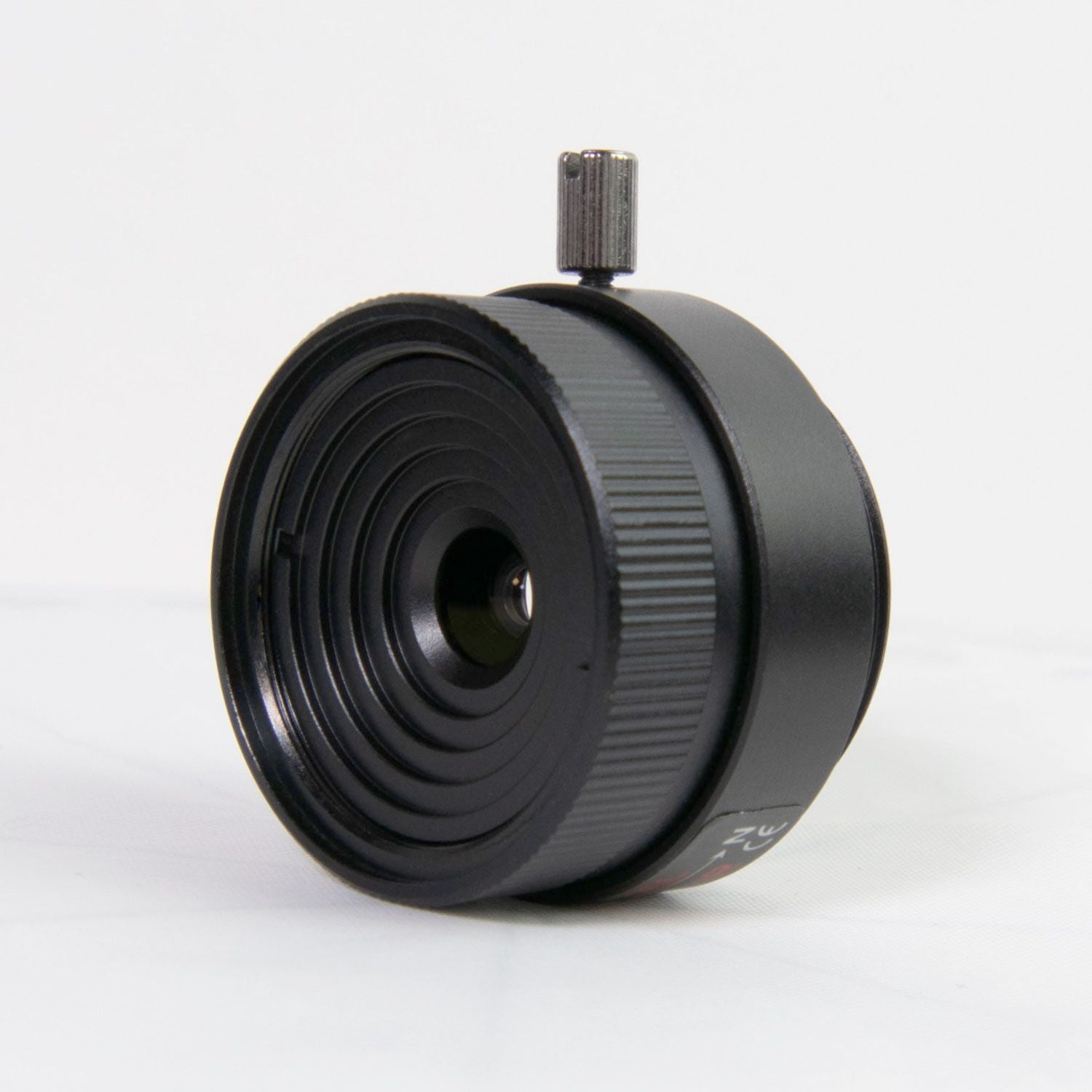

AIDA Imaging 12mm HD CS Mount Lens

AIDA Imaging 12mm HD CS Mount Lens

$40.00 USD
$40.00 USD
Sale Sold out

12mm Fixed Focal Mega-Pixel Lens

The AIDA Imaging 12mm f/1.6 CS Mount Lens is designed for cameras that use a 1/3"-type sensor and optimized for AIDA Imaging GEN series cameras that use a CS mount. On a camera that uses a 1/2.5"-type sensor, this lens will yield a 30.8° angle-of-view.

Specifications:

Focal Length 12mm
Aperture f/1.6
Focus Adjustment Manual
Iris Fixed
Horizontal Field-of-View 1/2.5": 30.8° 1/2.8": 27° 1/3.2": 15.4°
Image Format Max.: 1/2.5" sensor
Distortion 1.5% (with 1/2.5" sensor)
Mount Type CS
Operating Temperature -4 to 140°F / -20 to 60°C
Dimensions Length: 0.81" / 21 mm Diameter: 1.2" / 30 mm
Weight 1 oz / 27g
