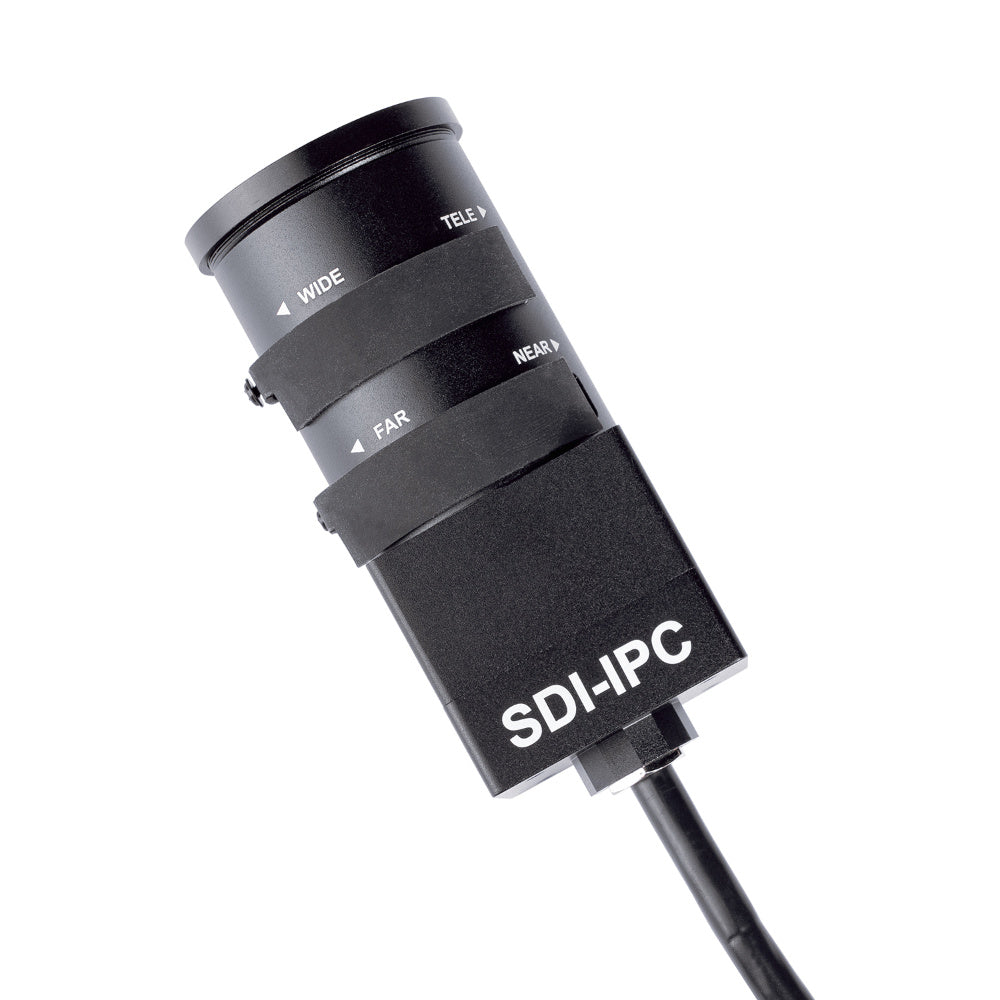

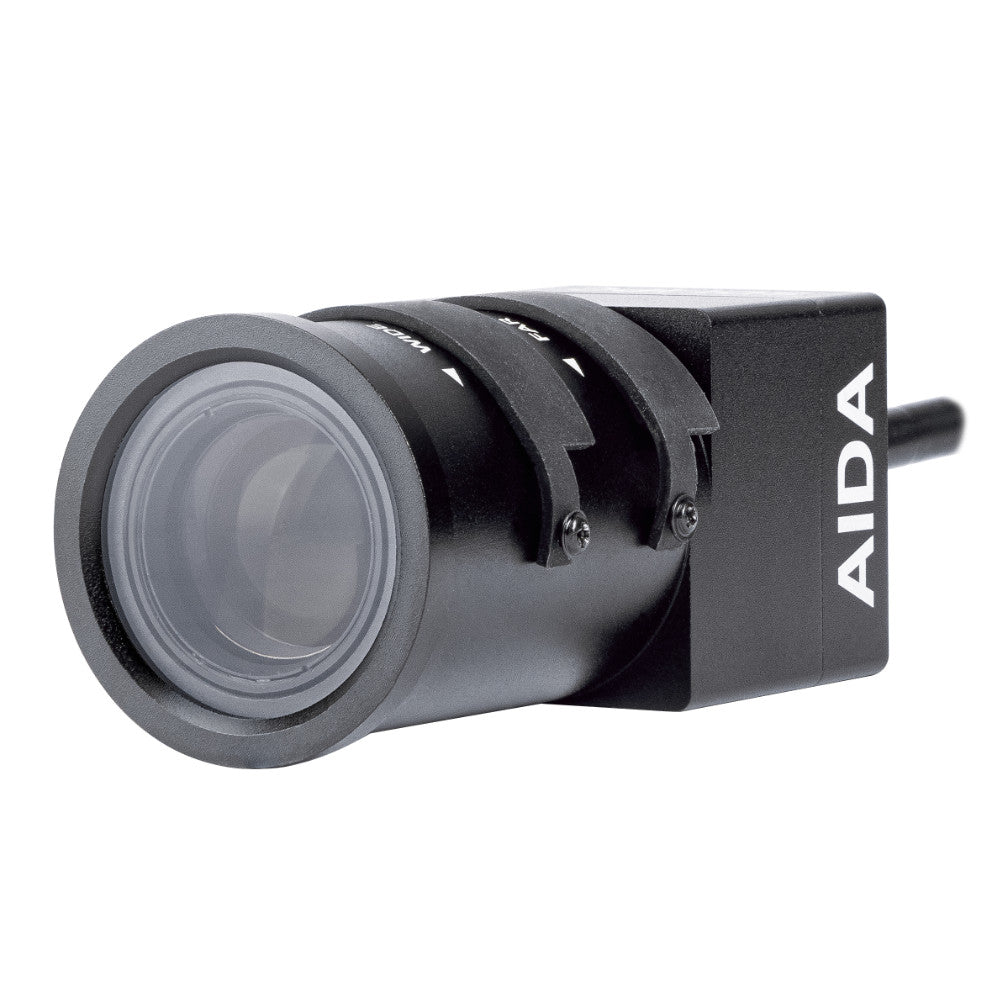

AIDA Imaging HD3G-IPC-TF - 3G-SDI Weatherproof Box Camera with Varifocal Lens

When Old Tech Meets New!

Against all odds, SDI infrastructure has remained prevalent in today's broadcasting industry. With the reliability of 3G-SDI wiring, uncompressed video quality, and low latency video processing, SDI has come a long way to where it is now.

The HD3G-IPC-TF upgrades your existing POV SDI dedicated workflows with a quality Sony CMOS imaging sensor, versatile form factor, and VISCA over IP communication. With the simple addition of VISCA over IP, you can say goodbye serial wiring, meaning you can get video, control and power over just 2 cables!.. (but don’t worry, it still has RS485 if you need it!)

Key Features

• IP54 rated for weatherproof streaming (no submersion)

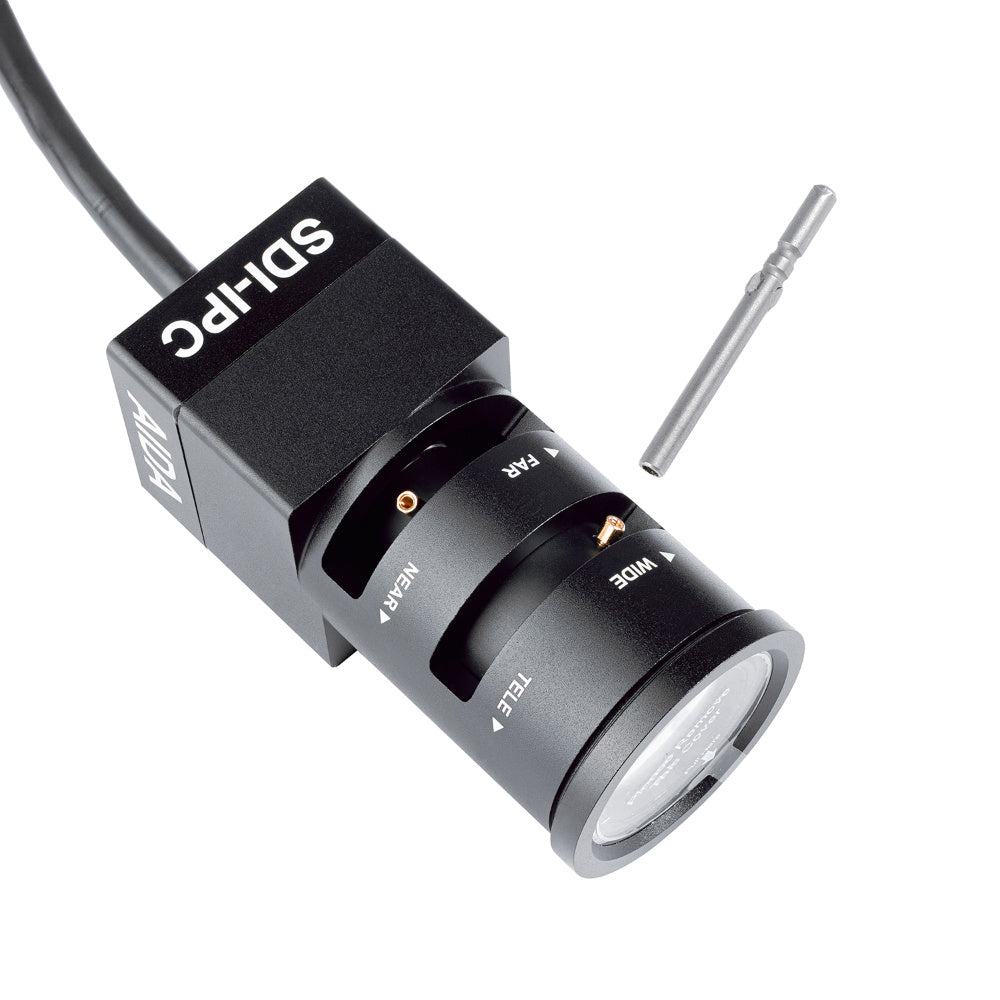

• Varifocal lens, adjustable with hex tool. Can lock into place.

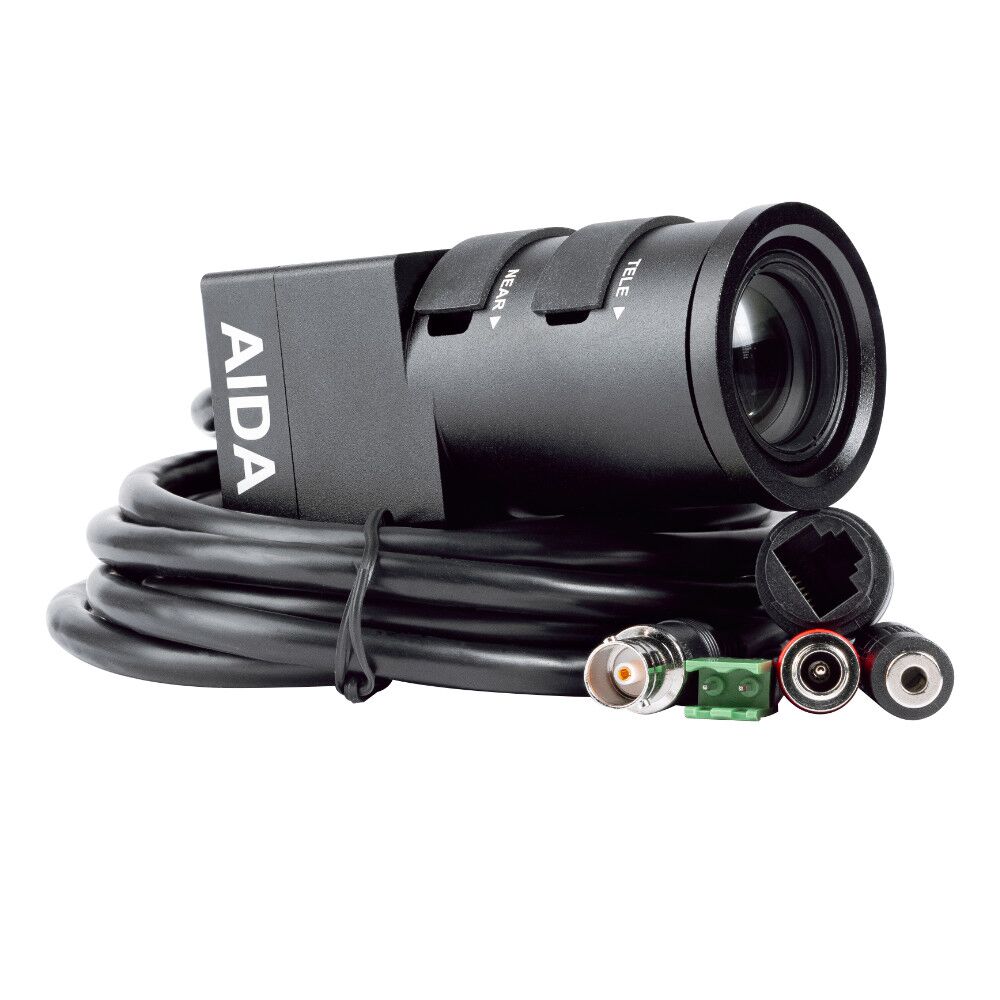

• 3ft cabling to protect inputs
• 1/4 20” mounting on top and bottom
• PoE+ injectable - Injector dongle included

Technical Specifications

VIDEO

Image Sensor: 1/2.8” Progressive CMOS
Sensor Size: 5.640mm x 3.216mm (16.9)
Effective Pixels: Horizontal: 1920, Vertical: 1080
Pixel Size: 2.9 μm (H) x 2.9 μm (V)
Resolution: 1080p, 1080i, 720p
Resolution/Framerate: 1080 60p/59.94/50p/30p/29.97p/25p/24p; 1080 60i/59.94i/50i; 720 60p/59.94p/50p
Output: 3G-SDI
Color Space: 4:2:2 (YCbCr) 10bit
Min Illumination: 0.2Lux (day), 0.1Lux (Night)
White Balance: Auto & Manual (9000 - 11,000 K)
Audio Input: 3.5mm TRS Stereo Input, Embed over SDI

OPTICS

Lens: Custom Varifocal 5-50mm Lens
HFOV: Wide: 51° Tele’d: 6.1°

PHYSICAL

Camera Control: RJ-45 (VISCA over IP), RS-485 (Serial VISCA)
Operation Temp: -10°C~50°C
Power Input: 12VDC (+9 - +15VDC) (PoE Adapter Included)
Power Draw: 6W MAX
