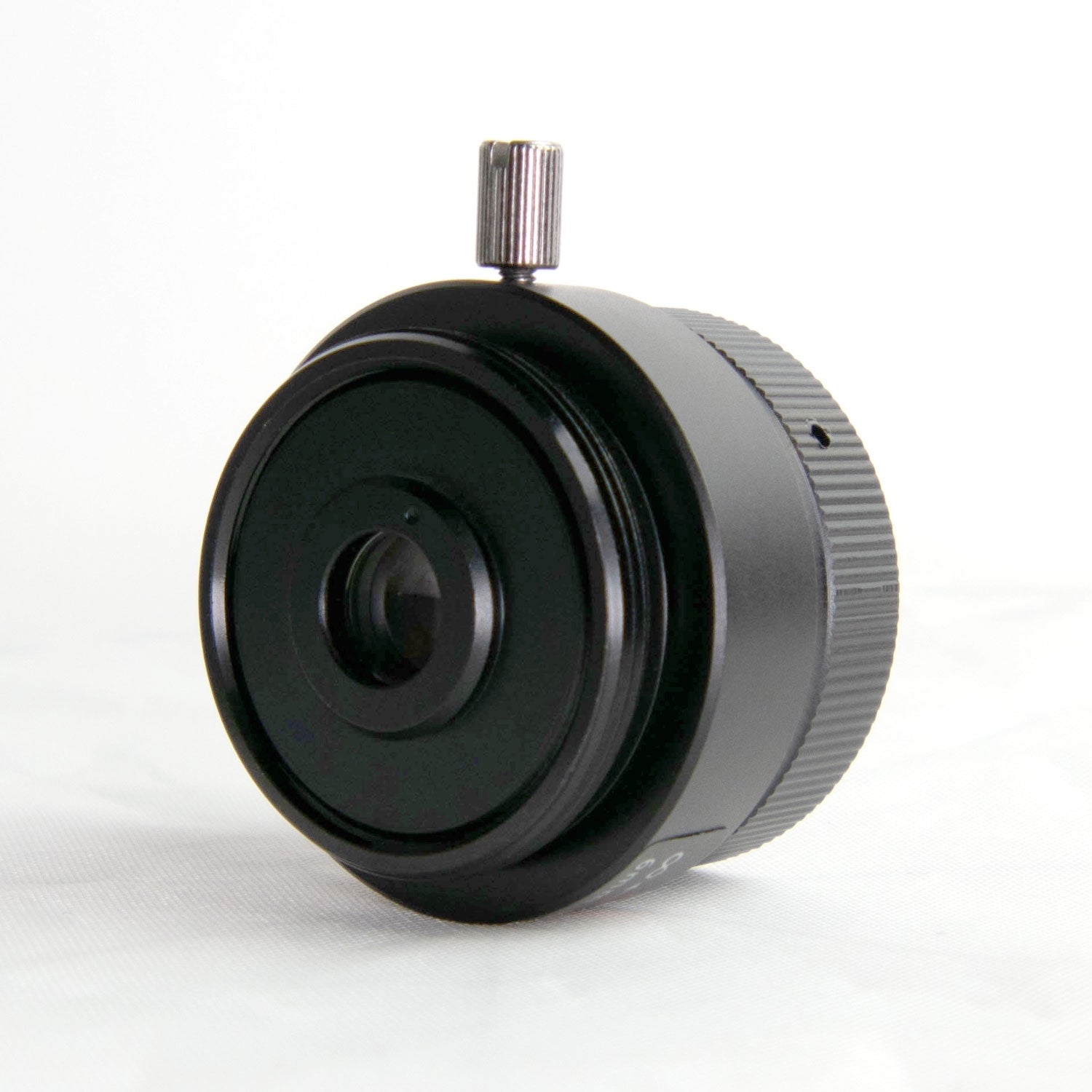

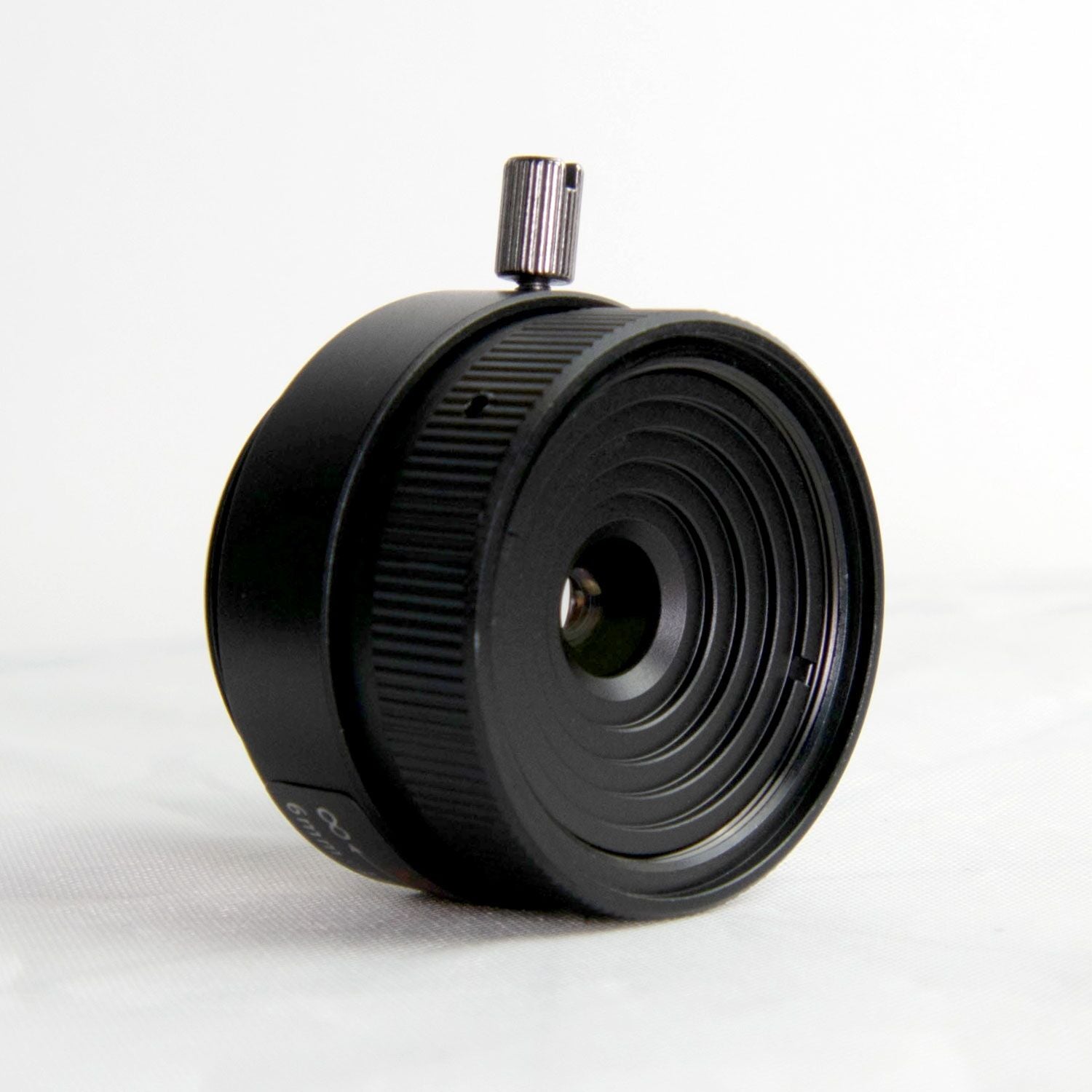

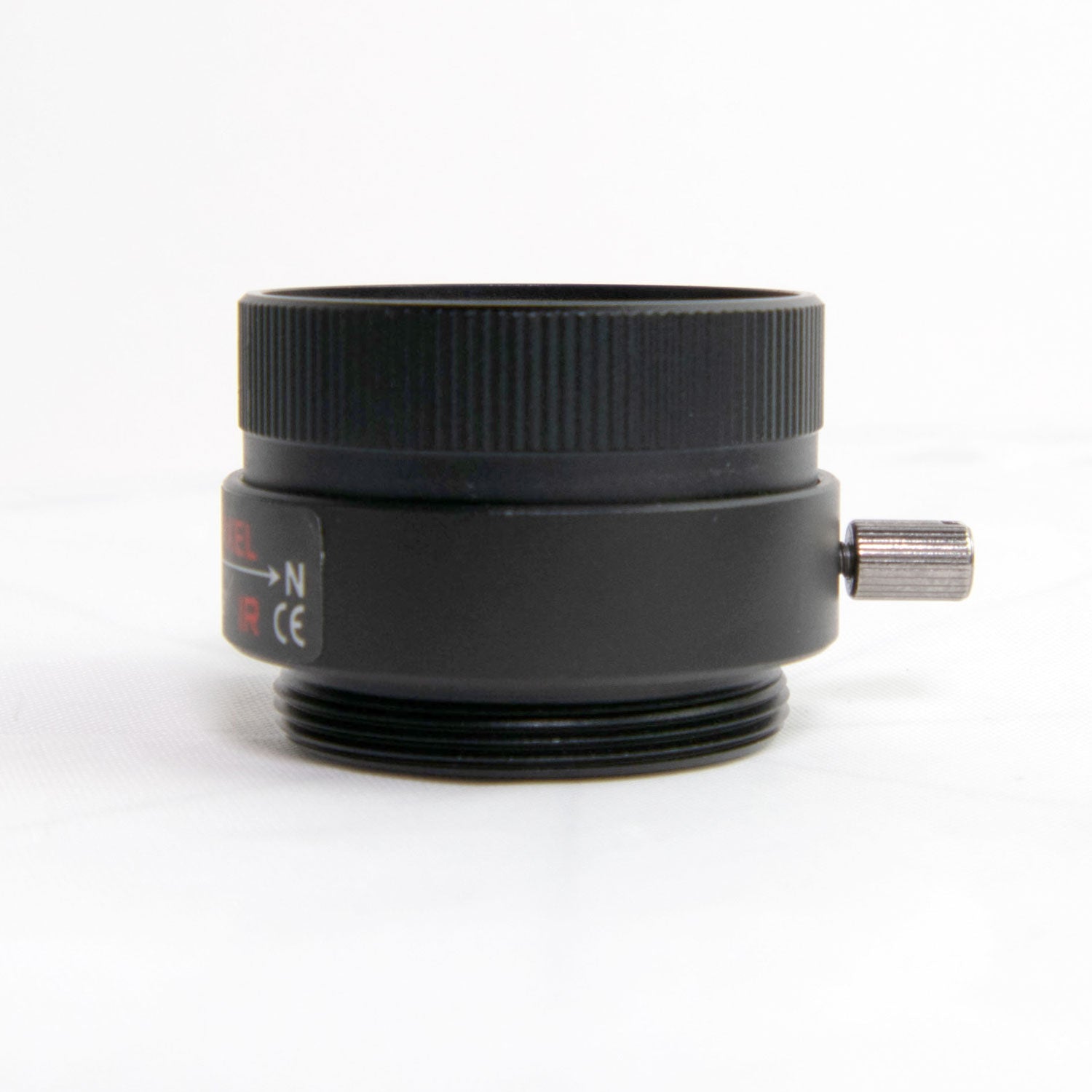

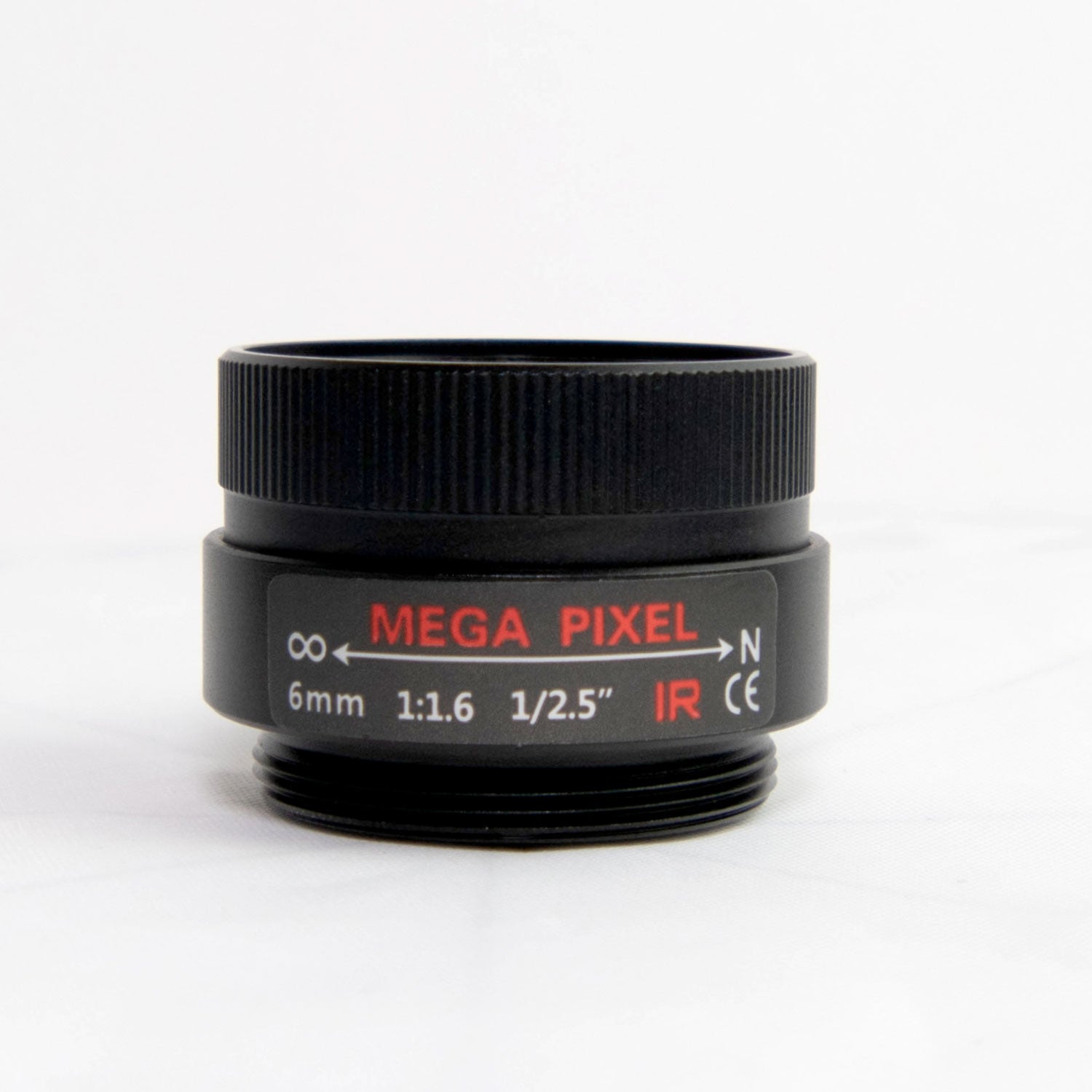

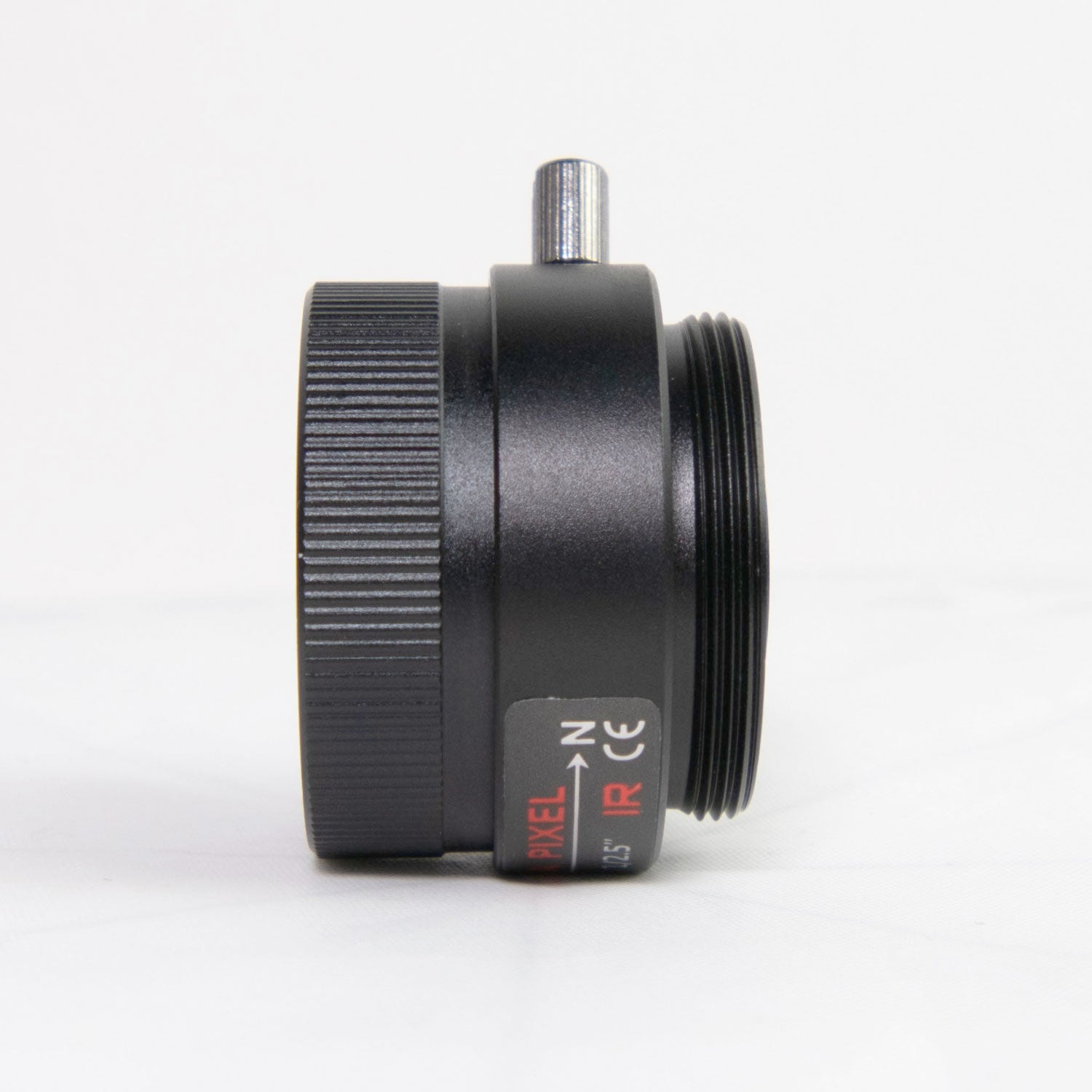

AIDA Imaging 6mm HD CS Mount Lens

6mm Fixed Focal Mega-Pixel Lens

The AIDA Imaging 6mm f/1.6 CS Mount Lens is designed for cameras that use a 1/3"-type sensor and optimized for AIDA Imaging GEN series cameras that use a CS mount. On a camera that uses a 1/2.5"-type sensor, this lens will yield a 54° angle-of-view.

Specifications:

Focal Length	6mm
Aperture	f/1.6
Focus Adjustment	Manual
Iris	Fixed
Horizontal Field-of-View	1/2.5": 54° 1/2.8": 51° 1/3.2": 42°
Image Format	Max.: 1/2.5" sensor
Distortion	6% (with 1/2.5" sensor)
Mount Type	CS
Operating Temperature	-4 to 140°F / -20 to 60°C
Dimensions	Length: 0.9" / 22 mm Diameter: 1.2" / 30 mm
Weight	1 oz / 28 g
