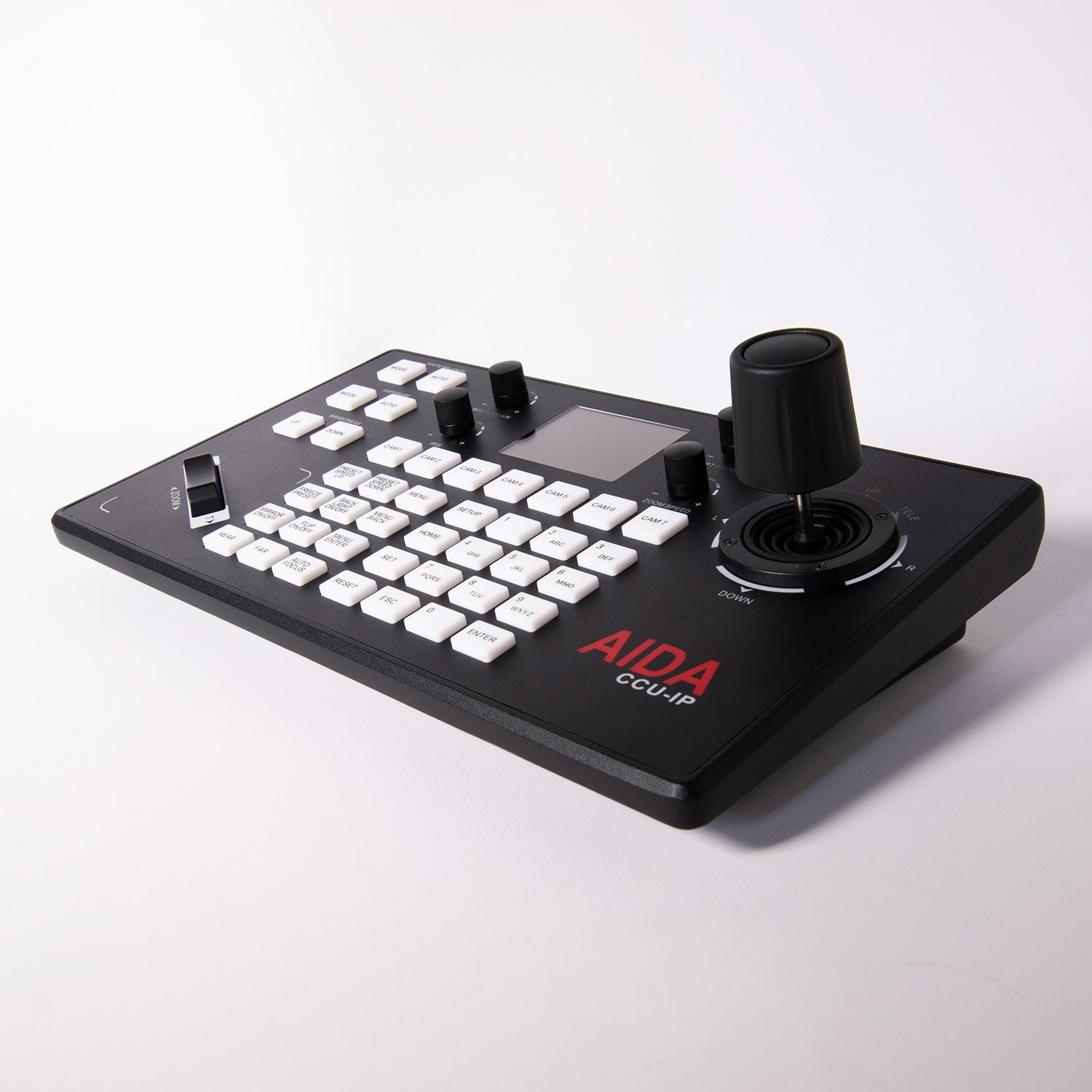

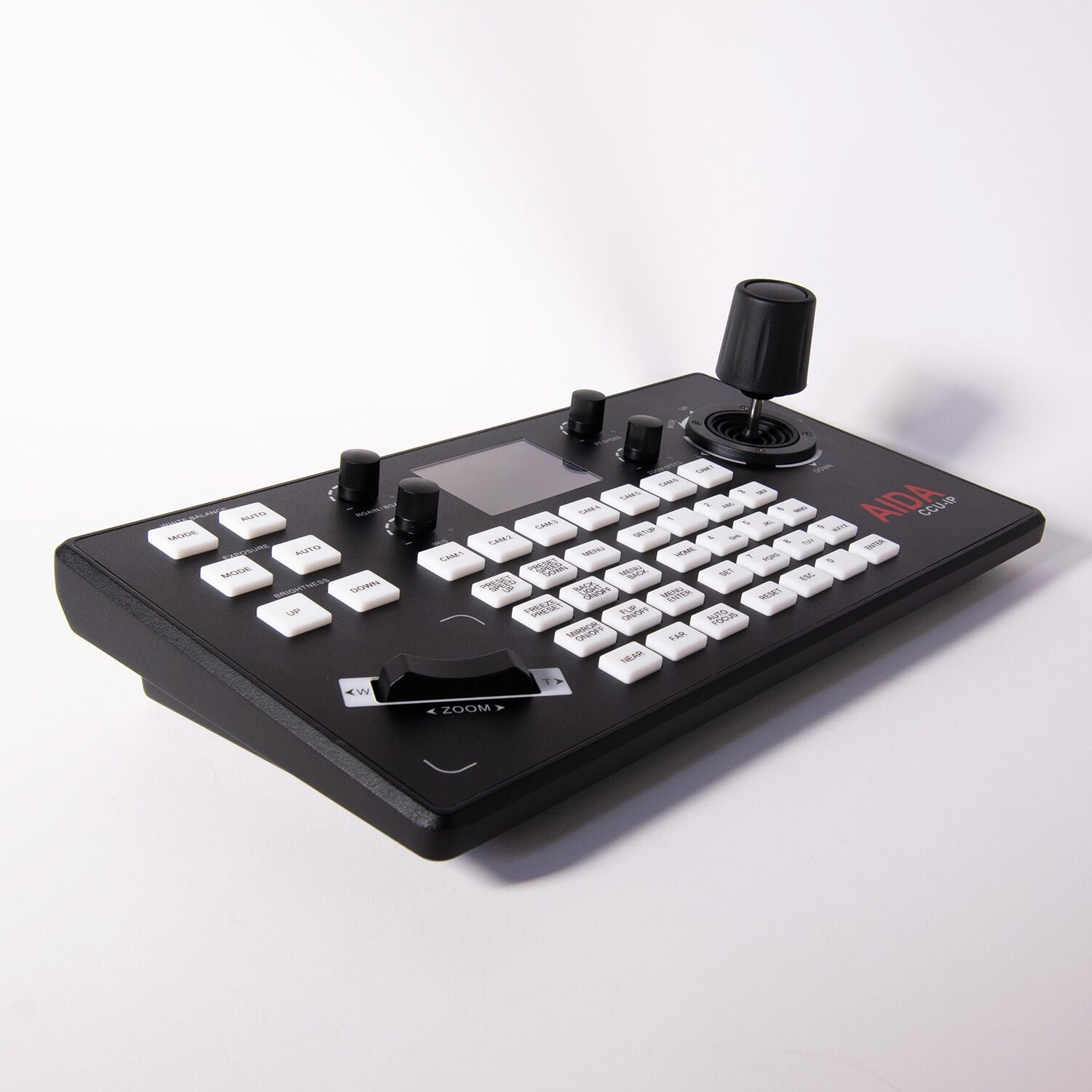

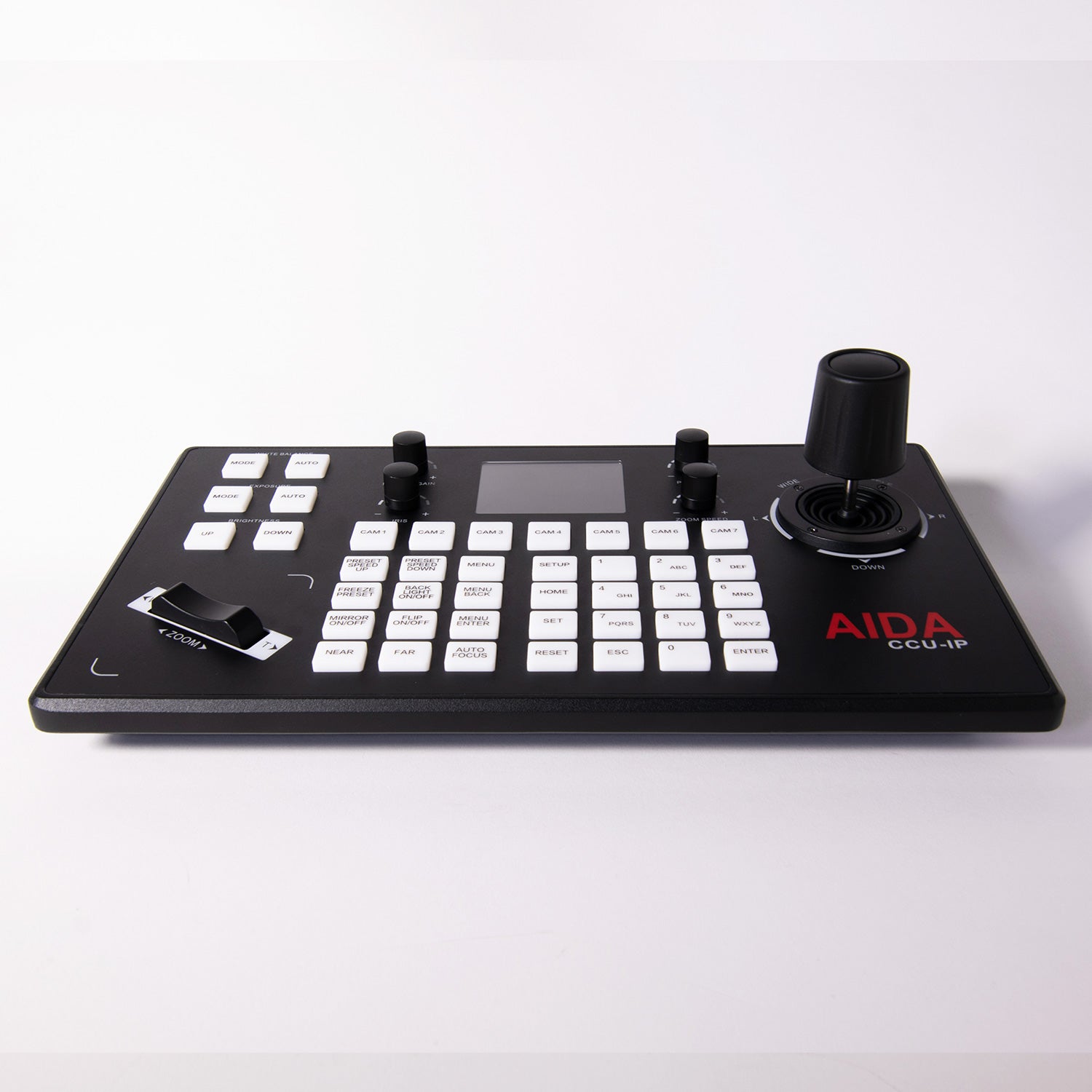

The CCU-IP VISCA Serial & IP PTZ Camera Controller from AIDA Imaging offers joystick and button control for up to seven PTZ cameras with support for VISCA and VISCA-over-IP protocols over IP and serial RS-232 and RS-422 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen. The controller also offers presets including gain, iris, focus, red and blue gain, and speed control settings to control the finer settings on the PTZ camera. The unit comes with a 12 VDC power supply, and it can also be powered using Power-over-Ethernet (PoE).
Features:
Pan/tilt joystick, zoom rocker, button control, and LCD screen
Control speed of pan/tilt and zoom in/out
IP, RS-232, and RS-422 communication
VISCA-over-IP and VISCA serial protocols
Power-over-Ethernet (PoE) support
Specifications:
General
Number of Supported Cameras
7 Channels via IP 7 Channels via Serial
Supported Control Protocols
IP RS-232 RS-422 VISCA

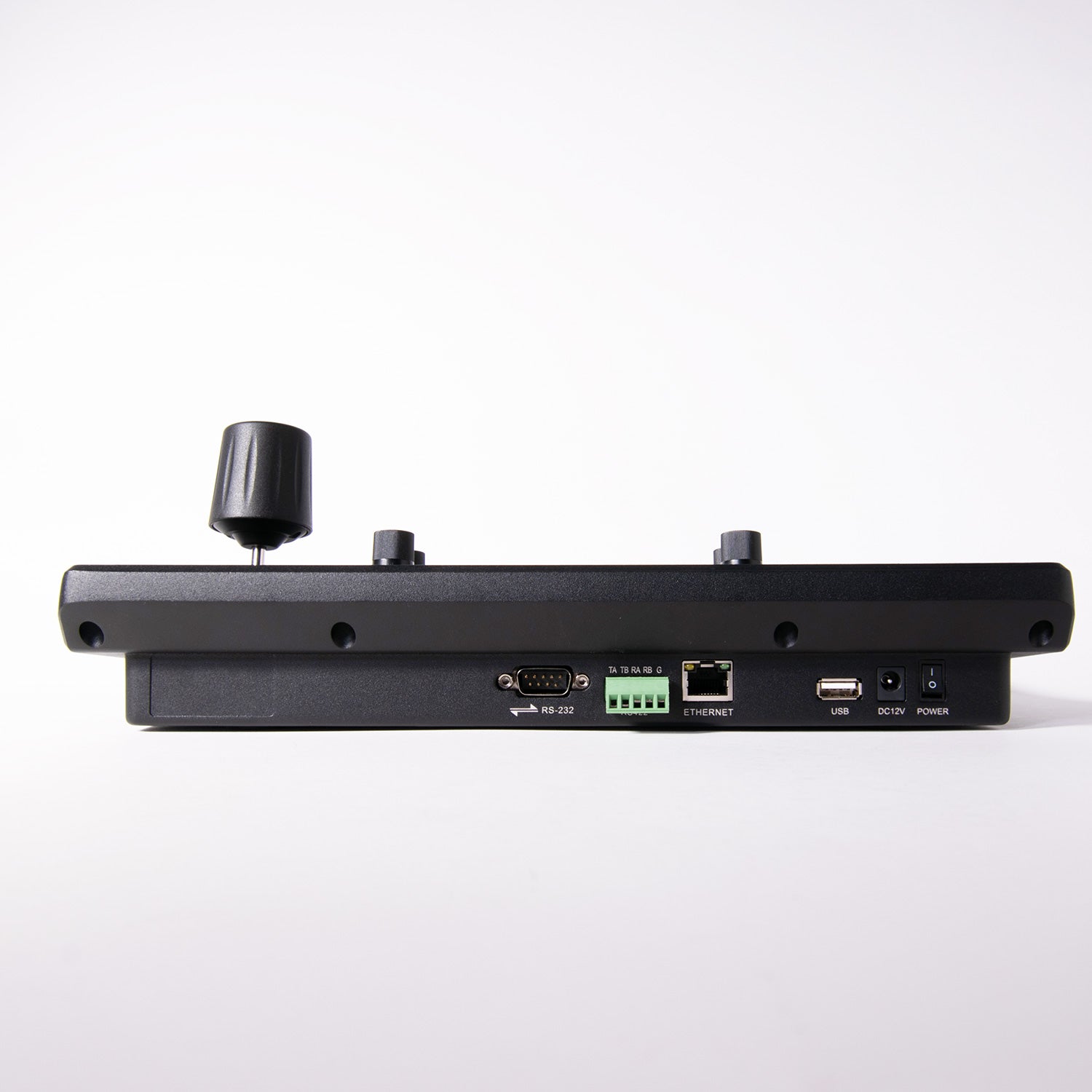

Control I/O
1 x RJ45 (LAN) 1 x Block (RS-422) 1 x DE-15/DB-15 (RS-232)
