This POV speaks Dante®!
Compact POV camera with HDMI and IP streaming output with Dante AV-H support

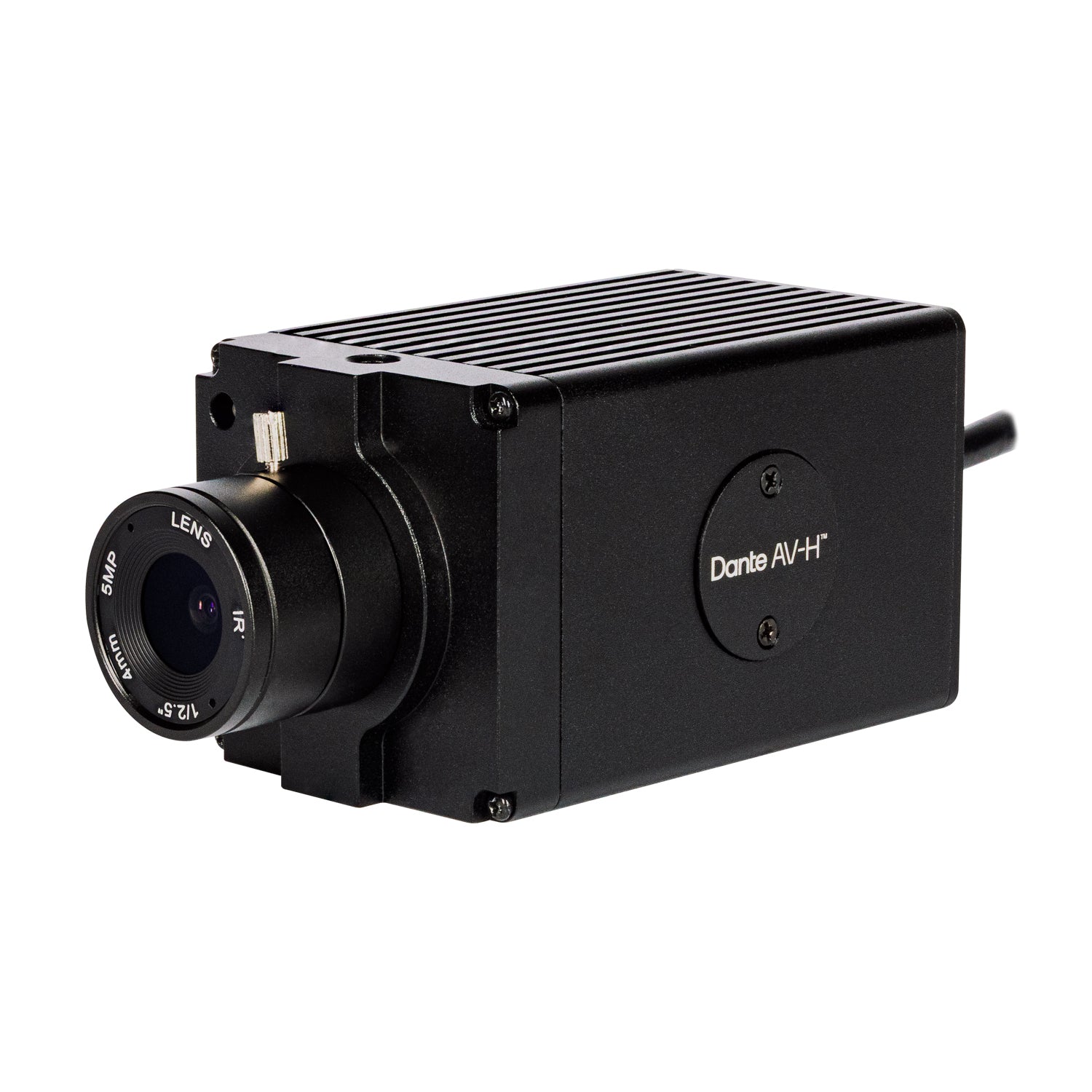

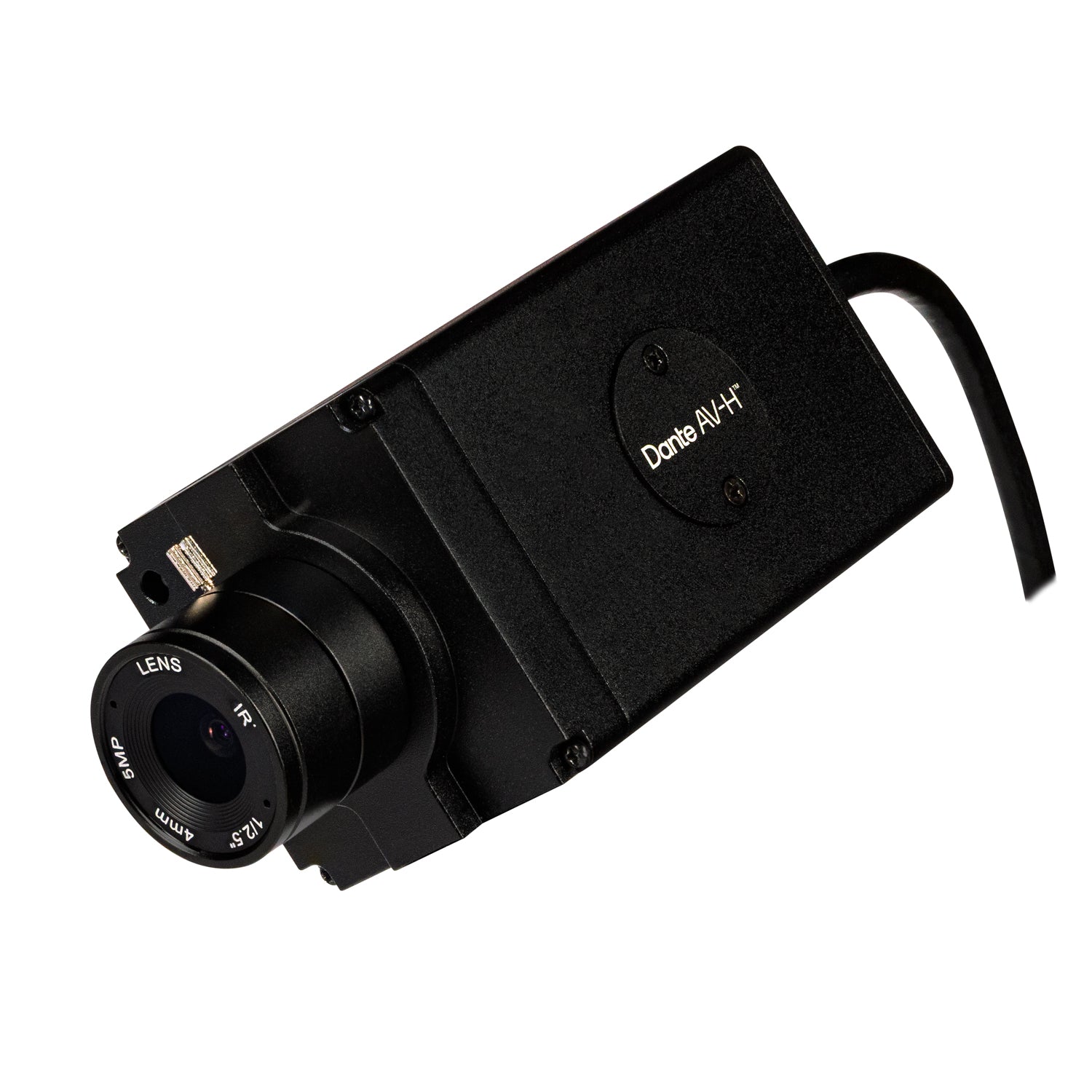

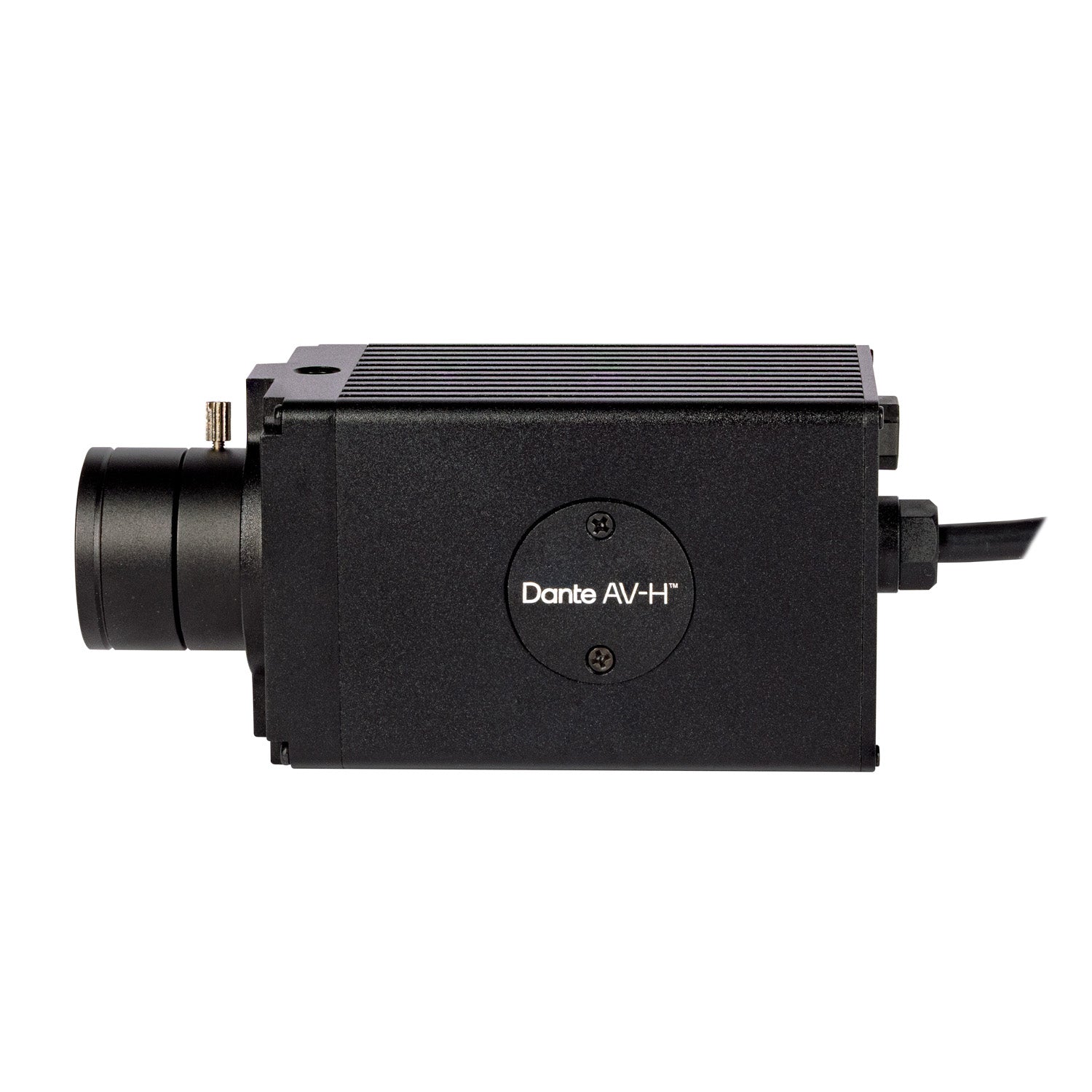

The HD-AVH-100A from AIDA Imaging is the world’s first POV camera ready for Dante AV-H. Integrate seamlessly into the Dante audiovisual ecosystem with a simple license activation, uniting your video and Dante audio in one streamlined workflow. Featuring a versatile CS-mount lens, built‑in PoE+, HDMI output, and IP streaming via RTSP, RTMP, or SRT, this compact powerhouse is built for the environments where Dante already rules — from live events to houses of worship.
Key Features
- 1080p 1/2.8” Progressive Scan CMOS sensor capable of capturing up to 60fps over Dante® AV-H, HDMI, and IP streams simultaneously.
- First-ever Dante® Ready POV camera, enabling easy video integration into Dante AV-H workflows with a simple license activation.
- Supports multiple IP streaming protocols, including RTSP, RTMP, and SRT.
- Flexible CS mount lens for customizable field-of-view options.
- Compact, lightweight design—ideal for fixed installs, live events, and mobile production setups.
- PoE+ built-in for streamlined power and data over a single cable.
- Rugged and versatile form factor with 1/4”-20 mounting thread for easy integration into any setup.
Specifications
Video
|
|
---|---|
Image Sensor | 1/2.8” Progressive CMOS |
Effective Pixels | Horizontal: 1920, Vertical: 1080 |
Pixel Size | 2.9 μm (H) × 2.9 μm (V) |
Resolution | 1080p, 1080i, 720p |
Resolution Rate | 1080 60p/59.94/50p/30p/25p/24p \n1080 60i/59.94i/50i \n720 60p/59.94p/50p |
Output | DANTE AV-H (purchase through Dante® Activator) / HDMI / IP |
Color Space | 4:2:2 (YCbCr) 10-bit |
Min Illumination | 0.2 Lux (Day), 0.1 Lux (Night) |
White Balance | Auto & Manual (9000–11,000 K) |
Lens
|
|
Module | 5 MP 4 mm CS Mount Lens |
HFOV | 72° |
Audio
|
|
Audio Embed | Embed over IP streams ONLY |
Input | 3.5 mm Line Input |
Standard
|
|
Control Protocol | Serial VISCA, VISCA over IP |
Physical
|
|
Camera Control Protocol | RS485, RJ45 |
Operation Temp | 32°F – 104°F |
Dimension | 81 mm × 50 mm × 50 mm \n3.19” × 1.97” × 1.97” |
Weight | 453 g / 1 lb |
Power | 12 VDC (+9 – +15 VDC), PoE+ with Adapter |
