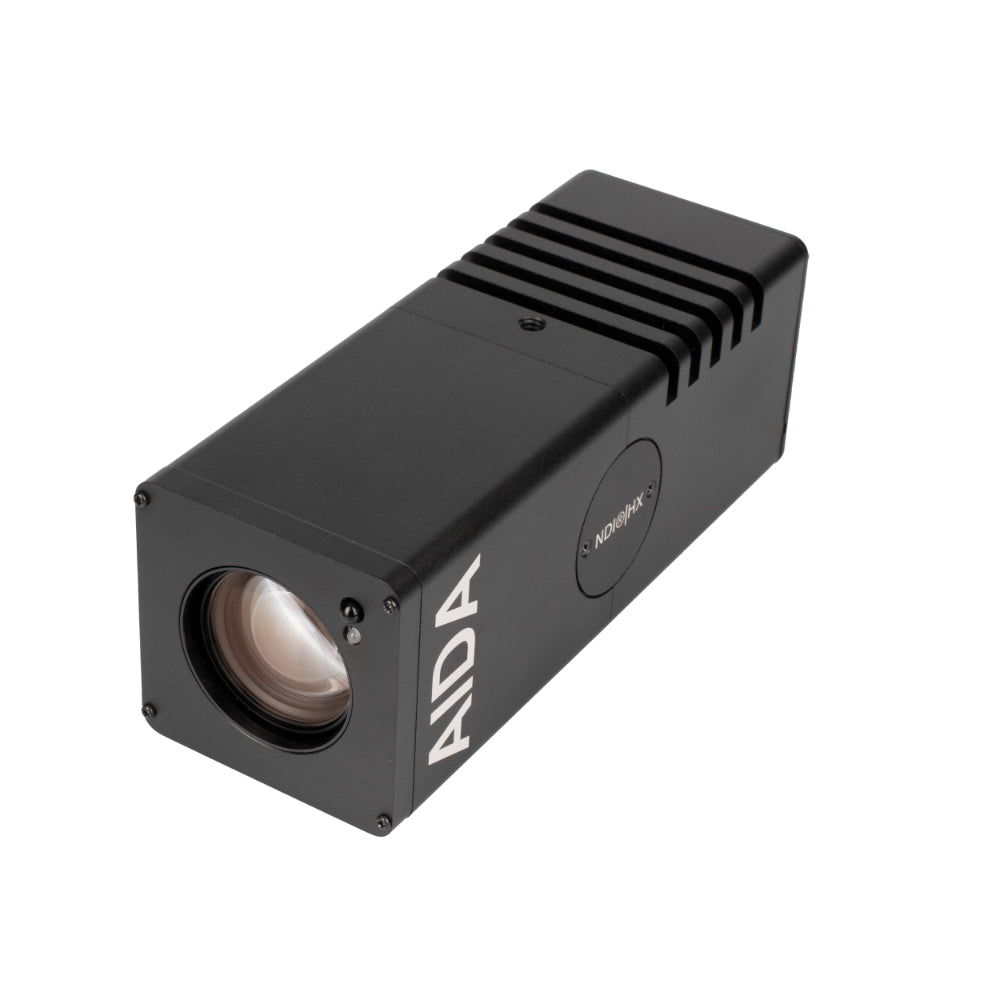

AIDA Imaging HD-NDI-X20 - Full HD NDI|HX IP HDMI PoE 20X Zoom POV Camera

AIDA Imaging HD-NDI-X20 - Full HD NDI|HX IP HDMI PoE 20X Zoom POV Camera

Regular price $695.00 USD
Regular price Sale price $695.00 USD
Sale Sold out
Perfect for integration into your preexisting NDI|HX setup, this Full HD NDI|HX IP POV Camera from AIDA Imaging features an integrated NDI|HX license and full HD HDMI and IP outputs for high-quality footage in broadcast and live event streaming applications. The camera features a 1/2.8" CMOS image sensor and 20x optical zoom with autofocus to capture clear HD video. A 3.5mm TRS stereo audio input allows you to embed audio into your NDI|HX stream. Deliver power and RS-485 serial zoom control using the 6-pin I/O port and included breakout cable. Other image parameters are adjustable via WebUI and the included IR Remote. PoE+ support reduces cable runs for power, control, and video over a single cable. Update your camera's firmware via the micro-USB port. A tally light indicator at the front of the camera lets your talent know when you're live.

Features at a Glance

  • WebUI streams directly to social media platforms, control image parameters via IP
  • 20x optical zoom for full HD shots up to 140'
  • I/O breakout cable with power and control via serial RS-485
  • Relay multi-channel embedded audio via NDI|HX
  • PoE+ compatibility reduces cable runs
  • Two 1/4"-20 mounting threads

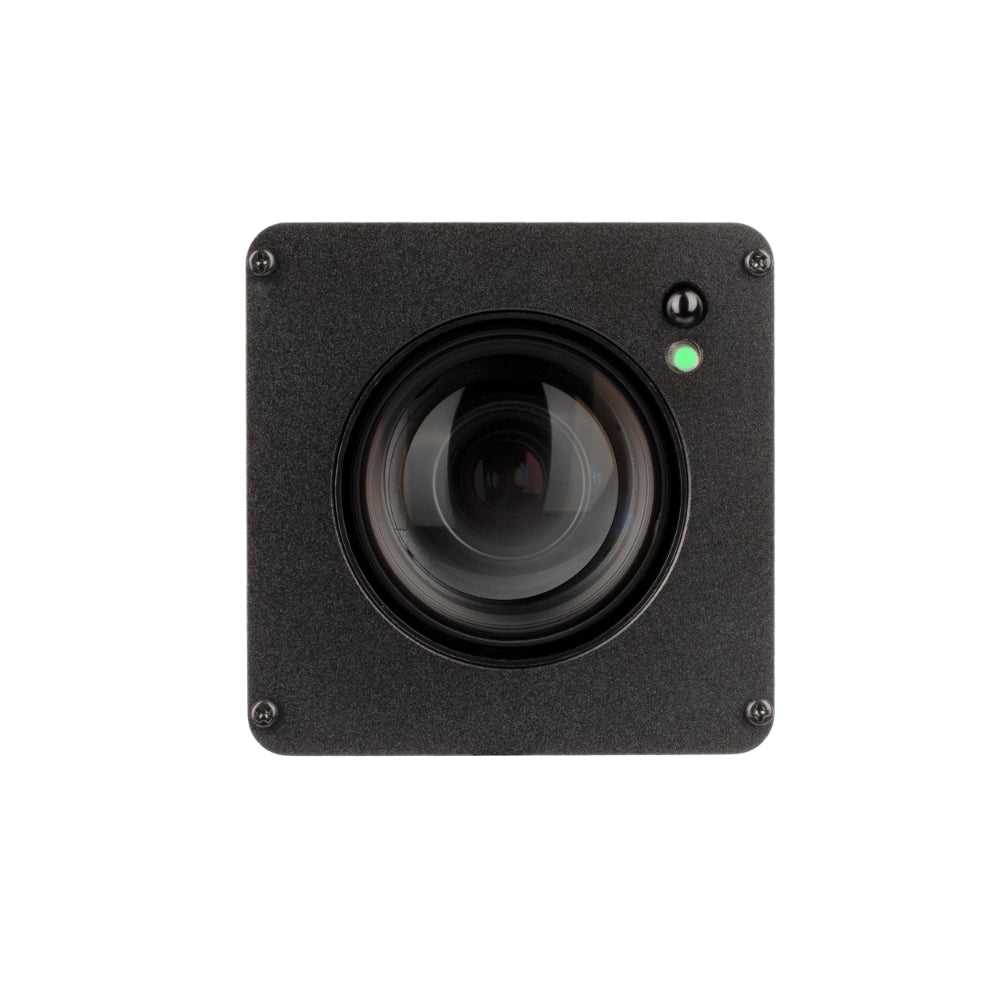

  • Integrated front tally light
  • Supports UDP|IP, RTSP, RTMP, SRT, VISCA Over IP, and NDI|HX protocols

Specifications

General

Image Sensor 1/2.8" Progressive CMOS
Effective Pixels 1920 x 1080
Pixel Size 2.9 x 2.9 μm
Resolution 1080p, 1080i, 720p
Frame Rates 1080p at 60/59.94/50/30/29.97/25/24 1080i at 60/59.94/50 720p at 60/59.94/50
Color Space 4:2:2 YCbCr 10-bit
Minimum Illumination 0.2 lux (Day) 0.1 lux (Night)
Zoom 20x (Optical)
Aperture F1.5 ~ 3.0
Field of View 61° (Wide) 3.4° (Tele)

Inputs / Outputs

USB I/O 1 x Micro-USB Female Input
Video I/O 1 x HDMI Output 1 x RJ45 Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Input
Other I/O 1 x 6-Pin I/O for Breakout Cable (RS-485)
Protocols UDP|IP, RSTP, RTMP, SRT, NDI|HX
Audio Sample Rate 16/24/32-bit
Control Protocol VISCA over IP

Wireless

Wi-Fi Yes

Power

Power Source AC Adapter with Power Brick (Included), PoE
DC Input Power 12 VDC
Power Consumption 24 W

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

Physical

Mounting 2 x 1/4"-20 Thread
Color Black
Cable Length Not Specified by Manufacturer
Dimensions 6.7 x 2.5 x 2.5" / 171 x 64 x 64 mm
Weight 21.2 oz / 600 g
