AIDA Imaging HD3G-IPC-MX10 - SDI HDMI POV Camera with 10X Macro Zoom
AIDA Imaging HD3G-IPC-MX10 - SDI HDMI POV Camera with 10X Macro Zoom
Regular price
$855.00 USD
Regular price
Sale price
$855.00 USD
Unit price
/
per
Couldn't load pickup availability
Sometimes, Micro Imaging requires Macro Solutions!

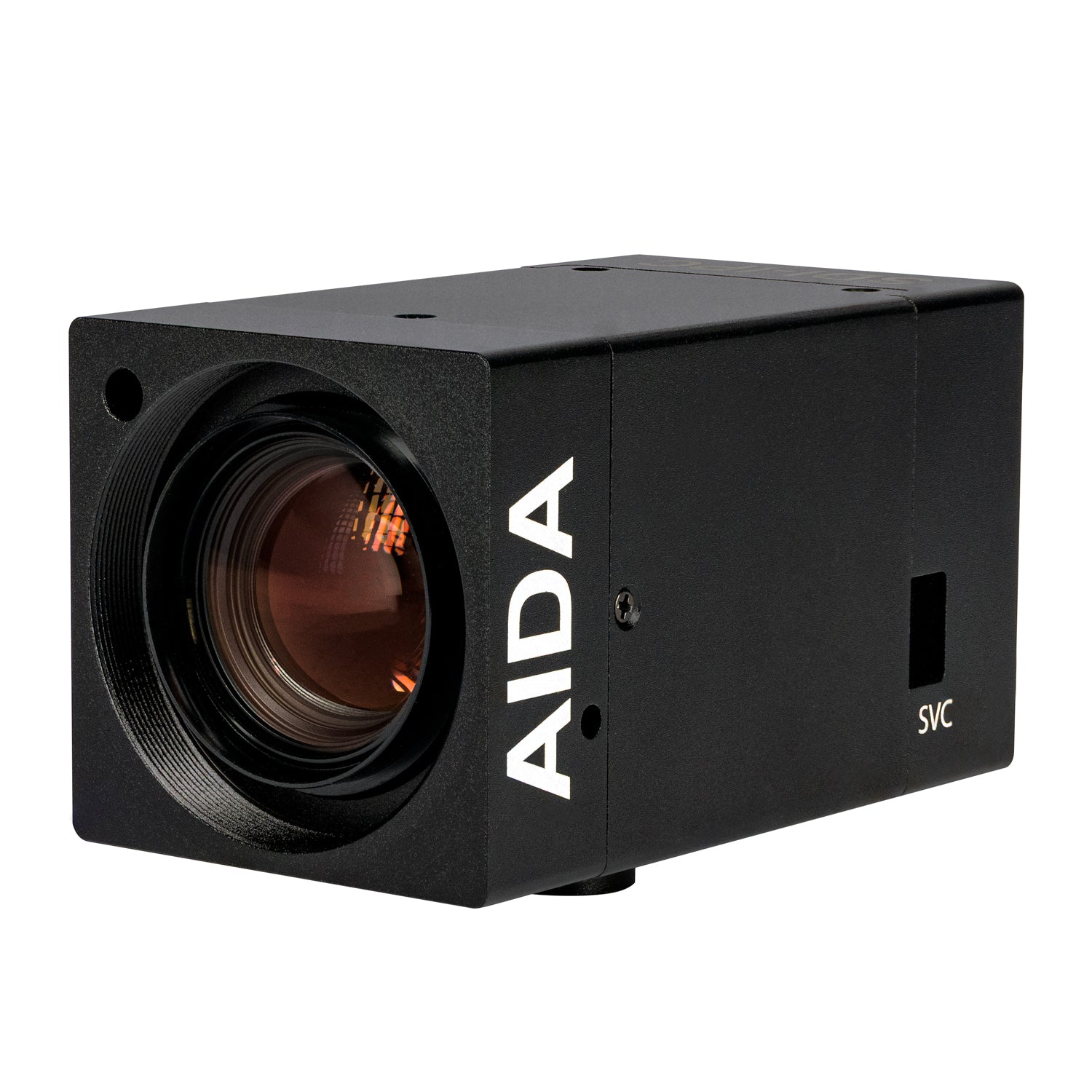

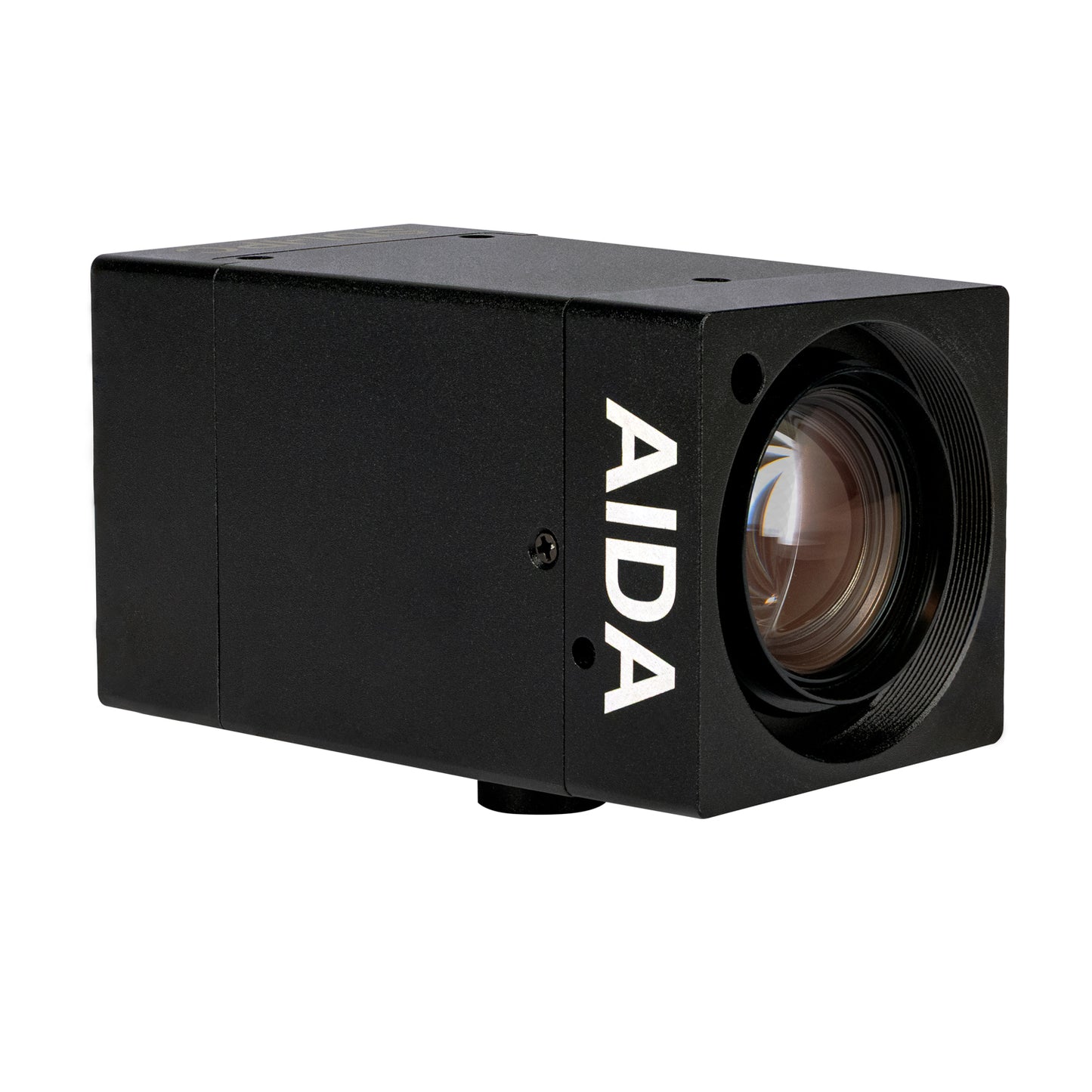

Compact POV camera with HDMI and 3G-SDI outputs and 10X optical zoom lens
The HD3G-IPC-MX10 from AIDA Imaging is a compact camera that delivers sharp, reliable imaging and offers VISCA over IP for easy remote control across the network. PoE+ is supported via the included adapter cable for simplified power and data management. A 10x optical zoom provides crisp close-ups without sacrificing quality, with uncompressed 1080p60 output available through HDMI and 3G-SDI. A 49mm front thread offers added flexibility for macro lenses or ND filters when closer detail or exposure control is needed.
Key Features
- 1080p 1/2.8” Progressive Scan CMOS sensor capable of capturing up to 60fps over 3G-SDI and HDMI
- Supports VISCA over IP for easy remote camera control across a network.
- Built-in 10x optical zoom delivers detailed close-ups without image loss.
- Compact design with PoE+ support via included adapter cable for simplified power and data setup.

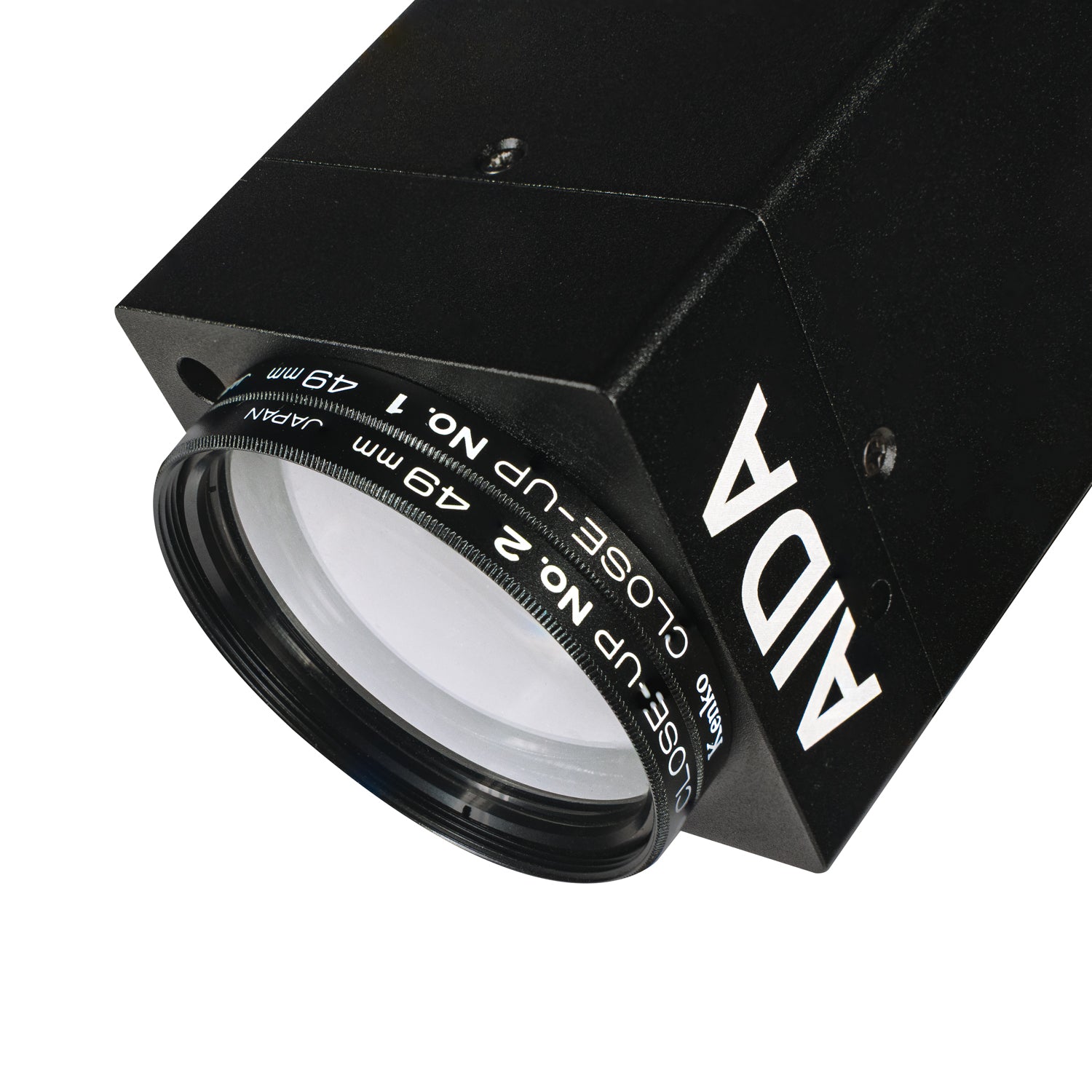

- Front-mounted 49mm filter thread supports optional ND filters and macro lenses for creative flexibility.
- Smooth, low-noise imaging optimized for low-light environments with wide dynamic range.

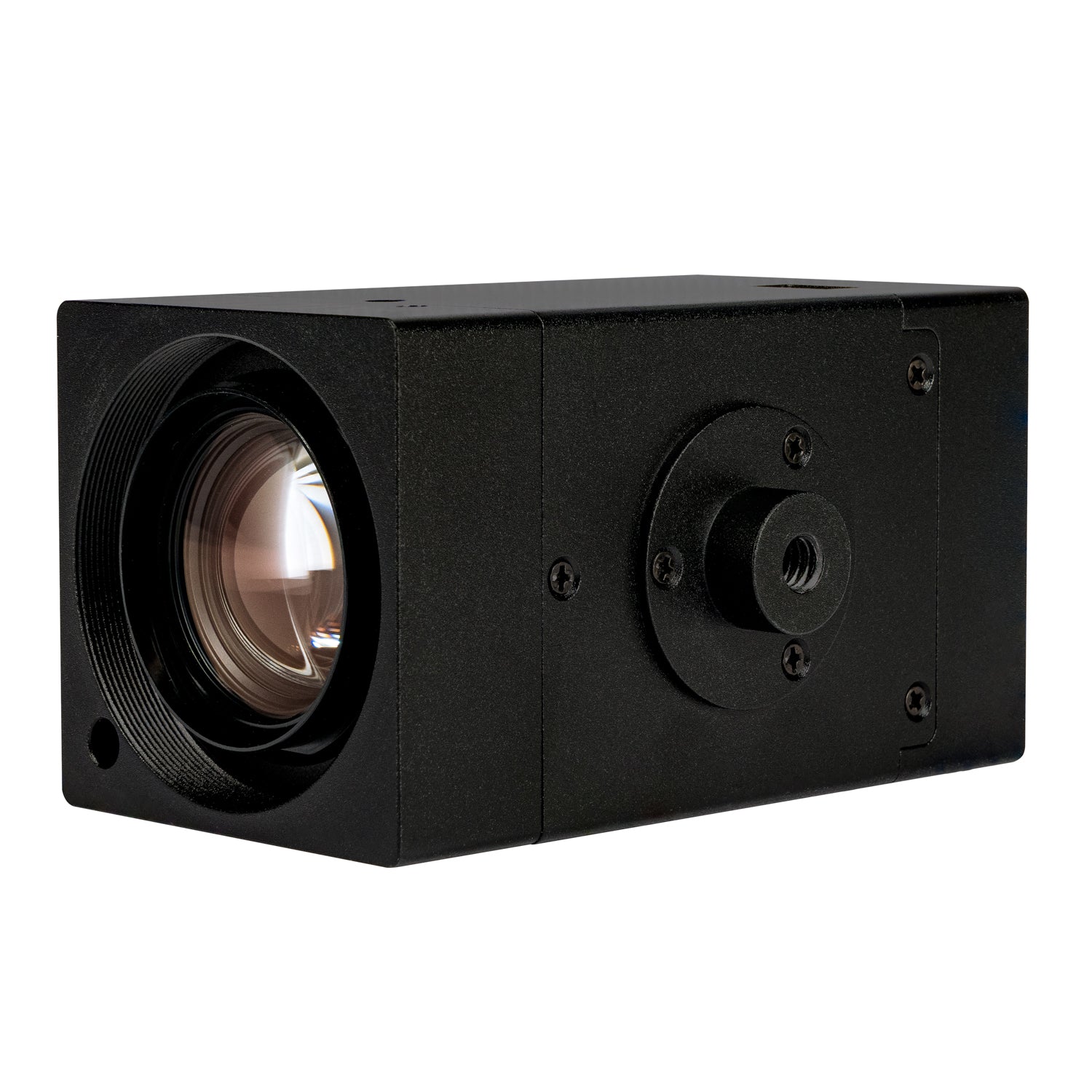

- Rugged and versatile form factor with 1/4”-20 mounting thread for easy integration into any setup.
Specifications
Video
|
|
---|---|
Image Sensor | 1/2.8” Progressive CMOS |
Effective Pixels | Horizontal: 1920, Vertical: 1080 |
Pixel Size | 2.9 μm (H) × 2.9 μm (V) |
Resolution | 1080p, 1080i, 720p |
Resolution Rate | 1080 60p/59.94/50p/30p/25p/24p \n1080 60i/59.94i/50i \n720 60p/59.94p/50p |

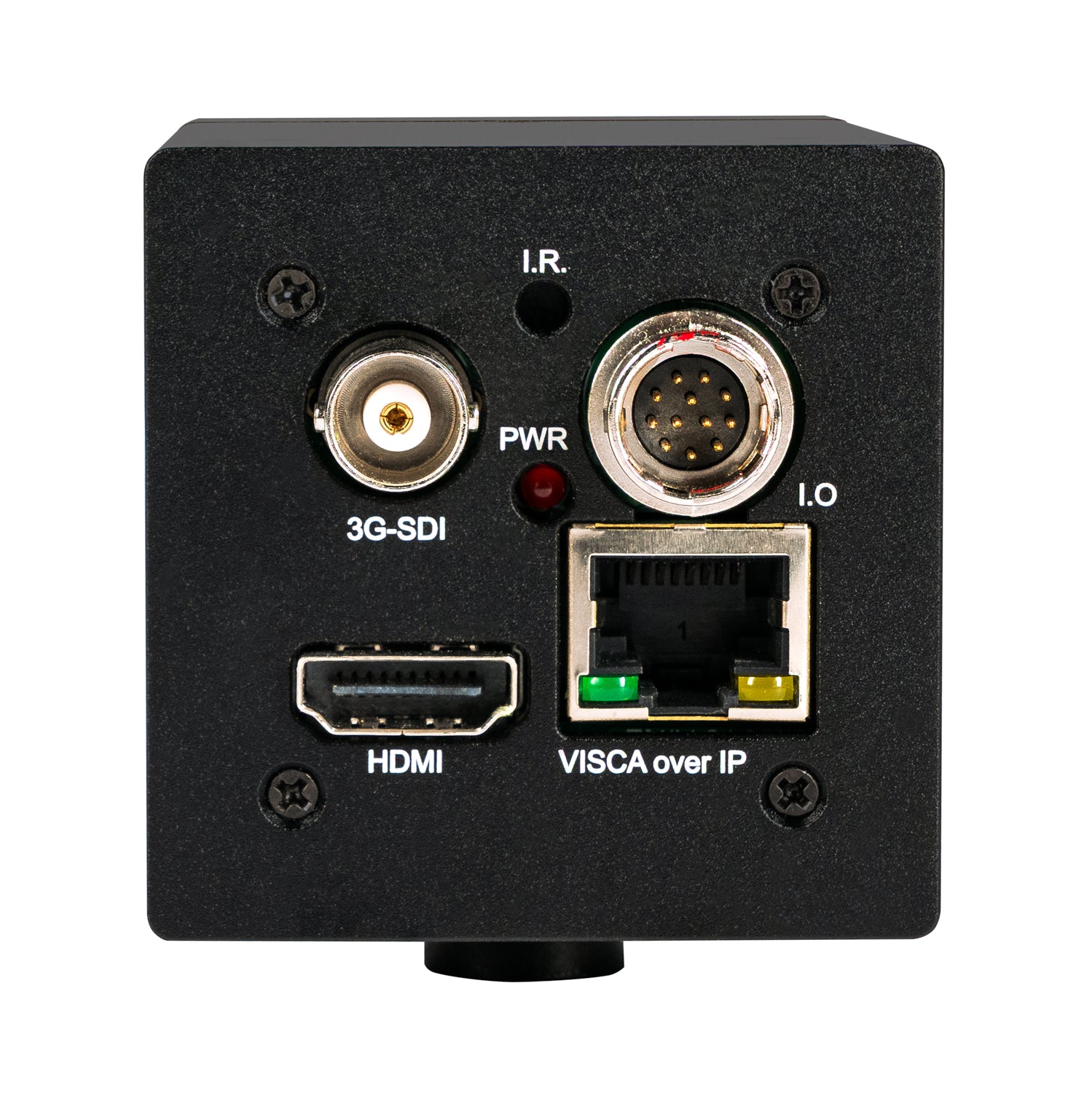

Output | 3G-SDI / HDMI |
Color Space | 4:2:2 (YCbCr) 10-bit |
Min Illumination | 0.2 Lux (Day), 0.1 Lux (Night) |
White Balance | Auto & Manual (9000–11,000 K) |
Lens
|
|
Module | 10X Optical Zoom Module F1.5~F3.0 |
Focal Length | 4.5~47mm |
FOV | 61~6° |
Audio
|
|
Audio Embed | Embed over SDI ONLY |
Input | 3.5 mm Line Input |
Standard
|
|
Control Protocol | Serial VISCA, VISCA over IP |
Physical
|
|
Camera Control Protocol | RS485, RJ45 |
Operation Temp | 32°F – 104°F |
Dimension | 95 mm × 54 mm × 54 mm \n3.74” × 2.13” × 2.13” |
Weight | 453 g / 1 lb |
Power | 12 VDC (+9 – +15 VDC), PoE+ with Adapter |
