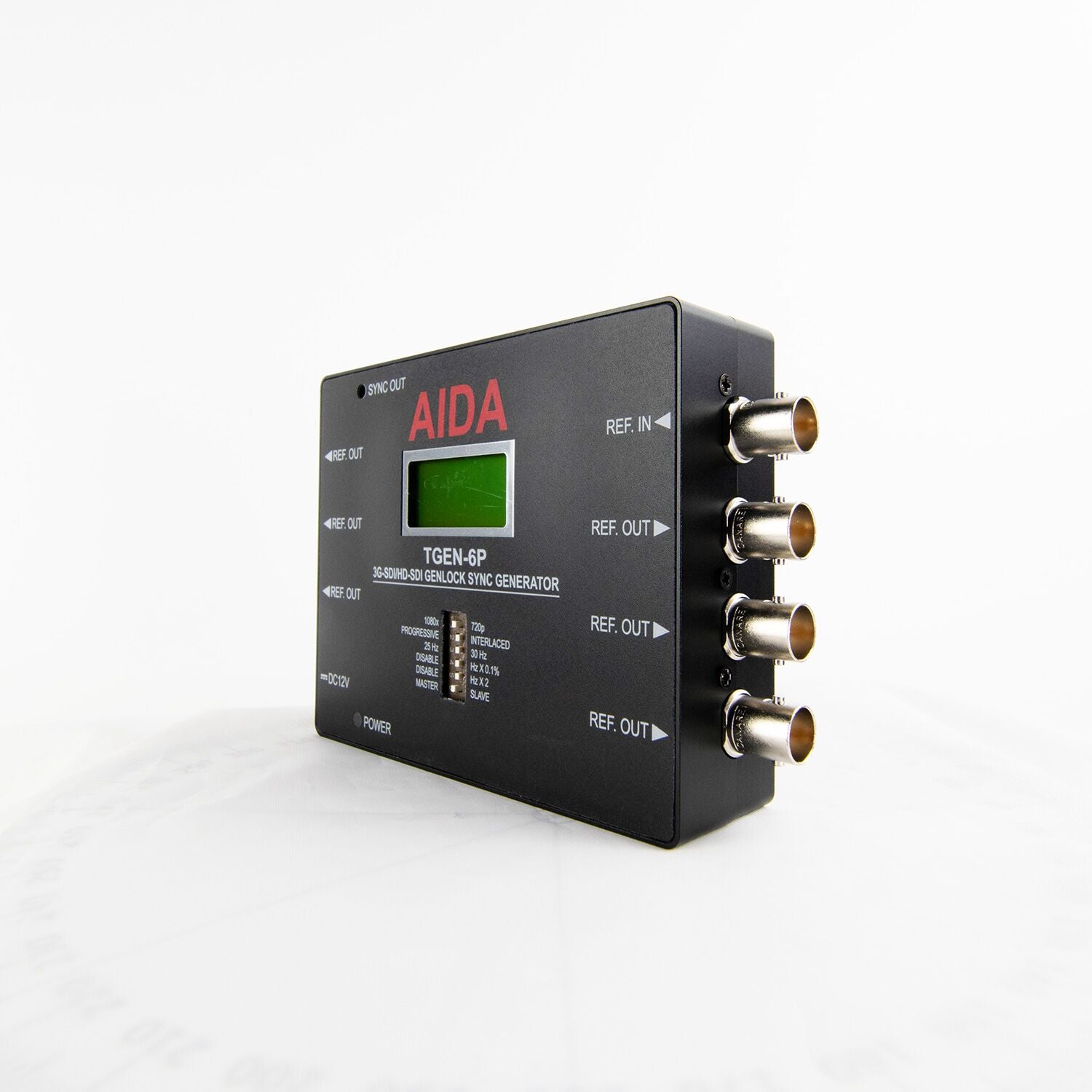

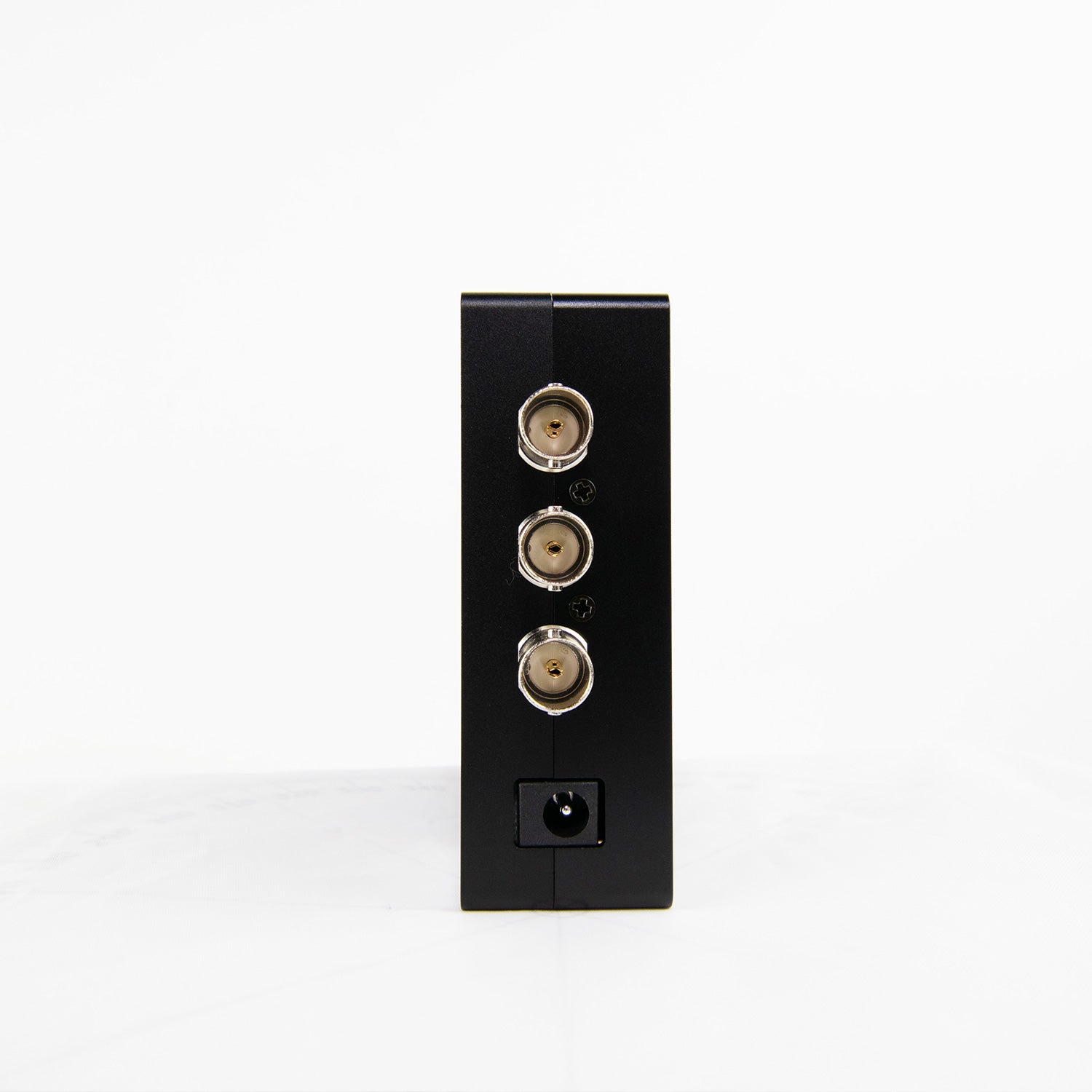

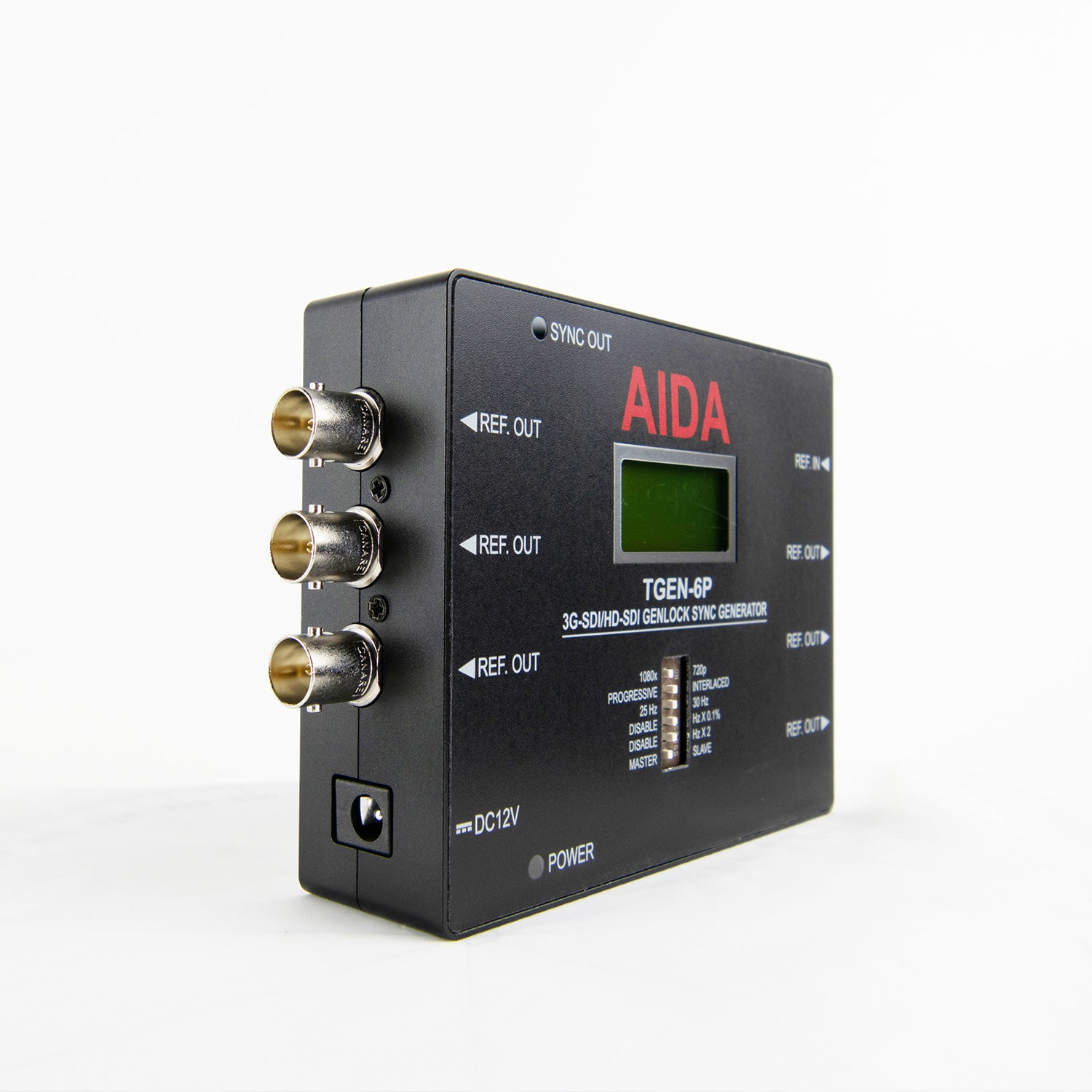

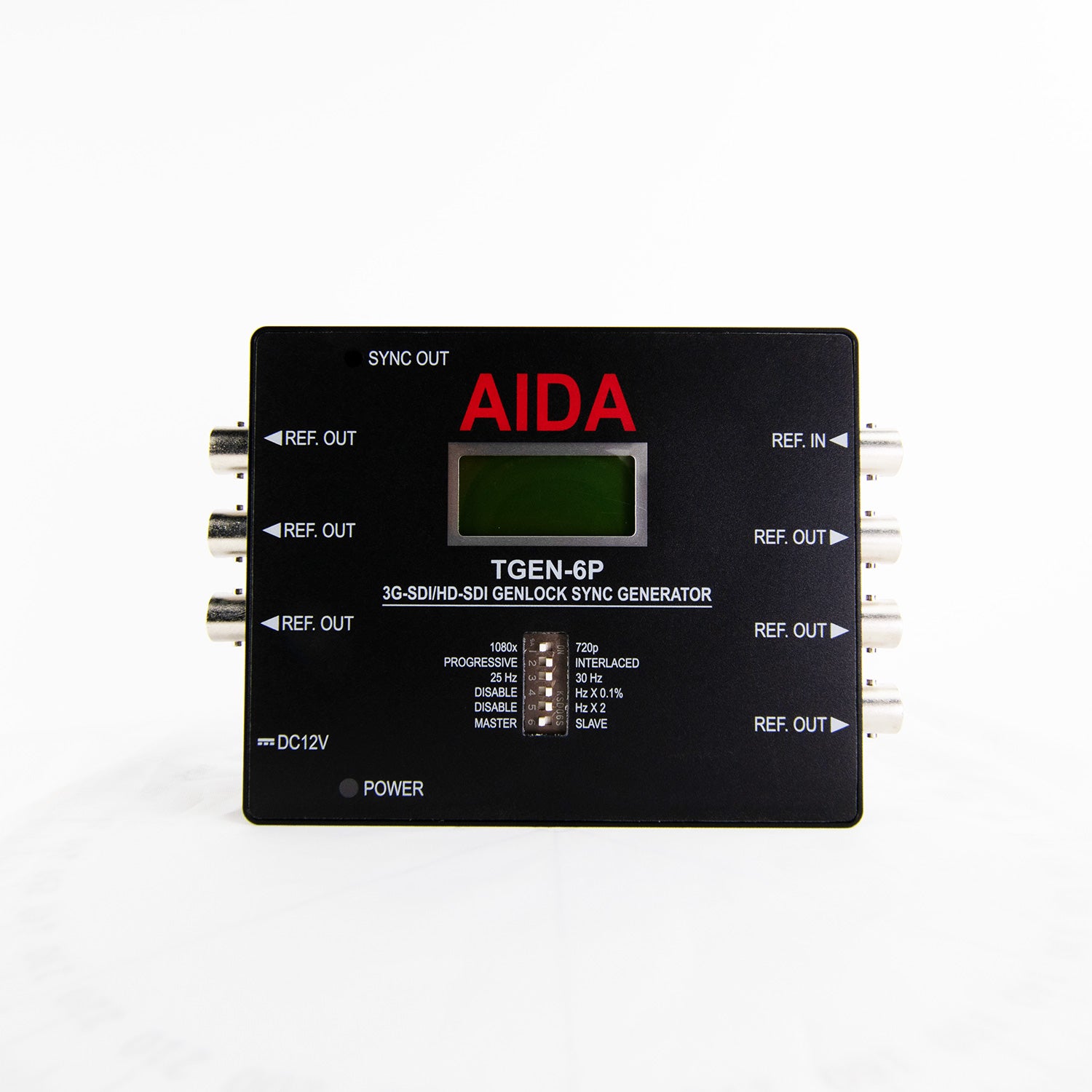

AIDA Imaging TGEN-6P - 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator

AIDA Imaging TGEN-6P - 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator

$975.00 USD
$975.00 USD
Sale Sold out
The TGEN-6P Tri-level sync generator can synchronize your Genlock capable gear with precision, making it suitable for any broadcast studio workflow. Sync your video signals with the 3G-SDI/HD-SDI Tri-Level Genlock Sync Generator from AIDA Imaging. This genlock sync generator supports all 3G-SDI and HD-SDI signal formats up to 1080 60p, and complies with SMPTE 274M, 296M, and 424M standards to ensure compatibility with other reference devices. Designed for simple operation, it is equipped with dip switches and an LCD screen.

Specifications:

Reference Output
Signal 3G/HD Tri-Level
Supported Formats 1080 60p/59.94p/50p/30p/29.97p/25p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/29.97p/25p
Reference Output 6 Channels
Reference Input
Signal 3G/HD Tri-Level
Supported Format 1080 60p/59.94p/50p/30p/29.97p/25p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/29.97p/25p
Reference Input 1 Channel
Operational
SMPTE Standards Supported SMPTE 274, 296M, 424M
Synchronization Genlock: Tri-Level (Bi-Level SD Sync Not Supported)
Physical
Control Dip Switches and Text LCD
Power Source 9 to 15 VDC
Power Consumption 6 W at 12 VDC
Operation Temperature 32 to 104°F / 0 to 40°C
Dimensions 5.11 x 2.95 x 1.10" / 130 x 75 x 28 mm
Weight 0.4 lb / 185 g
