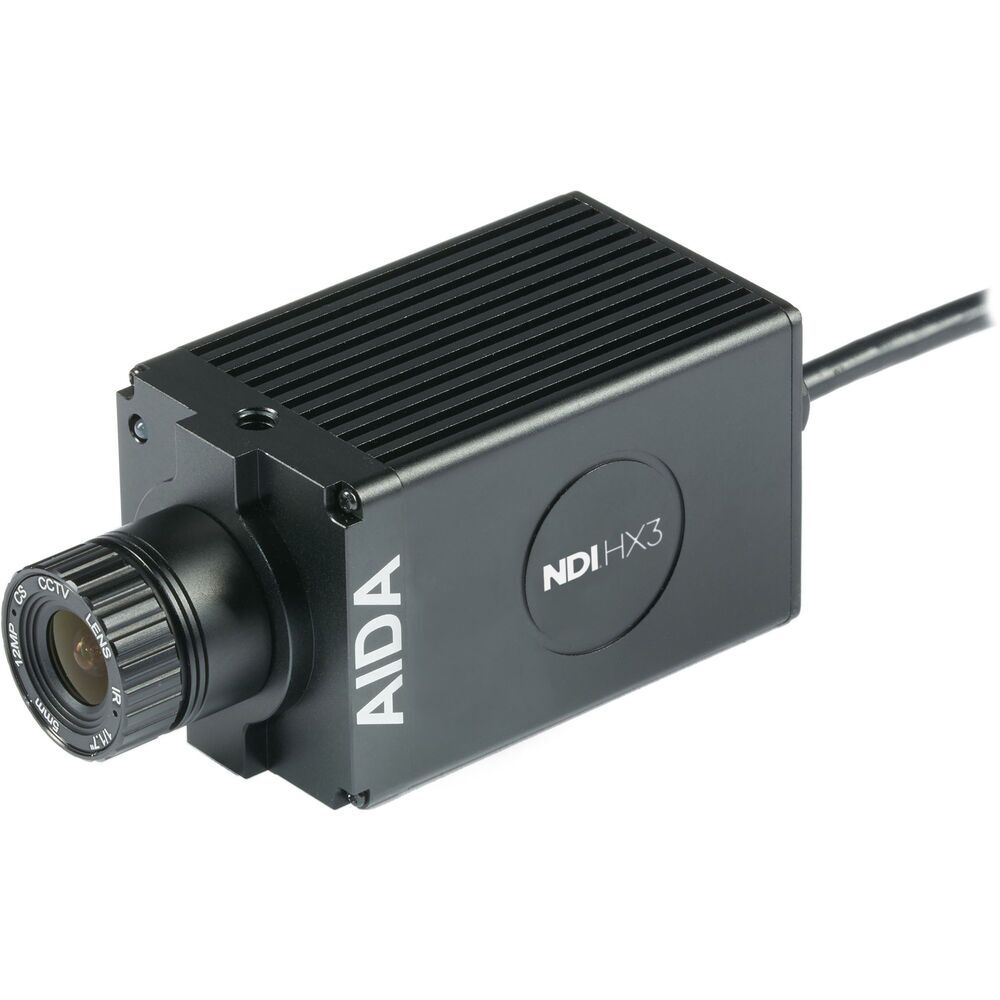

AIDA Imaging UHD-NDI3-300 - UHD 4Kp60 NDI|HX3 IP SRT PoE POV Camera

AIDA Imaging UHD-NDI3-300 - UHD 4Kp60 NDI|HX3 IP SRT PoE POV Camera

$875.00 USD
$875.00 USD
Sale Sold out

The AIDA Imaging UHD-NDI3-300 features the ability to produce stunning NDI HX3 1080p60 via its 4K Sony CMOS sensor, exhibiting the clearest Full-HD video over any HX3 network. If you need more resolution, the camera will also output up to 4Kp60 over NDI|HX and HDMI simultaneously.

Key Features

  • Simultaneous IP (SRT/RTSP/RTMP), NDI|HX3, and HDMI output in up to 2160p60 (HDMI and NDI|HX only)
  • IP and NDI over a single RJ-45 output
  • 3.5mm line audio port for embedding audio into the IP/NDI signals

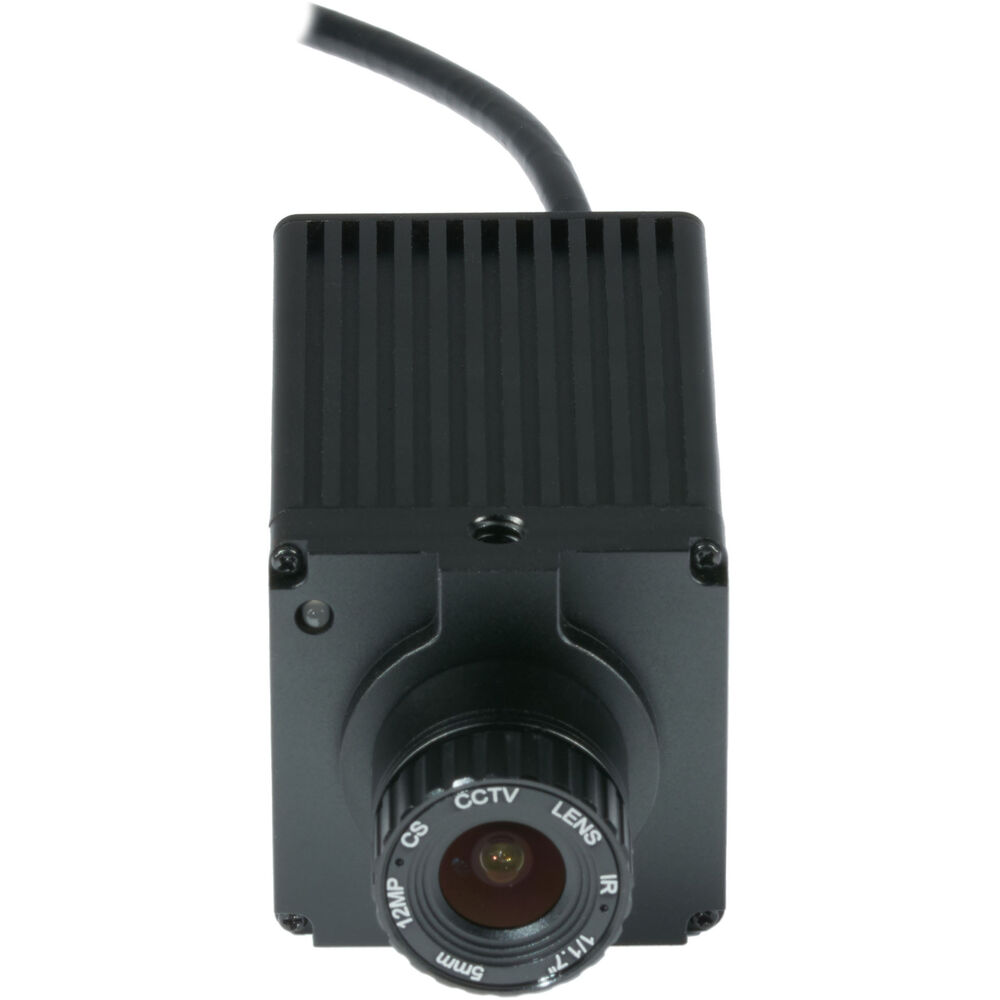

  • C/CS lens mount
  • 12MP 5mm lens included
  • 4-pin IRIS control port for compatible lenses
  • Top and bottom 1/4"-20 mounting threads

Specifications

Image Sensor 1/3" Progressive CMOS
Effective Pixels 3840 x 2160
Pixel Size 2.0 (H) x 2.0 μm (V)
Output Resolution NDI|HX and HDMI ONLY: 2160 60p/59.94/50p/30p/ 29.97p/25p/24p NDIHX 3 and Others: 1080p60, 1080p59.94, 1080p50, 1080p30p, 1080p29.97, 1080p25, 1080p24, 1080i60, 1080i59.94, 1080i50, 720p60p, 720p59.94p, 720p50p
Bitrate Control Variable, Constant
Video Bitrate up to 60mb/s
Color Space 4:2:2 (YCbCr) 10-Bit
Lens Mount C/CS Mount
Lens Included 5mm

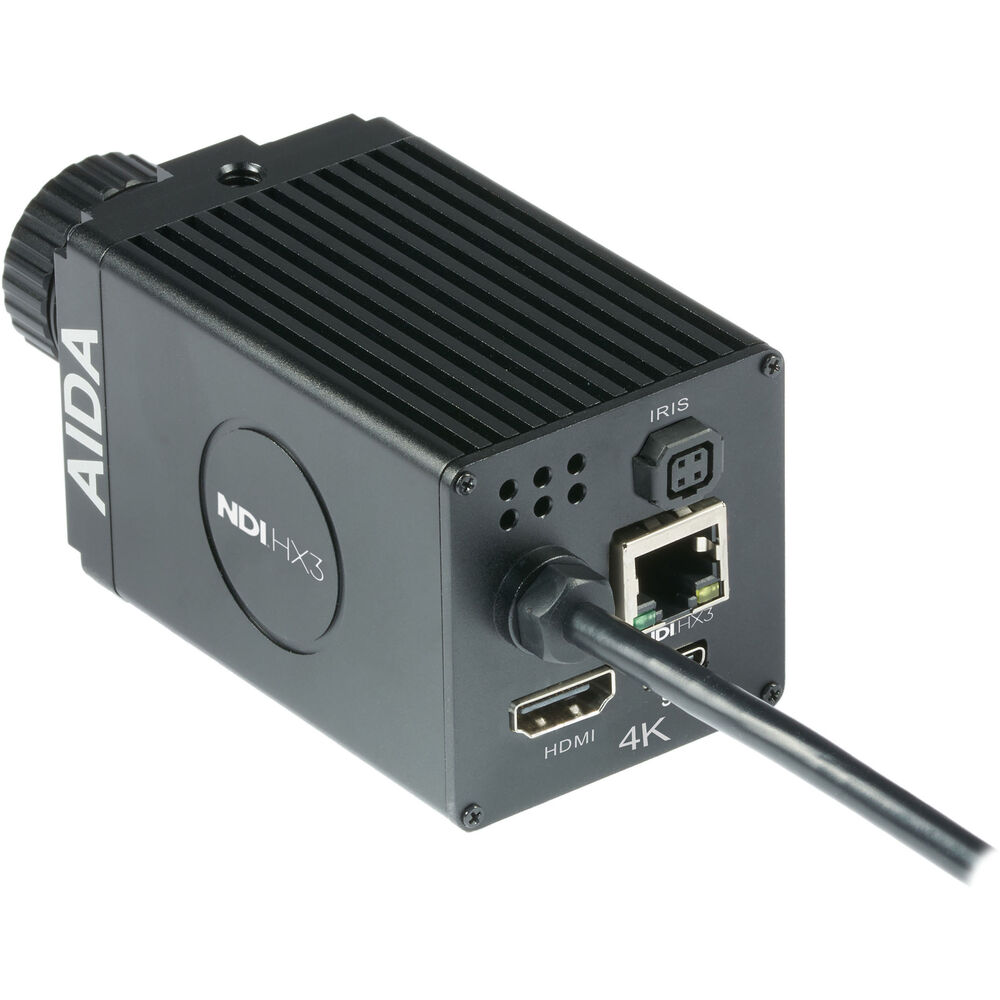

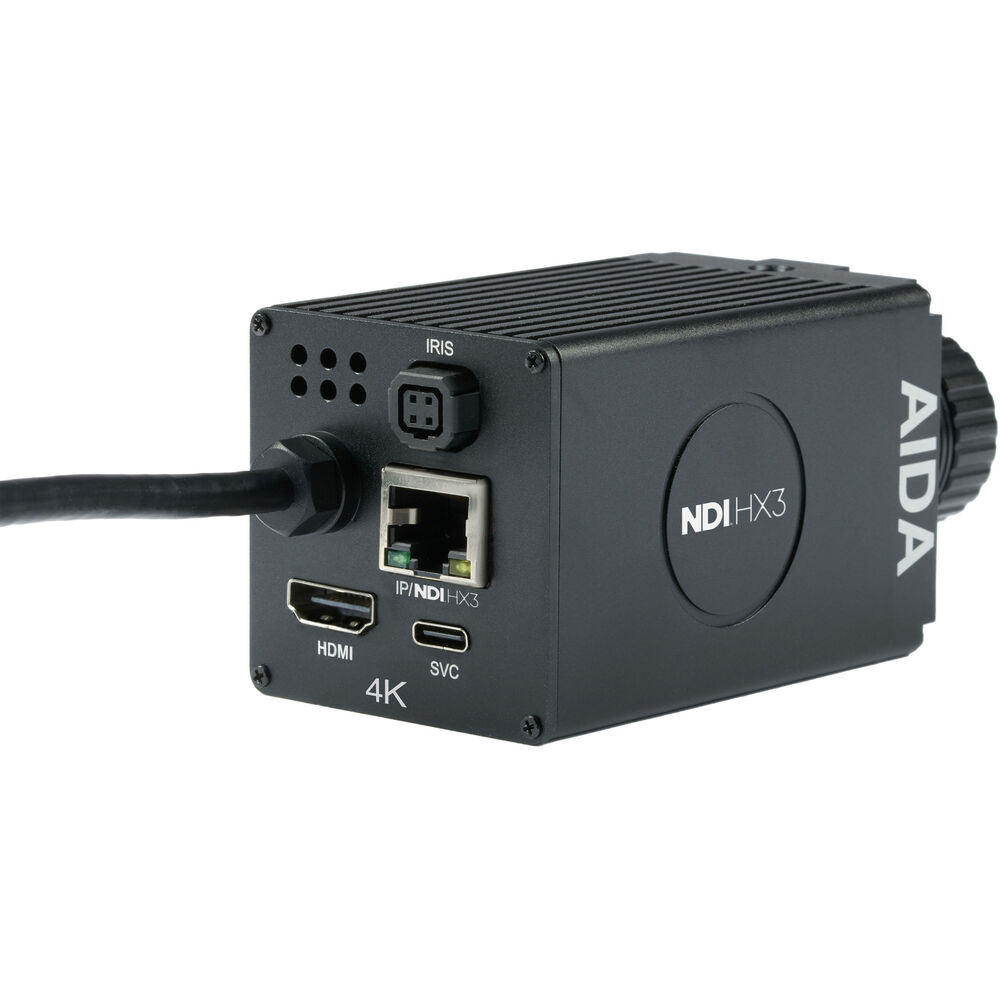

Output 1 x HDMI 2.0 1 x RJ-45 (IP/NDI)
Audio 1 x 3.5 mm Input (for IP/NDI)
Audio Sample Rate 16/24/32 Bits
Other Ports USB C (Firmware) 4-Pin IRIS Port

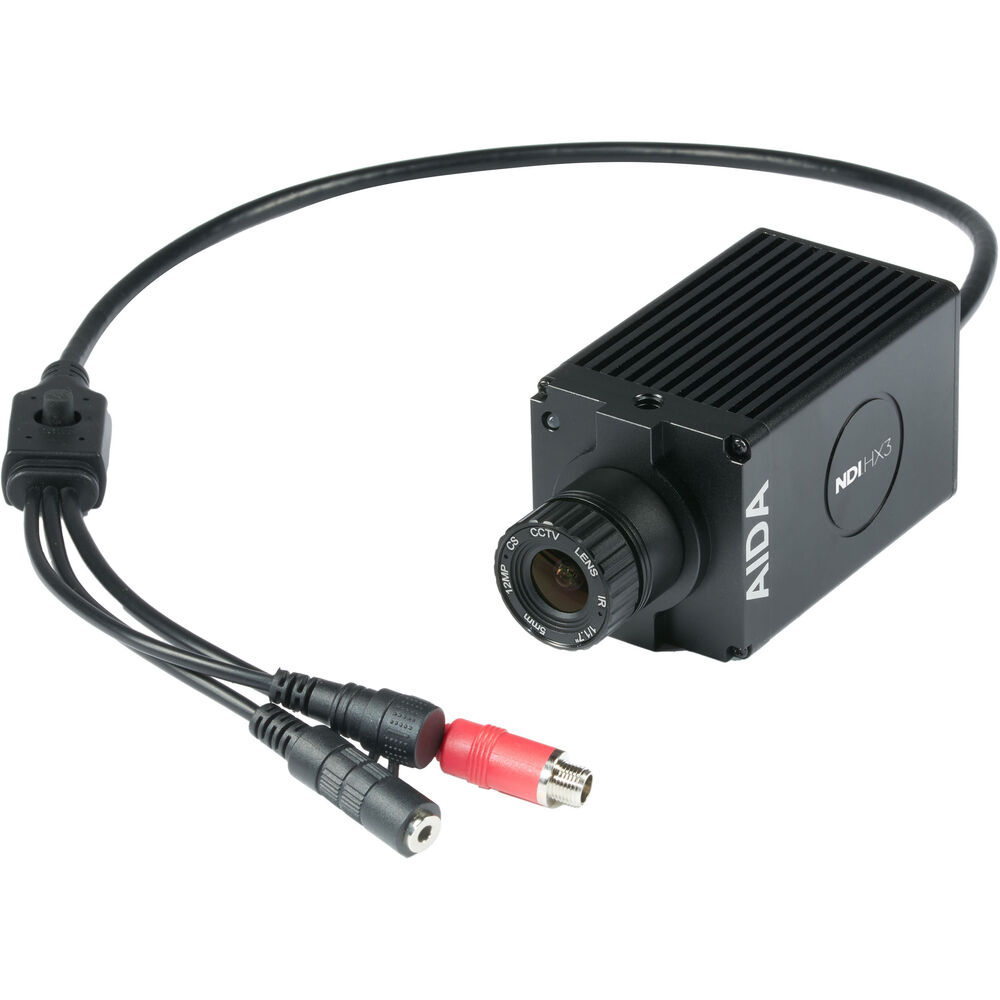

Breakout Cable 1 x Power 1 x 3.5mm audio input 1 x RS-485
Video Encoding H.264/H.265
Minimum Lux 0.2Lux (day), 0.1Lux (Night)
Camera Control Protocol: VISCA over IP
Mount Type Top: 1/4"-20 Female Bottom: 1/4"-20 Female
Power 12 VDC (9 to 15 V) / POE+ (IEEE802.3at)
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 3.35" x 1.93" x 1.93" / 85 x 49 x 49 cm
Weight 350g / 1 lb.
