AIDA Imaging UHD6G-200 - 4K/30 6G-SDI POV Camera

AIDA Imaging UHD6G-200 - 4K/30 6G-SDI POV Camera

Regular price $875.00 USD
Regular price Sale price $875.00 USD
Sale Sold out

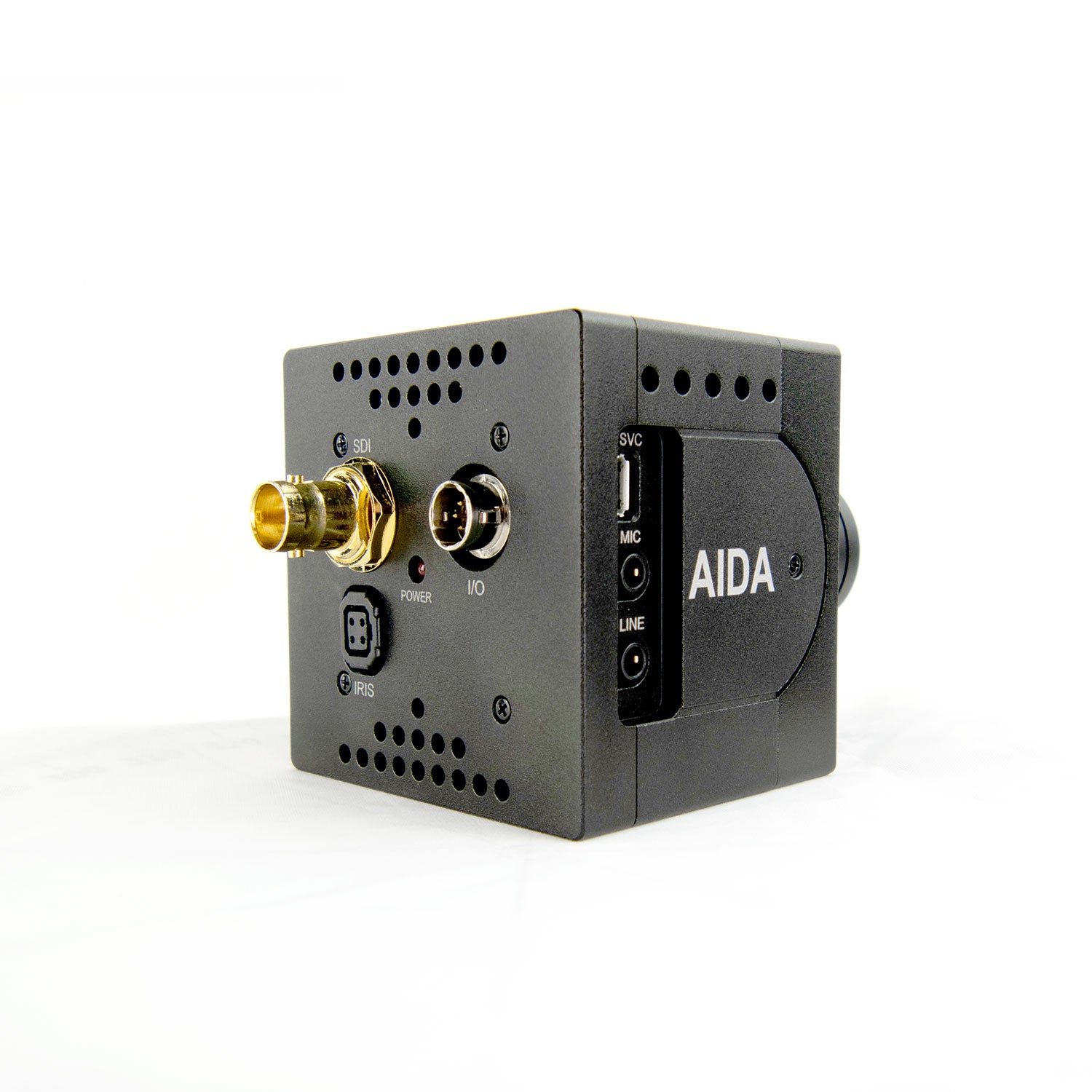

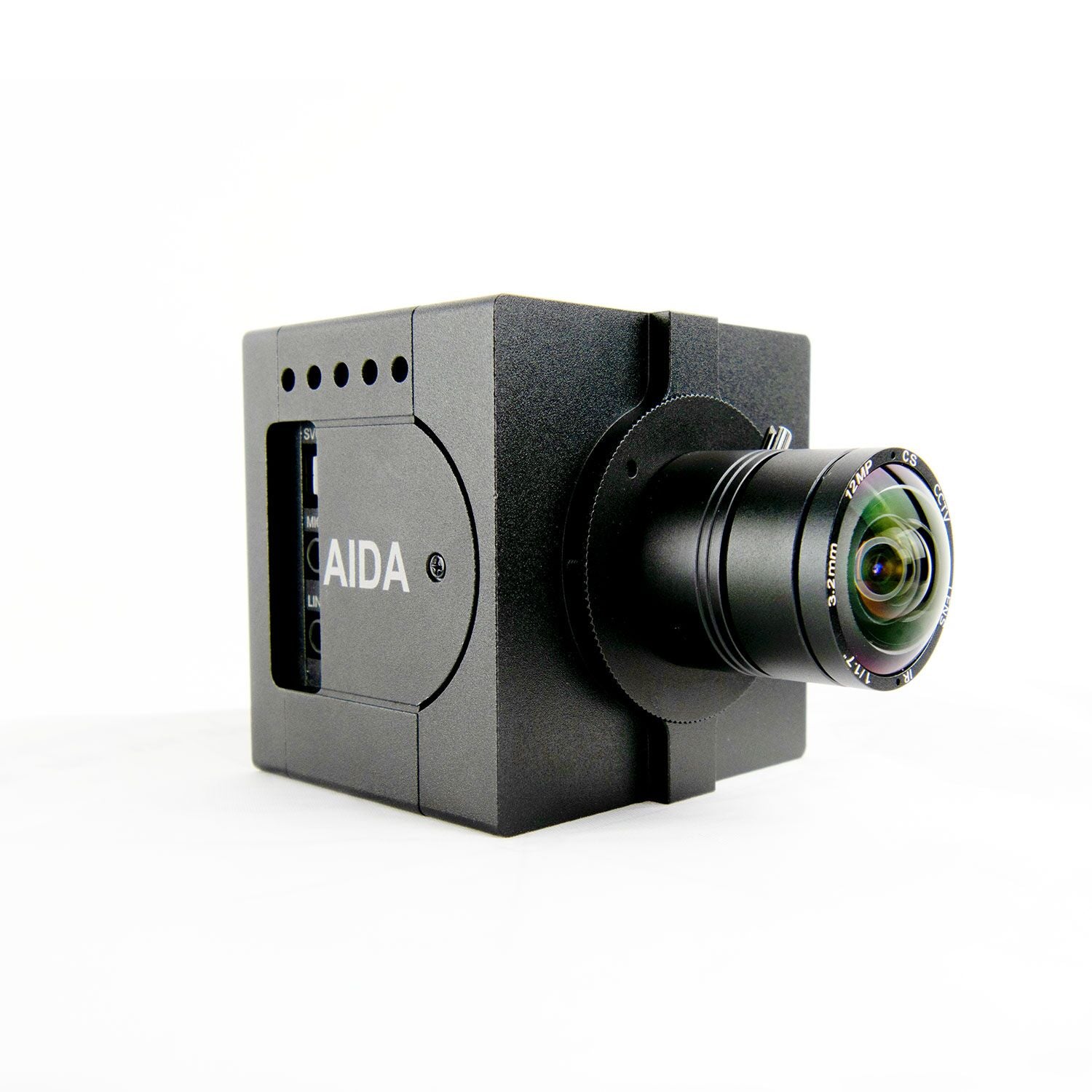

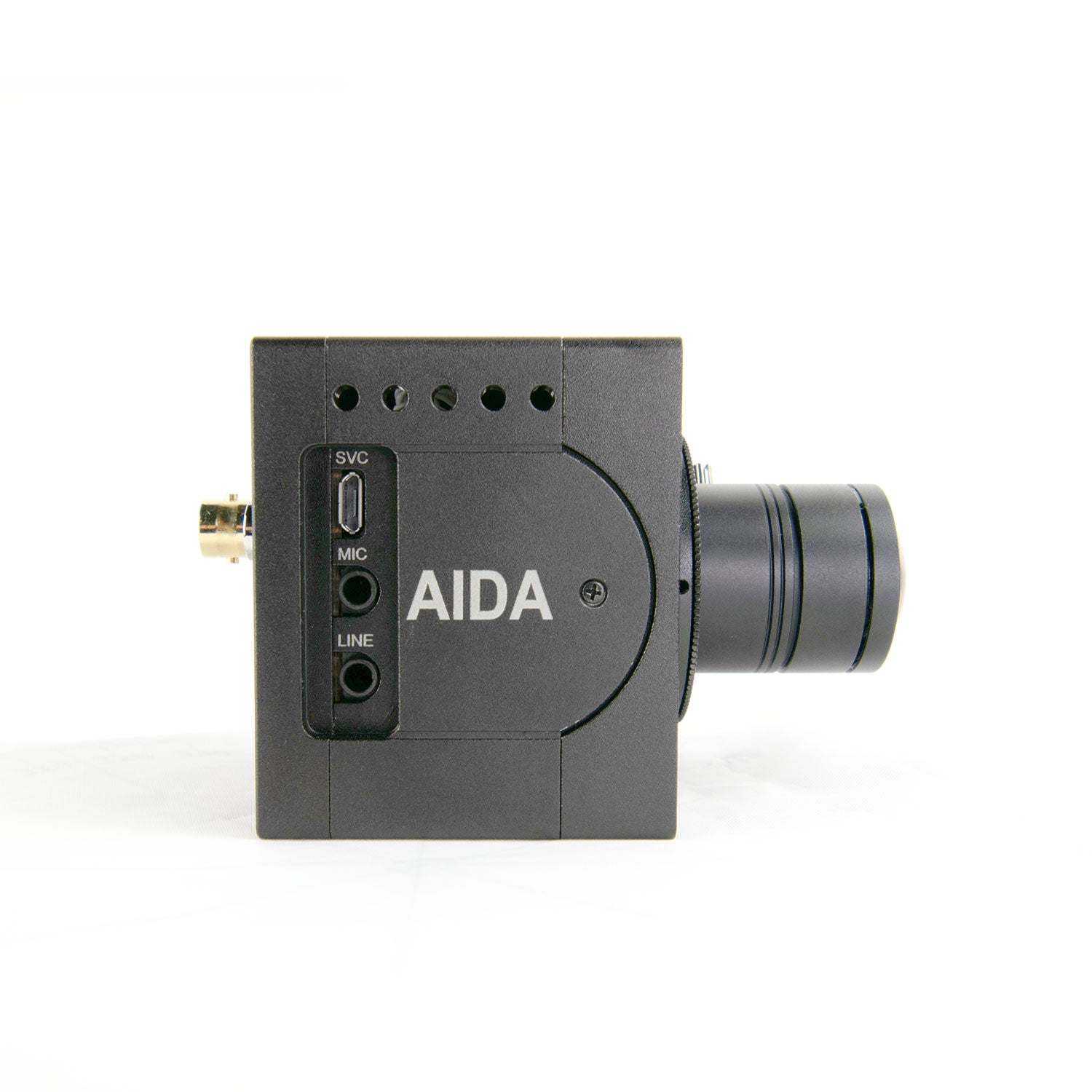

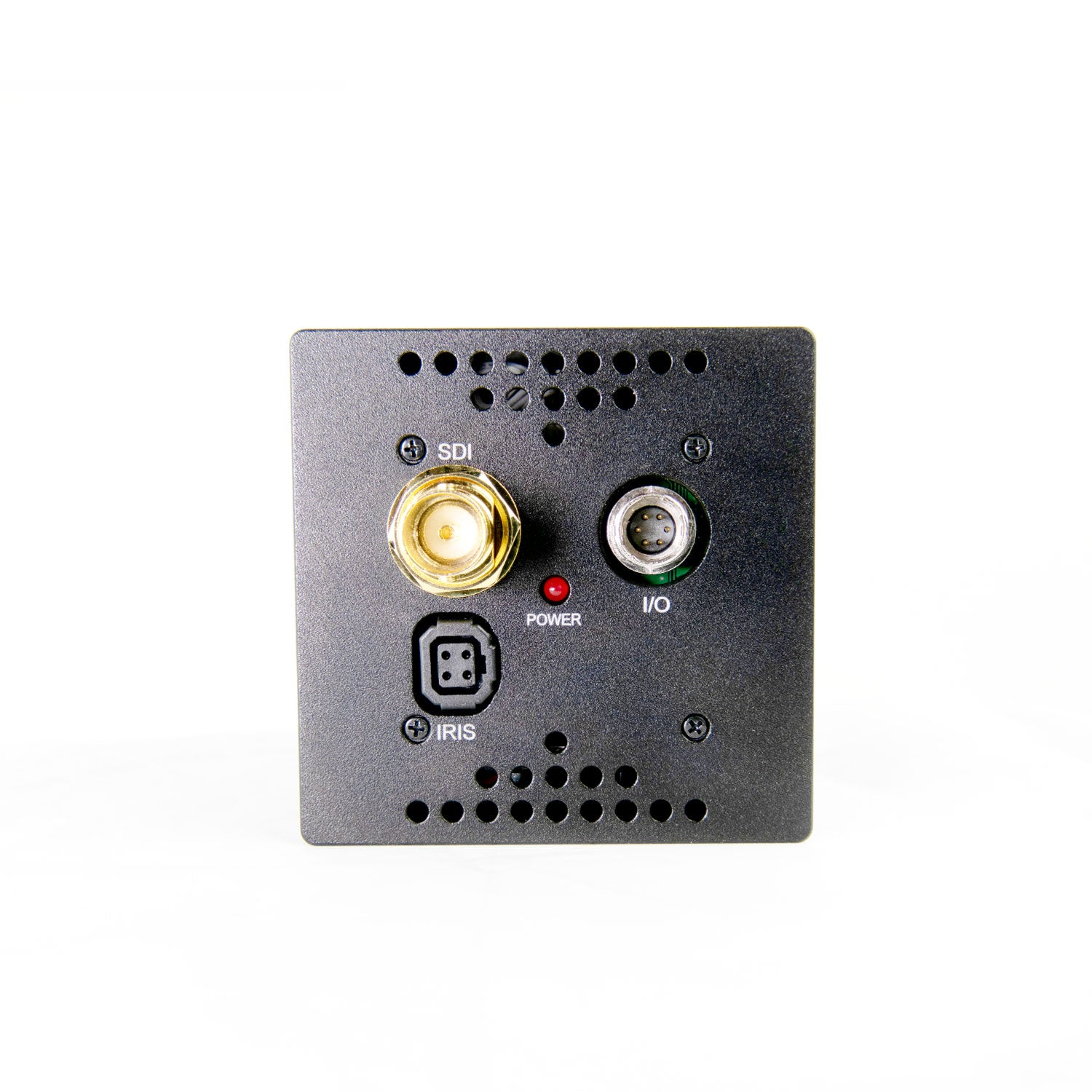

The UHD6G-200 POV Professional EFP Camera from AIDA Imaging has a 1/2.5" progressive-scan CMOS image sensor and supports a resolution of up to 4096 x 2160 at 20/24p fps. It features a preinstalled 3.2mm 12MP 4K lens and a 6G-SDI output and is designed for industrial and broadcast applications. This camera features a user-interchangeable C to CS mount lens as well as digital imaging processor that provides vivid and detailed images by utilizing dynamic range, white balance, and noise reduction. The on-screen display can be remotely controlled by a PTZ camera controller or by CCS-USB and software. A breakout cable with on-screen display control, audio input and RS-485 for remote communication as well as a 12 VDC power supply and socket adapter are included.

Learn more in our helpful demonstration video!


Video

Image Sensor 1/2.5" progressive CMOS
Sensor Size 8.365 X 6.615 mm (16:9)
Effective Pixels Horizontal: 3840 Vertical: 2160
Pixel Size Horizontal: 1.62 μm Vertical: 1.62 μm
Resolution 4096 X 2160, 3840 x 2160, 1920 x 1080, 1280 x 720
Resolution / Frame Rate 4K (4096 X 2160) at 20/24p 2160p at 30/29.97/25/24 1080p at 60/59.94/50/30/29.97/25/24 1080i at 60/59.94/50 720p at 60/59.94/50/30/25
Output 1 x HD/3G/6G-SDI BNC port
Color Space 4:2:2 (YCbCr) 10-bit

Function

White Balance AWB / AE / AF
Exposure Full auto, bright, shutter priority, iris priority, manual

Lens

Lens C/CS mount

Audio

Input 3.5 mm analog audio jack over input/output cable
Sample Rate 16/24/32 bits

Standard

SMPTE SMPTE 292M, SMPTE 424M, SMPTE 2081-10

Physical

Camera Control RS-485 OSD Button
Power 12 VDC (9 to 15 VDC)
Operation Temperature 15 to 120°F / -9.4 to 48.9°C
Dimensions 2.20 x 2.20 x 2.83" / 56 x 56 x 72 mm
Weight 0.37 lb / 170 g
