AIDA Imaging HD-X3L-IP67 - FHD Weatherproof 3G-SDI 3.5X Optical Zoom POV Camera

The ultra-compact, weatherproof 3G-SDI 1080p POV Camera with 3.5x Optical Zoom from AIDA Imaging is suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 2" wide by 2" tall and 3.25" deep, the camera can fit in a variety of spaces where a small footprint and wide-angle lens are advantageous, such as a dashcam or discretely in the corner of a surgical room.

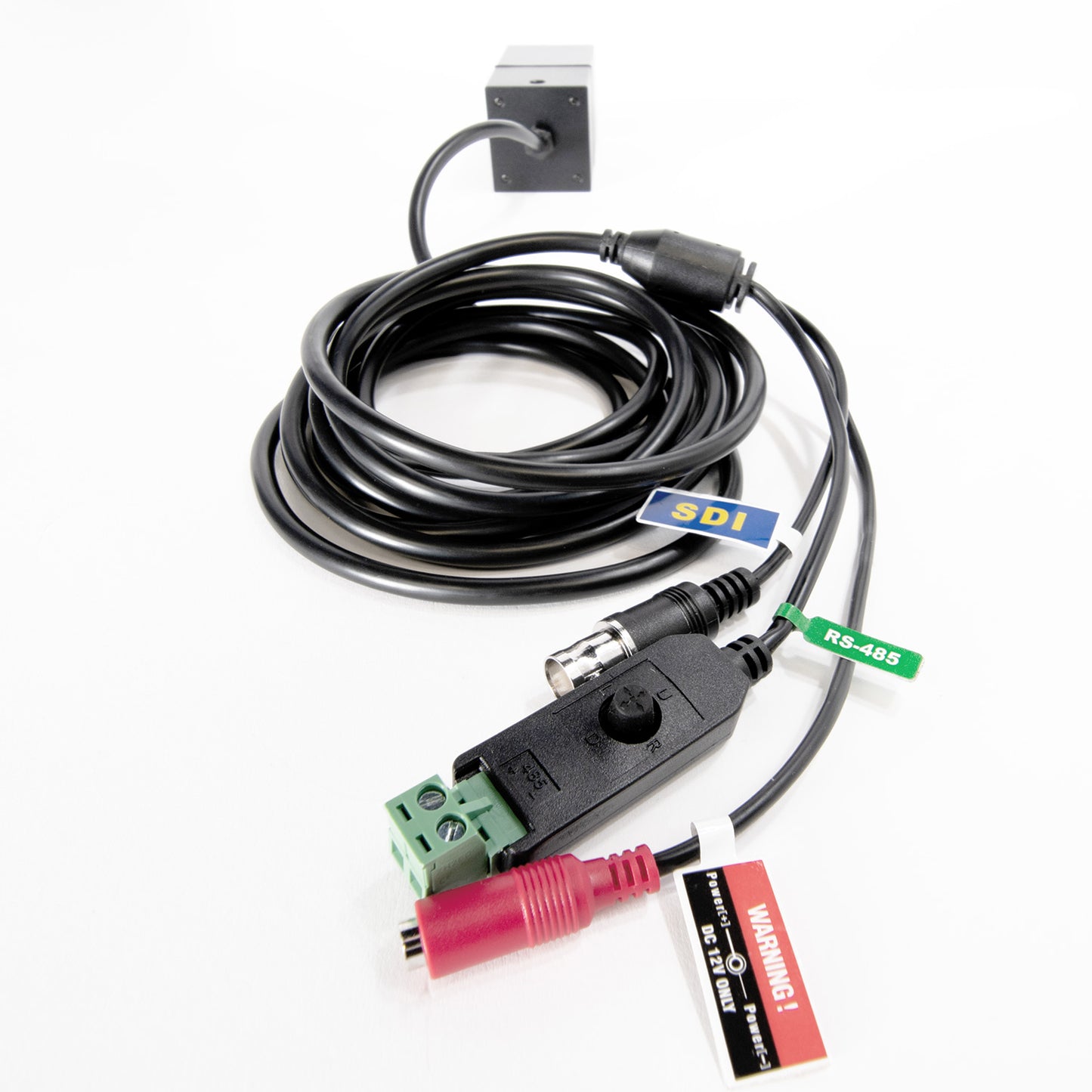

The camera captures up to 1080p60 resolution video, and it features a wide-angle, built-in 3x zoom lens. The camera has a 3G-SDI output that allows you to connect it to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included 10' long breakout cable provides inputs for power, RS-485, and VISCA serial control. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools, such as 2D/3D noise reduction, digital slow shutter, black level compensation, flicker detection as well as selecting the exposure mode.

The camera body includes both a power and SDI indicators allowing you to confirm its operation at a glance. Two 1/4"-20 threaded mounting holes, one on the bottom and one on the top, allow you options when mounting the camera.

Key Features

• Capture up to 1080p60 Resolution Video
• IP67 Rated Waterproof for Outdoor Use
• 3.85 to 13.4mm 3x Optical Zoom Lens
• 3G-SDI Output, 78 to 25° Angle of View
• RS-485 Input via 10' Breakout Cable
• Wide Dynamic Range
• Digital Image Stabilization
• 2D/3D Image Noise Reduction
• 2 x 1/4"-20 Mounting Threads

---

Specifications

Video

Image Sensor	1/3″ Progressive CMOS
Sensor Size	Diagonal 7.20mm
Effective Pixels	Horizontal: 1920, Vertical: 1080
Pixel Size	2.75 μm (H) x 2.75 μm (V)
Resolution	1080p / 1080i : 1920 x 1080 720p : 1280 x 720
Resolution | Rate	1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 1080i : 60 / 59.94 / 50i 720 720p : 60 / 59.94 / 50p
Output	3G-SDI
Color Space	4:2:2 (YCbCr) 10bit

Function

White Balance	AWB / AE / AF
Exposure	Full Auto, Bright, Shutter Priority, Iris Priority, Manual
Other	WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection

Lens

Lens	3X Optical Zoom Lens, 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)

Standard

SMPTE

SMPTE 292M, SMPTE 424M

Physical

Weatherproof Rating	IP67
Camera Control	RS-485 OSD Button
Operation Temp	32°F – 104°F
Dimension	48mm x 48mm x 83.09mm / 1.89″ x 1.89″ x 3.27″
Weight	140g / 0.30lbs
Power	12 VDC (+9 – +15VDC)
