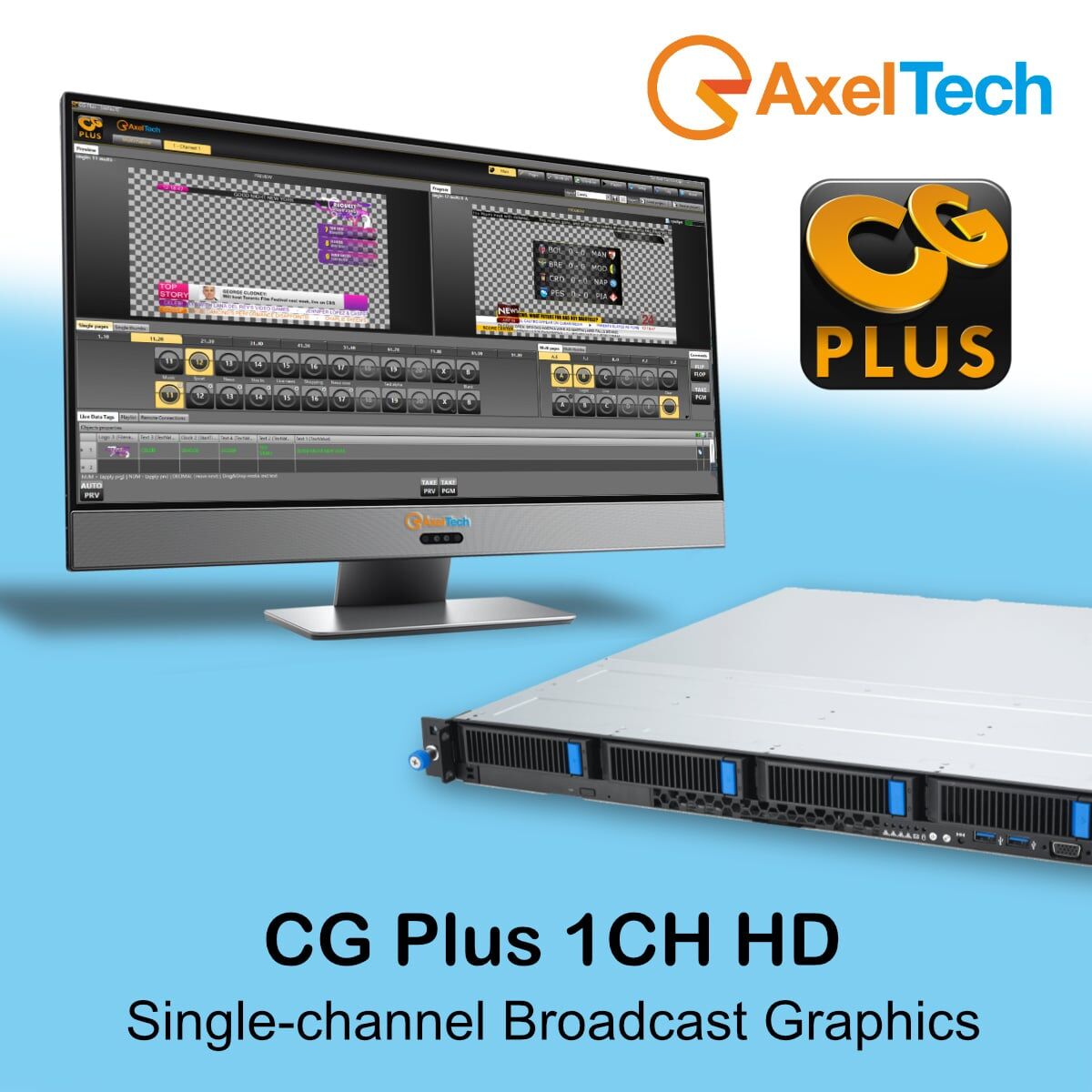

Axel CG PLUS Single-Channel Broadcast Graphics System

Switchblade PLU1 Enterprise with Axel Tech CG Plus 1CH Live Graphics Software

1-channel advanced live graphics generator server

Key Features

• 1-channel HD/4K SDI/NDI
• Animated logos
• Digital clocks, texts, crawls, scrolls, tickers and RSS feeds
• Fade, zoom, slide animation effects
• Scheduler
• 32-bit transparencies
• MOS protocol support
• Remote control via GPI/XTV/DIGITV
• Includes 1 year of software updates and technical support

Technical Specifications

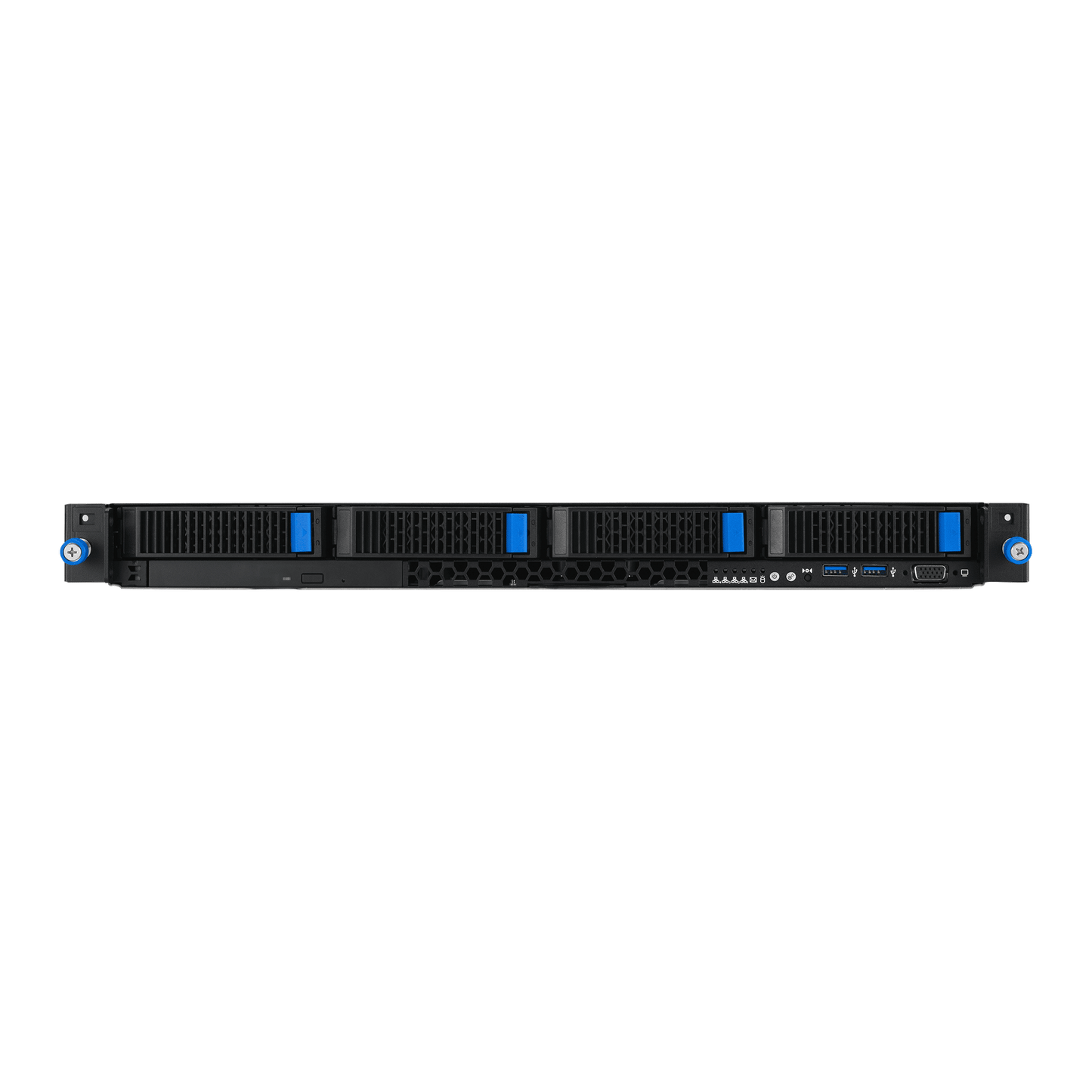

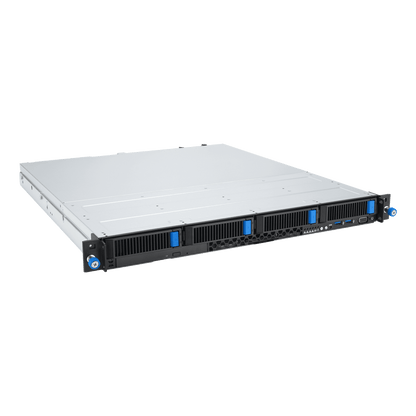

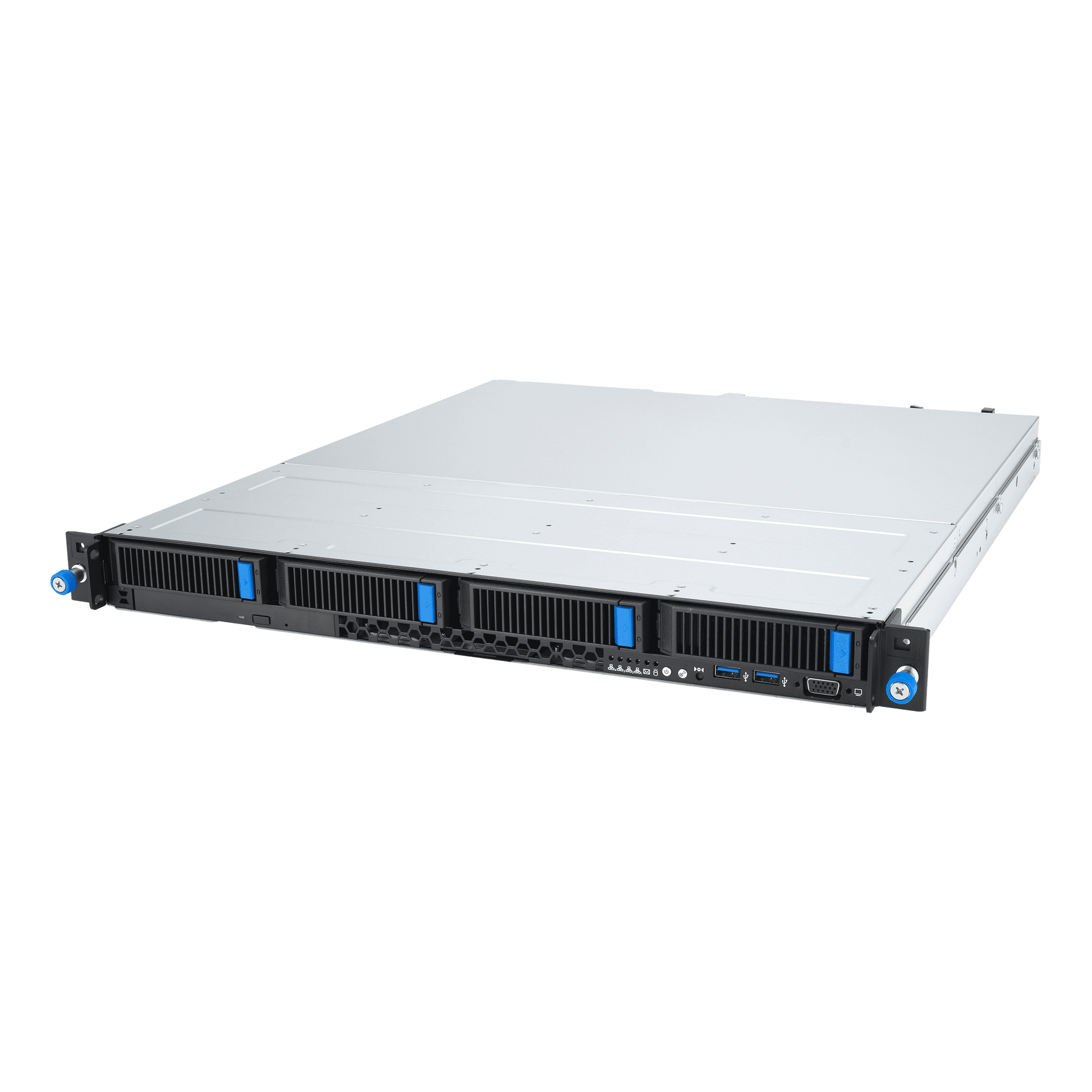

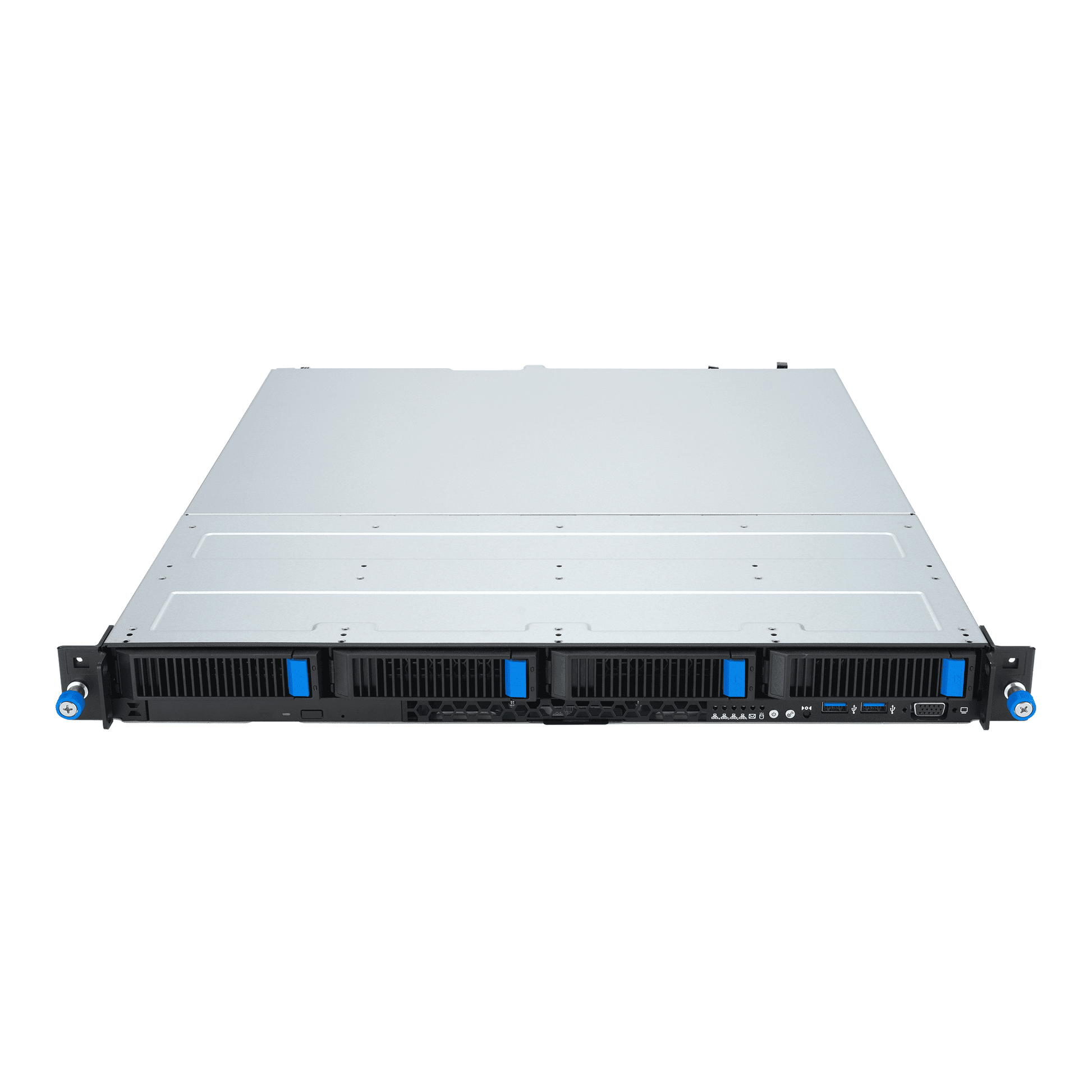

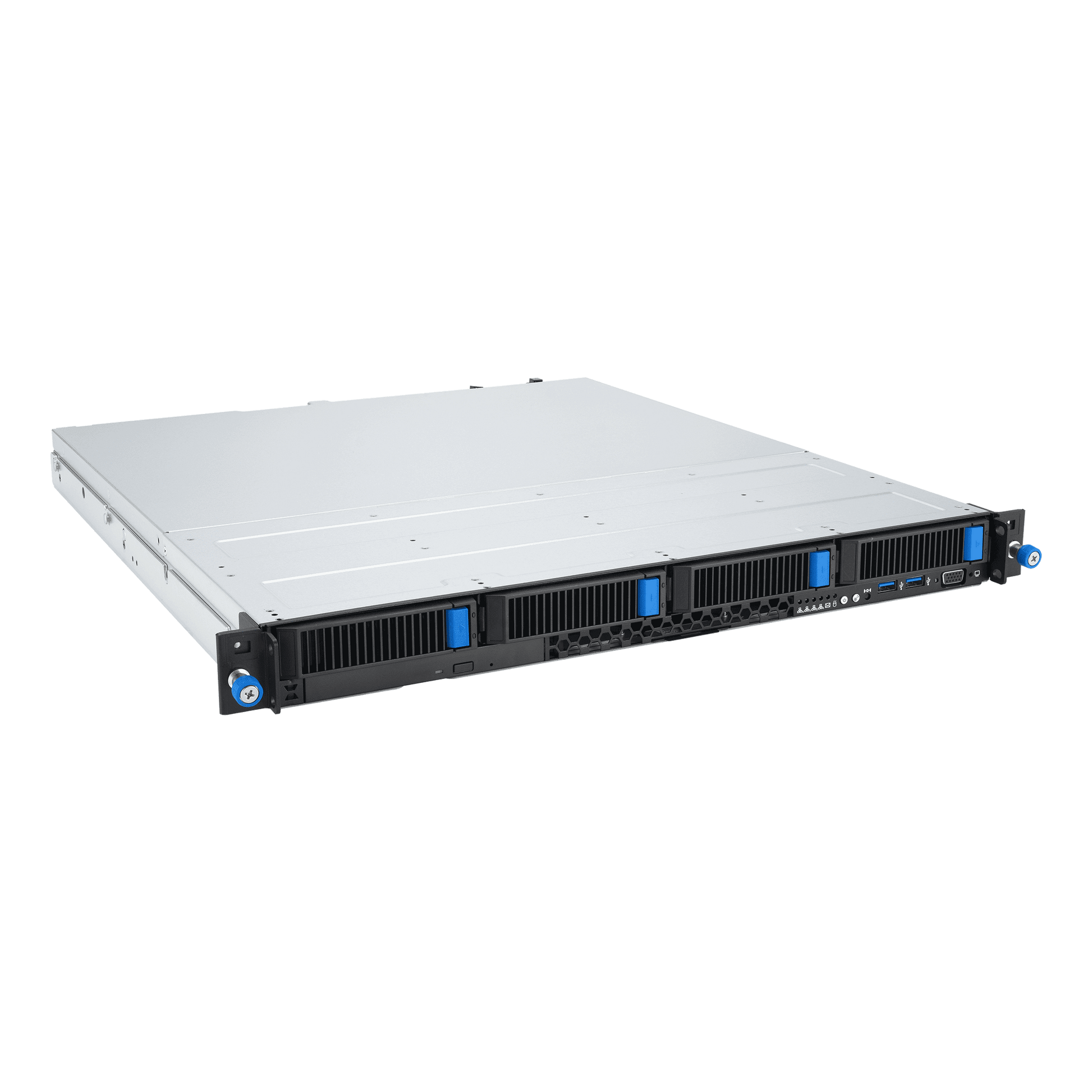

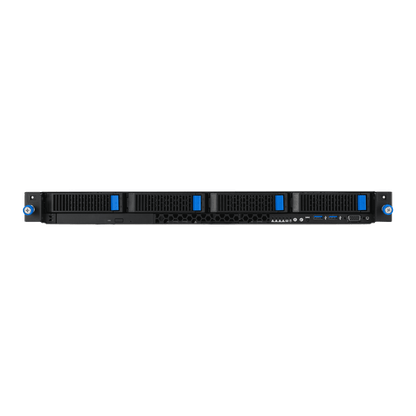

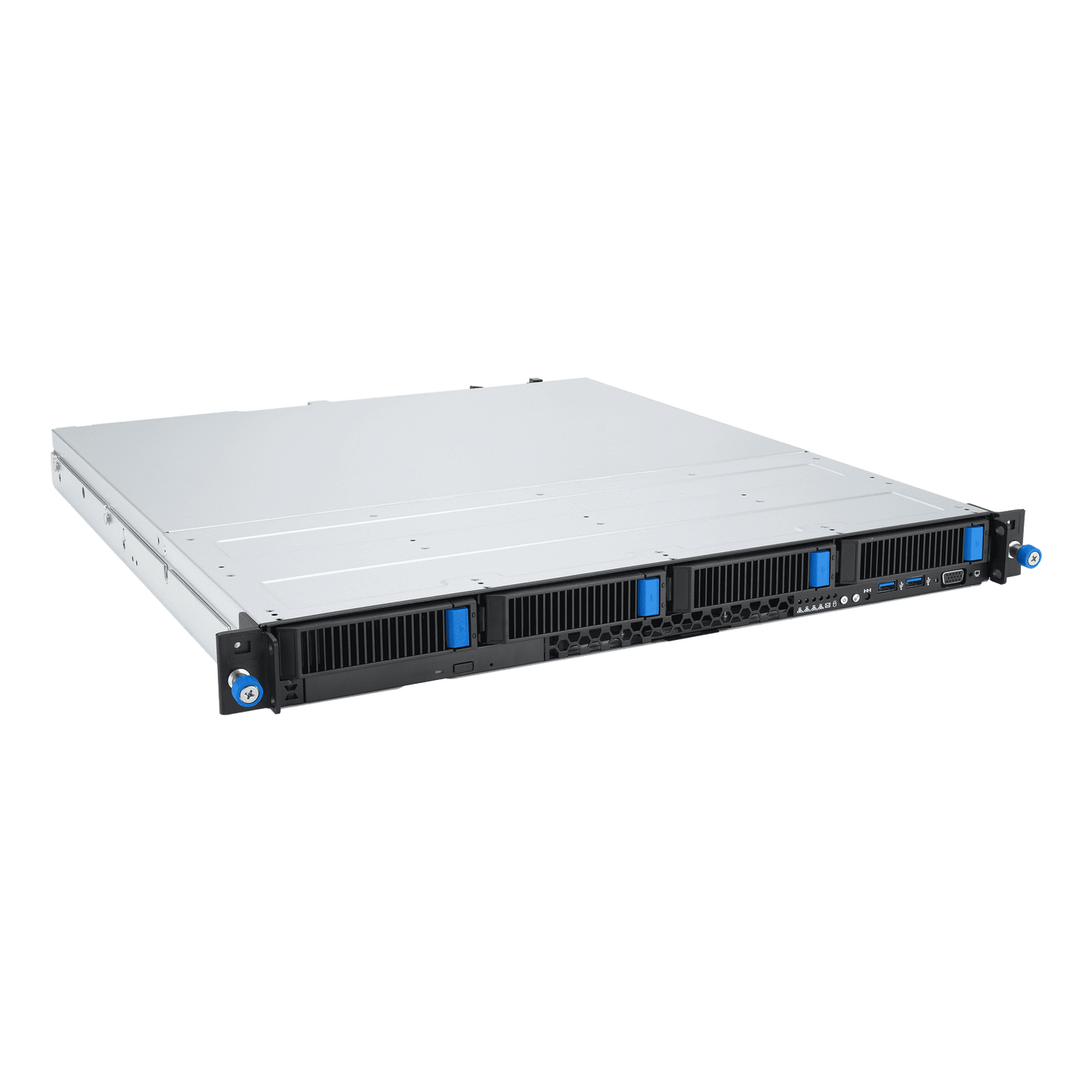

• Rugged, short-depth 1U chassis
• 8-core Intel Xeon E-2478
• 32GB RAM
• 1TB System SSD
• NVIDIA T400 4GB GDDR6

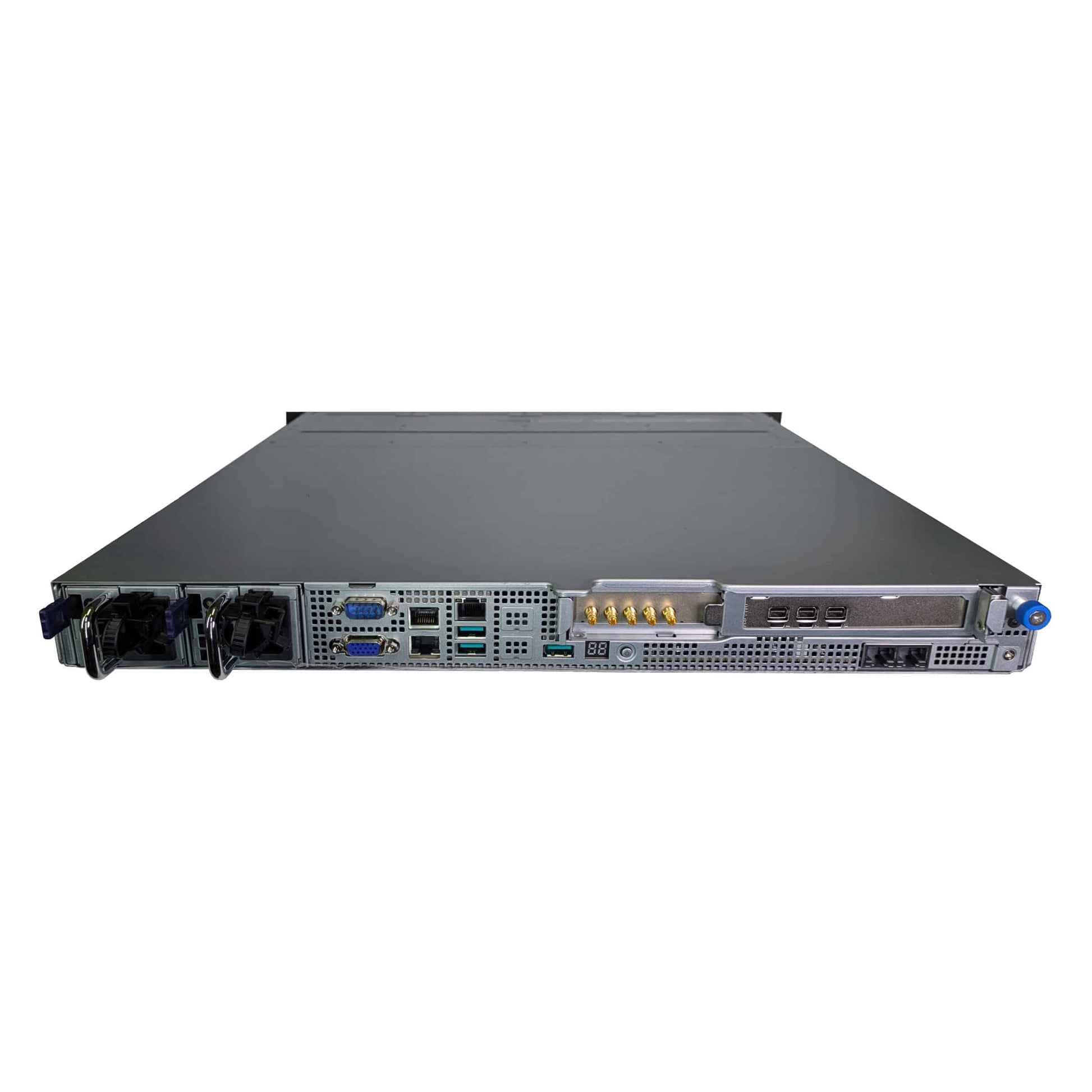

• Blackmagic DeckLink Duo 2 for single-channel 3G-SDI key and fill output

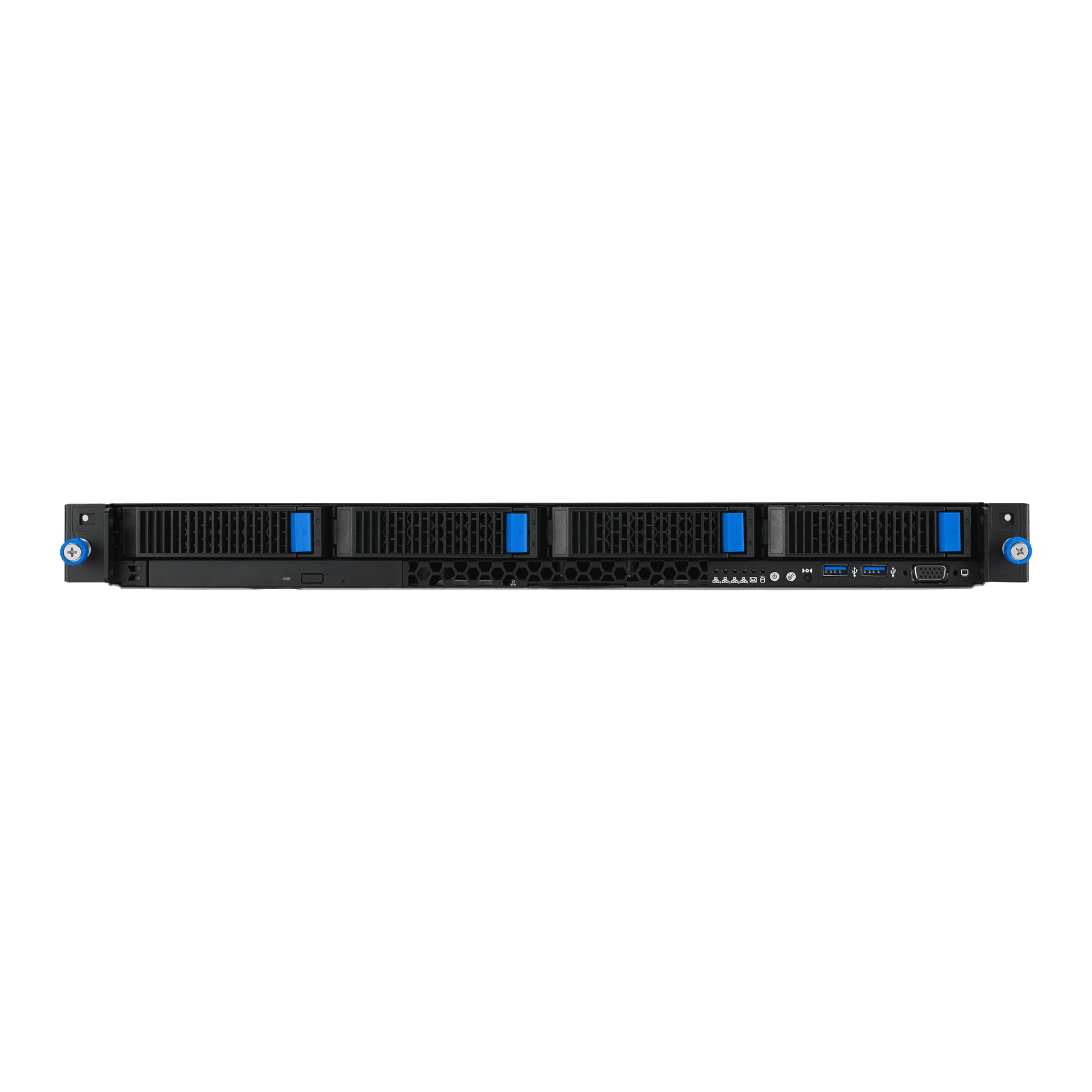

• 4x hot-swap 3.5" HDD bays
• Windows 10 Pro
• 2x GbE RJ-45 network ports, 1x RJ-45 remote management port
• Dimensions: 17.3" W x 1.73" H x 19.56" D
• Weight: 32 lbs.
