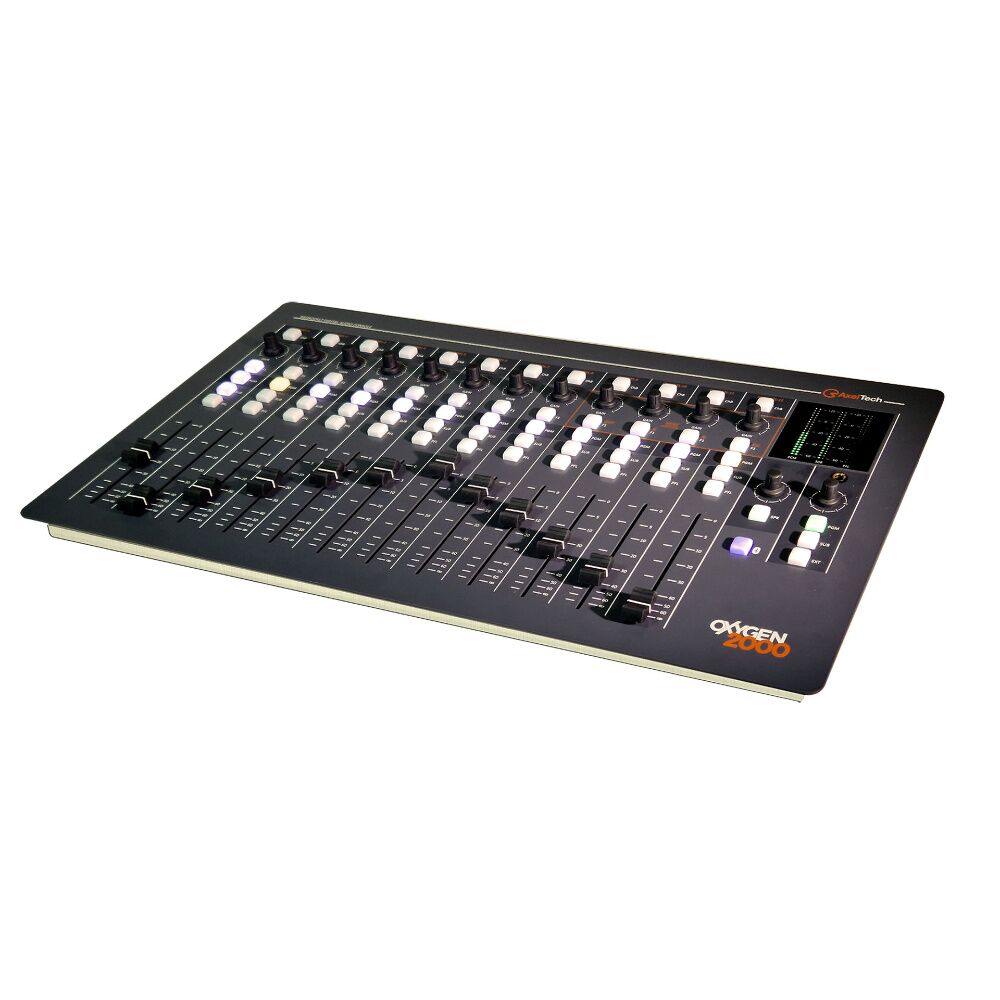

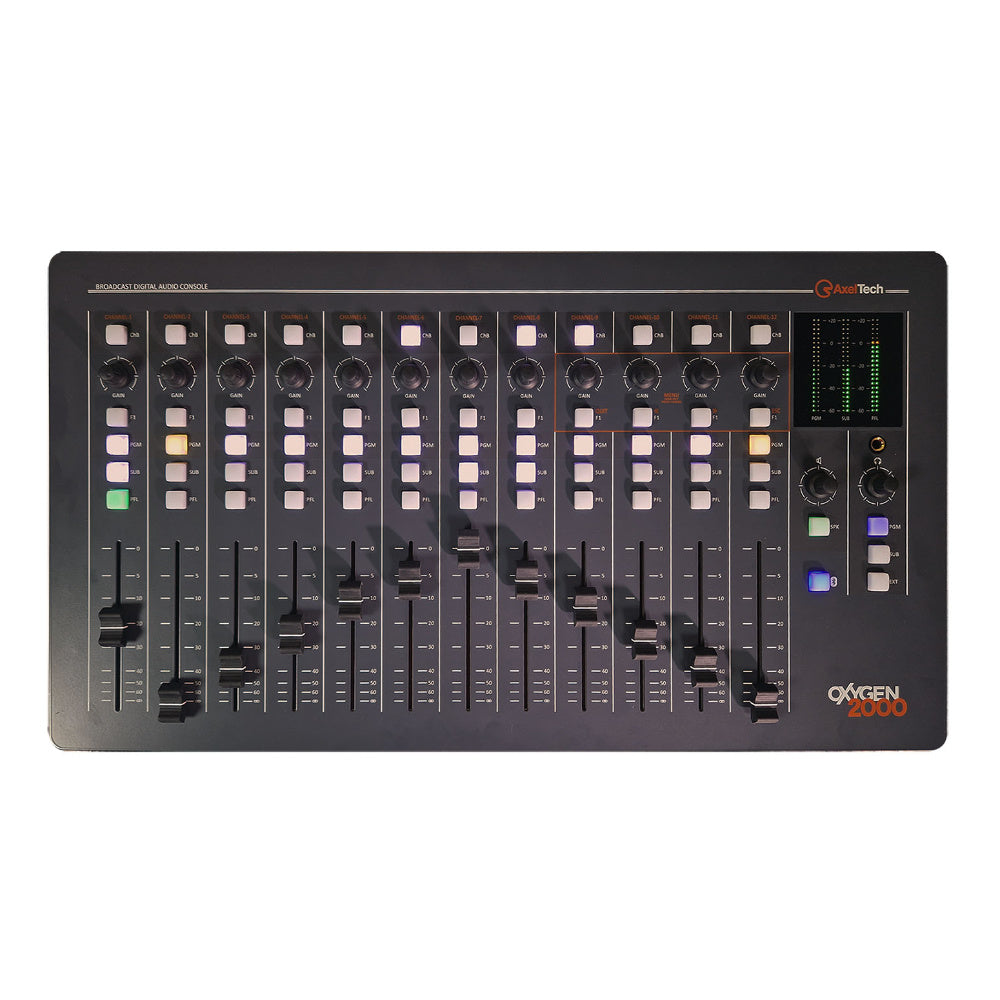

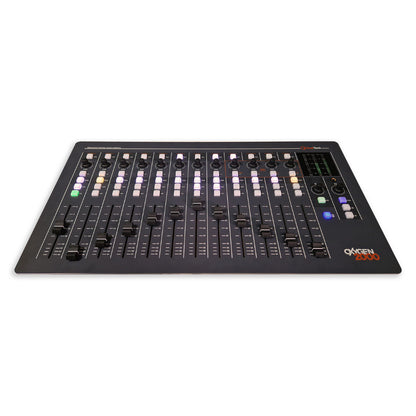

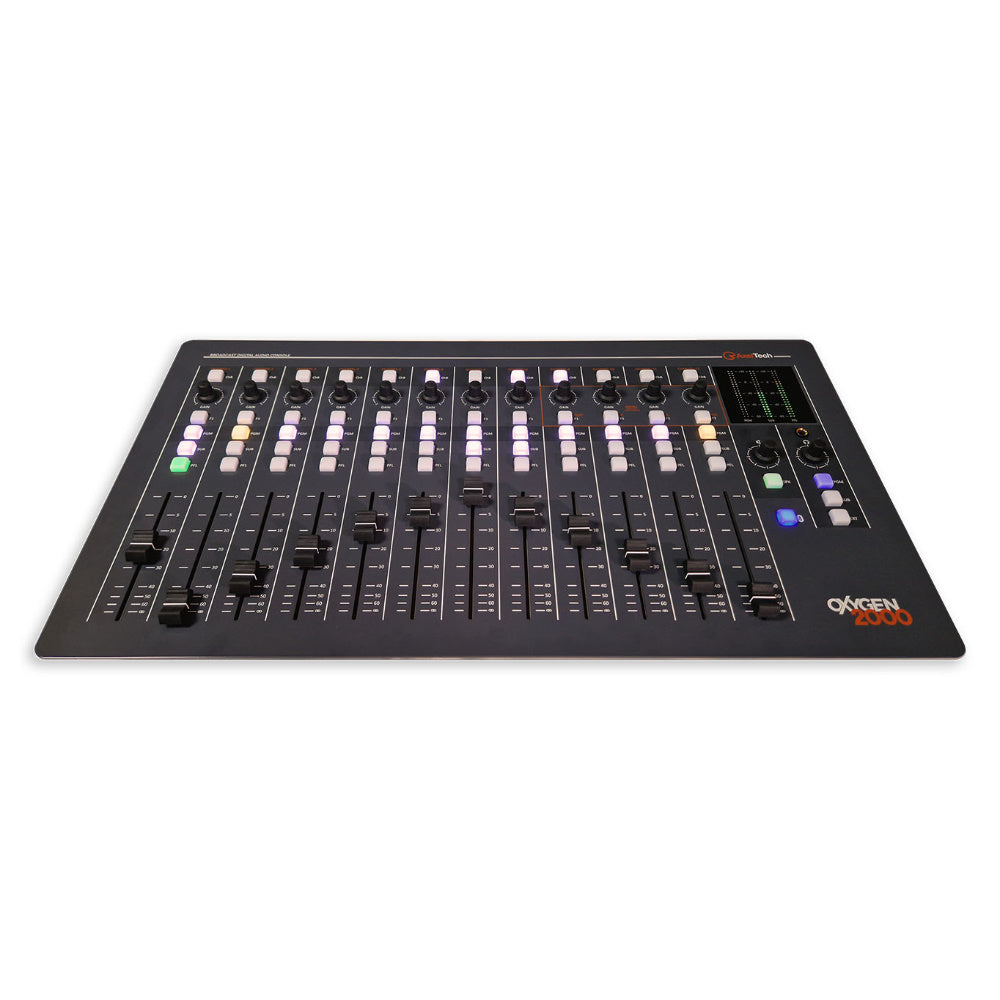

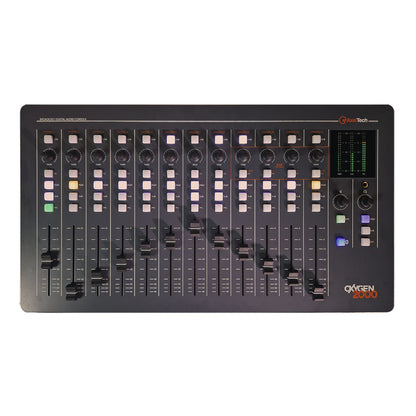

Oxygen 2000 is a fully digital broadcast console designed for on-air production in any radio station. It is a compact unit with 12 faders, 5 microphone inputs with Automix, with powerful internal audio routing and a wide range of controls and I/O in a rugged and classy steel chassis.
Oxygen 2000 DSP based audio processing delivers high-end quality and guarantees latest features and flexibility. Reliable and easy to use as an analog mixing console, Oxygen 2000 offers top-class features: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, Bluetooth, Dante AoIP, Telco, Presenter Talk Box. Oxygen 2000 can also be remotely controlled through a dedicated application.

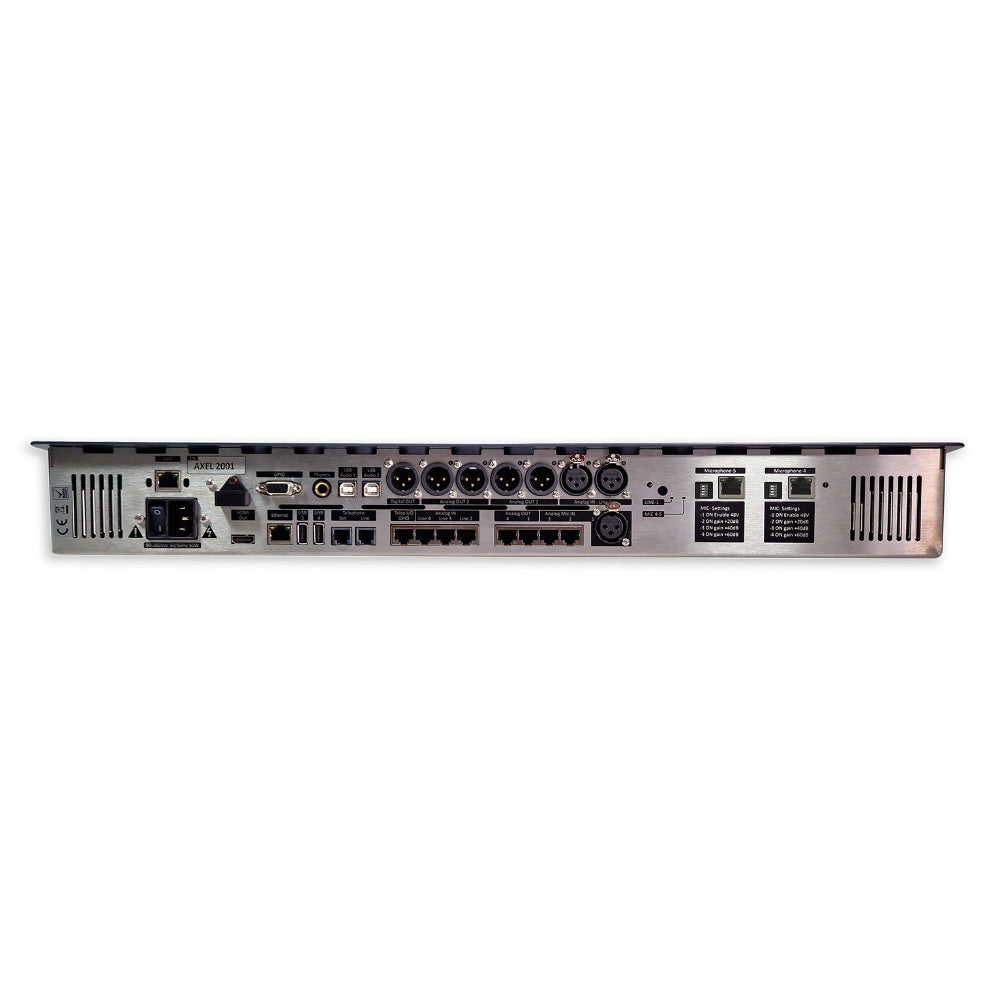

Input & Output
5 microphone inputs with Automix
3 stereo analog inputs (4 if the console is configured for 3 Mic)
4 stereo analog outputs
1 built-in telephone hybrid
1+4 telco interface with GPIO
Bluetooth audio interface (optional)
1 digital Out (AES/EBU)
8 stereo inputs + 8 stereo outputs via Dante
General
Fully Digital Broadcast Console for Radio Broadcasting with 12 faders
A/B Fast source switch buttons for each fader
4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
Near 0 latency (< 0,7 ms I/O)
Digital Signals Routing via the 32×32 internal matrix

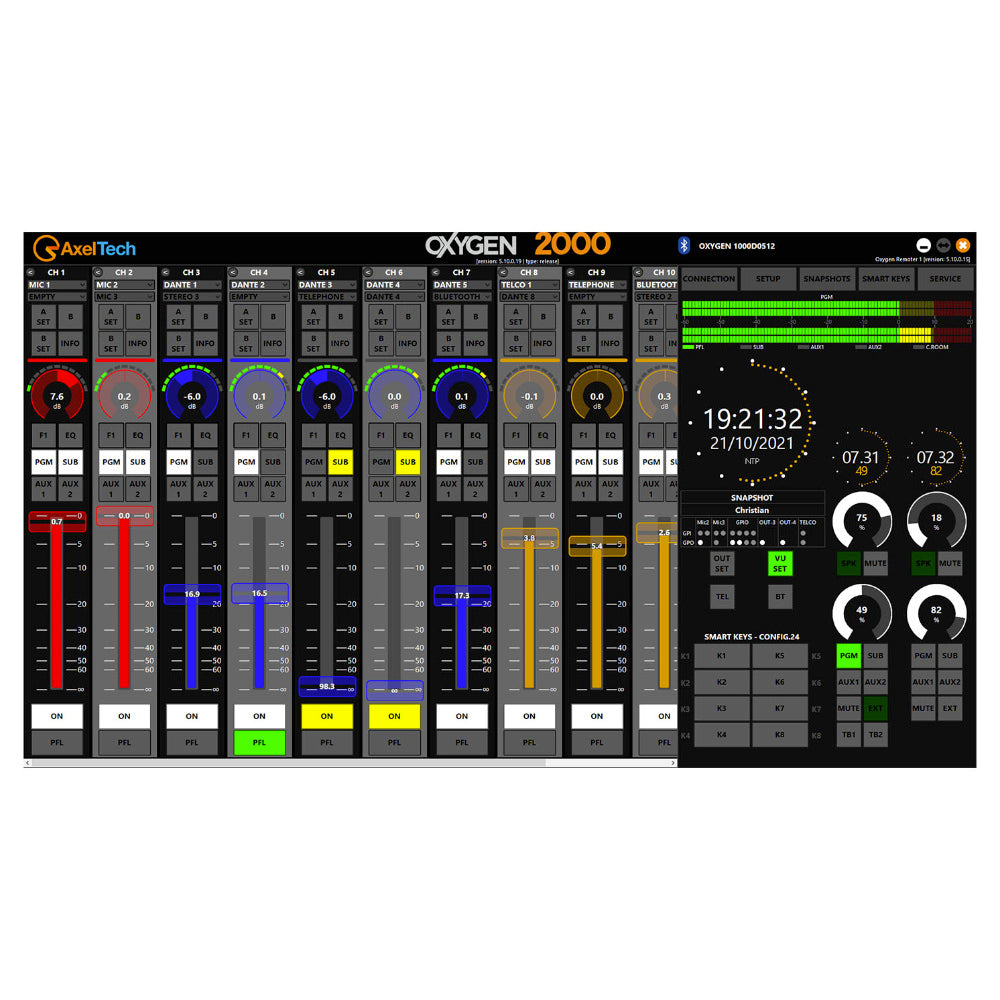

Complete Remote Control by means of an application replicating the surface
Remote configuration and maintenance via Web Interface
User-definable Presets & Snapshot
5 bands fully parametric Equalizer on every input
Dynamic Processor with expander and compressor section on each microphone inputs
Advanced and configurable Monitor Facilities for Control Room and Studio
Customizable RGB colored buttons
High Resolution (120 leds) meter bars for outputs

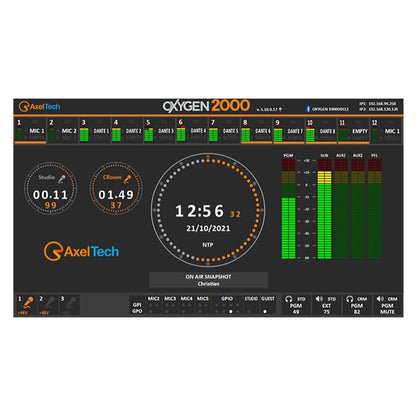

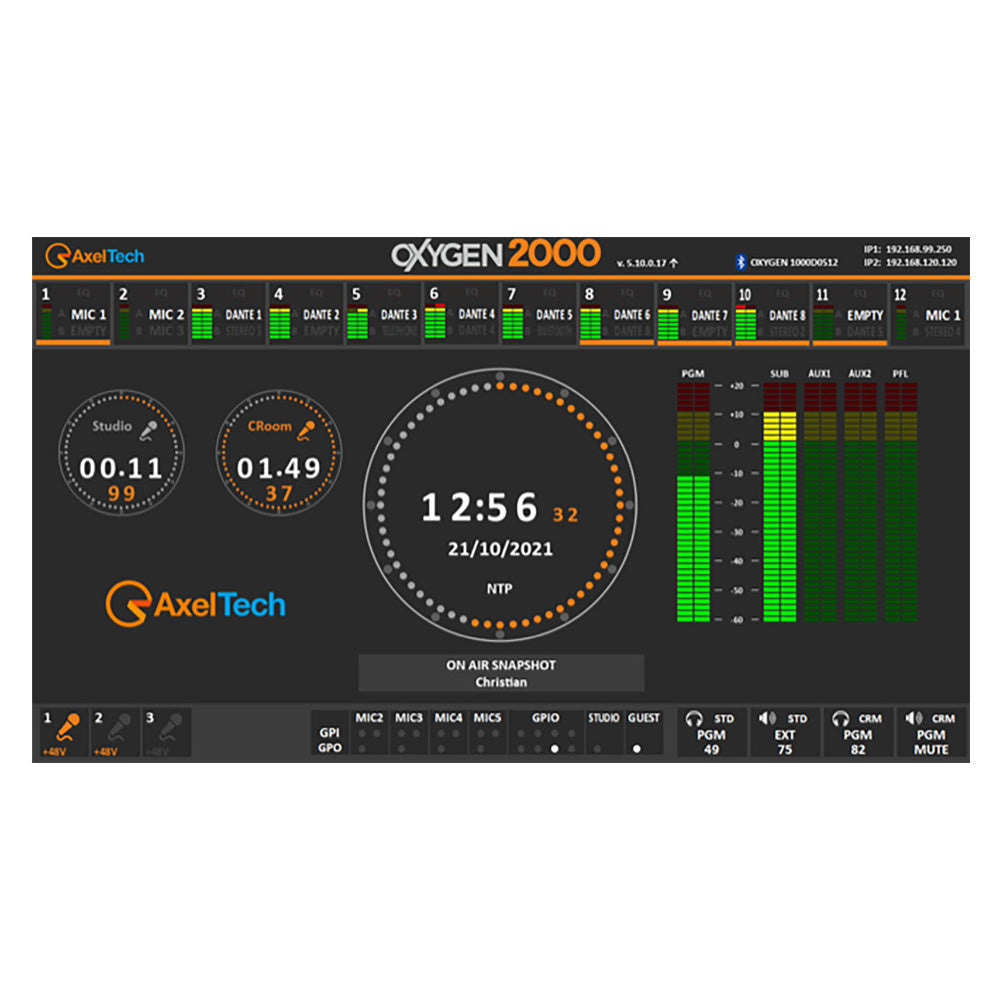

HDMI Out for console status display
2 Timers (Ctrl-Room and Studio microphones timers on HDMI Monitor)
Optional TalkBox for guest and presenter
Options
Talk Box
RJ45 adapters for: o Mic with GPIO o Line In o Line Out with GPIO o Telco with GPIO
