CNDLive A1 Bi-Directional NDI Converter

CNDLive A1 Bi-Directional NDI Converter

$569.00 USD
$569.00 USD
Sale Sold out

The First Simultaneous NDI Encoder Decoder for 1080p60

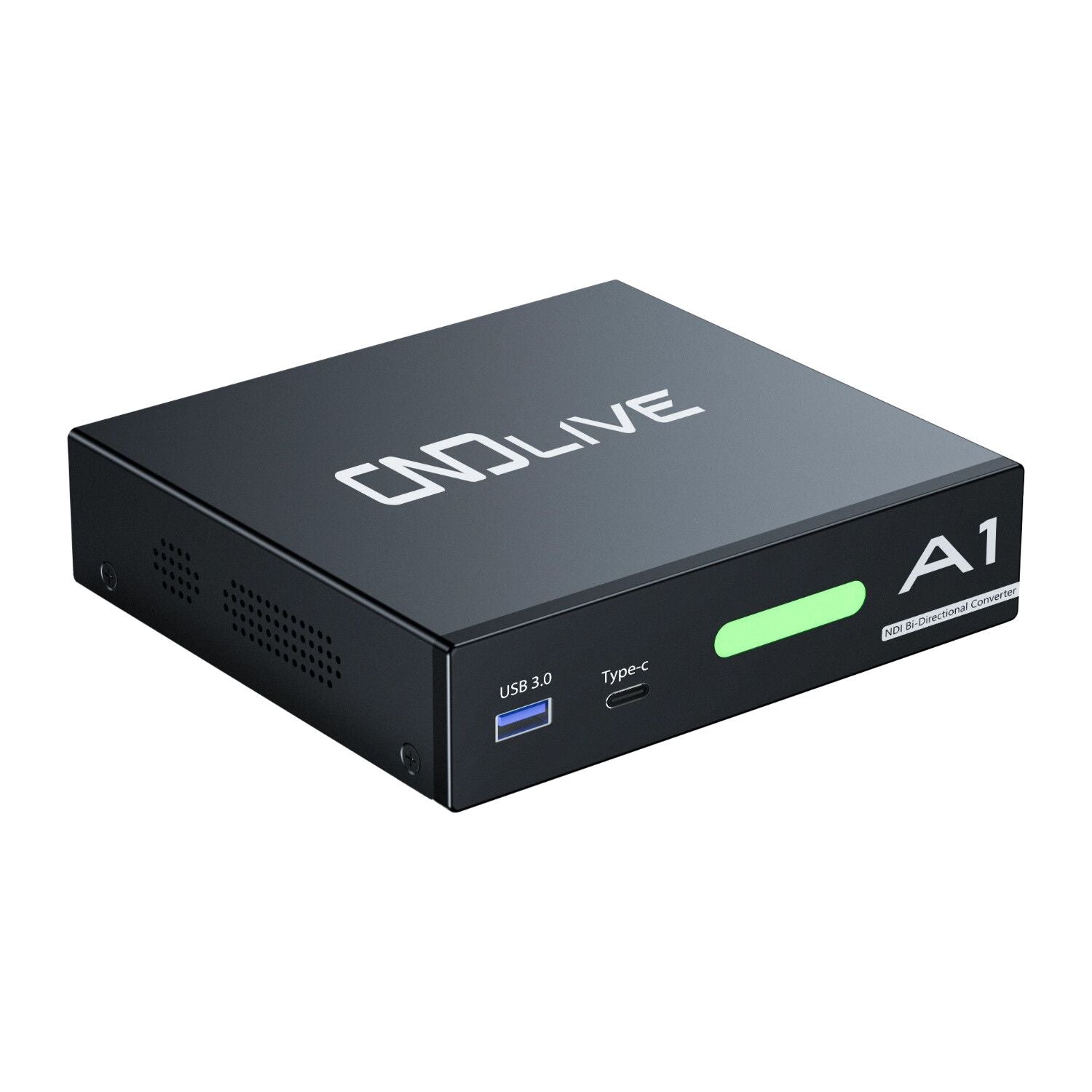

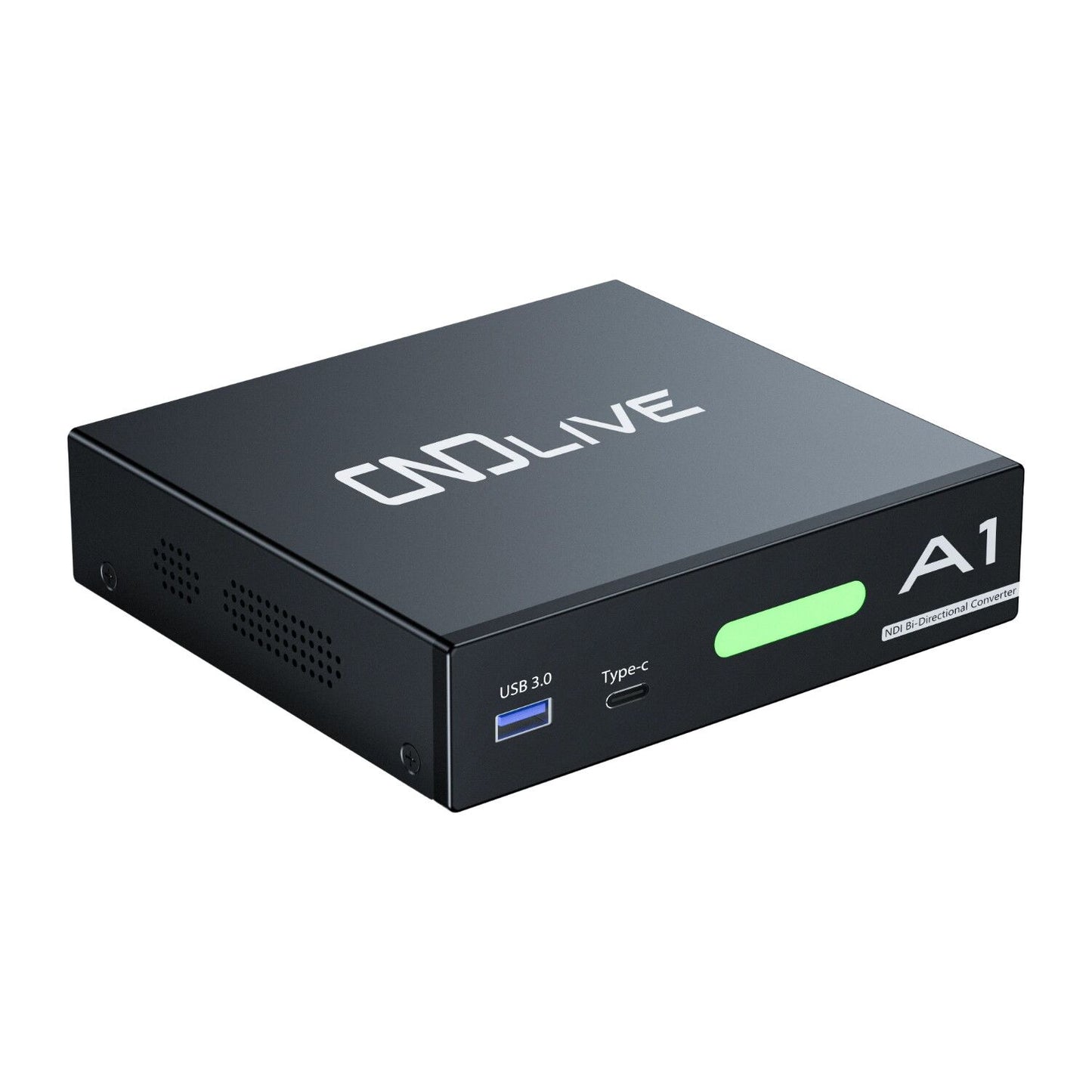

The CNDLive A1 HDMI NDI Converter is a powerful and full-featured NDI converter built for professional audio and video processing needs. Striking the ideal balance between performance, functionality, and affordability, the A1 supports simultaneous 1080p60 encoding and decoding of both high-bandwidth NDI and NDI|HX formats. The A1 supports up to 3840×2160P@60Hz video encoding or decoding, providing efficient and stable NDI conversion for any environment.

Key Features

  • Bi-Directional conversion - Encode an HDMI video source to NDI while decoding NDI to an HDMI output
  • Supports both NDI|HB (aka, Full NDI), and NDI|HX2/3 formats
  • 4K (UHD) input and output up to 60 fps
  • HDMI 2.o input, output, and loop-out
  • Tally light and intercom
  • USB 3.0 port for USB to NDI - Ideal for USB webcams
  • Power by 12V DC input or POE

Technical Specifications

Video interface 1x HDMI 2.0
Video encoding NDIHX 2/3, NDI High Bandwidth
NDIHX code type H.264/H.265
Video decoding NDI High Bandwidth, NDIHX 2/3




Encoder and decoder

 NDI|HX 1920×1080P  23.98/24/25/29.97/30/50/59.94/60
1920×1080i   60/59.94/50
1280×720P   25/29.97/30/50/59.94/60
NDI|HB 1920×1080P  23.98/24/25/29.97/30/50/59.94/60
1920×1080i   60/59.94/50
1280×720P   25/29.97/30/50/59.94/60
Only encoder NDI|HX 3840×2160P  25/30/60

1920×1080P  23.98/24/25/29.97/30/50/59.94/60
1920×1080i   60/59.94/50
1280×720P   25/29.97/30/50/59.94/60
NDI|HB 3840×2160P  25/30

1920×1080P  23.98/24/25/29.97/30/50/59.94/60
1920×1080i   60/59.94/50
1280×720P   25/29.97/30/50/59.94/60
Only decoder 3840×2160P  25/30/60

1920×1080P  23.98/24/25/29.97/30/50/59.94/60
1920×1080i   60/59.94/50
1280×720P   25/29.97/30/50/59.94/60

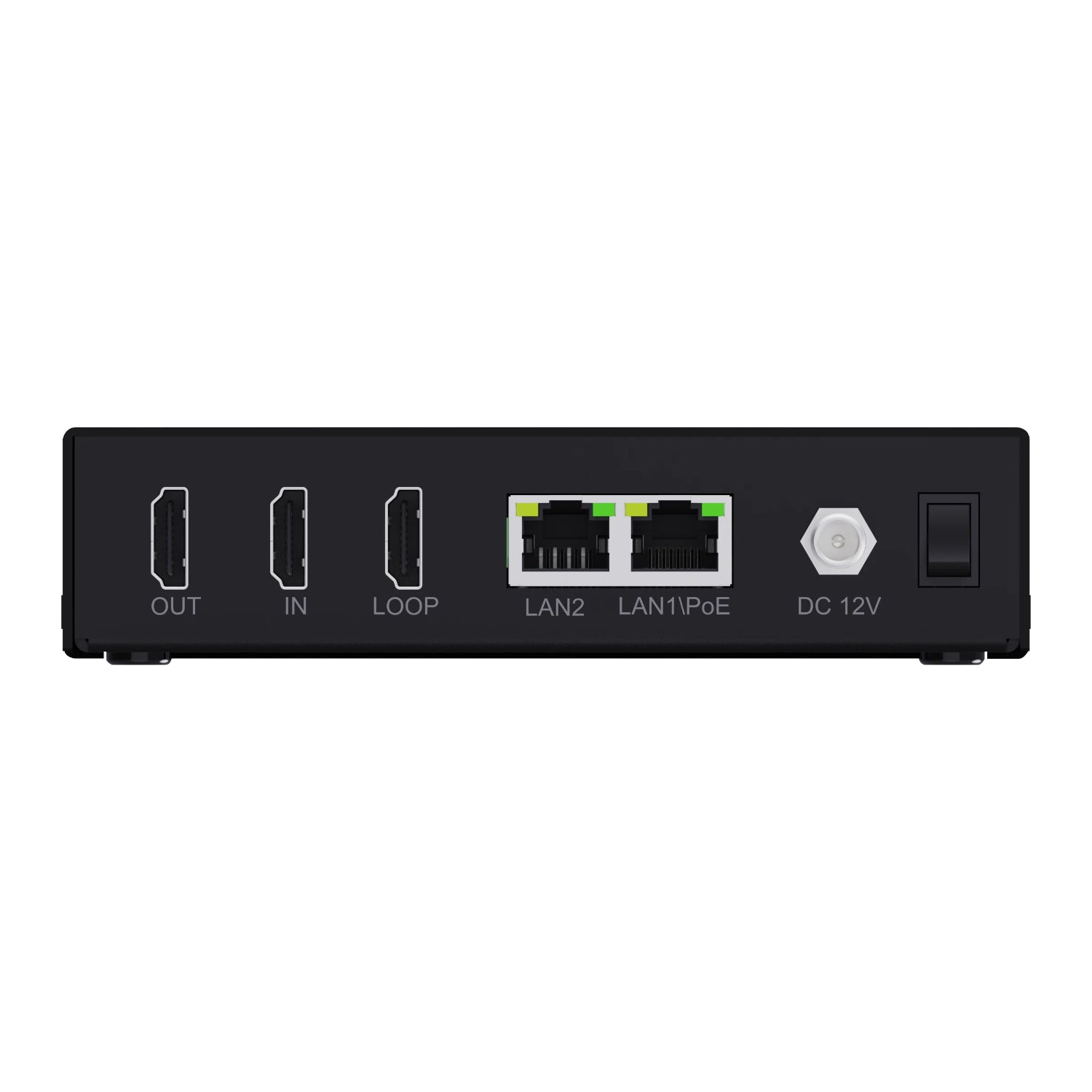

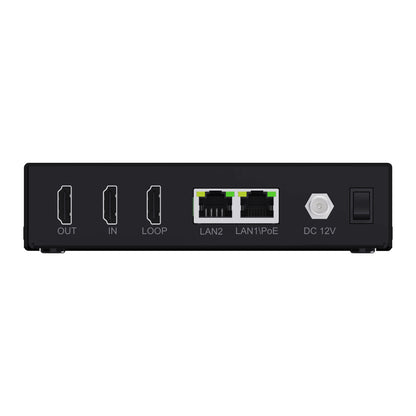

Network ports 2×/100M/1000M (with 1xPoE interface)
Other ports 1xUSB-A 3.0 and 1xType-c for intercom
Management Webpage, Free CNDLive Manager (software)

CNDLive Manager Max (optional with cost)
Installation Cold Shoe Mount
Power Info DC 12V 2A /9W
Dimension 5.62" x 3.54" x 1.26" (143mm x 90mm x 32mm)
