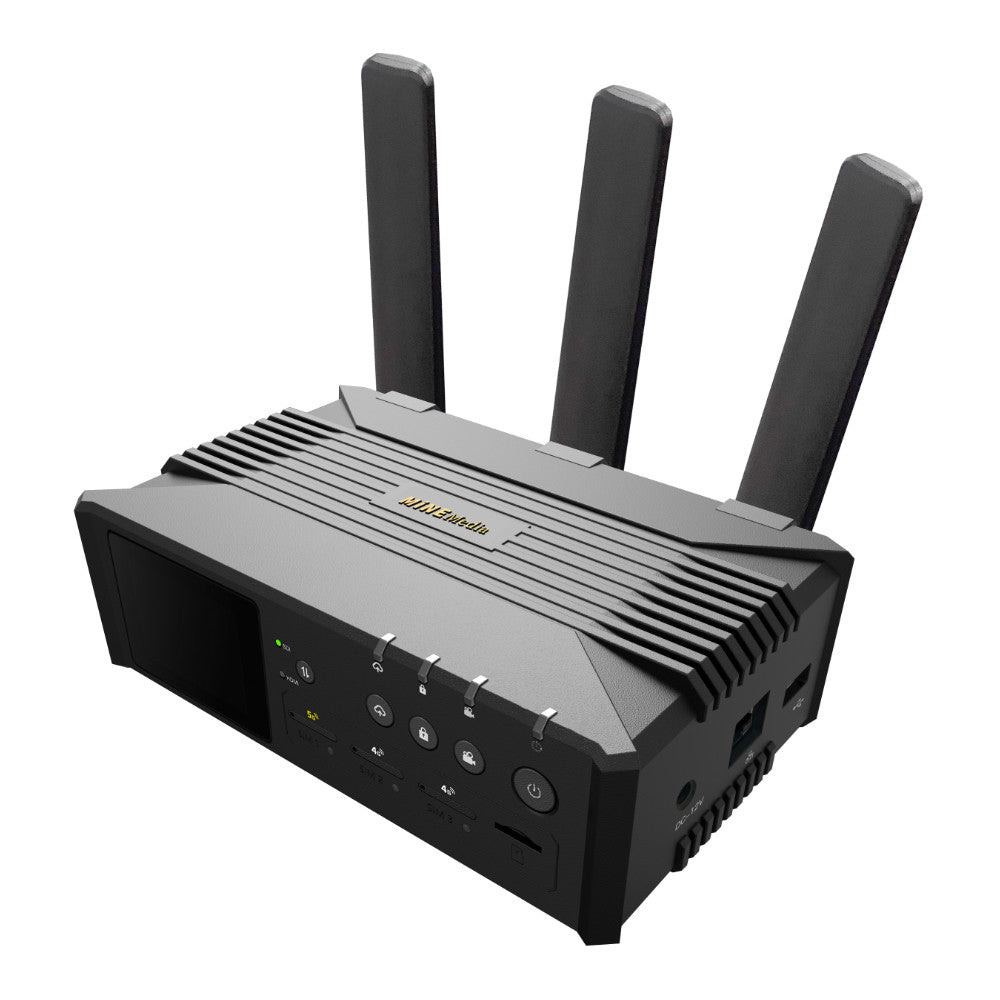

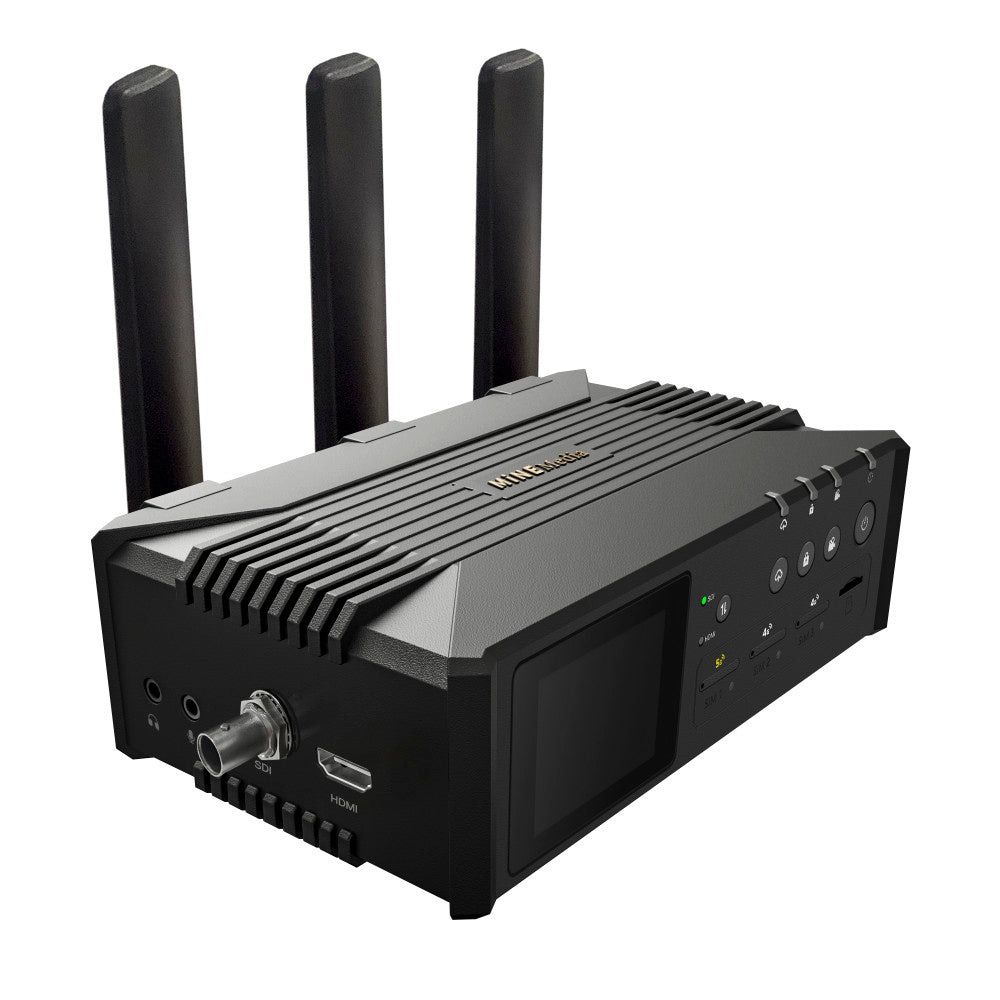

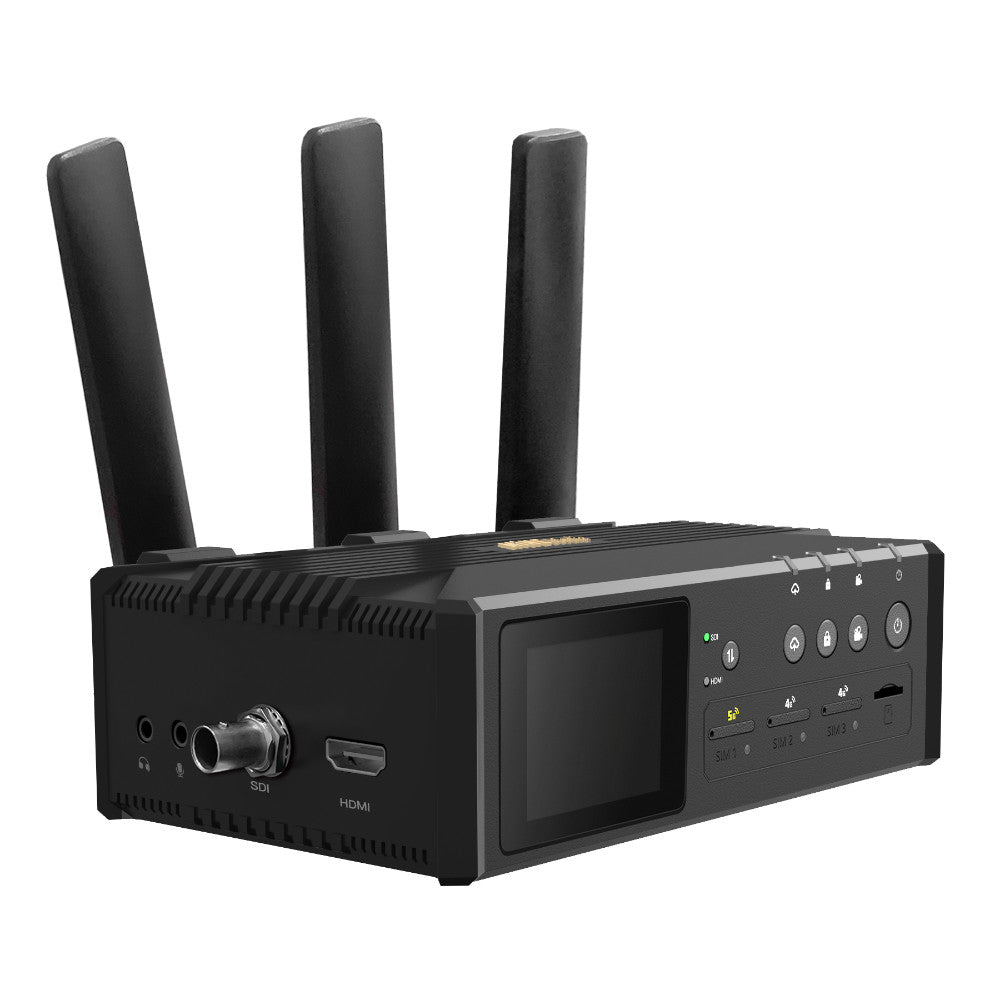

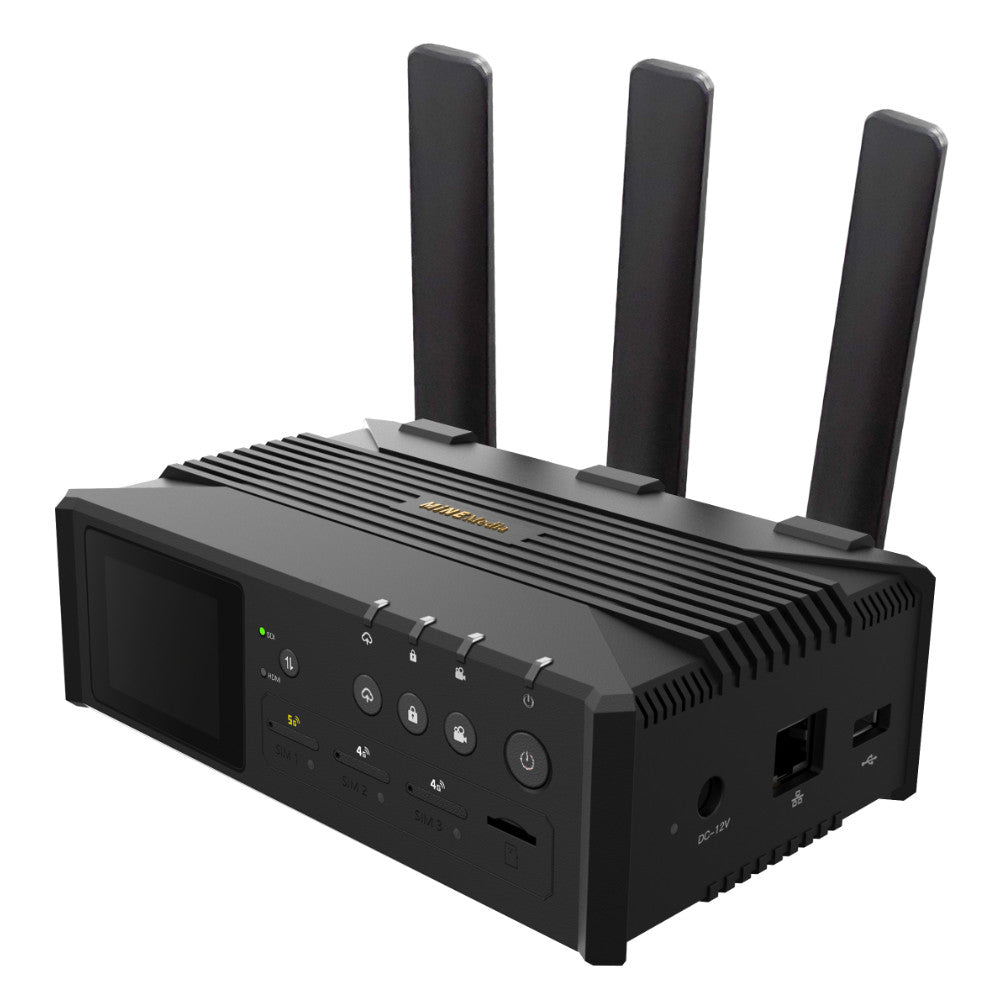

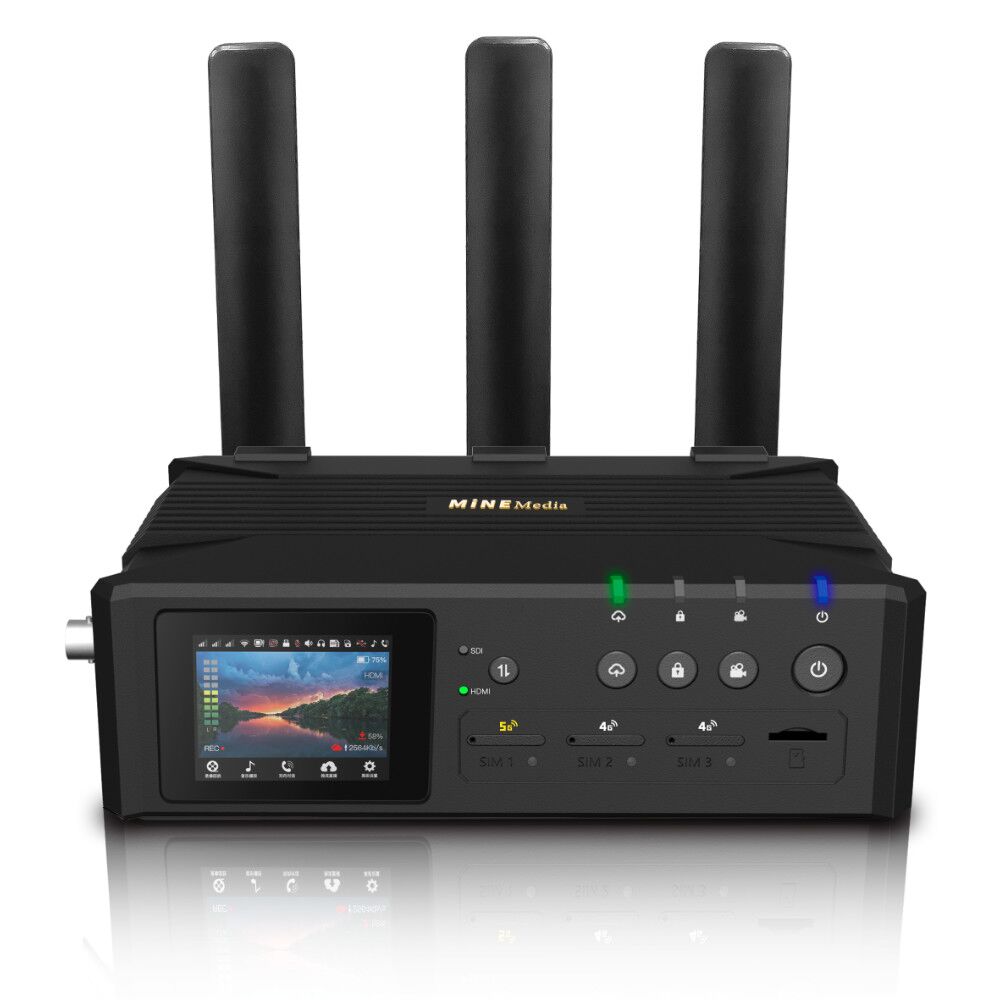

MiNE Media Q8 5G Live Streaming Bonding Video Encoder
MiNE Media Q8 5G Live Streaming Bonding Video Encoder
Couldn't load pickup availability
Portable 5G/4G Bonding Live Streaming Encoder
The Mine Media Q8 5G is a portable, professional-grade bonding video encoder for live streaming. It accepts both HDMI and 3G-SDI inputs—supporting up to 1080p60—and enables seamless switching between them using the intuitive MLive app or a local button. Equipped with versatile connectivity options including 5G and 4G SIM card slots, Wi‑Fi, Ethernet, and a USB dongle port, it ensures reliable transmission even in fluctuating network conditions.
Ideal for live broadcast, remote production, and field streaming, the Q8 5G supports H.264/AVC and H.265/HEVC codecs for flexible, efficient video compression across platforms like Facebook, YouTube, Twitch, and more via RTMP(S), RTSP, and SRT protocols. A robust 7,200 mAh internal battery provides several hours of operation on the go—or you can switch to the included 12 V power adapter for unlimited runtime. The Mine Media Q8 5G is engineered for dependable, high‑quality streaming under the most demanding conditions, including stereo audio support up to 24‑bit/192 kHz (including AGC), a front-panel LCD, and compact, rugged design.
Features
- SDI + HDMI inputs with seamless switching
- TF card recording
- 3.5mm audio input
- 3x built-in SIM slots (1x 5G + 2x 4G), WiFi, RJ-45 Ethernet, USB Type-A port for additional dongle
- Browser and mobile app control
- Add logos, titles, and scoreboards
Specifications
Video | |
Input | 1* HDMI & 1* SDI |
Resolution | 1080P/720P@25/30/50/60fps 1080i@50/60fps |
Encoding type | H.264 for RTMP / H.265 for recording |
Encoding Levels | H.265 Main profile, H.264/AVC High / Main / Baseline Profile |
Stream Resolution | 1920x1080, 1280x720, 960x540, 848x480, 640x360, 480x270 |
Encoding Video FPS | 15-60FPS |
Encoding Video Bitrate | adjustable |
Bitrate control | VBR / CBR |
Recording resolution | Maximum support 1080p60 |
TS Protocols | RTMP(S) / SRT / RTSP |
Audio | |
Input | HDMI & SDI embed Audio and 1* 3.5mm dual-channel external audio |
Output | 1*3.5mm dual-channel audio monitoring |
Sample Rates | 44.1kHz, 48.0 kHz |
Encoding | AAC |
Network | |
3 SIM Slots | Built-in 5G module * 1 (Optional) & Built-in 4G module * 2 Or *3 |
WiFi | 2.4G/5.8G dual-band WIFI access |
RJ45 | Gigabit network port |
USB | External 4G dongle, USB network card can be used |
Storage | TF card (maximum 256G) |
Power | |
Power supply | DC12 3A |
Battery Capacity | 7.4V/7200mAh |
Maximum consumption | 18W |
System | |
Control Panel | iOS / Android APP |
Firmware Update | supports |
Remote management | supports |
Working Environment | |
Operating temperature | -20 to 80 deg C |
Storage temperature | -40 to 90 deg C |
Relative Humidity | 5% to 90% non-condensing |
Dimension & Accessories | |
Dimension | 162mm*102mm*53.4mm |
Weight | 735g |
