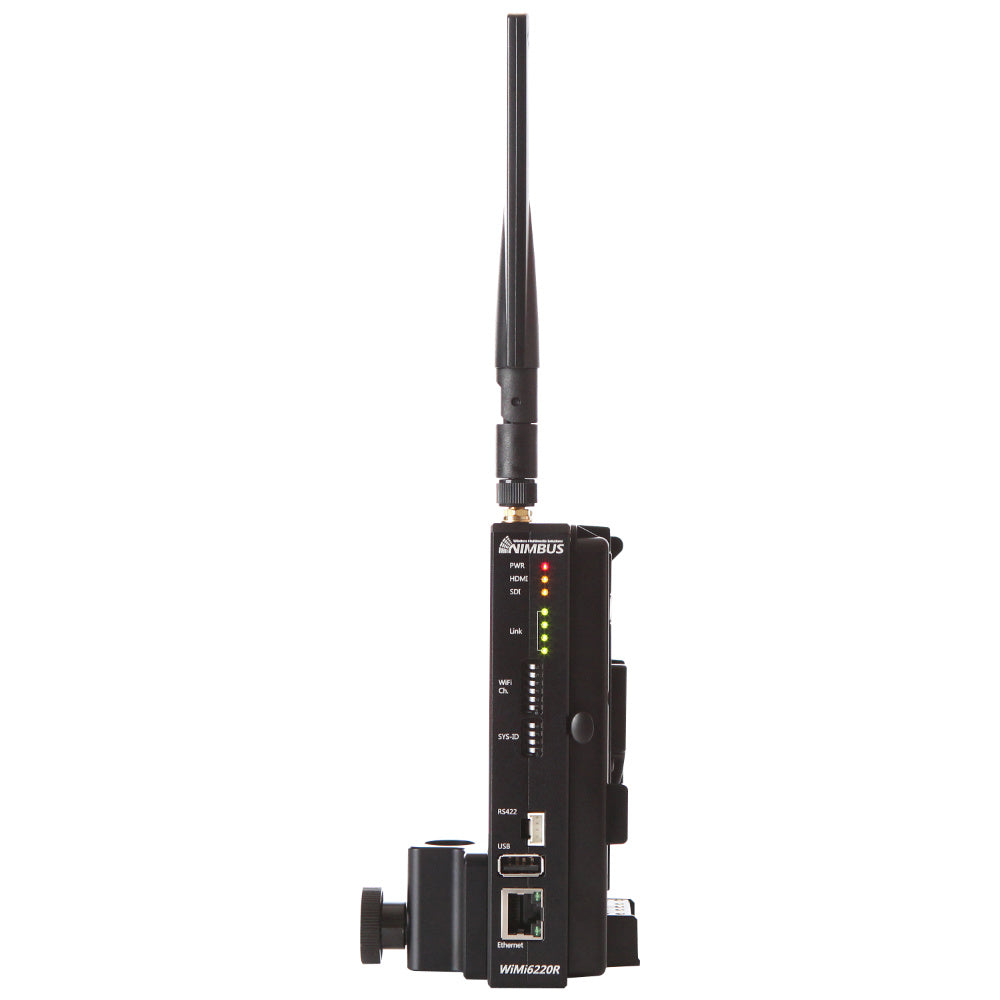

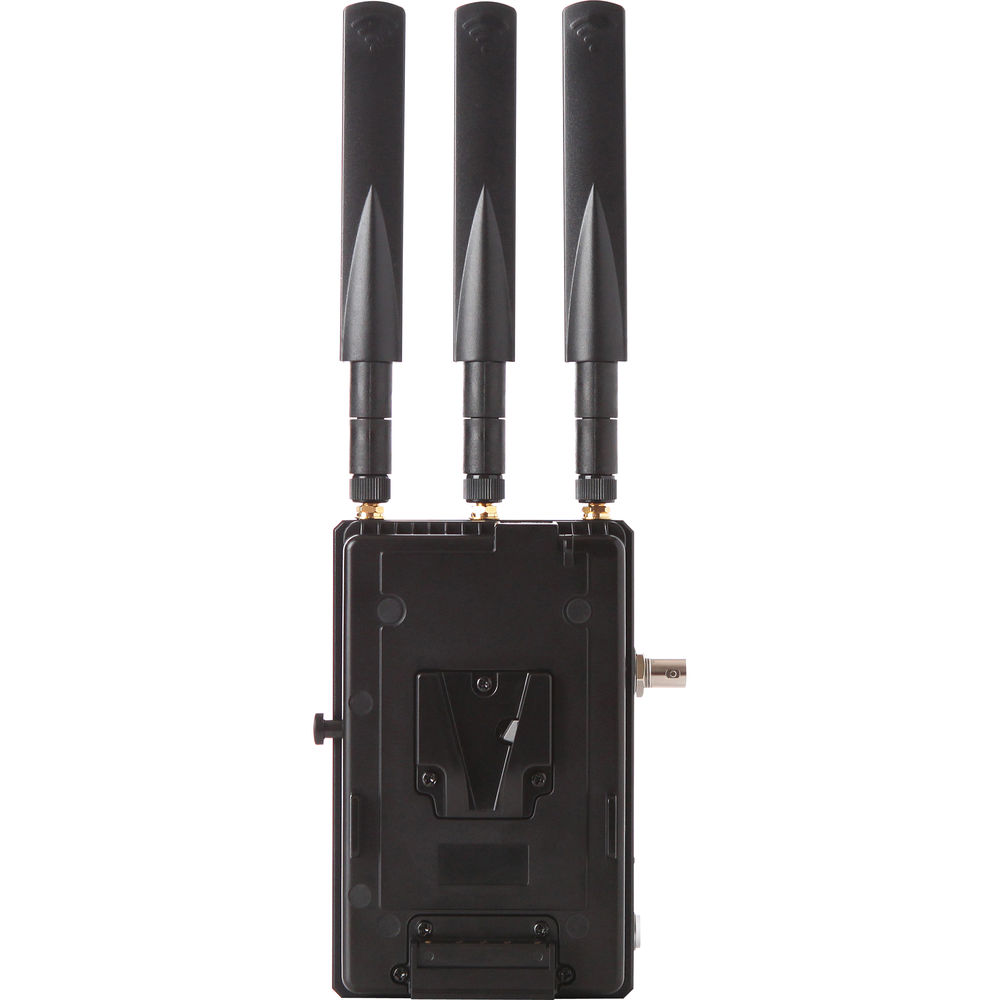

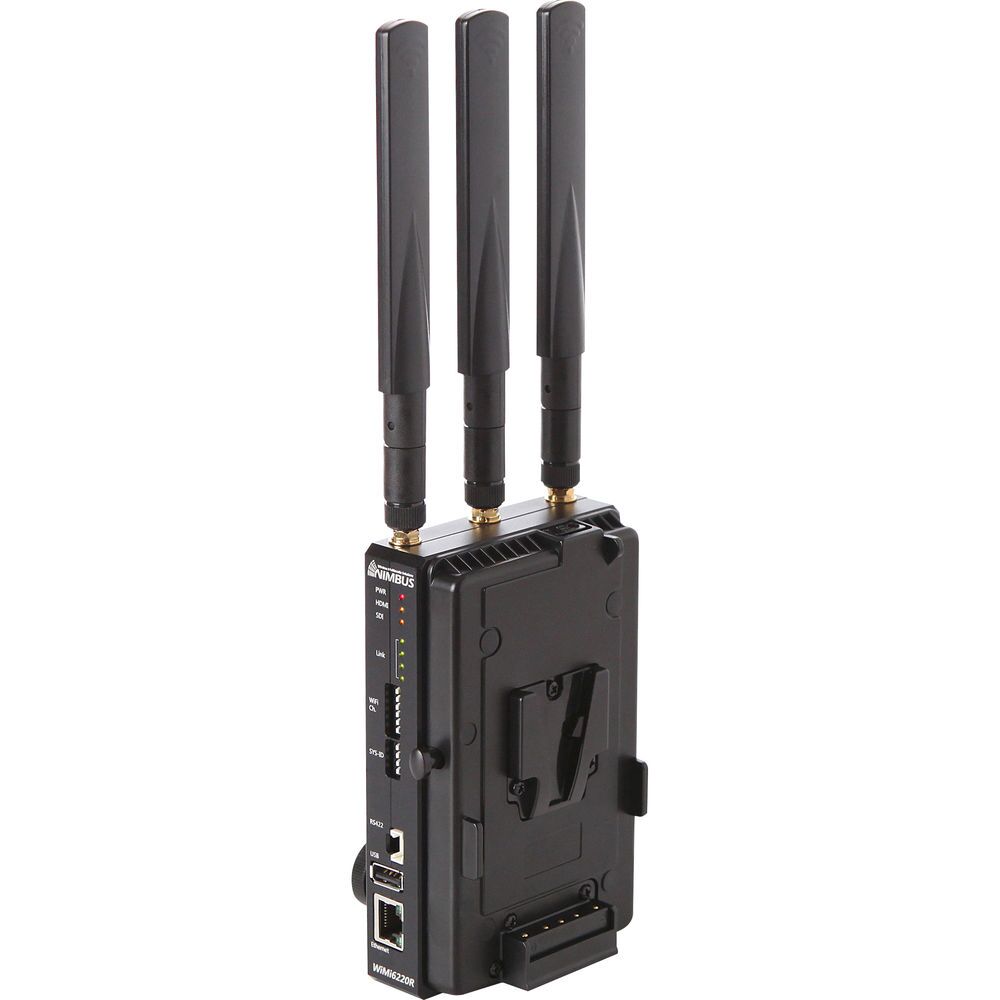

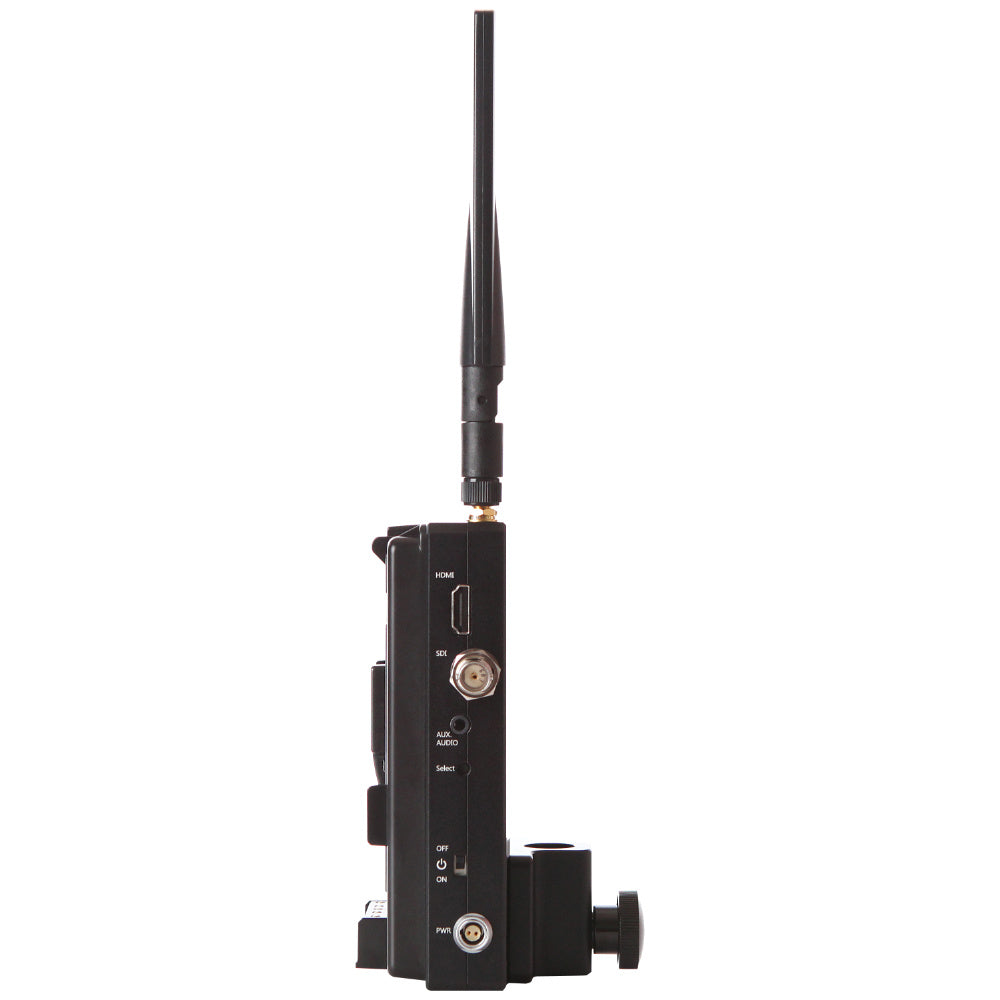

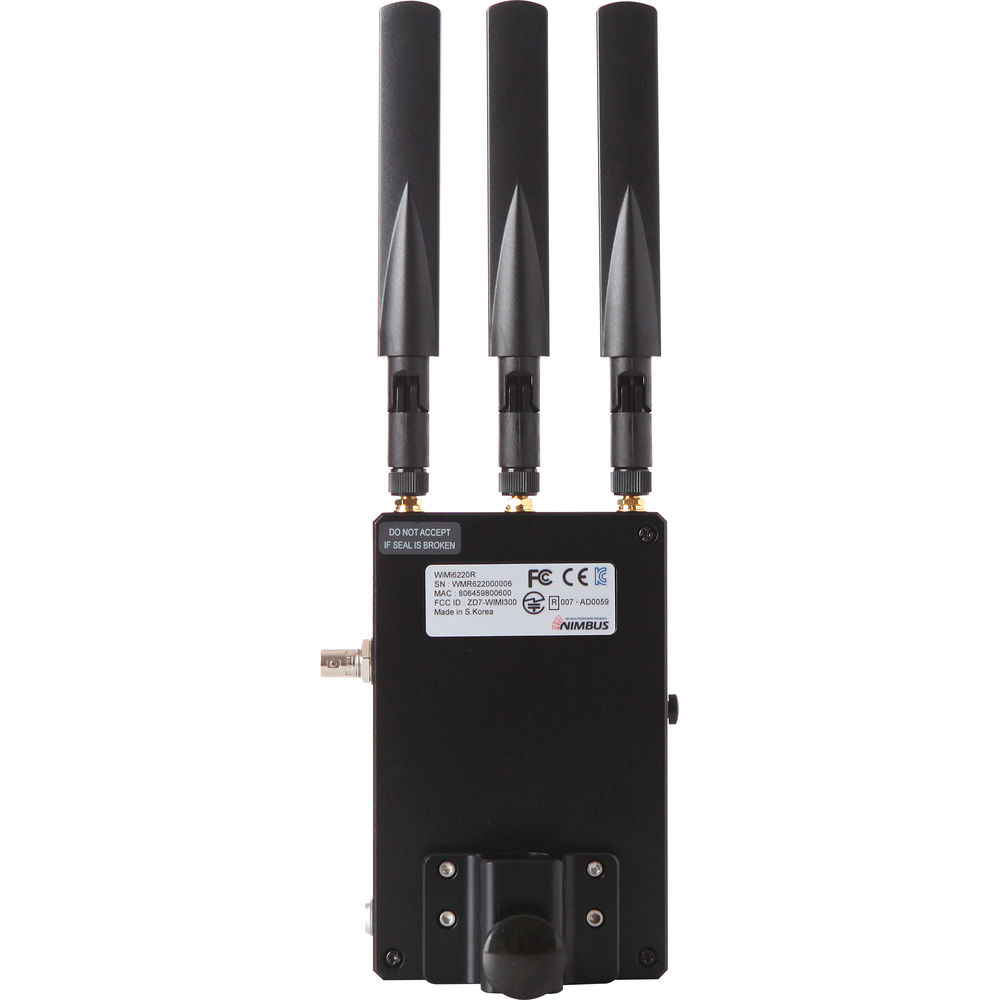

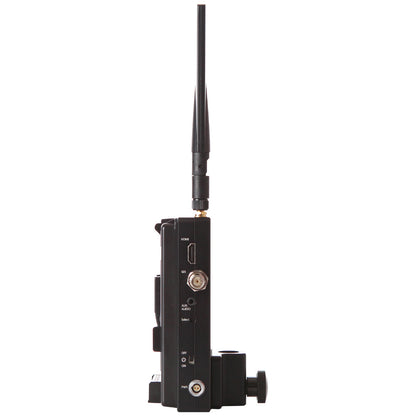

Nimbus WiMi6220 Wireless 3G-SDI & HDMI H.264 Decoder/Receiver
Nimbus WiMi6220 Wireless 3G-SDI & HDMI H.264 Decoder/Receiver
Regular price
$1,950.00 USD
Regular price
Sale price
$1,950.00 USD
Unit price
/
per
Couldn't load pickup availability
The WiMi6220 Wireless 3G-SDI & HDMI H.264 Decoder/Receiver from Nimbus pairs with an optional WiMi6220 transmitter as a point-to-point Wi-Fi transmission system with a 4921' range and only 80ms latency. With both units featuring built-in 5 GHz Wi-Fi, no additional network connection is required.
The receiver accepts up to a 1080p60 SDI or HDMI signal encoded in H.264 by the transmitter, and it decodes and outputs it as video. Up to four receivers can be paired to a single transmitter for multicasting over the same range and with the same near-zero delay.
Alternatively, an Ethernet port, which allows for CCU/PTZ camera control, can also be used for wired connectivity and 1080p60 transmission, though only at maximum distances allowed by twisted pair cabling. In addition to the 3G/HD/SD-SDI output, HDMI output, and Ethernet port, the WiMi6220 receiver features an RS-422 interface and a two-way talk-back audio jack. With a corresponding audio jack available on the transmitter, the talk-back port allows connecting a headset mic for communication with talent.
The WiMi6220 receiver offers a 1/4"-20 mounting thread on the bottom and comes with a V-mount battery plate and a power adapter. Batteries are sold separately.
Key Features
4921' range over 5 GHz Wi-Fi 80ms latency Up to 1080p60 SDI and HDMI resolutions Decodes H.264 file received from the transmitter and outputs it as video RTSP streaming server (RTP/UDP) MPEG2TS streaming (UDP) Relay streaming server (RTSP/MPEG2TS) Up to four units can be paired with a single transmitter, sold separately, for simultaneous multicasting 3G/HD/SD-SDI and HDMI outputs Ethernet port for CCU/PTZ control or wired connectivity and 1080p60 transmission Two-way talk-back audio jack for headset mic communication RS-422 interface Baseline profile with level 4.2 V-mount battery plate and power adapter included USB firmware update port 1/4"-20 mounting threadIncluded Items
Nimbus WiMi6220 Wireless 3G-SDI & HDMI H.264 Decoder/Receiver 3 x 6 dBi Bar Antenna RJ45 Adapter for RS-422 V-Mount Battery Plate Nimbus DCA12M Mini 12 VDC Adapter for WiMi6220, WiMi5150A, and WiMi5200 Warranty: Limited 1-Year Manufacturer WarrantyShare
