Connect and Power Your Entire Production with 10Gbps Ethernet and POE+

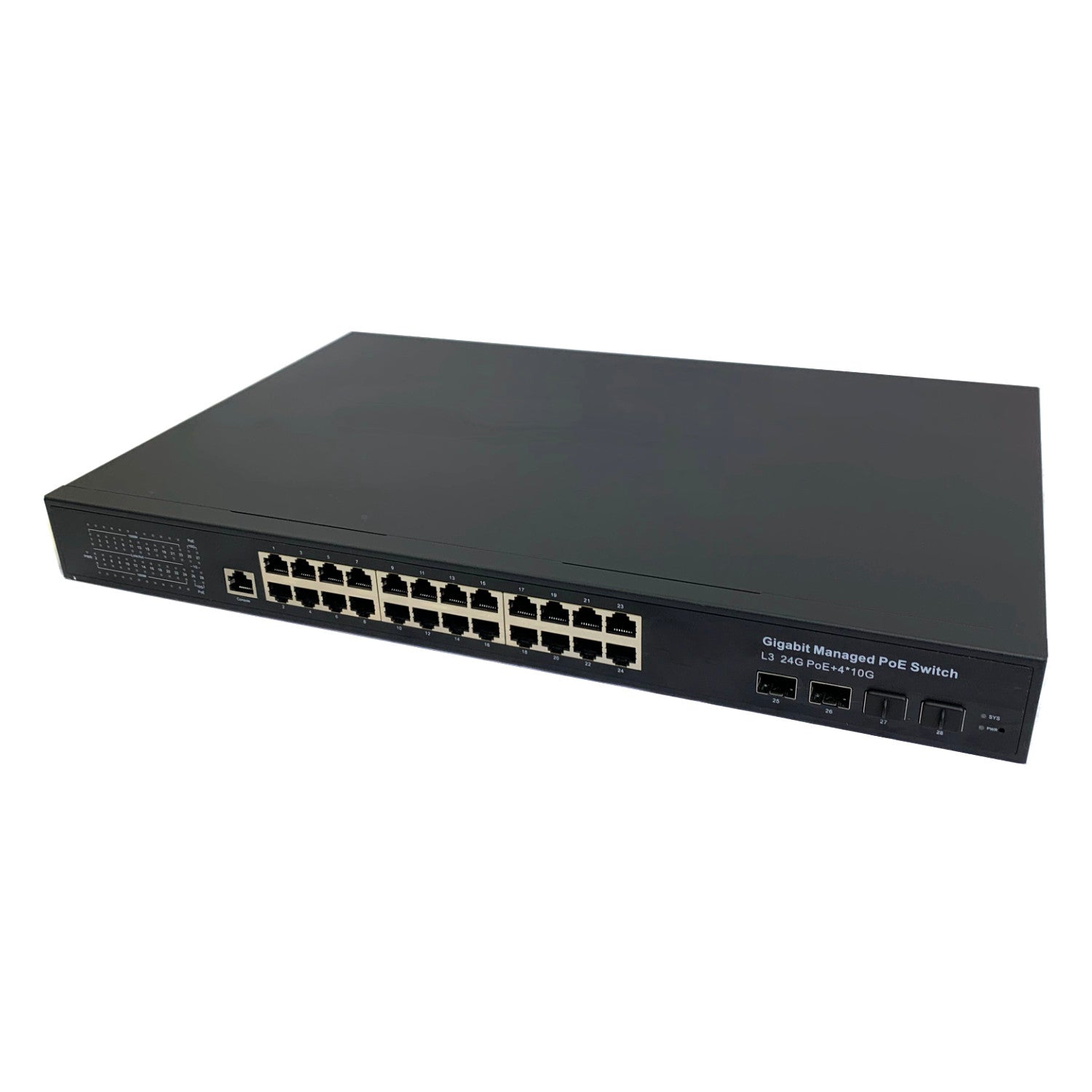

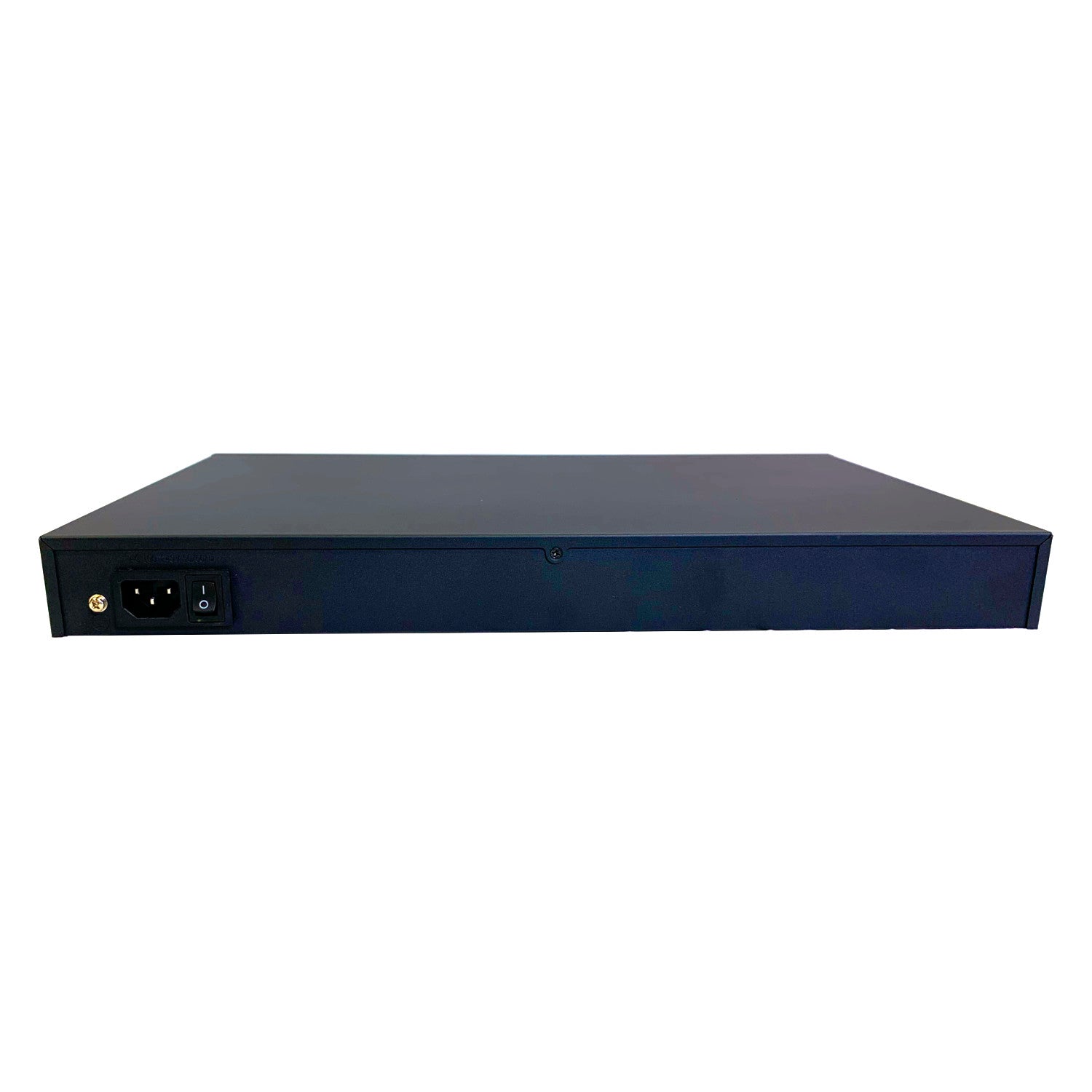

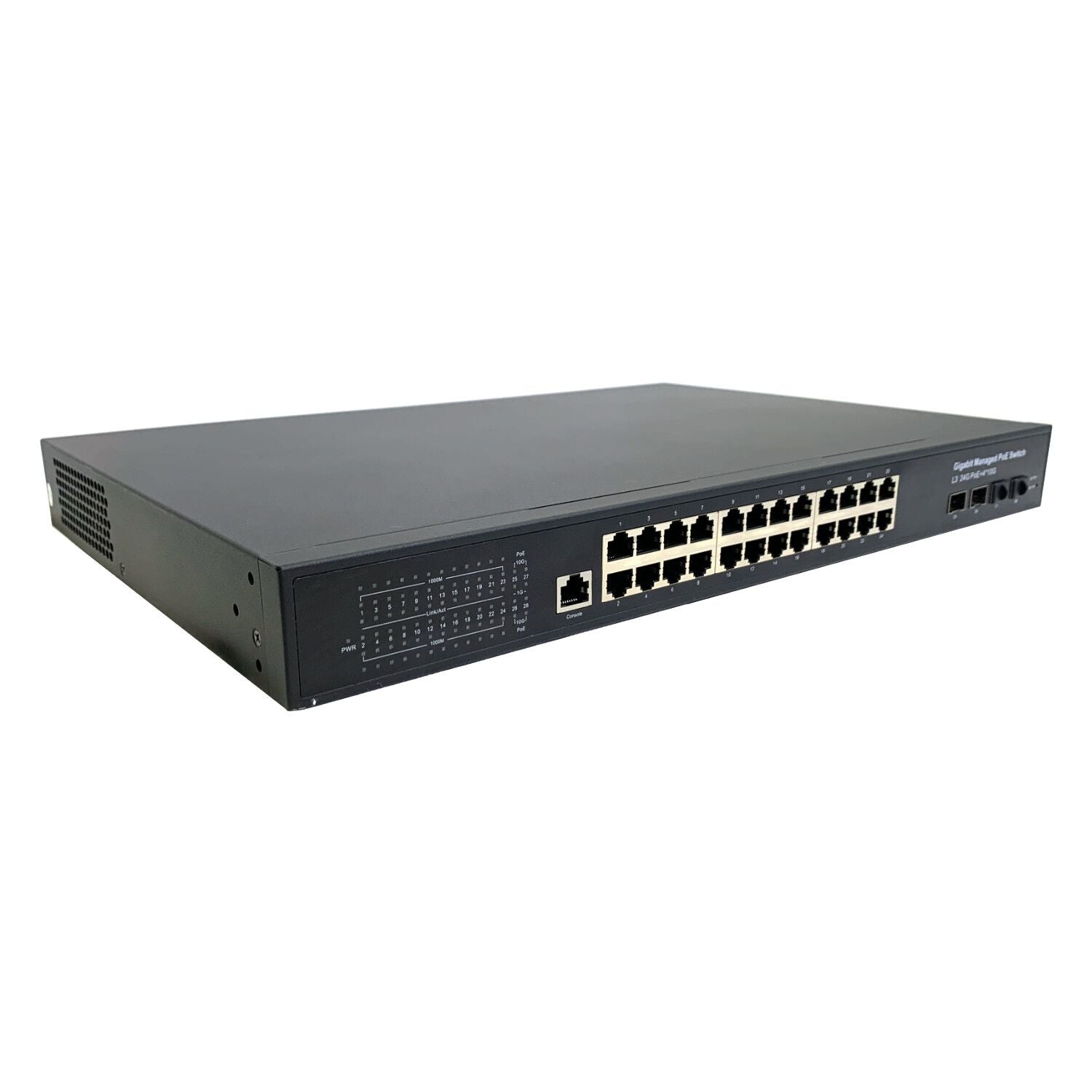

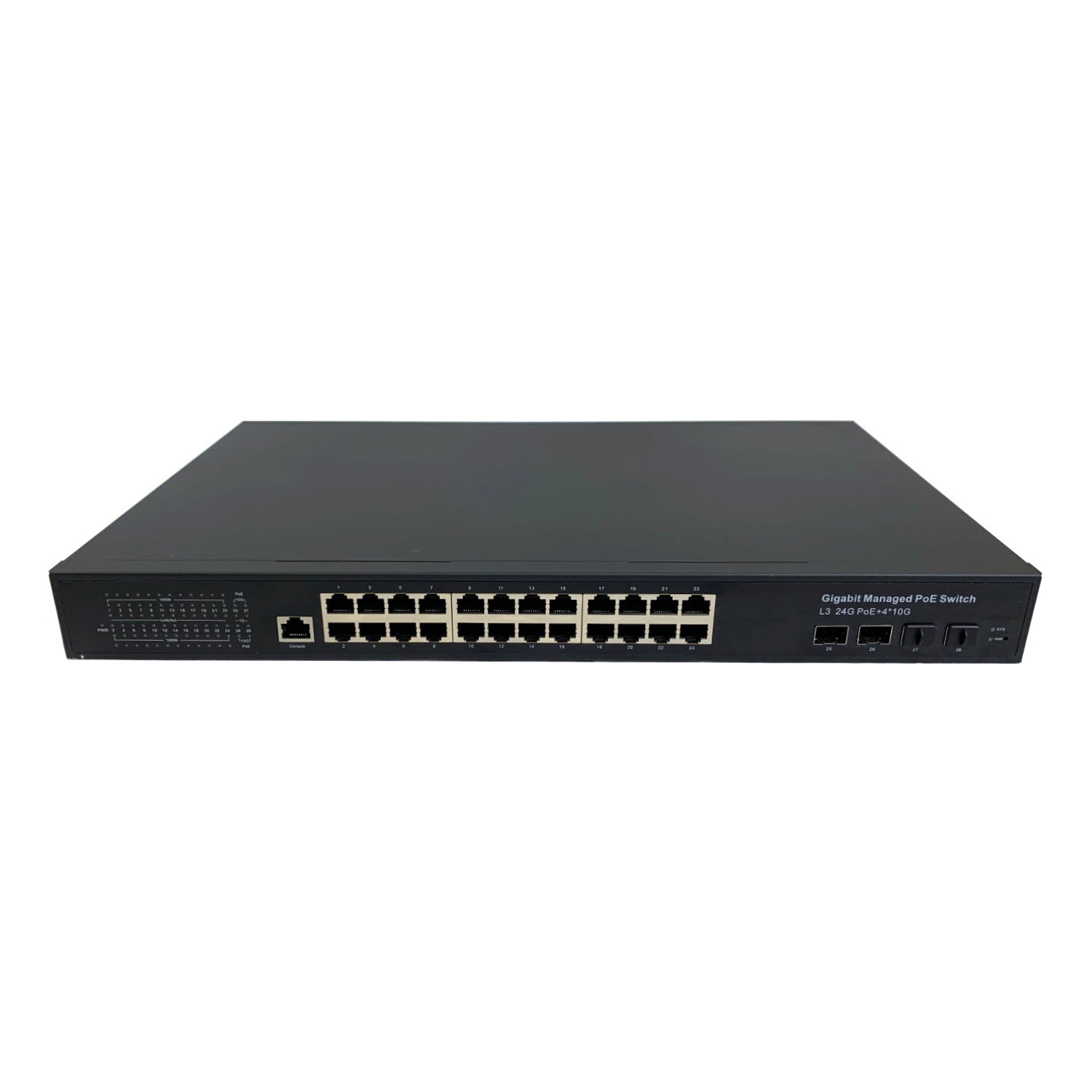

This 24-port POE switch from PTZCam Solutions combines high connection density with 10G Ethernet speeds to support a wide variety of power and data requirements. This versatile Gigabit Ethernet network switch can be used as the backbone of a small television studio, church broadcasting setup, or school environment. Utilize it to power any number of POE+ devices like cameras, controllers, encoders, and more.
Features
24x RJ-45 Gigabit Ethernet copper ports
4x Fiber SFP+ slots (modules not included)
POE/POE+ IEEE802.3af/at, Max. 30W/port
256Gbps total bandwidth
Specifications
Port
24*10/100/1000M
4*10Gbps fiber SFP
Management port
1*Console
Reset KEY
1
Bandwidth
256Gbps
Packet forwarding
92.32Mpps
MAC
16K
PoE port
24
PoE standards
IEEE802.3af/at, Max. 30W/port
Transmission Mode
Store and forward
Environmental
working temperature : 0℃~50℃
Storage temperature : -40℃~70℃
Operating humidity : 10%~90% Non coagulation
Storage humidity : 5%~95% Non coagulation
Product size
17.32" L x 11.41" W x 1.77" H / 440mm L x 290mm W x 45mm H
Packing size
19.56" L x 15.47" W x 3.83" H / 497mm L x 393mm W x 97mm H
Weight
11 lbs / 5kg
Power in
AC 100~240V 50/60Hz
Power Consumption
Max. 400W
Lightning
Surge protection: 3KV 8/20us Grade: IP30
Certificate
CCC; CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B; RoHS;
