PTZCam TALLY4 vMix - 4-camera wireless tally system for vMix

The PTZCam TALLY4 lets you easily add four (4) wireless tally lights to any camera and control them in conjunction with vMix software.

Features

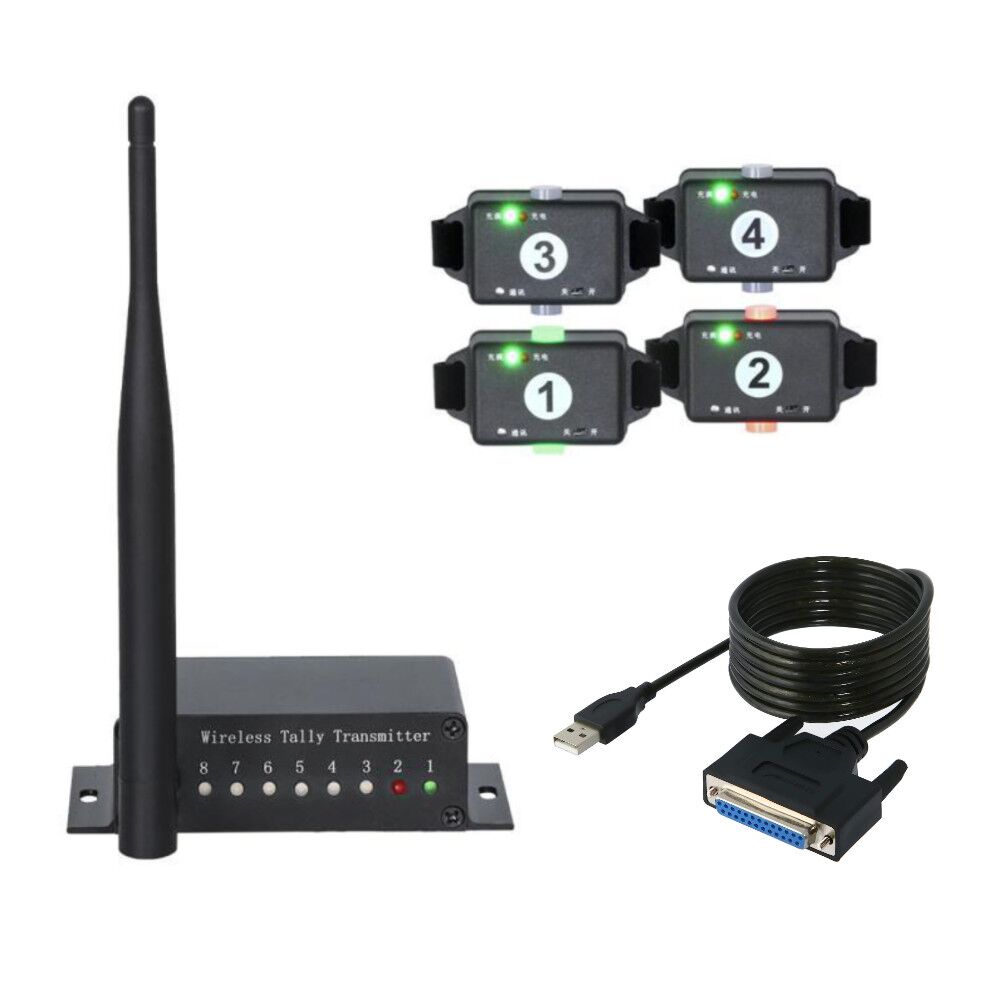

• Bundle includes 4 wireless tally lights, host station, power adapter, micro-USB power cables, and USB-to-DB25 connection cable.
• Long-distance transmission up to 1 km in an open area and up to 300 meters in an urban environment.
• Low transmission power- Does not interfere with other video equipment.
• High sensitivity- Works well in environments with many other wireless devices.
• ≤200ms response time
• Flexible installation with hot shoe and Velcro strap on each tally light.
• Built-in 2000mAh battery in the host and 700mAh battery in each tally provides long battery life.
• Can also be powered by included Micro-USB cables.

---

Technical Specifications

Host
Interface	DB25 Port
Communication Carrier Frequency	433MHz spread spectrum
Transmission Distance	1 km in an open area, 300 meters away from the city
Battery Specification	Built-in 2000mAh battery, approx 20 hours runtime
Charging Port	Micro USB
Charging Voltage	DC 5V
Recharging Current	400mA
Generating Power	500mW
Host Size	About 2.56 x 4.13 x 0.7 inches (65 x 105 x 17.9mm)
Antenna Size	About 6.69inches (171mm)
Host Weight	About 1.1 lb (0.5kg)
Tally
Indicator Light	Two-color indicator light
Installation Method	Integrated hot shoe wrist strap
Signal Indicator Status	Blue indicator light: flickering after receiving the Tally signal from the host; red indicator light: always on when the battery is not charging, and the power is less than 40%; green indicator light: always on when the battery is not charging, and the battery is less than 80%.
Charging port	Micro USB
Tally Size	About 1.4 x 2.65 x 0.75 inches (36 x 67.3 x 18.8mm)
Tally Weight	About 0.44 lbs (0.2 kg)
