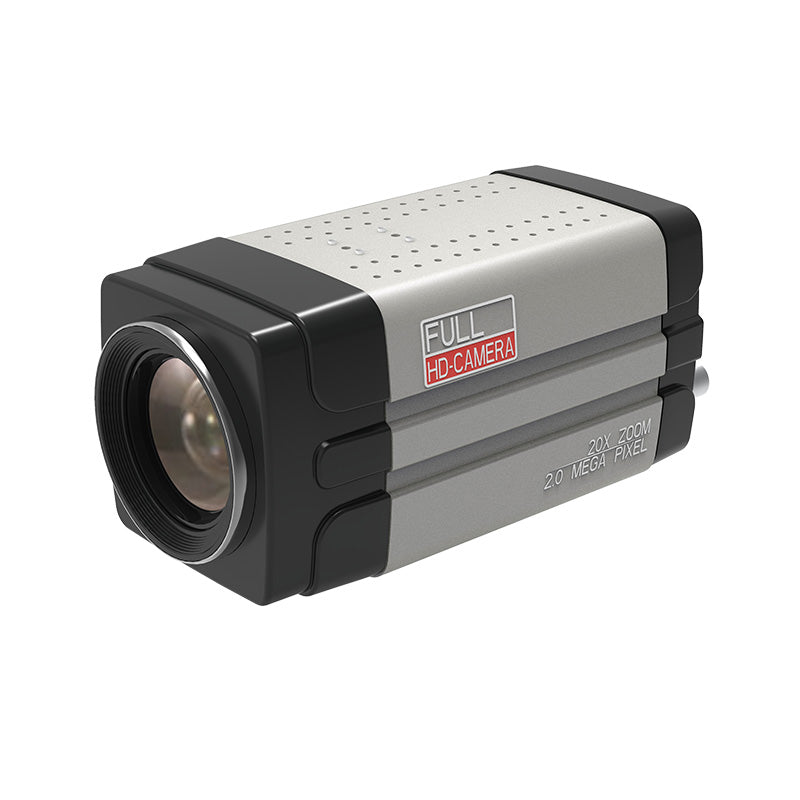

PTZCam UV1201A 20X SDI Box Camera with Audio Input

The PTZCam UV1201A is a full HD POV box camera with an integrated 20X optical zoom.

Techical Specifications

Camera Parameters

• Sensor: 1/2.8 inch high-quality HD CMOS sensor
• Effective Pixels: 16:9, 2.07 megapixel
• Video Format: 1080P60/50/30/25/59.94/29.97,1080I60/50/59.94,720P60/50/30/25 /59.94/29.97
• Optical Zoom: 20X optical zoom, f＝5.2～98mm
• Viewing Angle: 3.2°(tele)--50.8°(wide)
• Aperture: F1.6 ～ F3.5
• Digital Zoom: 10X
• Minimum Illumination: 0.5Lux (F1.8, AGC ON)
• DNR: 2D & 3D DNR
• White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
• Focus: Auto/Manual
• Aperture: Auto/Manual
• Electronic Shutter: Auto/Manual
• BLC: ON/OFF
• WDR: OFF/ Dynamic level adjustment
• Video adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
• SNR: >55dB

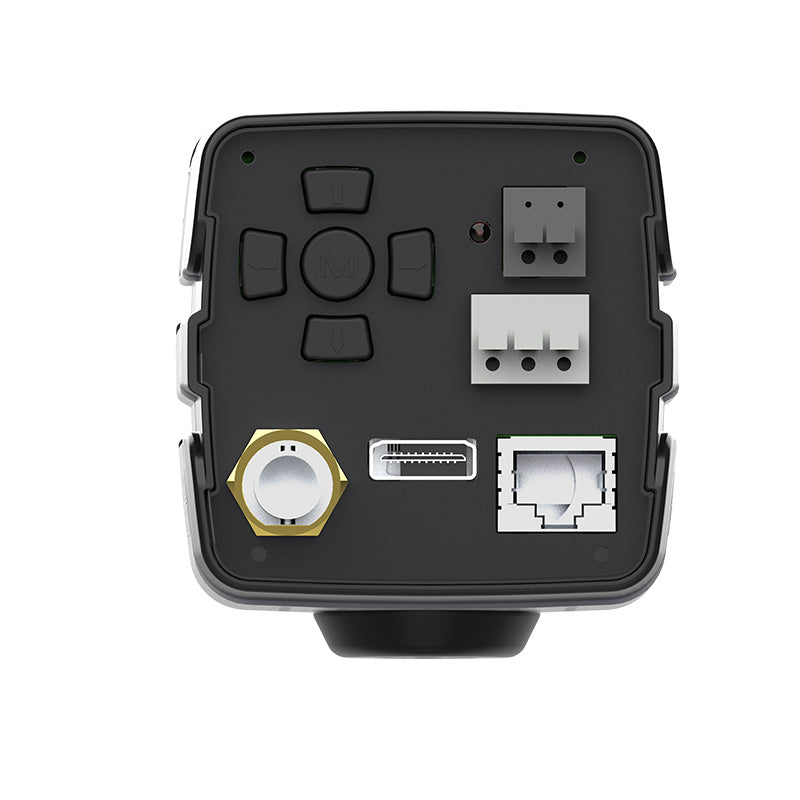

Input/Output Interfaces

• Video Interfaces: 3G-SDI output, RJ-45 LAN, 3.5mm audio input, RS-485
• Image Code Stream: Dual stream output
• Video Compression Format: H.264, H.265
• Control Protocol Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
• HD IP Interface: 100M IP port (10/100BASE-TX), Support VISCA protocol control through IP port.
• Network Protocol RTSP/RTMP, ONVIF
• Power Interface: 5.0 Card line socket (DC12V

Other Parameter

• Power Adapter: AC110V-AC220V to DC12V/1A
• Input Voltage: DC12V±10%
• Input Current: 400mA(Max)
• Consumption: 4.8W (Max)
• Store Temperature: -10℃～+60℃
• Store Humidity: 20% - 95%
• Working Temperature: -10℃～+50℃
• Working Humidity: 20%--80%
• Dimension: 155.7mmX70mmX70mm
• Weight: 0.7KG
• Application: Indoor
• Remote Operation: (IP) Remote Upgrade, Reboot and Reset
• Accessory: Power supply, User Manual
