Compact PTZ Controller with NDI for Churches and Schools

The View NDI Mini from PTZCam is a compact PTZ camera controller with a 3.5-inch color display. The display functions as a video preview monitor for NDI|HX, RTSP, and ONVIF camera sources, enabling direct monitoring of each camera's position without the need of a separate monitor.

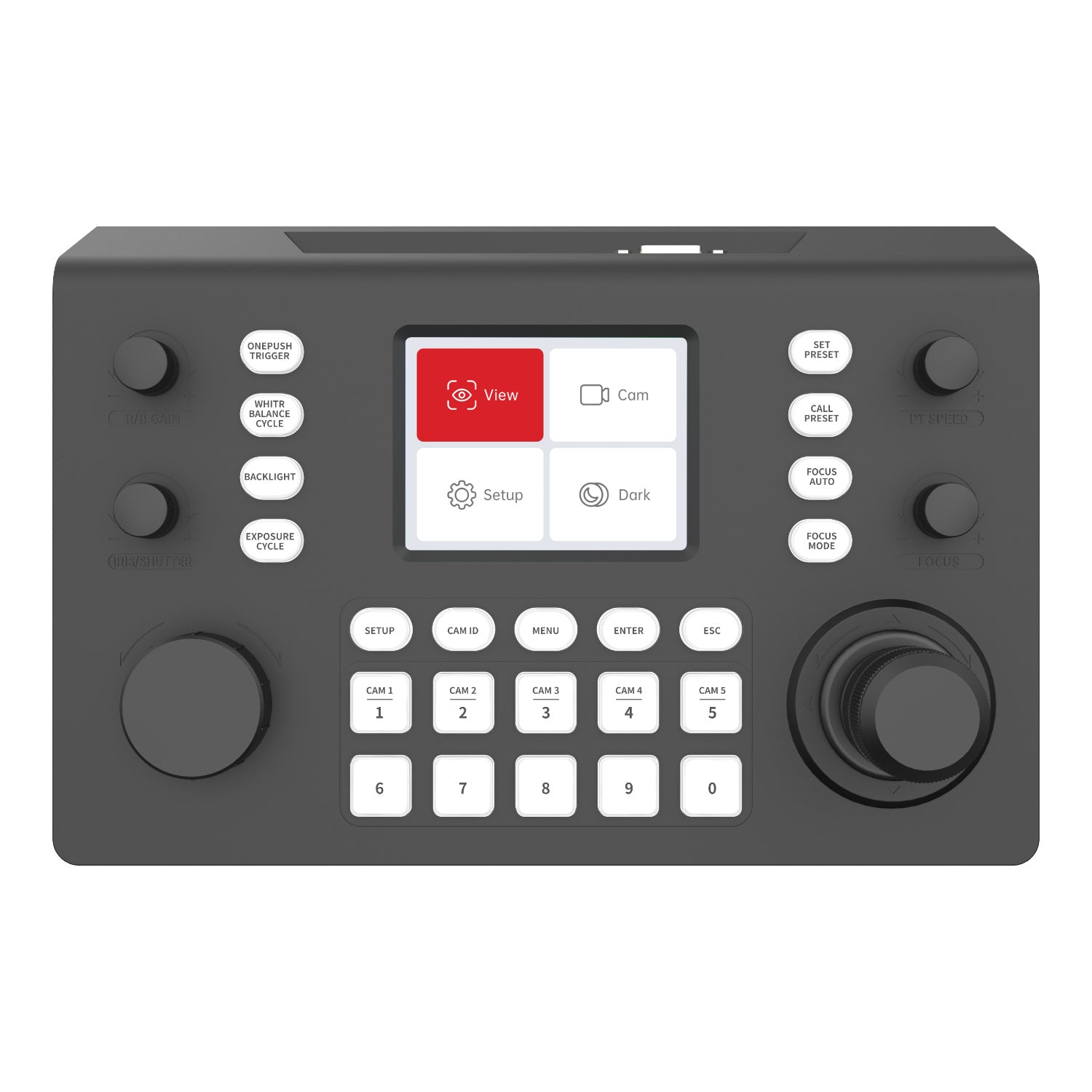

This compact controller features a smooth 3D joystick, zoom rotary wheel, preset buttons, and four encoder knobs for fine-tuned control of focus, pan/tilt speed, gain, and iris/shutter speed.

In terms of control protocols, the View NDI Mini is compatible with most popular formats, including Visca, Visca-over-IP, ONVIF, NDI, Pelco-P, and Pelco-D.

Specifications

• Display: 3.5 inches, 640x480 TFT LCD, 3000 cd/m² brightness

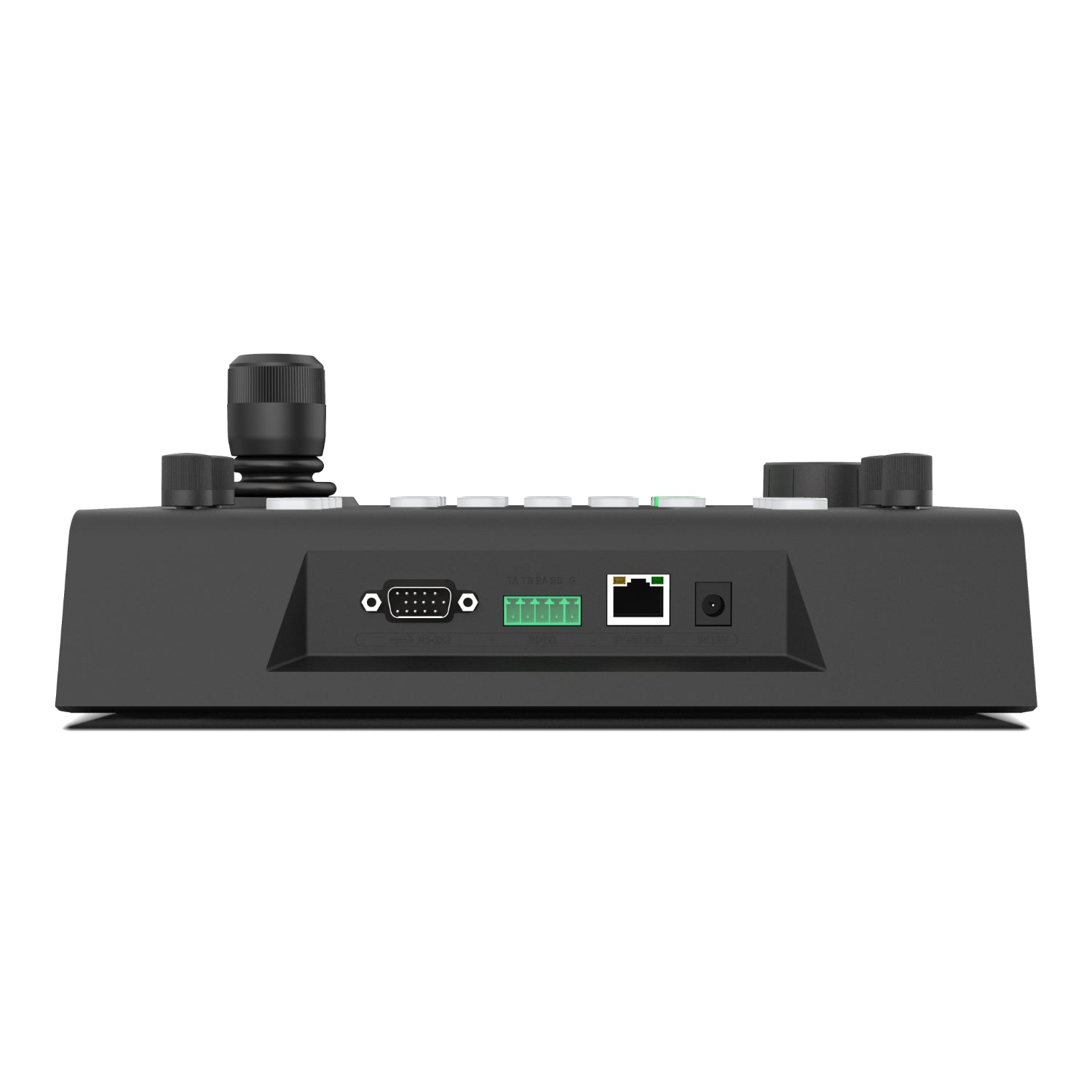

• Interfaces: RJ-45 (Ethernet), RS-485, RS-232
• Video decoding support: NDI|HX, RTSP, ONVIF
• Network protocol support: Visca-over-IP, Visca, ONVIF v2.42, NDI v5.5
• Analog protocol support: Visca, Pelco-D, Pelco-P
• Maximum devices: 255 cameras
• White balance settings: Indoor, Outdoor, One-click, Manual, Automatic
• Exposure settings: Brightness priority, shutter priority, aperture priority, manual exposure, automatic exposure
• Power: DC 12V - 2A, ≤5W
• Dimensions: 6.69" x 9.84" x 3.57" (170mm x 250mm x 90.7mm)
