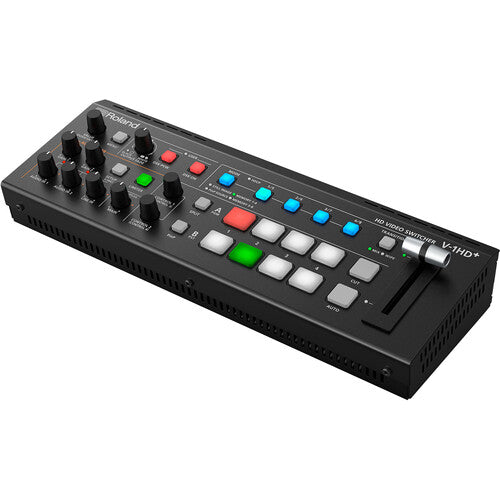

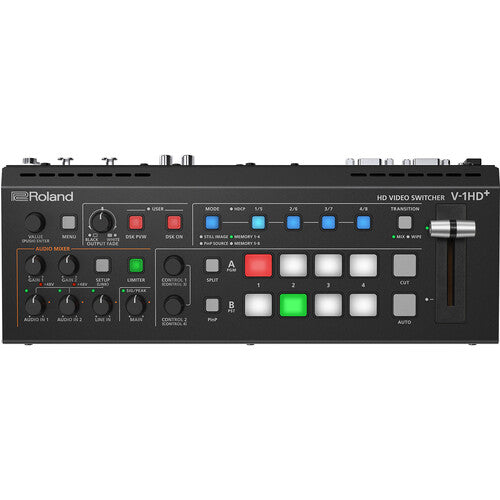

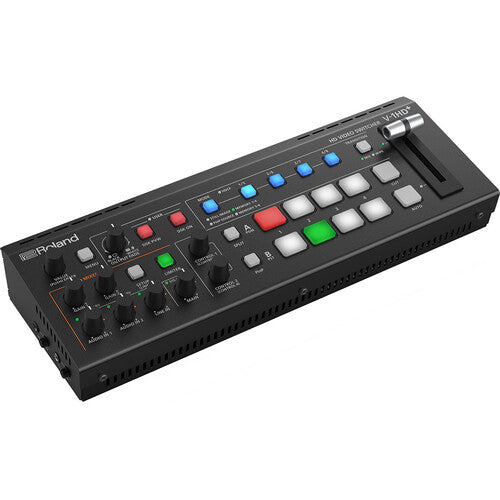

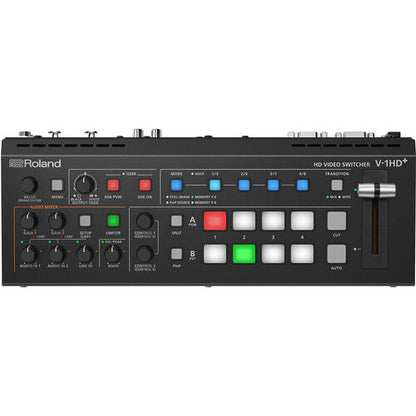

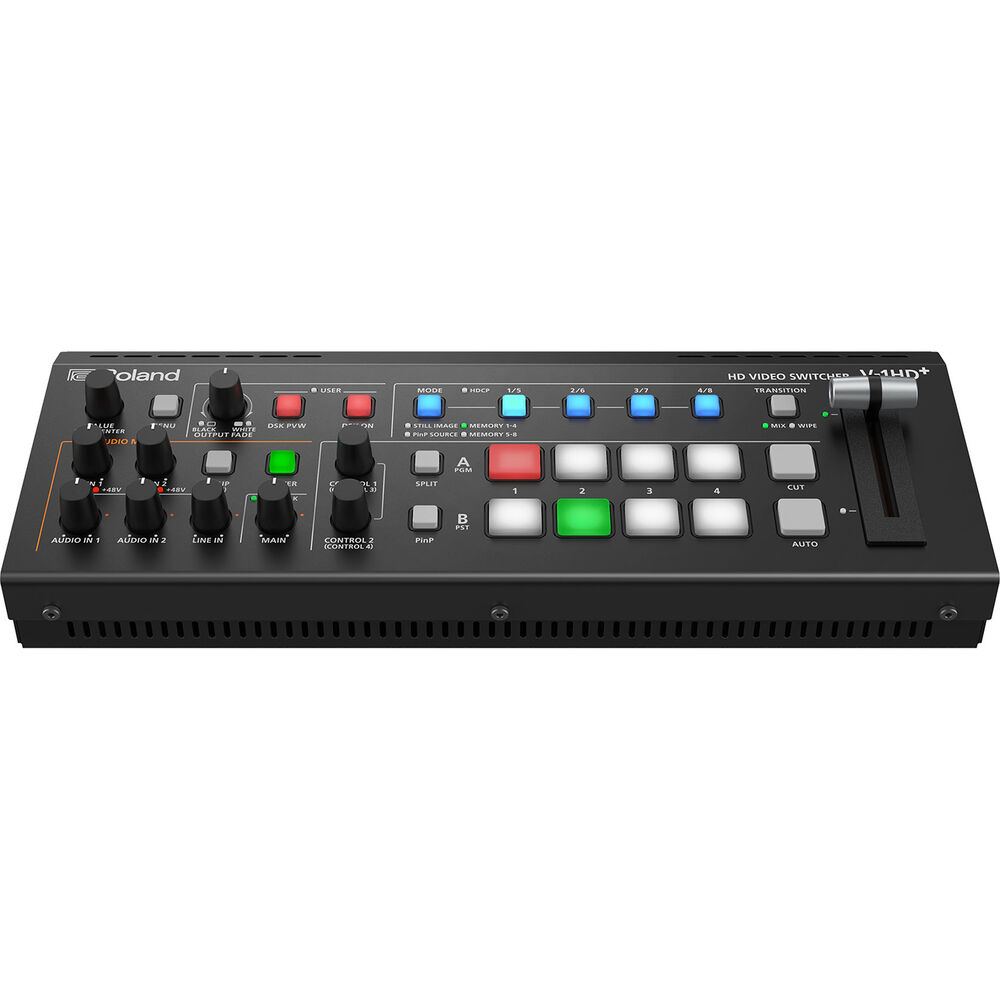

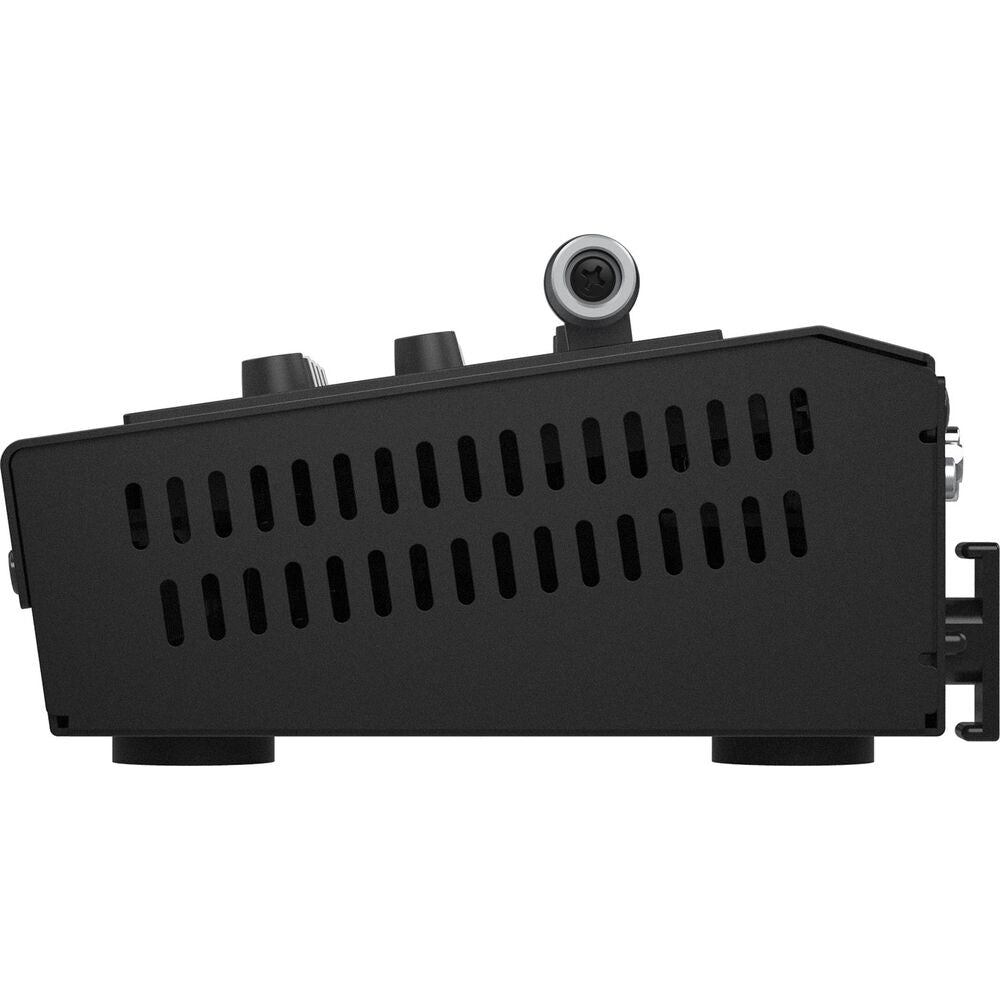

Roland V-1HD+ Compact 4 x HDMI Video Switcher

Roland V-1HD+ Compact 4 x HDMI Video Switcher

$769.99 USD
$769.99 USD
Sale Sold out

Portable HDMI Production at an Amazing Price!

Put powerful production tools at your fingertips

The Roland V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect. The V-1HD+ delivers the superior performance you want and the production-critical reliability you demand-plus the Roland support and training resources you deserve.

Say Goodbye to Workflow Workarounds

While many video switchers promise easy workflows, they often require workarounds for optimum results. Too often, those workarounds force you into technical compromises and purchasing extra gear. With its feature-rich design, the V-1HD+ provides the key tools you need to get the job done right.

A Legacy of Success

Since its release in 2015, the Roland V-1HD has been the most popular high-definition, four-channel HDMI video switcher available. The V-1HD+ extends this legacy with a deeper feature set for advanced applications-while still maintaining the simple operation, pro performance, and rugged reliability that's made the V-1HD a favorite of users around the world.

Four Video Inputs and Onboard Scaling

Four HDMI inputs with frame rate conversion let you mix a variety of sources, including cameras, presentation computers, tablets, and video game consoles. And when you have a troublesome source that won't display correctly, simply plug it into Input 4 and let the built-in video scaler sync and calibrate the image automatically.

Two Video Outputs

Two independent HDMI outputs can be assigned to display one of three different video busses, providing the versatility you need for pro production. For example, you can use one as your main program output for a recorder or livestream, and the second output to turn any HD video monitor into an "up-next" input preview display or expanded multiviewer with 10 windows.

Features

  • Professional HD switching solution for live events, livestreaming, or both at once Compact and portable for fast set up
  • Familiar interface that's quick to learn and easy to use
  • Technology-assisted automatic video switching
  • Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
  • Pro audio I/O with legendary Roland sound quality
  • Eight memory presets to recall visual layouts on cue
  • Standalone video switcher and 14-channel audio mixer for single operators

Specifications

Video

  • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
  • Input Connectors:
    • INPUT 1–3: HDMI Type A ×3 (HDCP supported)
    • INPUT 4: HDMI Type A (HDCP supported; multi-format supported)
  • Output Connectors: OUTPUT 1–2: HDMI Type A ×2 (HDCP supported)
  • Input Formats:
    • INPUT 1–3:
      • 720/59.94p, 720/60p*1, *3; 720/50p*1, *4
      • 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p*2, *3
      • 1080/50i, 1080/50p, 1080/25p*2, *4
      • 1080/23.98p, 1080/24p*2

      Note: Interlaced input is converted to progressive by internal processing.

      • *1 SYSTEM FORMAT = 720p
      • *2 SYSTEM FORMAT = 1080i or 1080p
      • *3 FRAME RATE = 59.94 Hz
      • *4 FRAME RATE = 50 Hz
    • INPUT 4:
      • 480/59.94i, 480/59.94p; 720/59.94p, 720/60p; 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p*1
      • 576/50i, 576/50p; 720/50p; 1080/50i, 1080/50p, 1080/25p*2
      • 1080/23.98p, 1080/24p
      • PC resolutions: VGA (640×480/60 Hz), SVGA (800×600/60 Hz), XGA (1024×768/60 Hz), WXGA (1280×800/60 Hz), SXGA (1280×1024/60 Hz), FWXGA (1366×768/60 Hz), SXGA+ (1400×1050/60 Hz), UXGA (1600×1200/60 Hz), WUXGA (1920×1200/60 Hz)
      • Refresh rate shown is the maximum for each resolution.
      • Conforms to CEA-861-E and VESA DMT v1.0 Rev. 11.
      • 1920×1200/60 Hz uses reduced blanking.
      • Interlaced input is converted to progressive by internal processing.
      • *1 FRAME RATE = 59.94 Hz
      • *2 FRAME RATE = 50 Hz
  • Still Image:
    • Bitmap (.bmp): up to 1920×1080, 24-bit color, uncompressed
    • PNG (.png): up to 1920×1080, 24-bit color (alpha channel not supported)
    • Up to 24 files can be stored in internal memory
  • Output Formats (OUTPUT 1–2):
    • 720/59.94p*1, *4; 720/50p*1, *5
    • 1080/59.94i*2, *4; 1080/50i*2, *5
    • 1080/59.94p*3, *4; 1080/50p*3, *5
    • *1 SYSTEM FORMAT = 720p
    • *2 SYSTEM FORMAT = 1080i
    • *3 SYSTEM FORMAT = 1080p
    • *4 FRAME RATE = 59.94 Hz
    • *5 FRAME RATE = 50 Hz
  • Video Effects:
    • Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
    • Composition: PinP (Square, Circle, Diamond), Split (2 types), Keyer (Luma, Chroma), DSK (Luma, Chroma)
    • Other: Flip horizontal/vertical, still image capture/playback, output fade (audio; video to white or black), test pattern output

Audio

  • Audio Processing: 24-bit / 48 kHz
  • Audio Formats: Linear PCM, 24-bit / 48 kHz, 2 ch

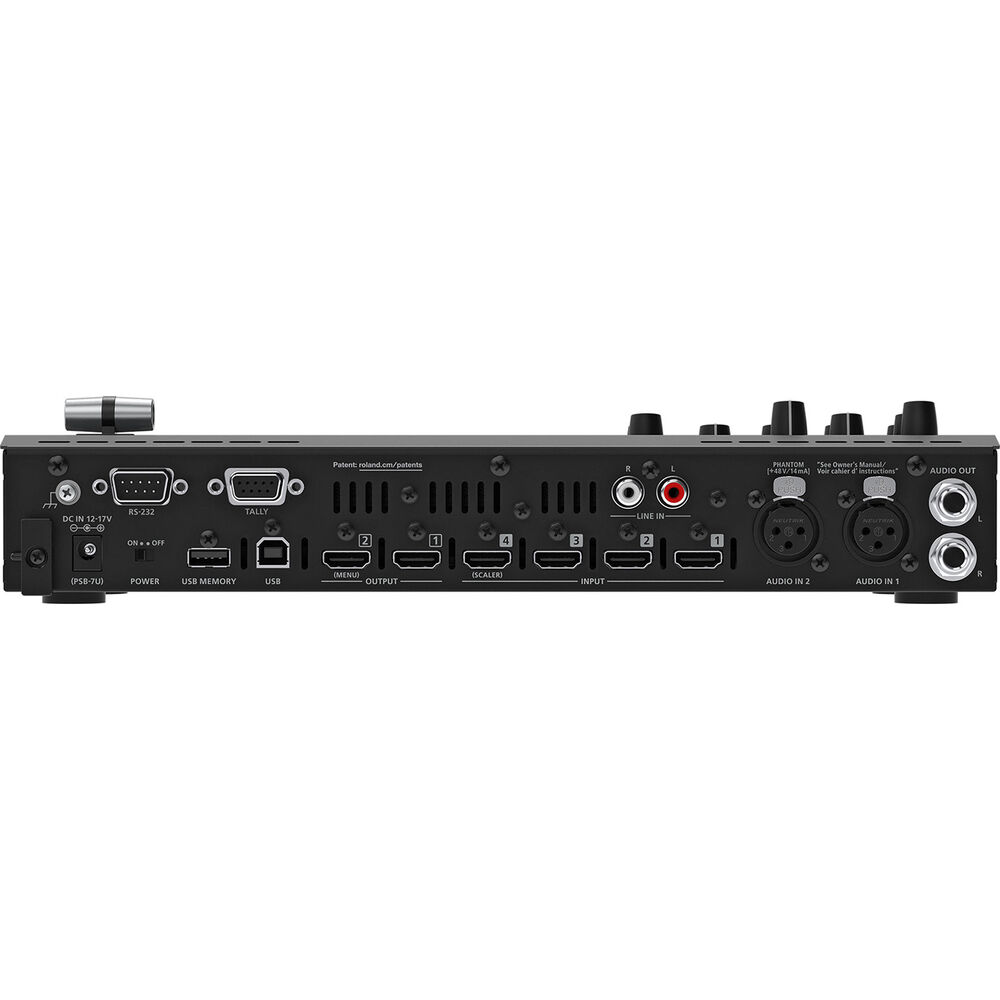

  • Input Connectors:
    • INPUT 1–4: HDMI Type A ×4
    • AUDIO IN 1–2: XLR-3-31 (balanced, phantom power DC 48 V, 14 mA max)
    • LINE IN: RCA phono

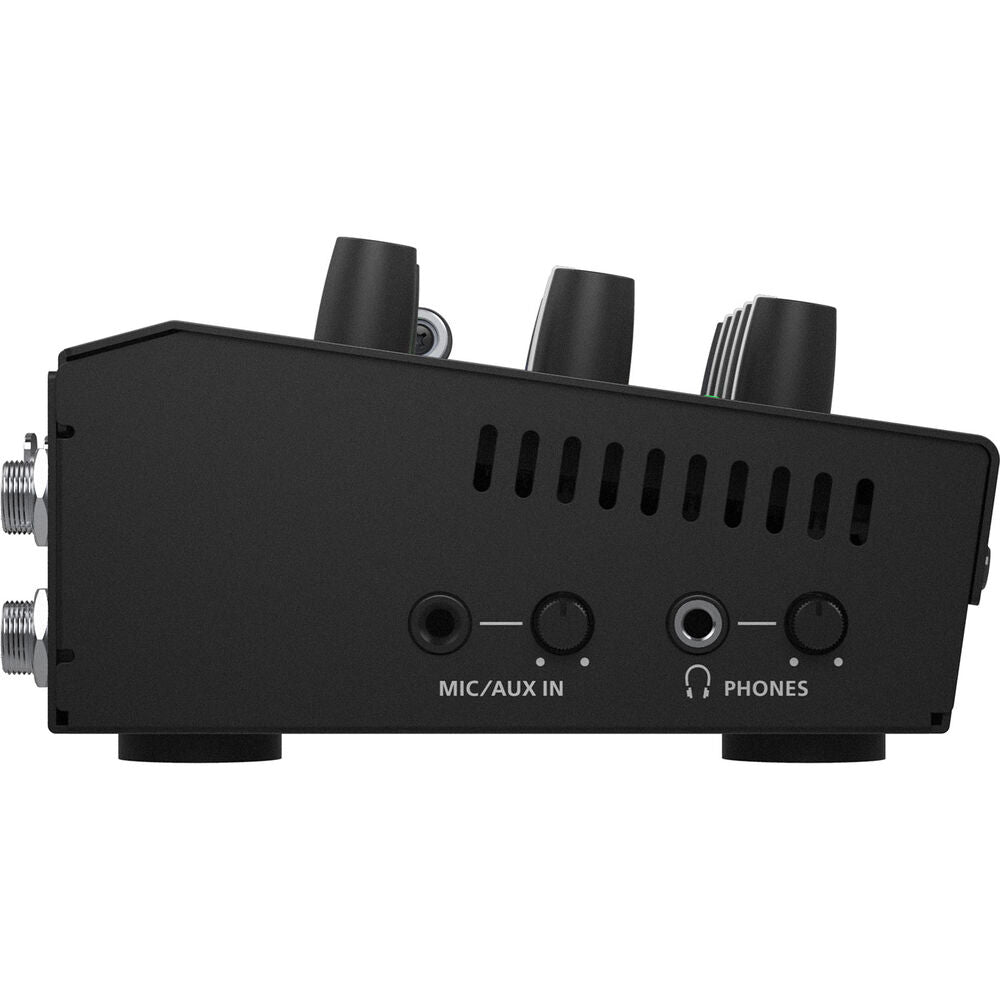

    • MIC/AUX IN: Stereo 3.5 mm (plug-in power)
  • Output Connectors:
    • OUTPUT 1–3: HDMI Type A ×2
    • AUDIO OUT L/R: 1/4-inch TRS
    • PHONES: Stereo 3.5 mm
  • Nominal Input Level:
    • AUDIO IN 1–2: −60 to +4 dBu (max +24 dBu)
    • LINE IN: −10 dBu (max +10 dBu)
    • MIC/AUX IN: −51 to −10 dBu (max +10 dBu)
  • Input Impedance:
    • AUDIO IN 1–2: 10 kΩ
    • LINE IN: 15 kΩ
    • MIC/AUX IN: 10 kΩ
  • Nominal Output Level:
    • AUDIO OUT L/R: +4 dBu (max +24 dBu)
    • PHONES: 72 mW + 72 mW (32 Ω load)
  • Output Impedance:
    • AUDIO OUT L/R: 600 Ω
    • PHONES: 10 Ω
  • Audio Effects: Delay, high-pass filter, de-esser, compressor, noise gate, equalizer, limiter, reverb, test-tone output

Others

  • Other Connectors:
    • USB MEMORY: USB Type-A (USB flash drive)
    • REMOTE: USB Type-B (remote control)
    • RS-232: DB-9 male (remote control)
    • TALLY: DB-9 female (TALLY output)
  • Other Functions: Preset memory (8 types), panel lock, EDID emulator, auto switching, auto input detect
  • Power Supply: AC adapter
  • Current Draw: 2.1 A
  • Power Consumption: 25.2 W
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Dimensions (W × D × H): 12.44 × 4.76 × 2.56 in
  • Weight: 3 lb

Included Items

  • Startup Guide ×1
  • Leaflet: “USING THE UNIT SAFELY” ×1
  • AC adapter ×1
  • Power cord ×1
