Flow Edge G 2CH - 2-Channel Video Conversion with Genlock

Up, Down, and Cross Conversion of Dozens of Digital Video Formats

The Flow Edge 2CH by Science Image is a four-channel, 1U rack-mount video format converter that supports up to 35 formats. It features a powerful combination of connectivity and flexibility, making it ideal for a wide range of studio broadcast and event production purposes.

Capture, convert, and transmit virtually any SMPTE-compatible format up to 3840x2160 at 60fps over 12G-SDI, HDMI 2.0, and fiber. The Flow Edge 2CH can be controlled remotely over a network using the built-in Gigabit Ethernet connection or the front-panel scroll wheel and LED display.

The Flow Edge G series takes all of the above features and adds a Genlock sync input per channel.

Key Features

• 2-Channel Rack-mount Up/Down/Cross Converter with Fiber TX/RX and Analog Audio In/Out
• Up/Down/Cross Conversion of 35 formats

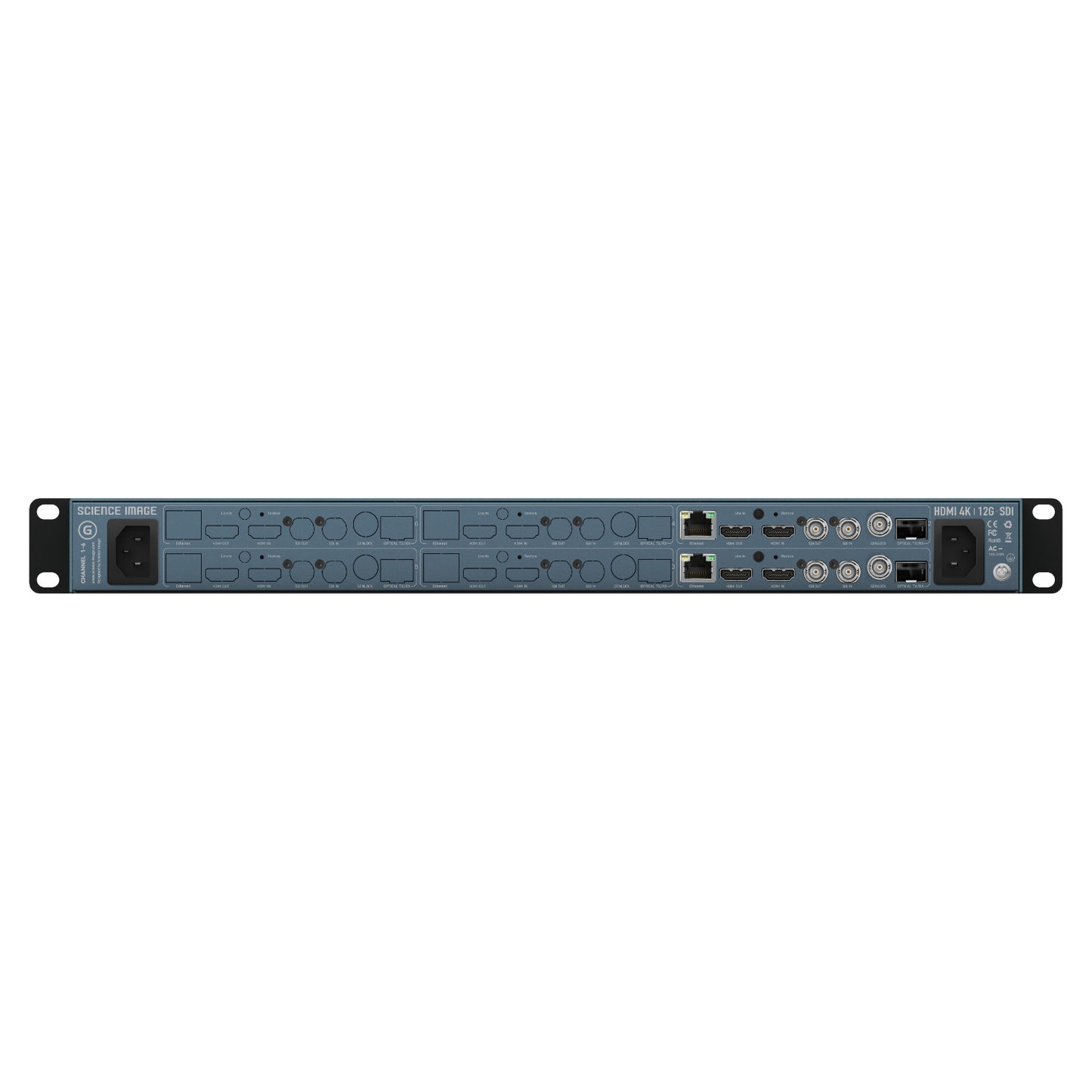

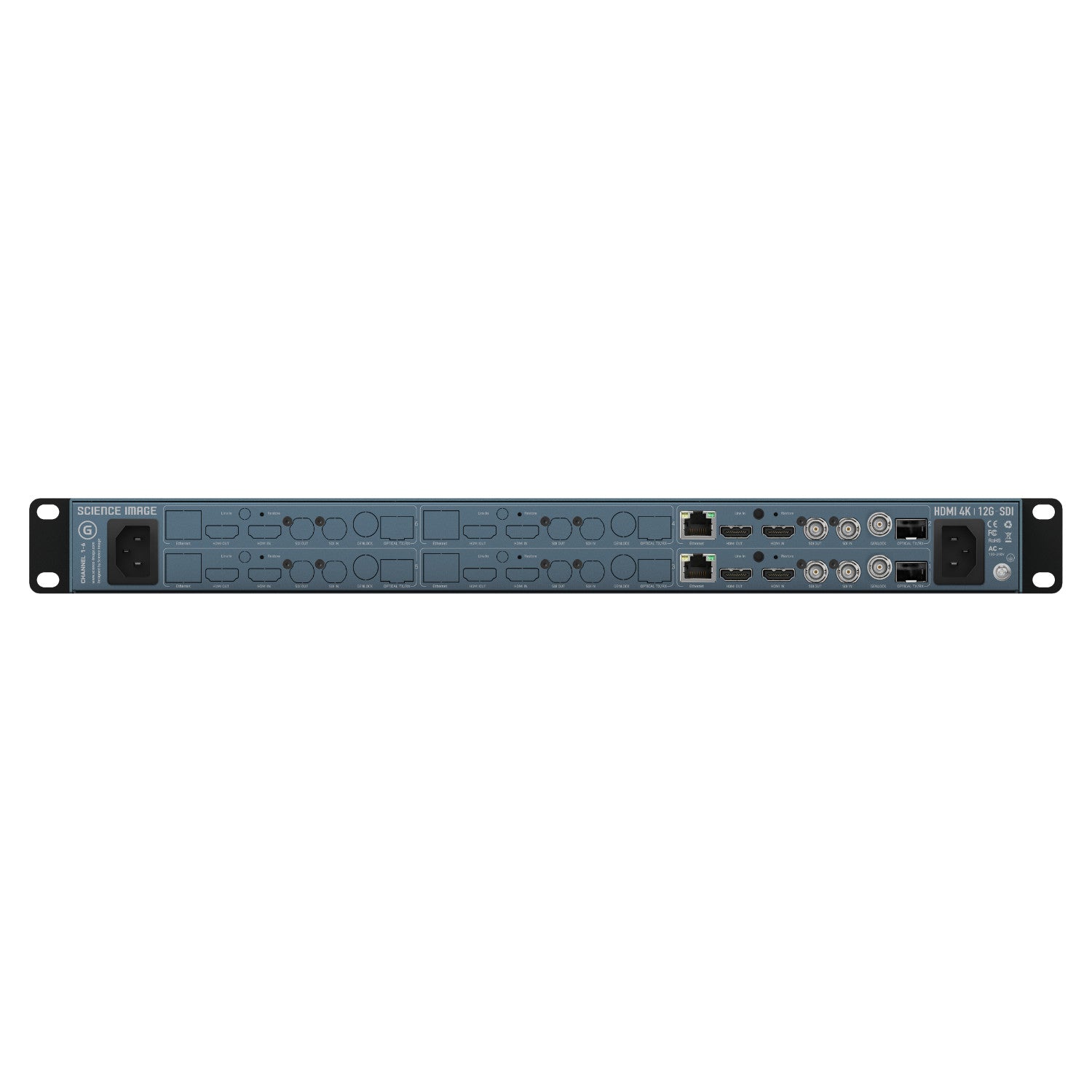

• Video I/O: 2x 12G-SDI Input & Outputs, 2x HDMI 2.0 Input & Outputs, up to 2160p60, 2x Genlock inputs
• Audio I/O: 2x 3.5mm stereo headphone outputs, 2x 3.5mm stereo line-in inputs

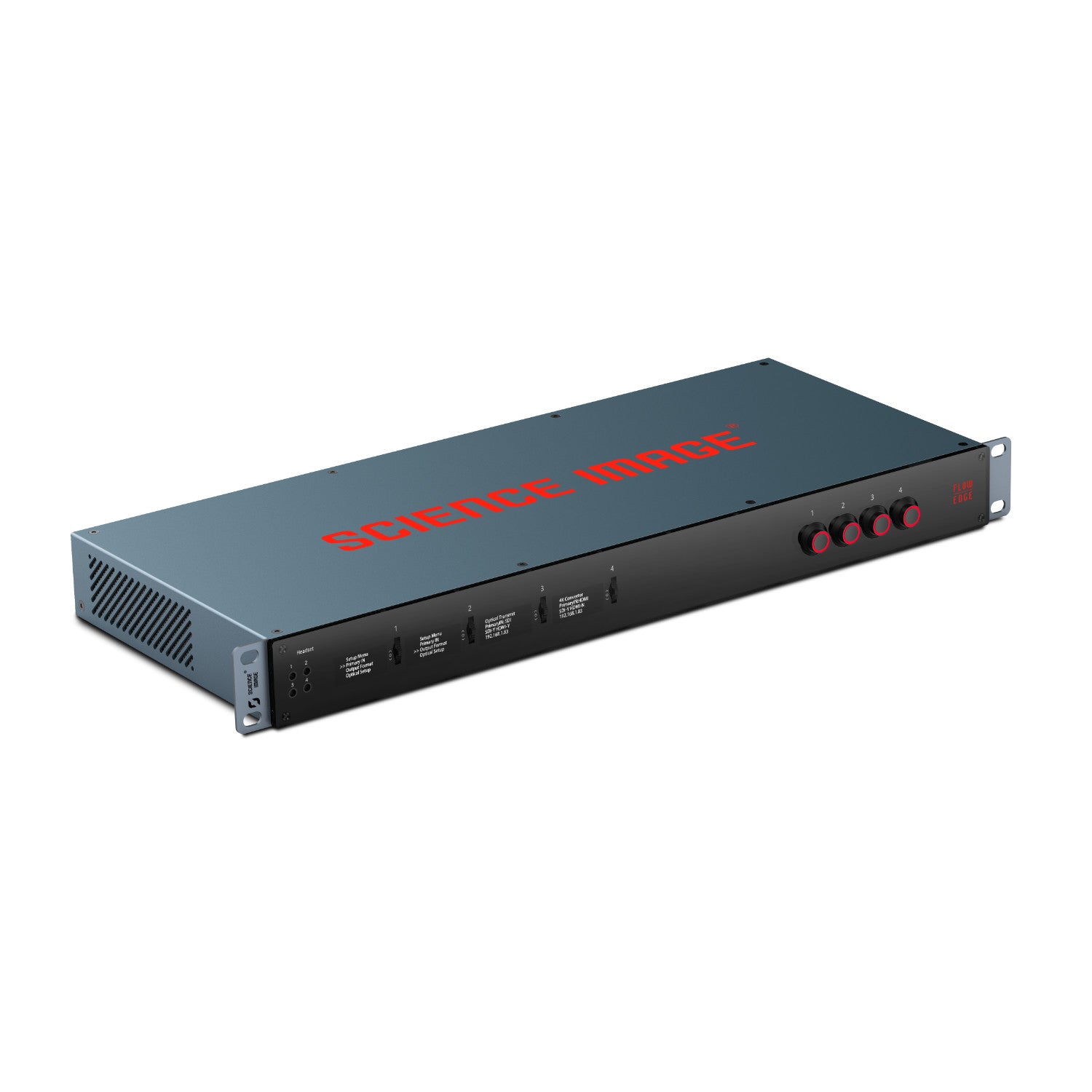

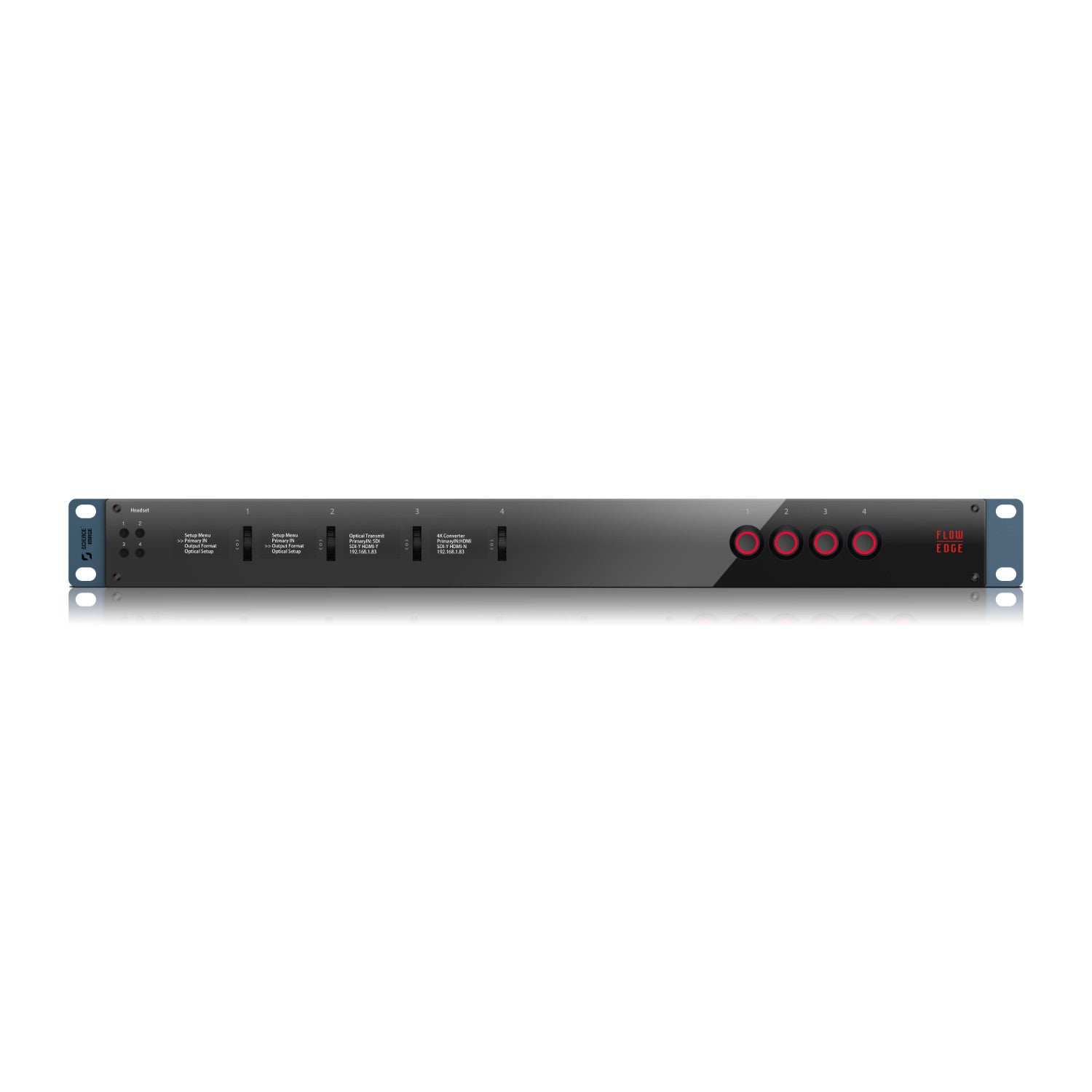

• Display: 2x 1.3-inch OLED screens with status, video format, IP address, etc.
• Control: Scroll wheel buttons for direct menu operation, Web UI control
• Audio function: Audio Embed/De-Embed from stream, 2-way Intercom per channel
• Network: 2x RJ-45 Gigabit Ethernet, 2x optical fiber SFP+ interfaces (for optional 12G-SDI transceiver)
• Power: AC power input, 2x LED illuminated power buttons
