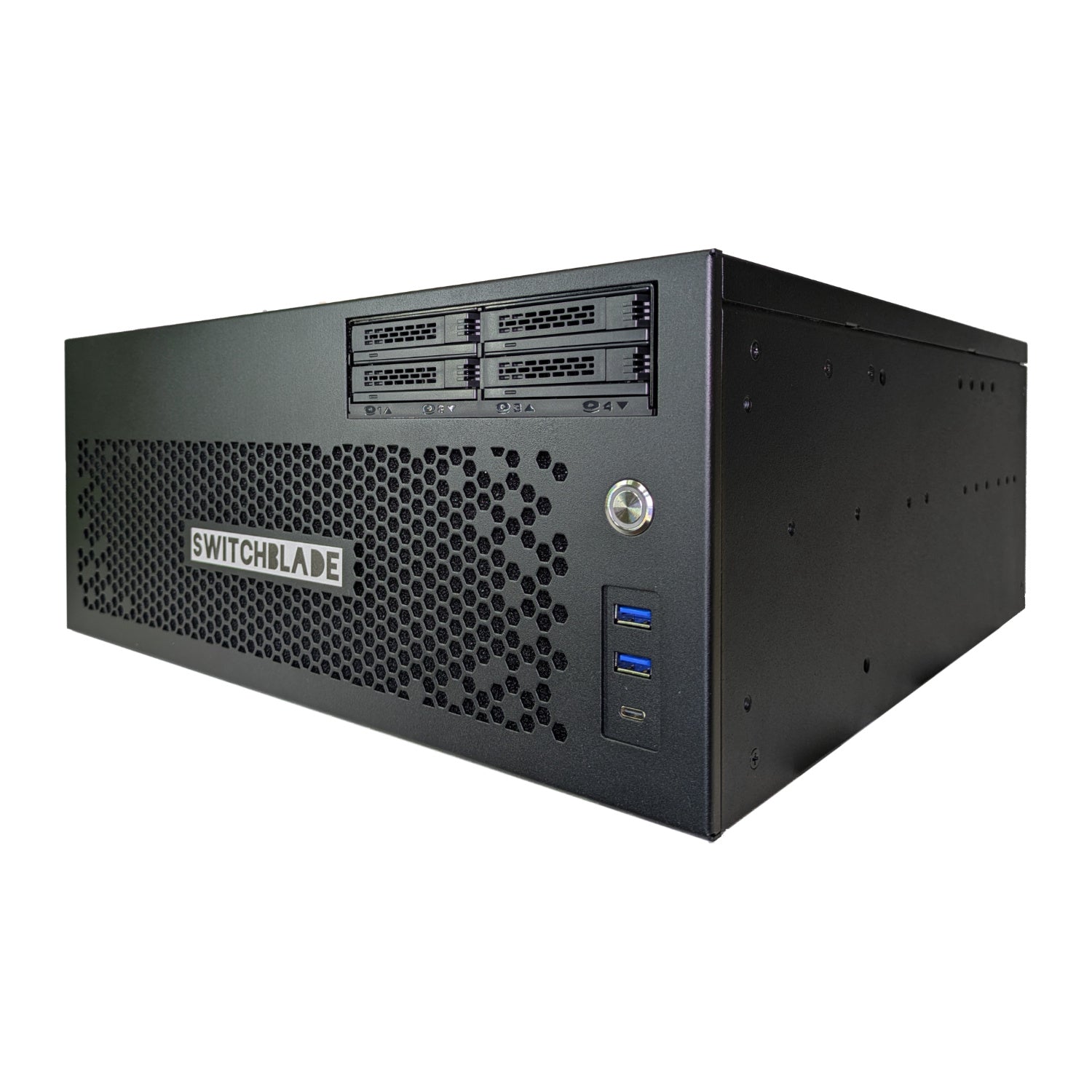

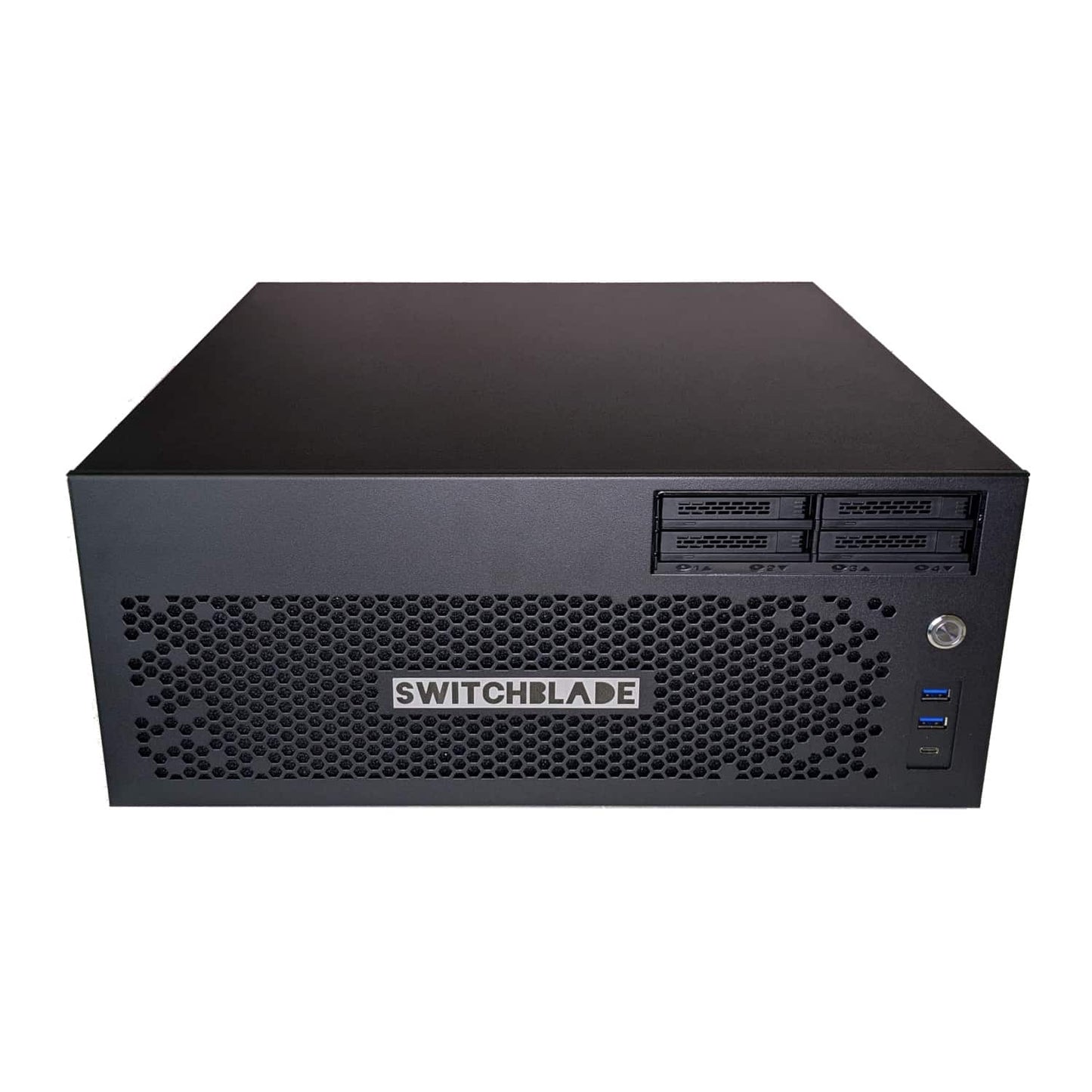

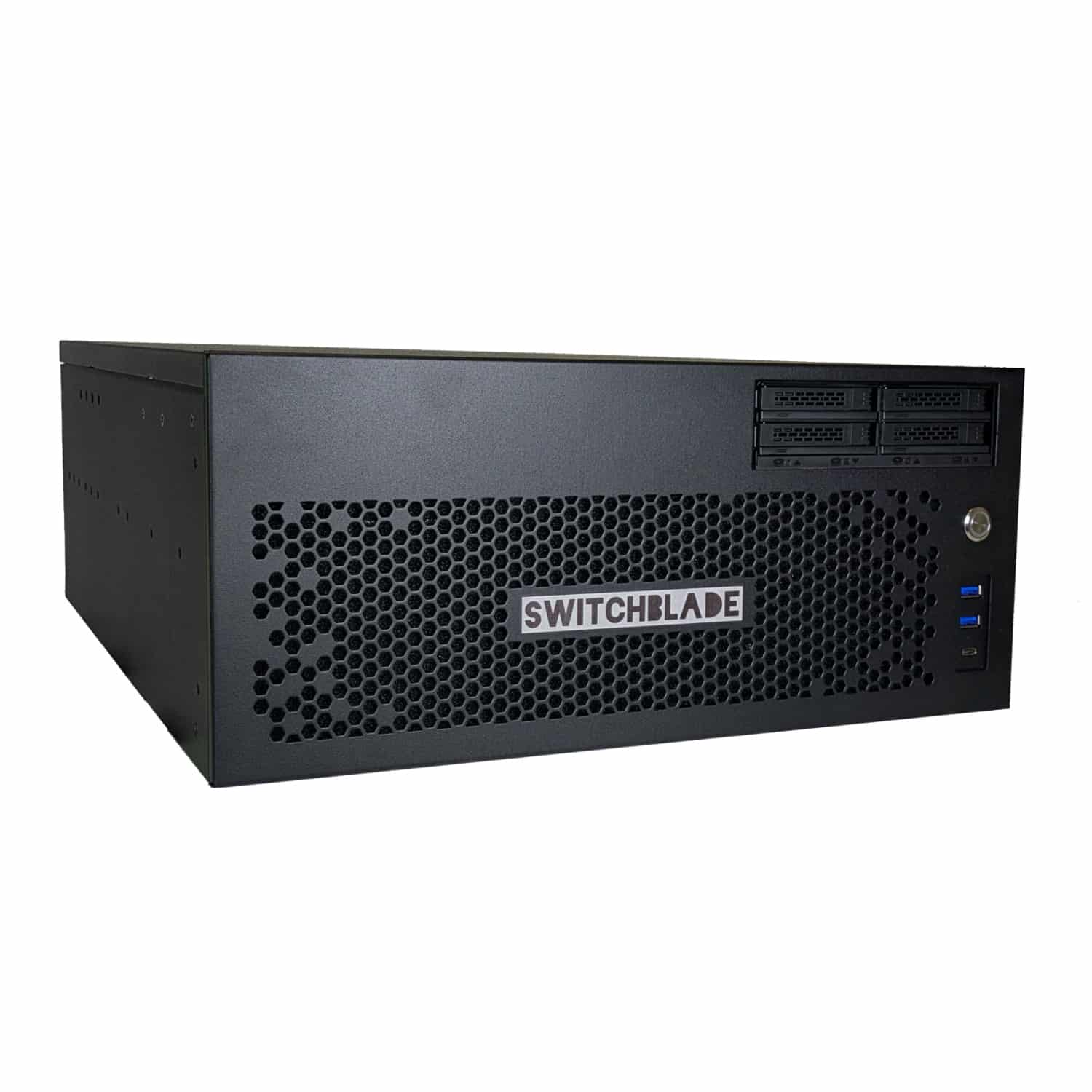

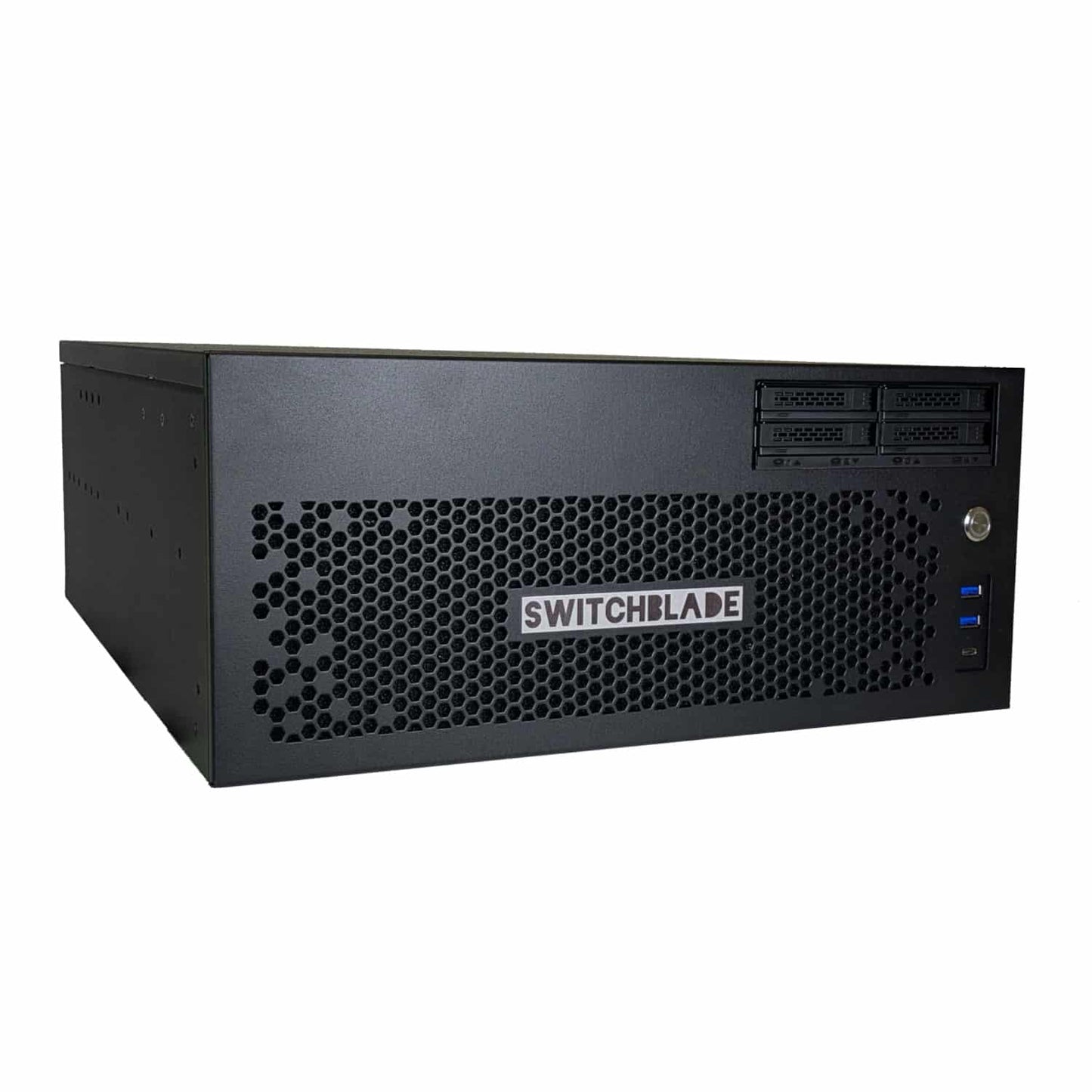

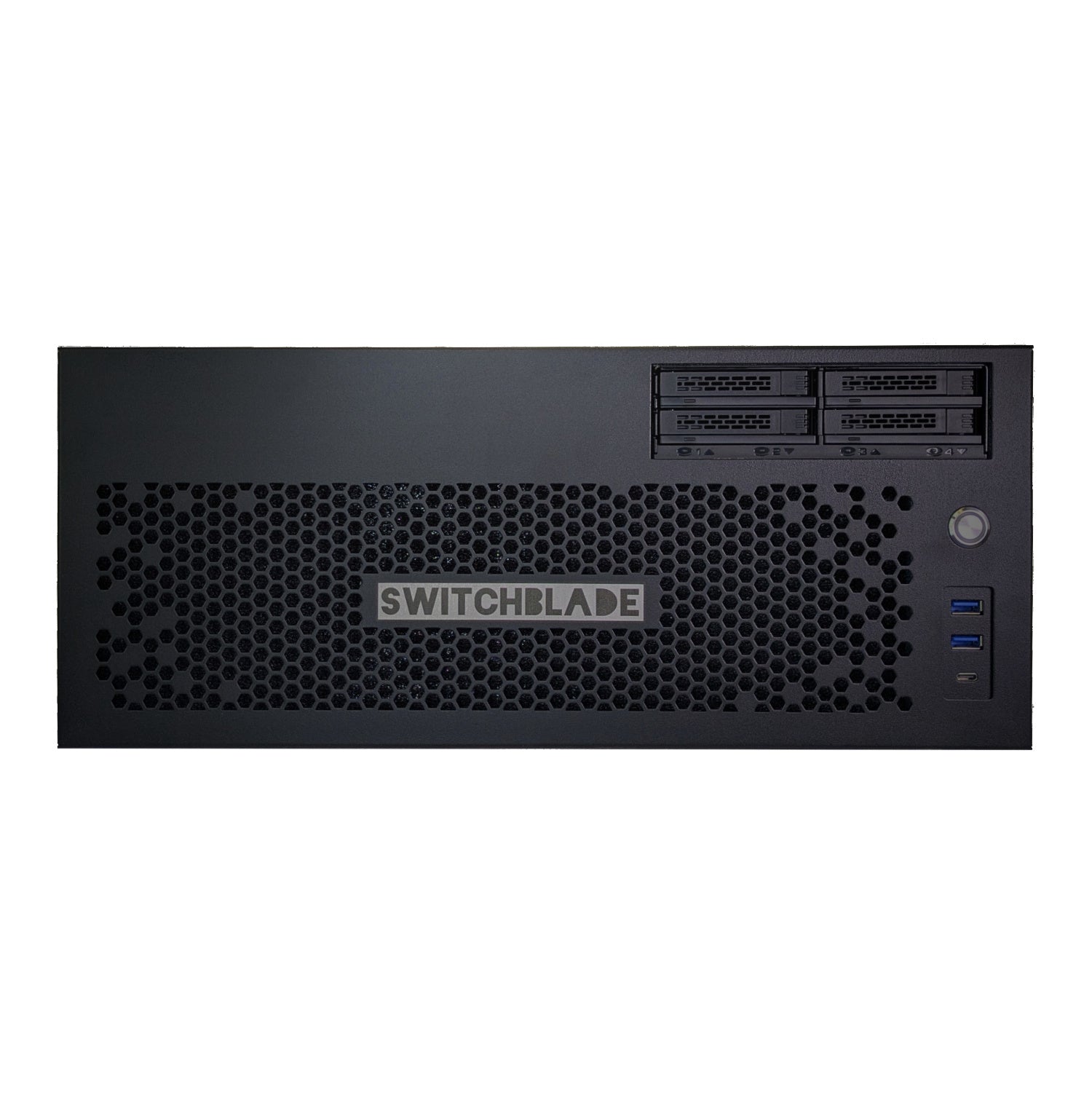

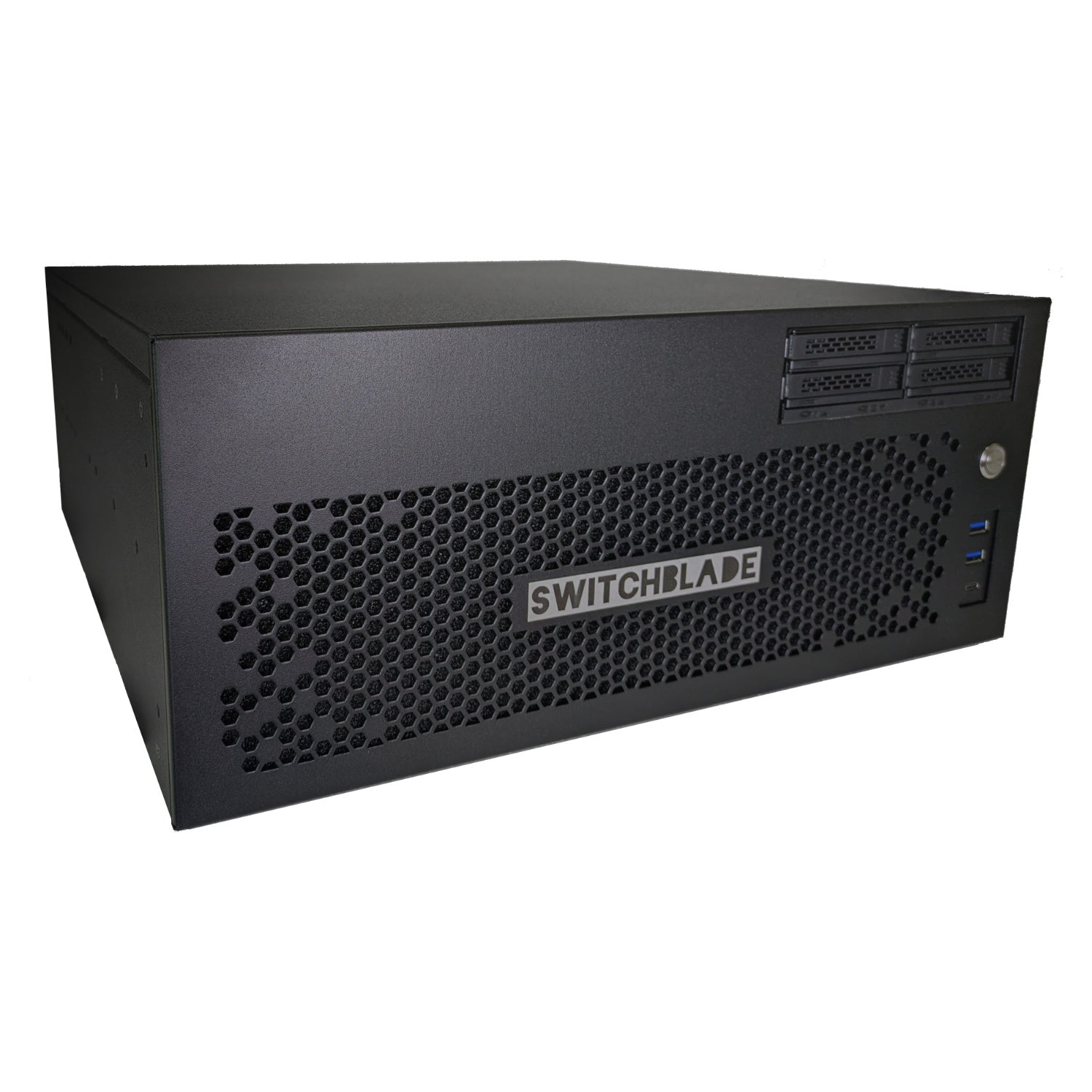

Switchblade LPU4 8-channel 3G-SDI I/O 4U Production System (Hardware Only)

Switchblade LPU4 8-channel SDI production PC platform

8-channel 3G-SDI rackmount server for live production

The Switchblade LPU4 12-channel SDI production platform is designed to be the core of your live production workflow. Boasting high-performance processing, storage, graphics, and I/O in a compact, 4U rack-mount package, the LPU4 is ideal for any software-based live production application.

The LPU4 comes out of the box with Windows 11 Pro, ready to support most popular live switching software programs, including:

• StudioCoast vMix
• Telestream Wirecast
• Vizrt Viz Vectar
• Vimo Livestream Studio
• Open Broadcaster Software (OBS)

Technical Specifications

• Video Inputs & Outputs: 8x Bi-Directional 3G-SDI inputs/outputs, 3x reference inputs
• Processor: 20-core Intel Core i7-14700KF
• System drive: 1TB NVMe PCIe Gen4 SSD
• Removable Storage: 4x hot-swap 2.5" SSD bays
• Memory: 32GB DDR5 RAM
• Graphics: NVIDIA RTX A4000
• Operating System: Windows 11 Pro
• Network: 2x 2.5G Ethernet RJ-45 ports
• Form-factor: Rugged, short-depth 4U chassis
• Dimensions: 17" W x 6.96" H x 16.89" D
• Weight: 35 lbs.
