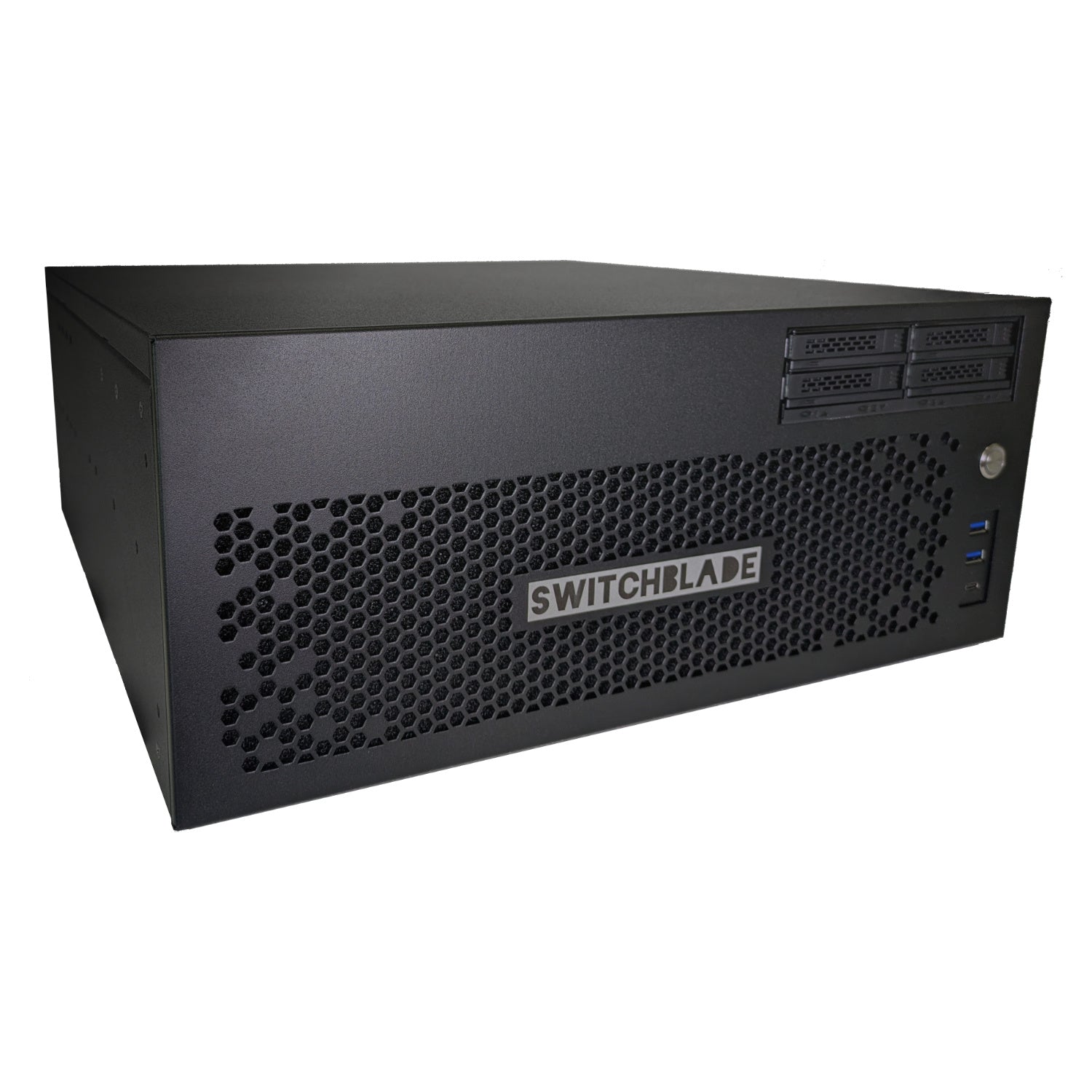

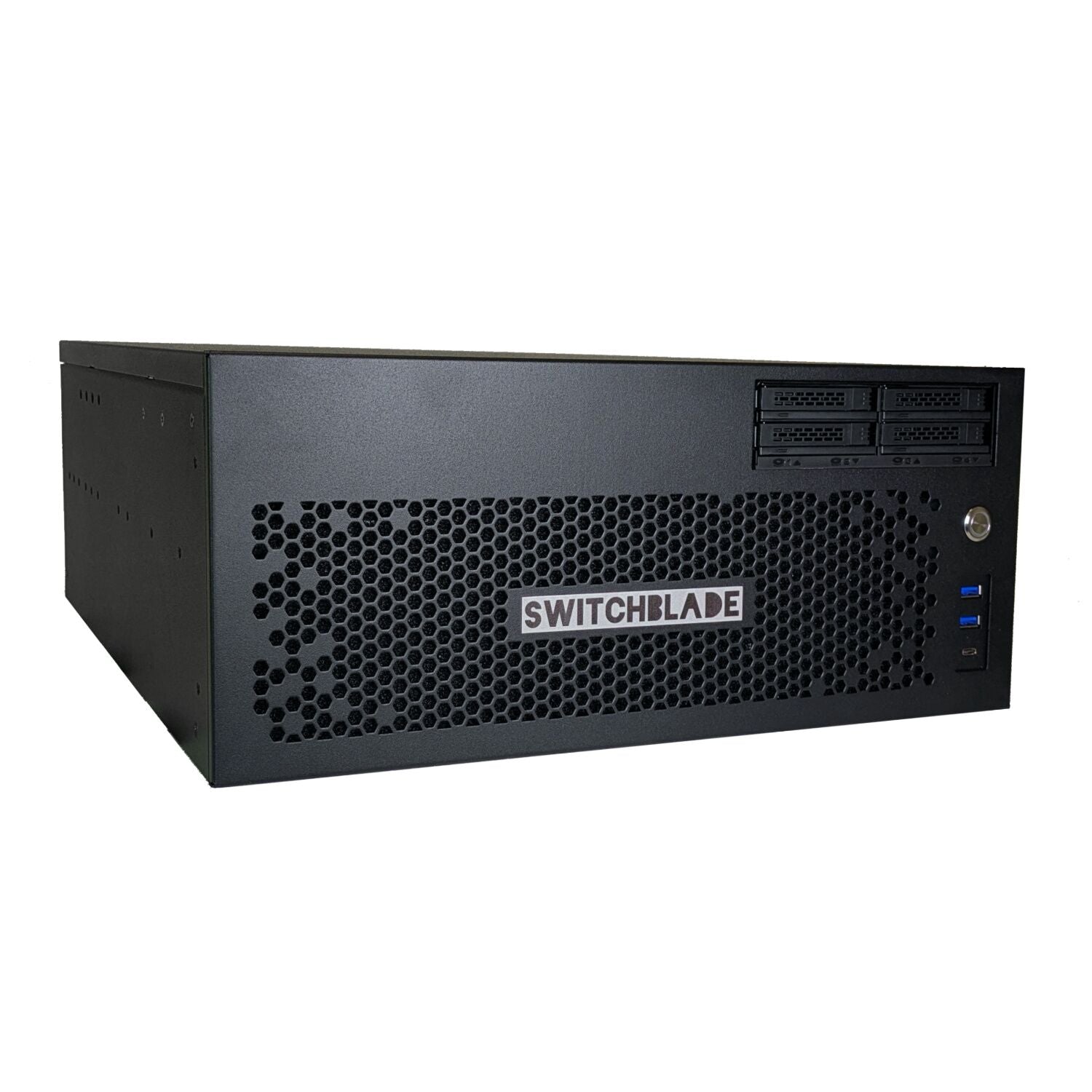

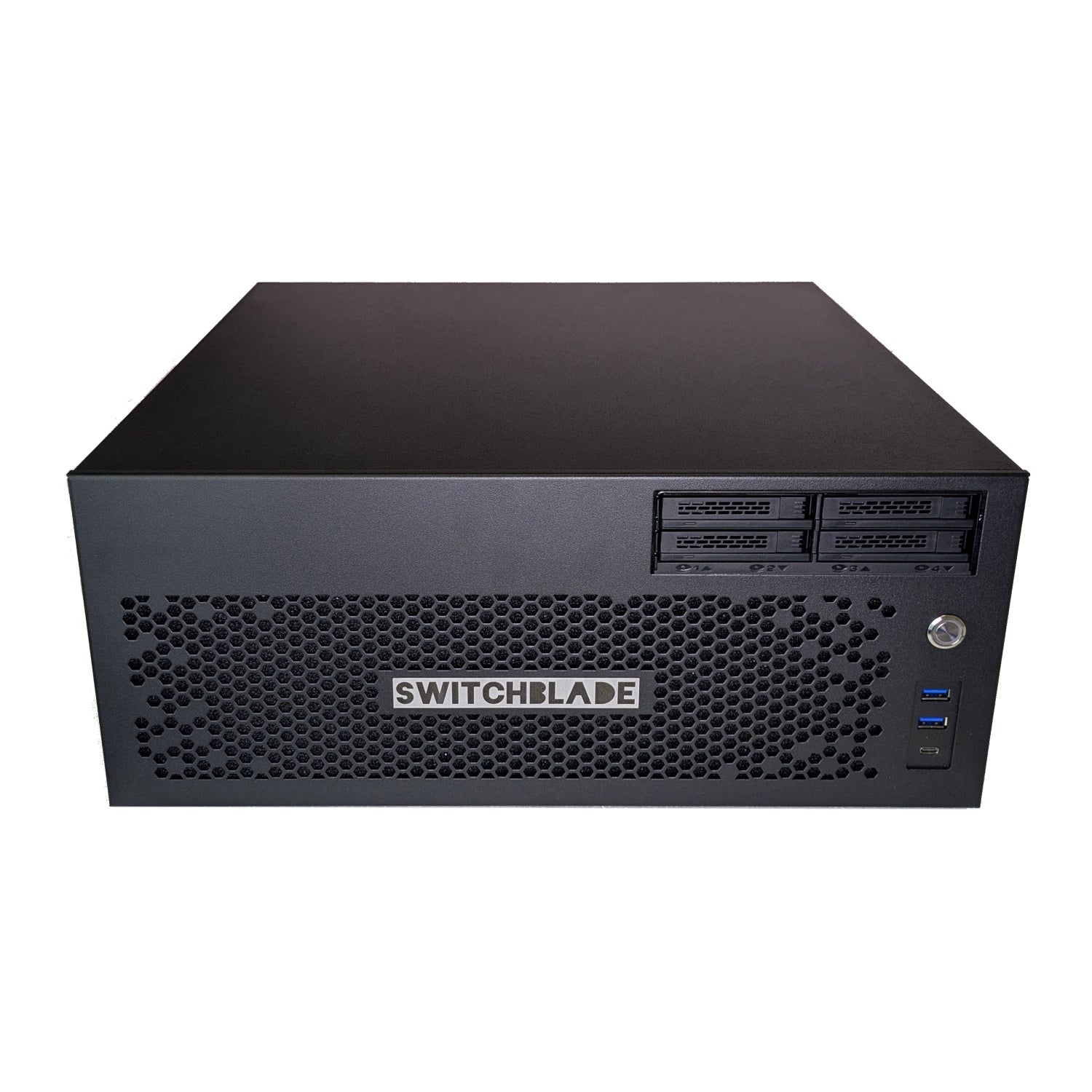

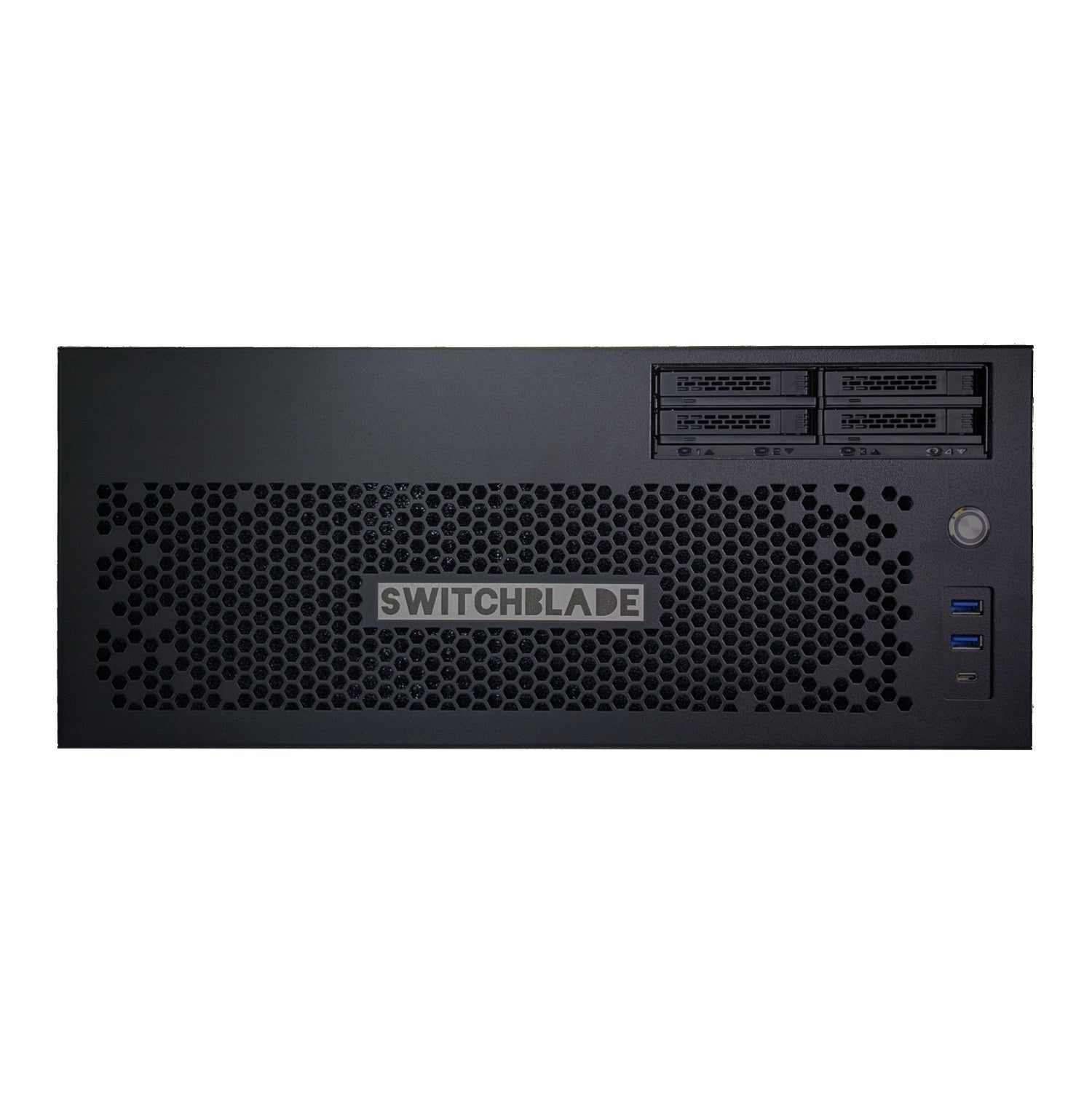

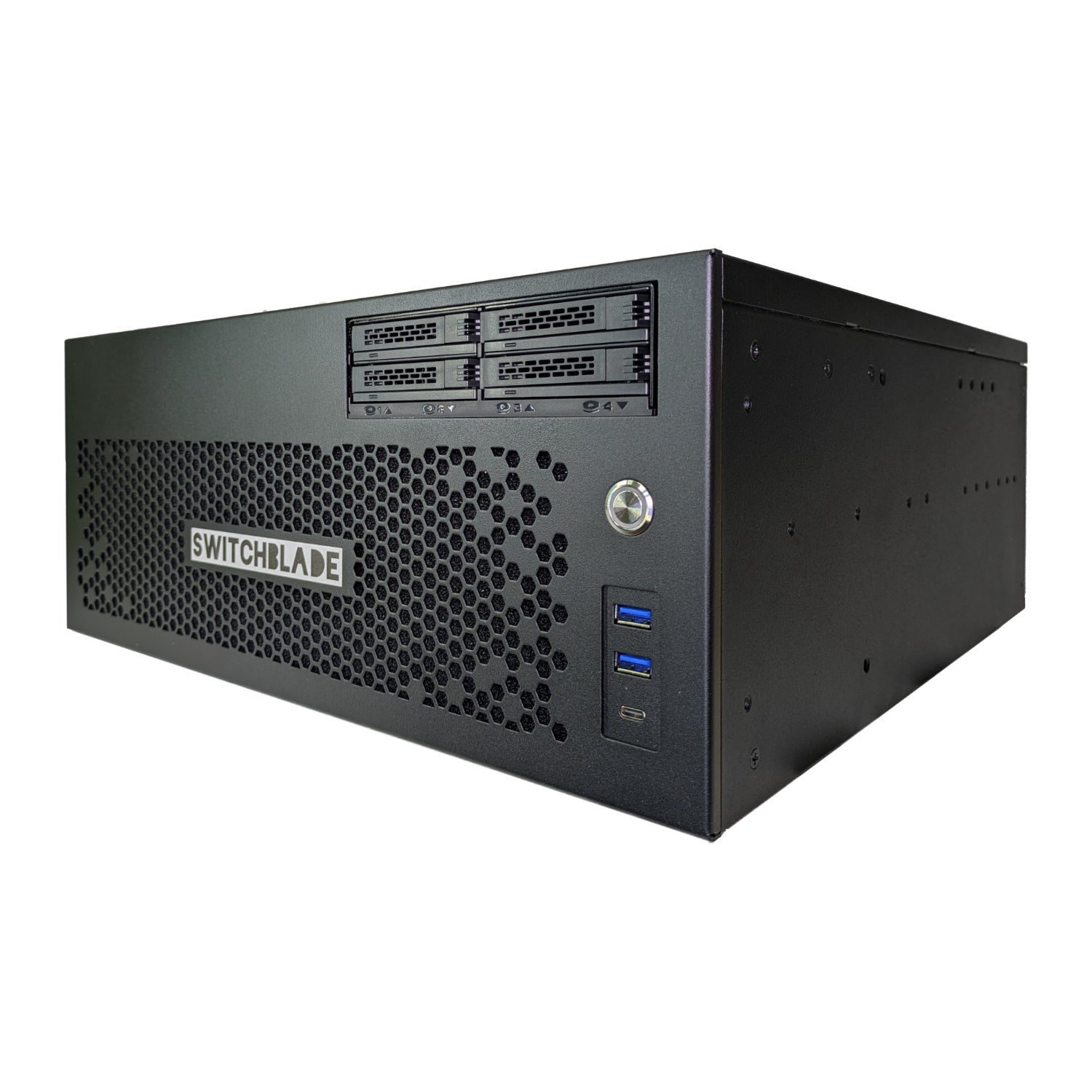

Switchblade LPU4 Elite R - 8-Channel 4KP60 12G-SDI vMix Pro Production Switcher & Replay Server

The Switchblade Systems LPU4 Elite R is a powerful and flexible live production platform for multi-camera replay, switching, graphics, recording, and streaming. Designed around vMix live production software, the LPU4 Elite R offers high-end processing, storage, and a multitude of video connection options to give you full access to all the features of vMix. And like all Switchblade products, the LPU4 Elite R is backed by amazing technical support and know-how to keep your broadcast running.

Key Features

• Powered by vMix Pro software - Lifetime license included
• 4x 12G-SDI bi-directional channels with full-sized BNC connectors (up to 2160p60 per channel)
• 4x 12G-SDI input channels with full-sized BNC connectors (up to 2160p60 per channel)
• 4x DisplayPort outputs for a user interface monitor, plus up to 3 additional displays
• Supports both SDI and IP inputs, including NDI, NDI|HX, RTMP, RTSP, and SRT
• 4 SRT outputs
• 4 NDI outputs
• Stream to up to 5 destinations simultaneously
• 8 overlay channels
• ISO recording on multiple channels
• Two independent recording channels for program records and backup
• 8 remote callers using vMix Call
• Direct integration with Zoom
• 8-channel replay and slow-motion
• Titling software for animated text, graphics, scoreboards, and tickers
• PTZ control
• Playlist automation
• Video lists of pre-recorded video files
• Advance scripting for more control

Technical Specifications

• Video I/O: 4x 12G-SDI bi-directional inputs/inputs + 4x 12G-SDI inputs
• Audio I/O: 1x 3.5mm line-in, 1x 3.5mm mic-in, 1x 3.5mm line-out
• Storage: 1TB NVMe Solid State Drive (system), 2TB NVMe Solid State Drive (recording/playback)
• Processor: 24-core AMD Ryzen Threadripper 7960X
• Memory: 64GB DDR5 RAM
• Graphics: NVIDIA RTX 4500 Ada with 24GB GDDR6 RAM
• Network: 1x 10Gb/s Ethernet RJ-45 port, 1x 2.5Gb/s Ethernet RJ-45 port
• Operating System: Windows 11 Pro
• Dimensions: 16.89" x 17.00" x 6.96" / 429mm x 432mm x 176.75mm
• Weight: 40 lbs. / 18.1kg
