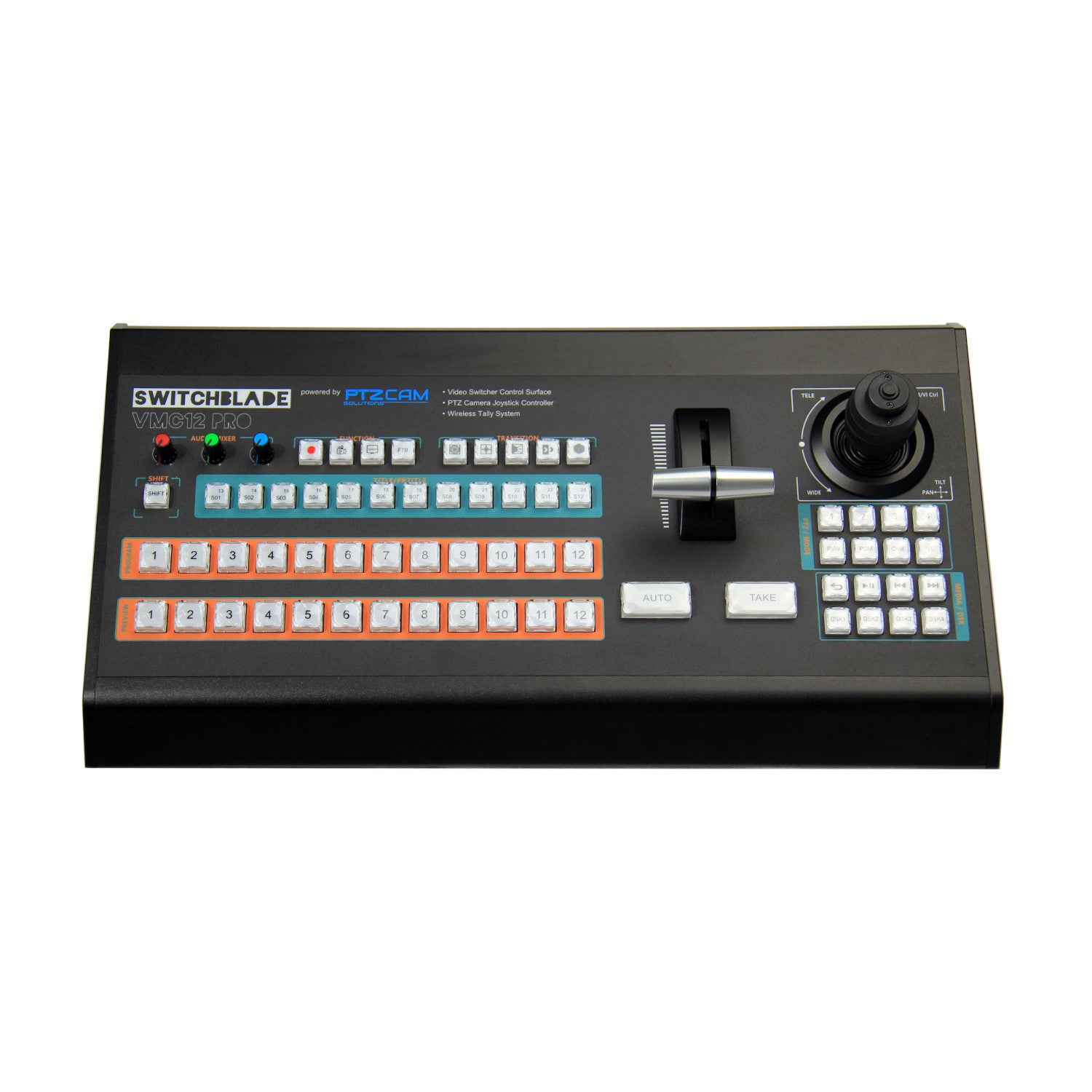

Switchblade VMC12 PRO - vMix Control Surface with PTZ Joystick

Switchblade VMC12 PRO - vMix Control Surface with PTZ Joystick

Regular price $695.00 USD
Regular price Sale price $695.00 USD
Sale Sold out
The Switchblade VMC12 PRO is a compact hardware control surface for vMix. With all the essential features of vMix at the touch of a button, your live productions will be easy to manage without resorting to a mouse and keyboard. The VMC12 PRO is ideal for productions that use PTZ cameras in conjunction with vMix, making it a valuable tool for high schools, colleges, and churches in particular. The VMC12 PRO features preview and program rows for 12 channels, audio knobs, T-bar, and a high-quality PTZ joystick. The controller requires only a single USB cable connected to your computer's USB port where it receives power and data. Only a MIDI configuration file is required to map all the buttons to vMix, which can also be customized to your liking.

Key Features:

  • 64 high-quality, LED backlit buttons, including:
    • Two rows of 12-channel preview and program buttons
    • Shift button to access additional channels 13-24
    • 12 title/overlay buttons for both preview and program
    • Four shortcut function buttons for record, stream, external screen output, and fade-to-black
    • Five auto-transition buttons
    • Large Auto and Take channel switching buttons
    • Four Media/DSK1 shortcut buttons
    • Media playback buttons, including Play/Pause, Previous, Next, and Loop
  • Built-in PTZ control section, including:
    • High-quality PTZ joystick
    • 4 camera preset buttons
    • Preview, Program, Camera, and VI
  • USB powered from the host computer
  • RS232 for serial PTZ camera control
  • Optional wireless tally lights

Technical Specifications:

  • Input Voltage: USB 5V 300mA

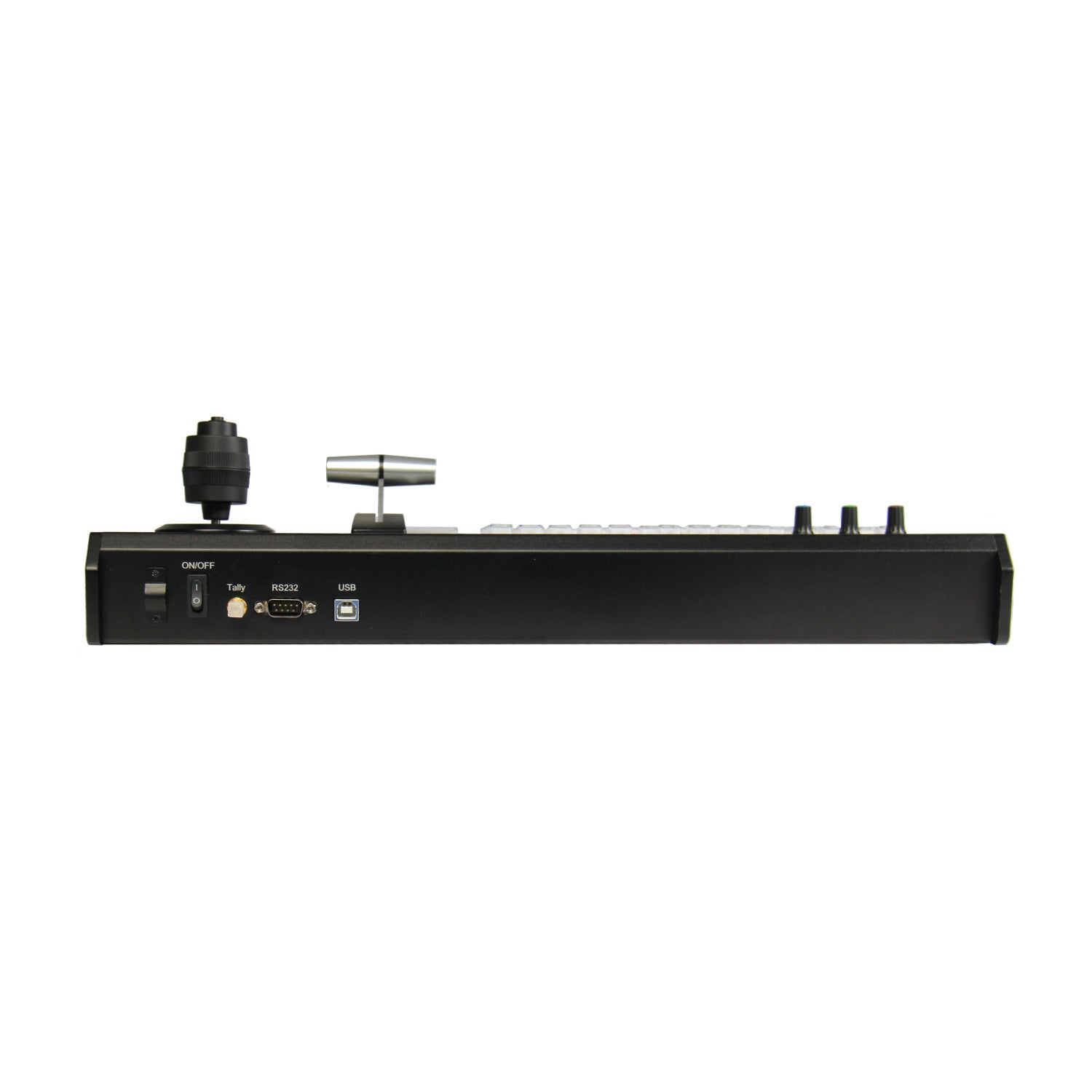

  • Ports: USB Type-B, DB-9 RS232, WiFi (for wireless tally)
  • Communication Protocols: USB, MIDI, RS232
  • PTZ Protocols: VISCA, VISCA over IP*, PELCO-D, PELCO-P, and NDI* * Requires vMix and LAN connection to cameras through the host computer
  • Power Source: USB port, nominal voltage 5 VDC
  • Material: Aluminum and Steel
  • Weight: 6.6 lbs / 3 kg
  • Dimensions: 18" W x 9.5" D x 3" high (not including PTZ joystick) / 457.2mm x 241.3mm x 76.2mm
