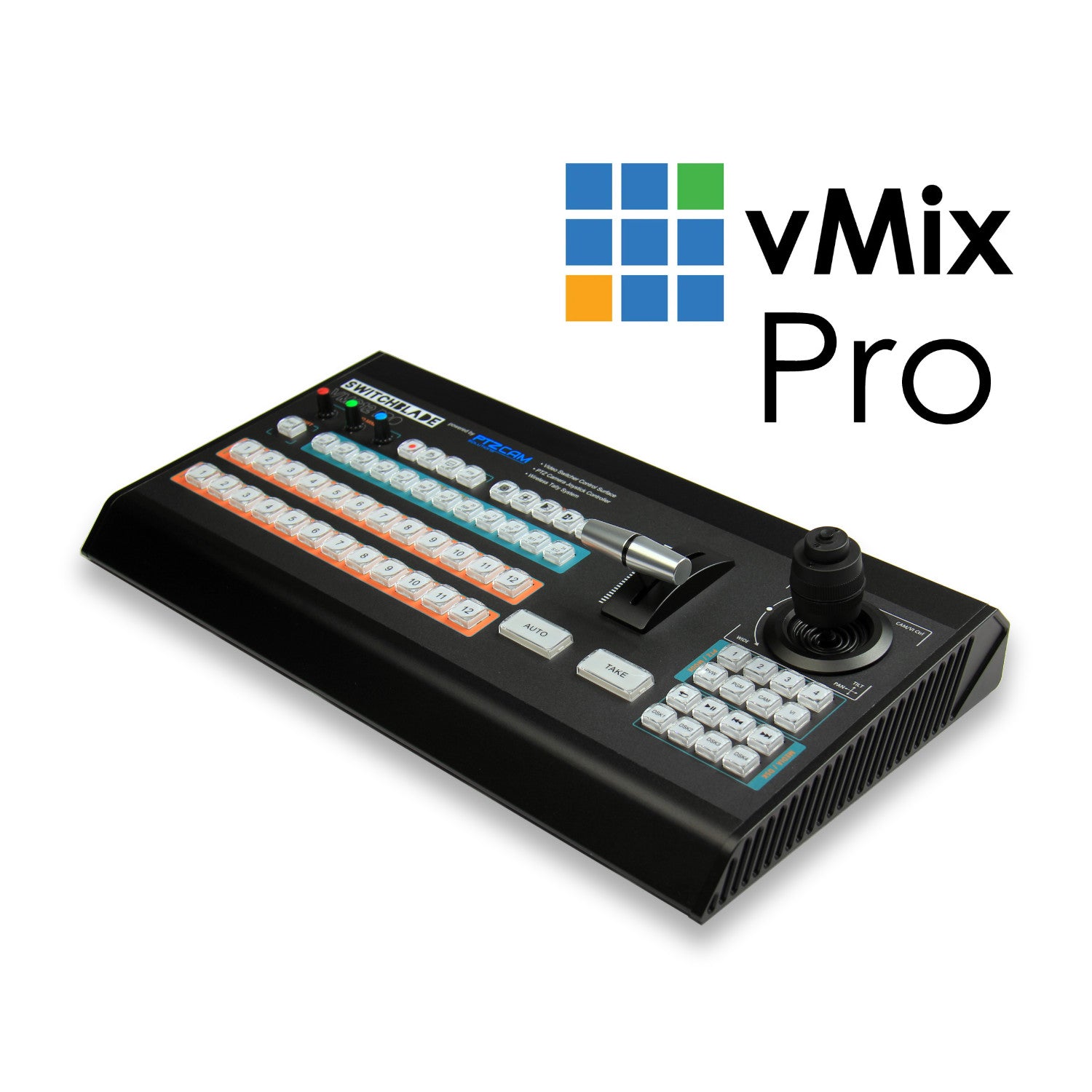

Switchblade VMC12 PRO vMix Controller with vMix Pro Software

Take control of your live streaming events with vMix Pro and the Switchblade VMC12 PRO control surface. The VMC12 PRO features 12-channel preview/program buttons and PTZ camera controls. This specially priced bundle includes the VMC12 PRO and a perpetual license of vMix Pro software.

More about the VMC12 PRO switcher and PTZ controller:

The Switchblade VMC12 PRO is a compact hardware control surface for vMix. With all the essential features of vMix at the touch of a button, your live productions will be easy to manage without resorting to a mouse and keyboard. The VMC12 PRO is ideal for productions that use PTZ cameras in conjunction with vMix, making it a valuable tool for high schools, colleges, and churches in particular.

The VMC12 PRO features preview and program rows for 12 channels, audio knobs, T-bar, and a high-quality PTZ joystick. The controller requires only a single USB cable connected to your computer's USB port where it receives power and data. Only a MIDI configuration file is required to map all the buttons to vMix, which can also be customized to your liking.

Key Features:

• 64 high-quality, LED backlit buttons, including:
  • Two rows of 12-channel preview and program buttons
  • Shift button to access additional channels 13-24
  • 12 title/overlay buttons for both preview and program
  • Four shortcut function buttons for record, stream, external screen output, and fade-to-black
  • Five auto-transition buttons
  • Large Auto and Take channel switching buttons
  • Four Media/DSK1 shortcut buttons
  • Media playback buttons, including Play/Pause, Previous, Next, and Loop
• Built-in PTZ control section, including:
  • High-quality PTZ joystick
  • 4 camera preset buttons
  • Preview, Program, Camera, and VI
• USB powered from the host computer
• RS232 for serial PTZ camera control
• Optional wireless tally lights

Technical Specifications:

• Input Voltage: USB 5V 300mA
• Ports: USB Type-B, DB-9 RS232, WiFi (for wireless tally)
• Communication Protocols: USB, MIDI, RS232
• PTZ Protocols: VISCA, VISCA over IP*, PELCO-D, PELCO-P, and NDI*
  * Requires vMix and LAN connection to cameras through the host computer
• Power Source: USB port, nominal voltage 5 VDC
• Material: Aluminum and Steel
• Weight: 6.6 lbs / 3 kg
• Dimensions: 18" W x 9.5" D x 3" high (not including PTZ joystick) / 457.2mm x 241.3mm x 76.2mm

More about vMix Pro streaming software:

	BASIC HD	HD	4K	PRO
Free UpdatesÂ	First 12 months	First 12 months	First 12 months	First 12 months
Total InputsÂ	4	1000	1000	1000
Camera / NDI InputsÂ	3	1000	1000	1000
Maximum Resolution	1920 x 1080	1920 x 1080	4096 x 2160	4096 x 2160
Overlay Channels	1	4	4	4
Recording	✔	✔	✔ 2 Recorders	✔ 2 Recorders
Streaming Including 3 simultaneous live streams	✔	✔	✔	✔
Fullscreen Output	✔	✔	✔	✔
External Output	✔	✔	✔	✔
GT Designer Standard 100+ Built-In Animated Titles, ScoreBoards, Tickers	✔	✔	✔	✔
GT Designer Advanced Custom Animated Titles and Import PSD's	✗	✗	✔	✔
PlaylistÂ	✔	✔	✔	✔
Professional Color CorrectionÂ	✔	✔	✔	✔
Video ListÂ	✗	✔	✔	✔
vMix CallÂ	✗	✔ 1 Caller	✔ 4 Callers	✔ 8 Callers
MultiCorder	✗	✗	✔	✔
Instant ReplayÂ	✗	✗	✔ 1 Camera	✔ 8 Cameras
Two External Outputs Two Fullscreen Outputs Four Virtual Outputs	✗	✗	✔	✔
ScriptingÂ	✗	✗	✔	✔
PTZ ControlÂ	✗	✗	✔	✔
SRT OutputsÂ	✔ 1	✔ 1	✔ 4	✔ 4
Vertical HD (1920p)Â	✗	✗	✔	✔
