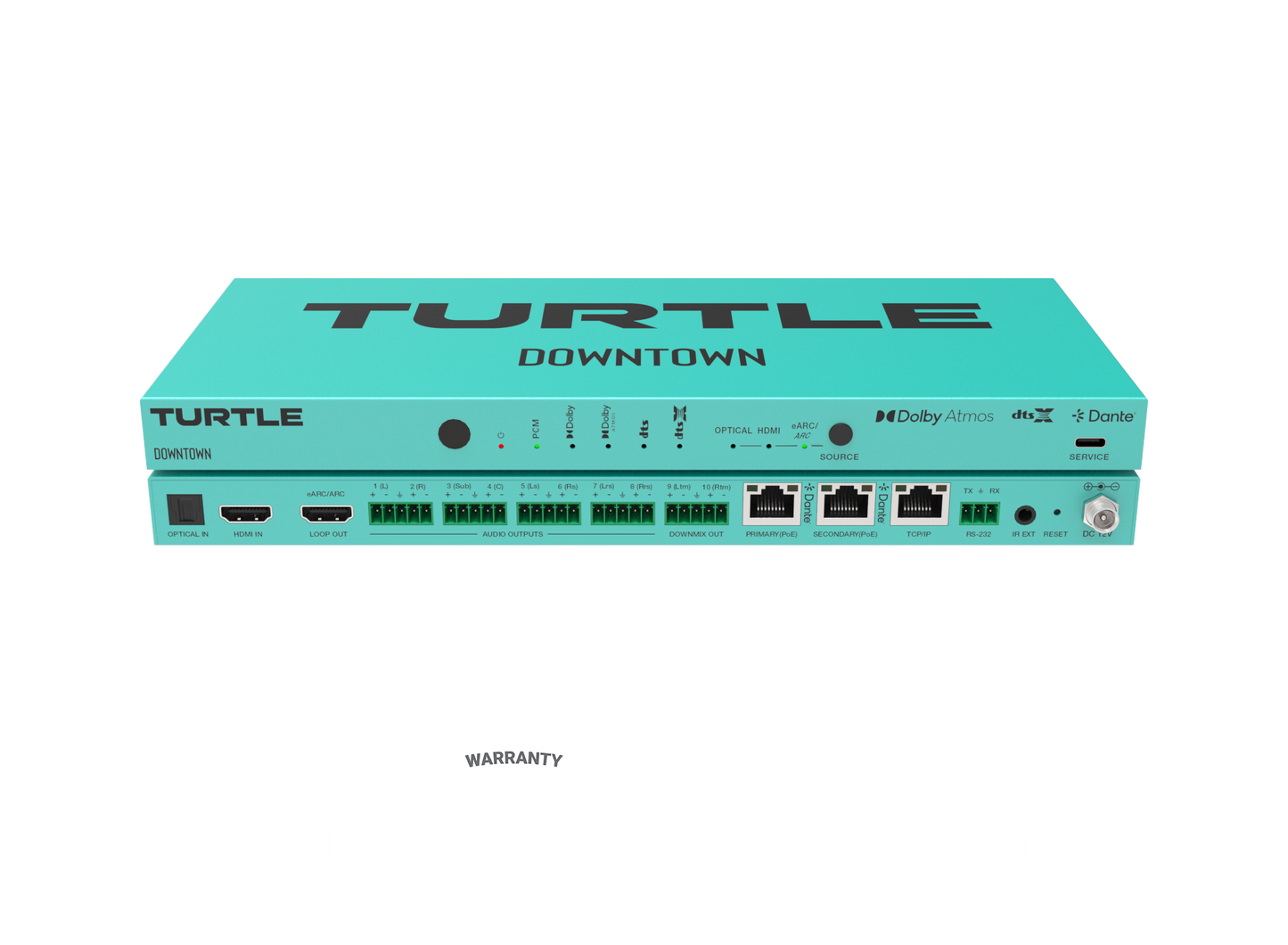

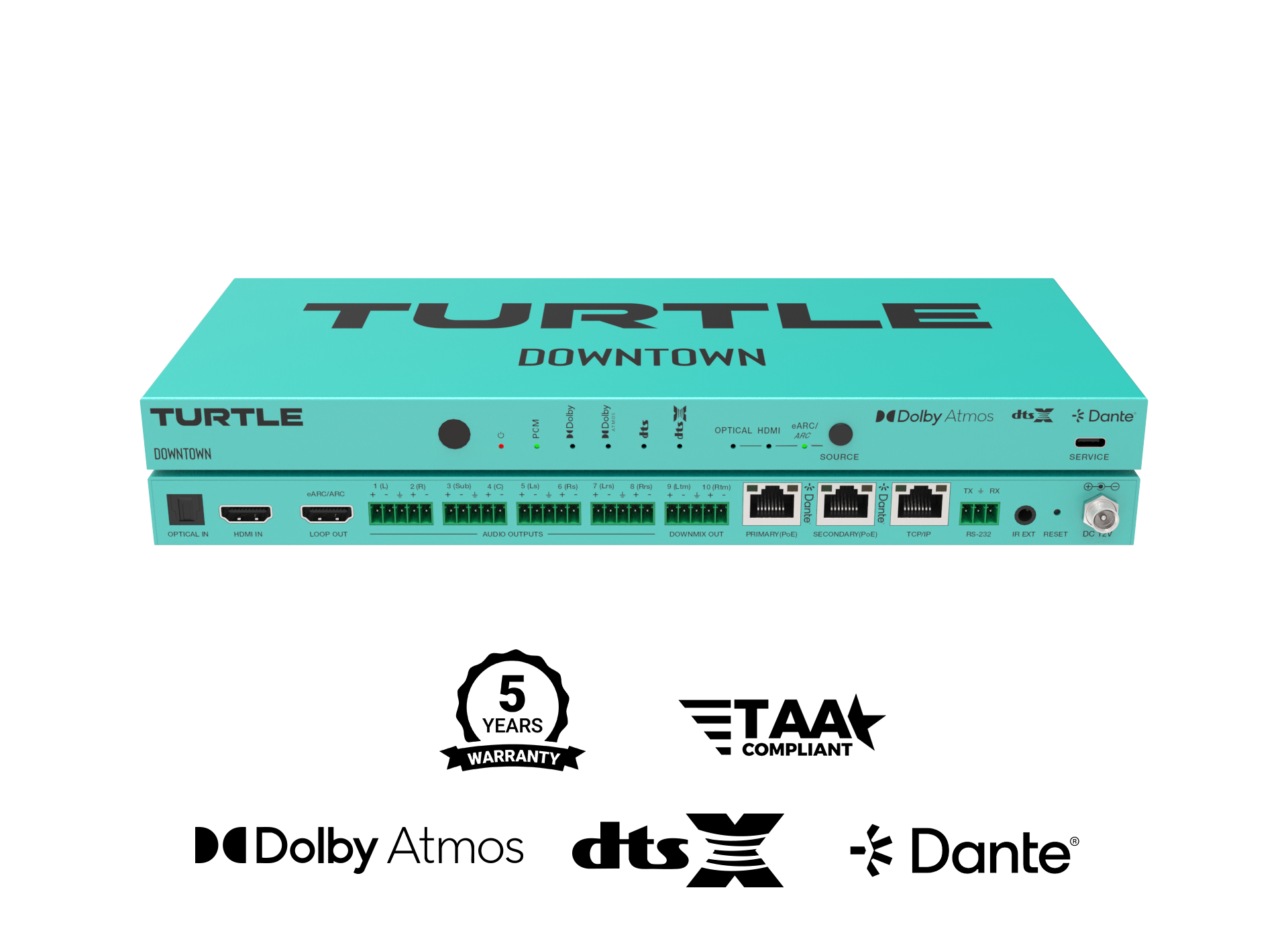

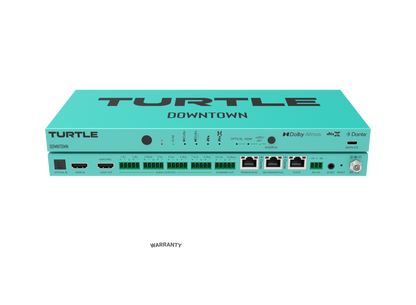

Turtle AV DOWNTOWN - Multi-channel Dolby Atmos and DTS to Dante Encoder

Turtle AV DOWNTOWN - Multi-channel Dolby Atmos and DTS to Dante Encoder

Regular price $1,999.00 USD
Regular price Sale price $1,999.00 USD
Sale Sold out

Multi-channel Dolby Atmos and DTS to Dante. Downtown

Turtle AV DOWNTOWN Multi-Channel Encoder brings Dolby Atmos and DTS to Dante, supporting Dolby Digital, DD+, Atmos, DTS:X, and PCM up to 9.1 channels, with each channel appearing as a separate Dante audio stream for flexible routing in Dante Controller. Turtle AV DOWNTOWN Multi-Channel Encoder features PoE redundancy, primary and secondary Dante network failover, a dedicated control network, AES67 support, and full API control, making it ideal for theme parks, theaters, stadiums, and broadcast environments. TAA compliant and backed by a 5-year warranty for complete peace of mind.


Dolby Atmos. Dolby Digital. DTS:X. PCM.
Supports Dolby Atmos, Dolby Digital, Dolby Digital Plus, DTS:X, and PCM up to 9.1 channels for full compatibility with modern immersive and surround formats.

Dante. AES67.
All audio is encoded as discrete Dante streams with full AES67 compatibility for seamless integration into any networked audio environment.

Independent Dante channels.
Each channel is delivered as its own Dante audio stream, allowing for precise routing, mixing, and processing in Dante Controller.

Stereo Mixdown.
Downmix immersive formats like 5.1, 7.1, or Atmos to stereo for use in legacy zones, recording, or live streaming. With support for up to 10 audio channels, DOWNTOWN delivers a full 7.1 stream as eight independent Dante channels, plus a separate stereo mixdown which can be used to send stereo to live production and live streaming systems while delivering full surround in-room.

ARC. eARC. HDMI. Optical.
Capture audio from any source with HDMI, Optical, ARC, and eARC inputs.

8K60 HDMI with Loopout. Dolby Vision.
Pass through uncompressed 8K60 video with full support for HDR formats like Dolby Vision. The onboard HDMI input includes a loopout for local monitoring or display without signal loss.


Primary and Secondary Dante networks for redundancy.
Dual network ports allow for Primary and Secondary Dante streams, ensuring redundancy and uninterrupted audio in critical applications.

PoE Redundancy.
Both network ports offer PoE power for PoE power redundancy. Plug in the locking DC connector in addition to dual PoE and you have triple power redundancy.

Separate Control Network.
A third network port allows for separation of control from the Dante audio networks.


1RU or AV endpoint. Includes Turtle Ears.
DOWNTON ships with Turtle Ears with options for 1RU rack mounting or installing behind screens. Its compact metal chassis fits behind displays, under furniture, or in tight spaces—and comes with Turtle Ears for clean 1RU rack installs.

Turtle Aqua. 3262 C.
We’re calling it Turtle Aqua. You can too. The actual colour is 3262 C Pantone. We choose this colour so that even when you have them mounted in places you can’t see them, you can still rest easy knowing they are still looking cool.

TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.

5 Year Warranty with Advance Replacement.
Turtle proudly offers a 5 Year warranty on our USB Extender devices. Warranty is 5 years from date of purchase and we are also proud to offer a no hassle advance replacement warranty on all our products.

DOWNTOWN brings Dolby Atmos and DTS to Dante, supporting Dolby Digital, DD+, Atmos, DTS:X, and PCM up to 9.1 channels, with each channel appearing as a separate Dante audio stream for flexible routing in Dante Controller. It features PoE redundancy, primary and secondary Dante network failover, a dedicated control network, AES67 support, and full API control, making it ideal for theme parks, theaters, stadiums, and broadcast environments. TAA compliant and backed by a 5-year warranty for complete peace of mind.

VIDEO

  • Up to 8K@60Hz 4:2:0 10-bit, compliant with HDMI 2.1
  • HDR, HDR10, HDR10+, and Dolby Vision passthrough
  • HDCP 2.3 and 1.x compliant


HDMI Video Formats

  • 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz,
  • 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz,
  • 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50),
  • 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50),
  • 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60),
  • 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29),
  • 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50),
  • 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60),
  • 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24),
  • 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29),
  • 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50),
  • 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60),
  • 3840x2160p100Hz(2160p100), 3840x2160p120Hz(2160p120),
  • 4096x2160p23.98Hz, 4096x2160p24Hz,
  • 4096x2160p25Hz, 4096x2160p29.97Hz,
  • 4096x2160p30Hz, 4096x2160p50Hz,
  • 4096x2160p59.94Hz, 4096x2160p60Hz
  • 4096x2160p100Hz, 4096x2160p120Hz
  • 5120x2160p50Hz, 5120x2160p60Hz
  • 7680x4320p23.98Hz, 7680x4320p24Hz
  • 7680x4320p25Hz, 7680x4320p29.97Hz
  • 7680x4320p30Hz, 7680x4320p50Hz, 7680x4320p60Hz

HDMI Loop Out

  • Supports original multichannel audio or 2ch downmixed audio

Color Depth

  • 8/10/12bit

Color Space

  • RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0

HDR

  • HDR, HDR10, HDR10+, Dolby Vision, HLG

AUDIO

Input

  • HDMI IN/Loop Out
  • eARC/ARC
  • SPDIF Optical

Supported Formats

  • Dolby Digital, DD+, Dolby Atmos, DTS Digital Surround, DTS:X, PCM 9.1/7.1.2/7.1/5.1/2.0

Dante/AES67 Output

  • PCM 9CH 44.1K-96KHz 16/24Bit
  • 2ch downmixed (up to 7.1 input)

Analog Output

  • Line: Decoded audio, balanced/unbalanced 9CH, Max output level 2VRMS
  • Line: Downmixed audio, balanced/unbalanced 2CH, Max output level 2VRMS
  • Output Impedance: 600 Ohm balanced
  • 300 Ohm unbalanced
  • Line Output Level (Maximum): 8.2dBu (2Vrms) @ balanced audio; 2.2dBu(1Vrms) @ unbalanced audio
  • Frequency Response: 20Hz to 20kHz (-/+0.5dB)
  • Dynamic Range: >100dB@0dBu, 1kHzA-weighted
  • Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted
  • Audio THD+N: < 0.01% at +4dBu, 1KHz

CONNECTIONS

Input

  • 1x HDMI 2.1
  • 1x SPDIF Optical

Output

  • 9x LINE OUT [5pin-3.81mm Phoenix Connector]
  • 1x IR [3.5mm Jack]
  • 1x DANTE PRIMARY [RJ45 LAN, PoE]
  • 1x DANTE SECONDARY [RJ45 LAN, PoE]

Control

  • 1x RS-232/TRG [5pin-3.81mm phoenix connector] [TRG: 5-12V trigger input to turn on/off the amplifier]
  • 1x LAN [RJ45 connector]

MECHANICAL

Housing

  • Metal enclosure

Color

  • Turtle Aqua

Dimensions

  • TBC

Weight

  • TBC

Power Supply

  • Input: AC100-240V 50/60Hz

Power Consumption

  • TBC

Operating Temperature

  • 32 – 104° F / -20 – 60° C

Relative Humidity

  • 20% – 90% RH (no condensing)

DOWNTOWN. Multi-channel Dolby Atmos and DTS to Dante Encoder.
