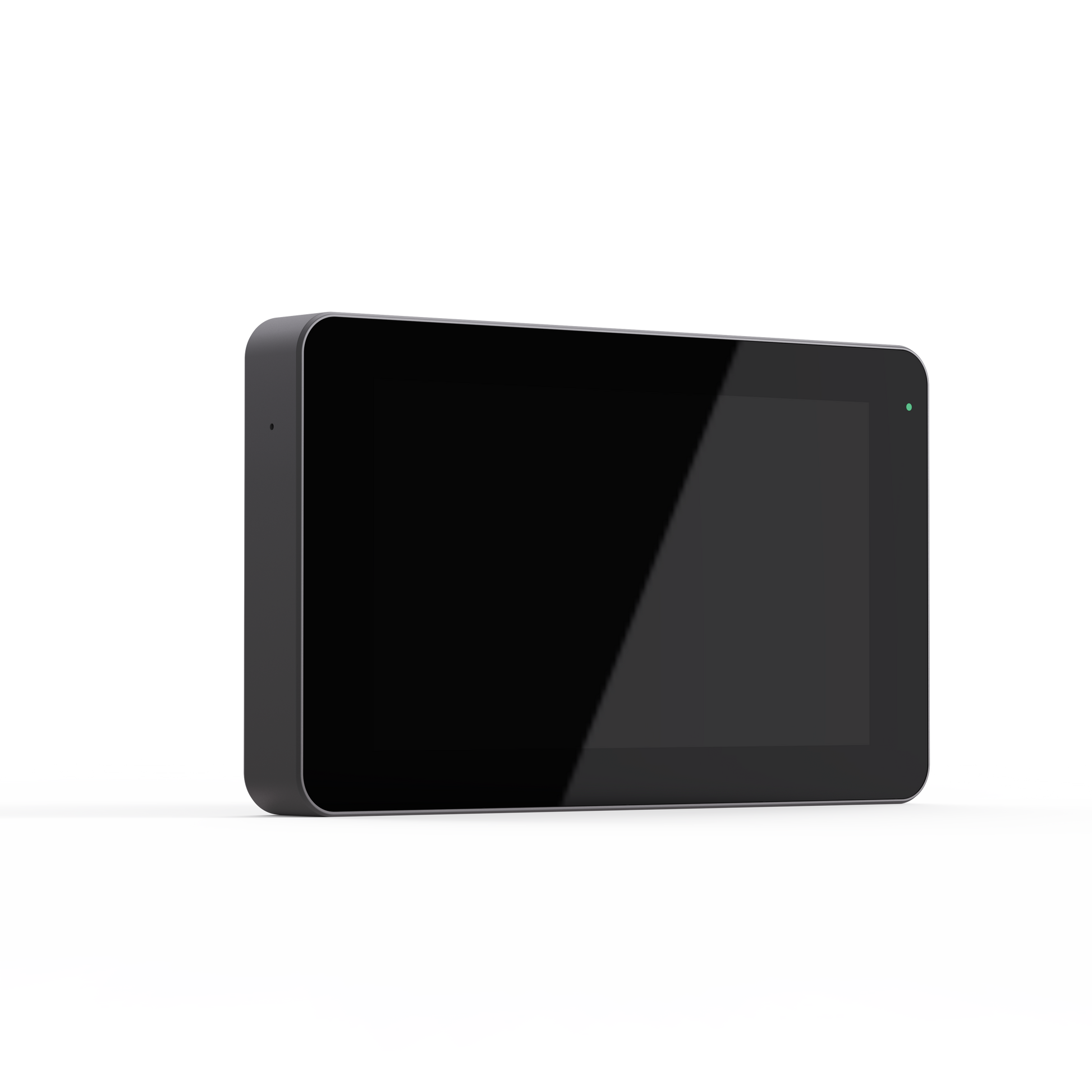

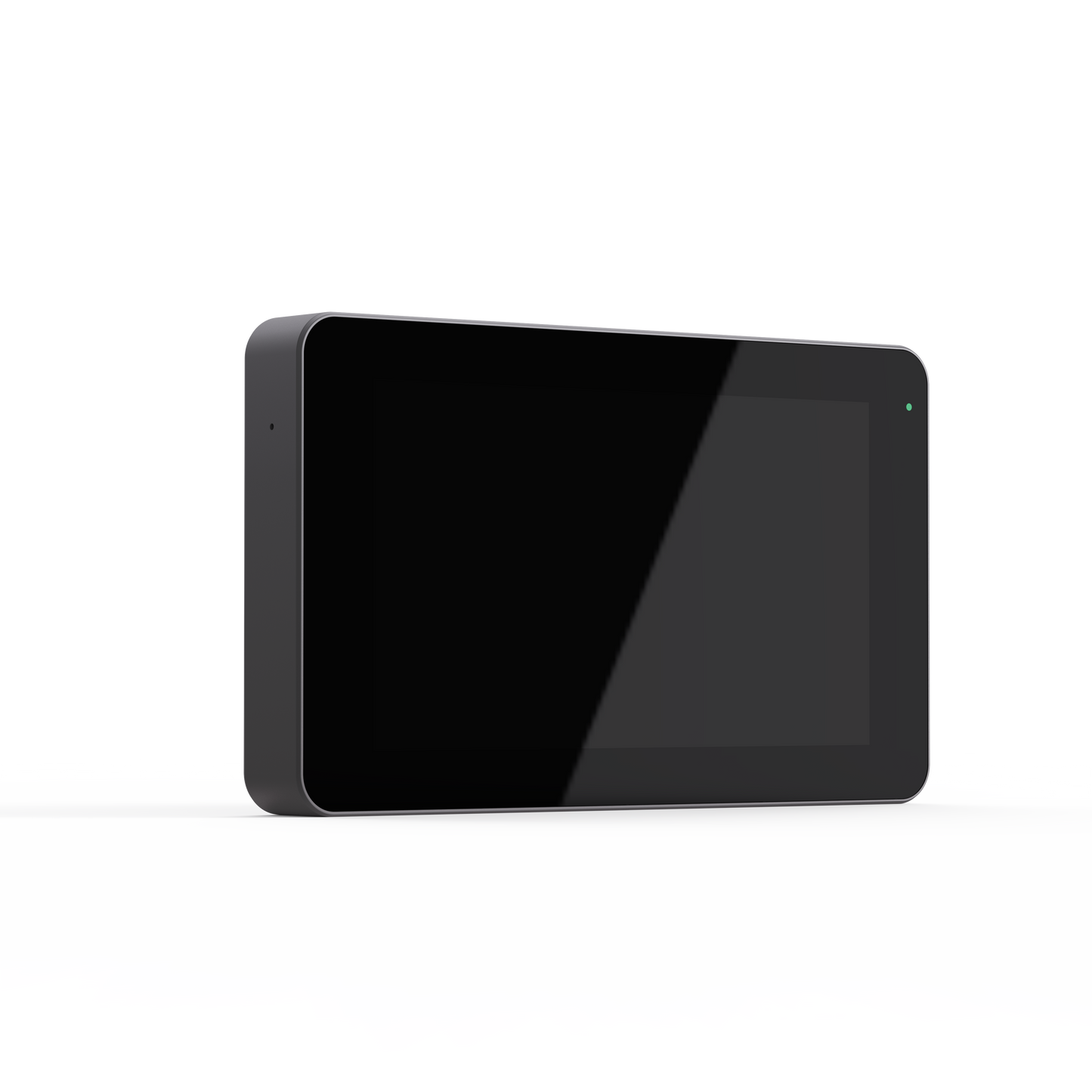

YoloLiv YoloBox Mini - Portable All-In-One Live Streaming Switcher
YoloLiv YoloBox Mini - Portable All-In-One Live Streaming Switcher
Regular price
$648.00 USD
Regular price
Sale price
$648.00 USD
Unit price
/
per
Couldn't load pickup availability

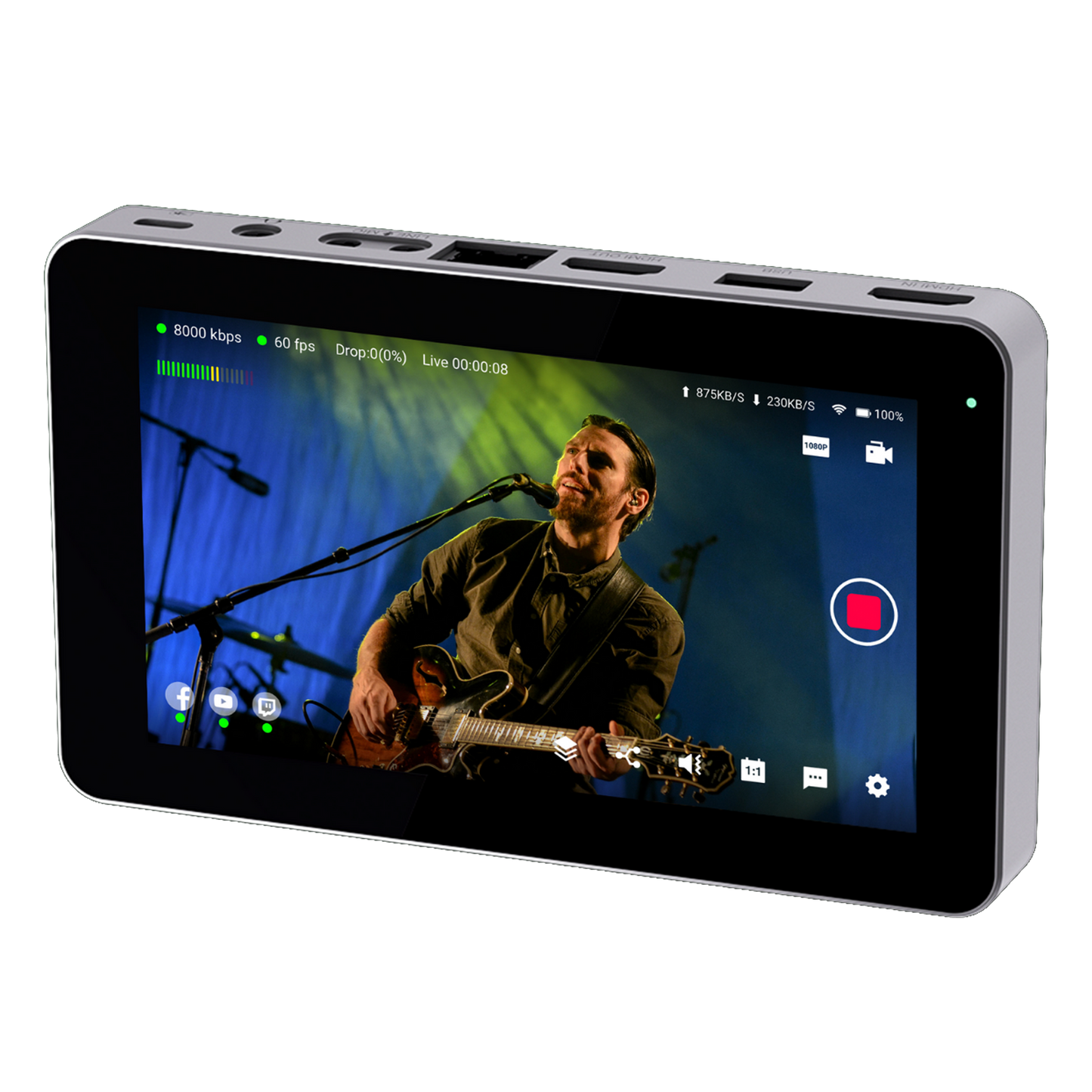

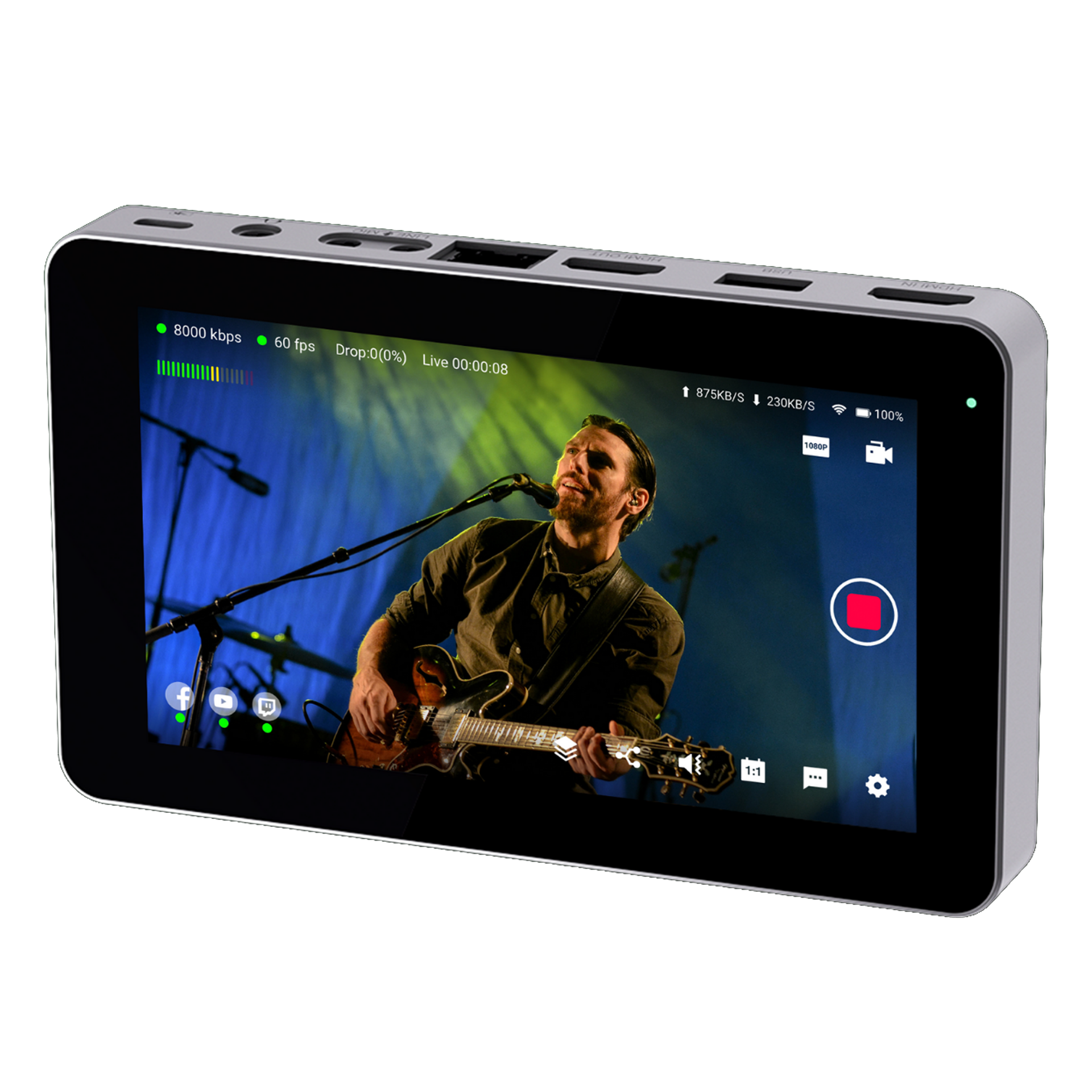

Live Production in the Palm of your Hand
YoloBox Mini is a super portable live streaming encoder, monitor and recorder that is capable of incorporating many powerful features for high end work! As the name suggests, it’s very small compared to almost all other live streaming solutions. You can fit it in your pocket, especially perfect for live events that require high mobility. If you’re looking for a mini but mighty live streaming solution for mobile live streaming needs, YoloBox Mini is your best choice.Key Features
- Go live in 1080p60
- Multi-Streaming
- 4G LTE Support
- Graphic Overlays
- Monitor Mode
- Touchscreen control
- Comment overlays
- Multi-Streaming
- CPU QualComm 660 (same as YoloBox Pro)

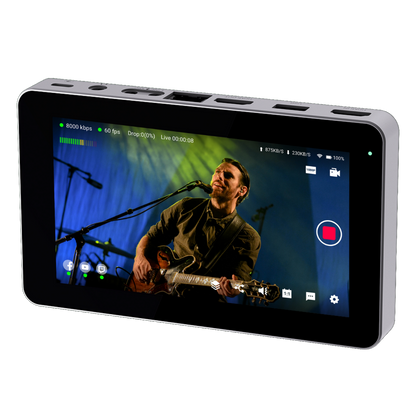

Camera Monitor Mode
Use YoloBox Mini as a monitor and to record
Total Touch Control. Zero Learning Curve
Professional live streaming finally accessible for everyone

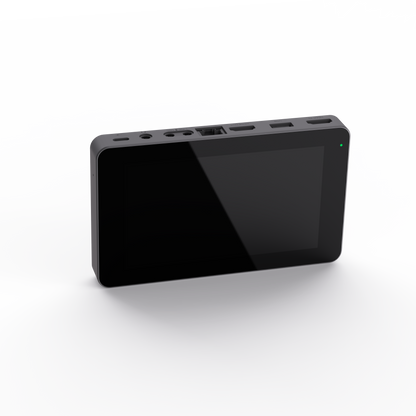

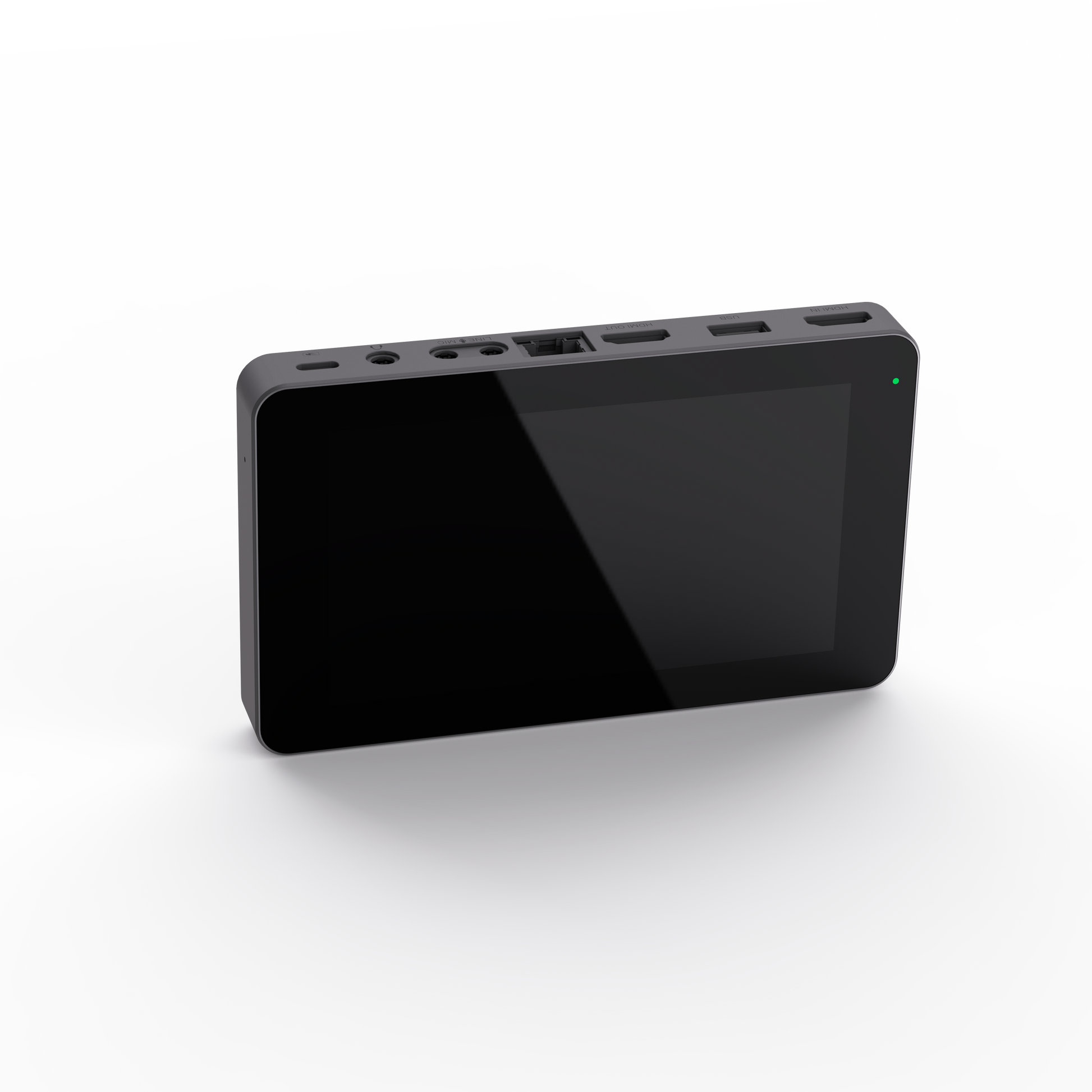

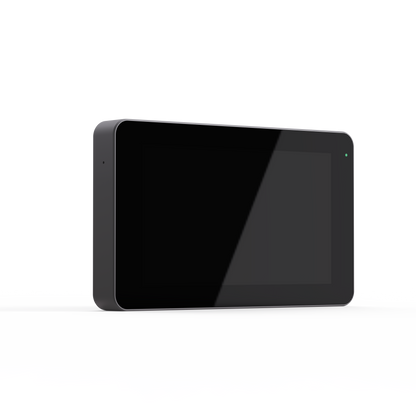

Pocket Size, Ultra Portable
Stream from anywhere on the go (5.5 inch LCD screen)
Stream to Multiple Destinations
Simultaneously streaming to Facebook, YouTube, Twitch, or others through RTMP
Live Production at your Finger Tips
Extreme ease of use. Best for one-man crew
4G LTE Support
Stream overall available networks from Ethernet, WiFi, 4G LTE modems, and hotspots
Feature Comment Overlays
Engage with your audience by featuring the comment to the stream with a single tap
Graphic Overlays
Level up video productions by adding custom scoreboards, text, logos, countdown timer, and more.
- Logos
- Watermarks
- Rolling captions
- Scoreboard
- Lower-thirds
- Countdown timers
A Pro Tool, Made for Everyone
- Weddings
- House of Worship
- Sports
- Videographer
- Music
- Live Selling
- IRL
- Game
- Creator

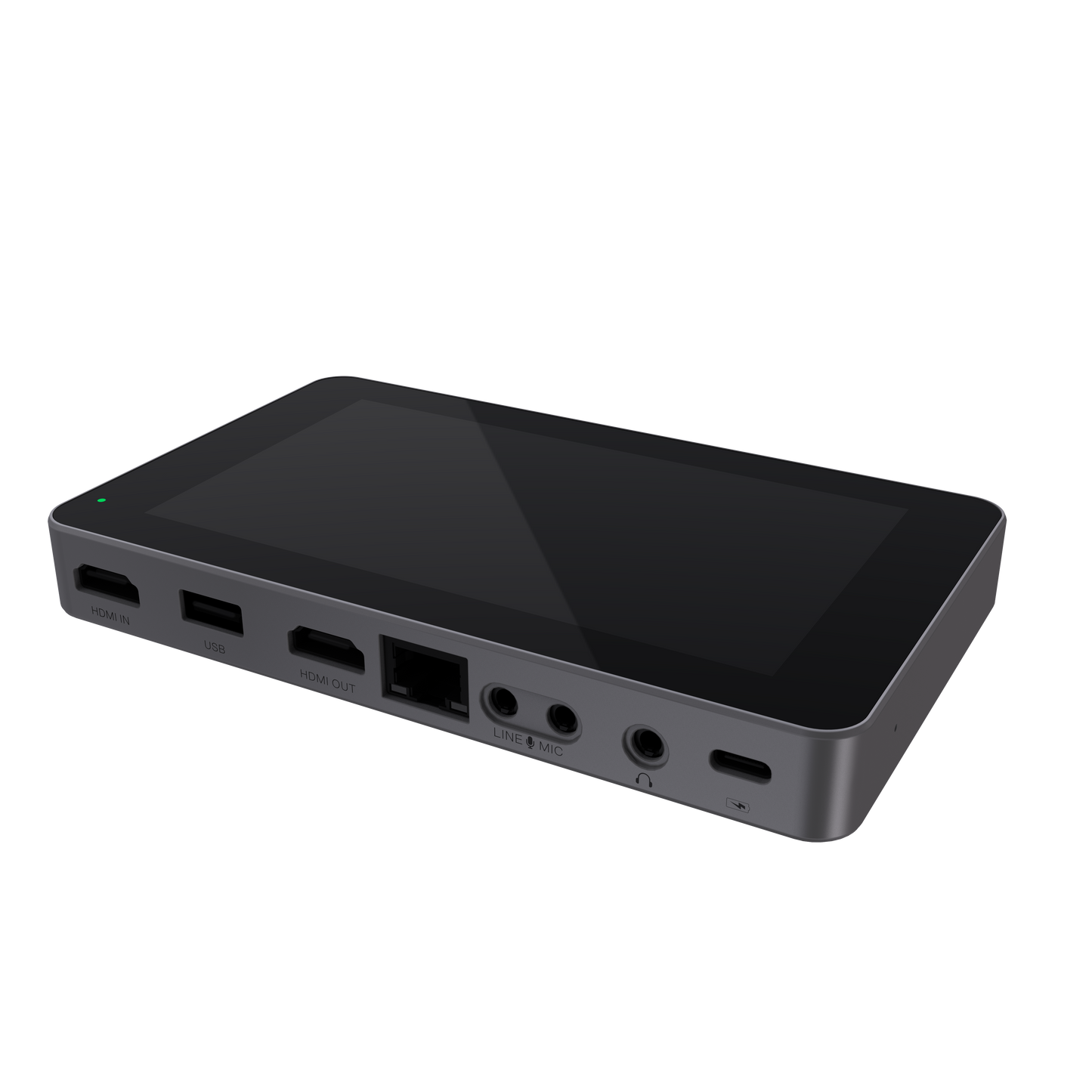

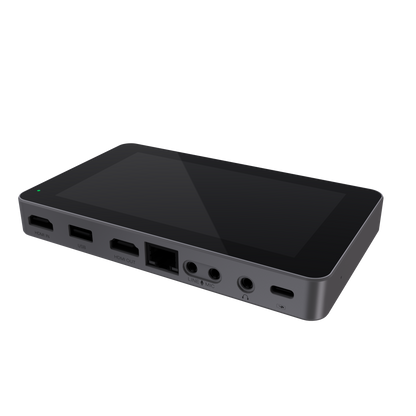

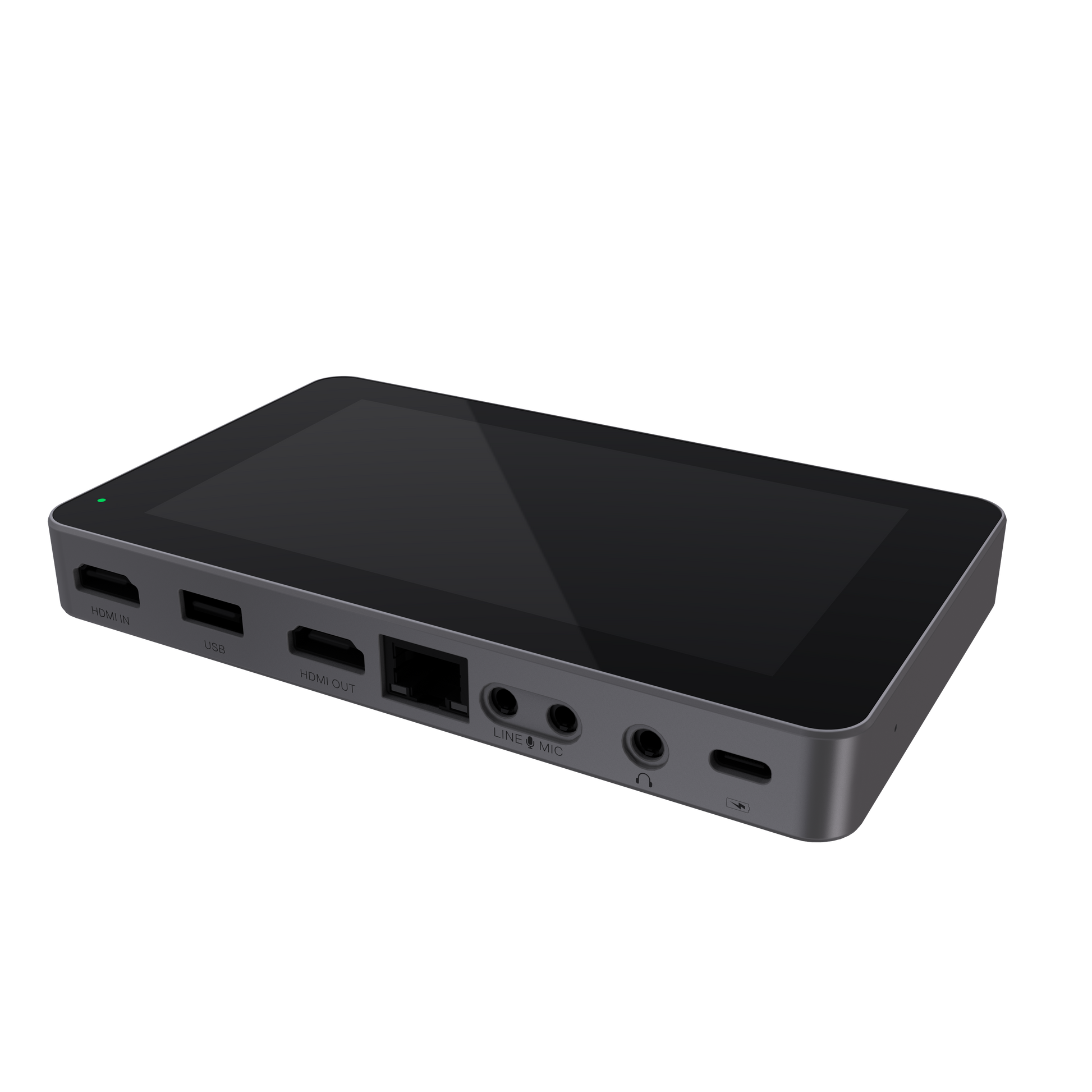

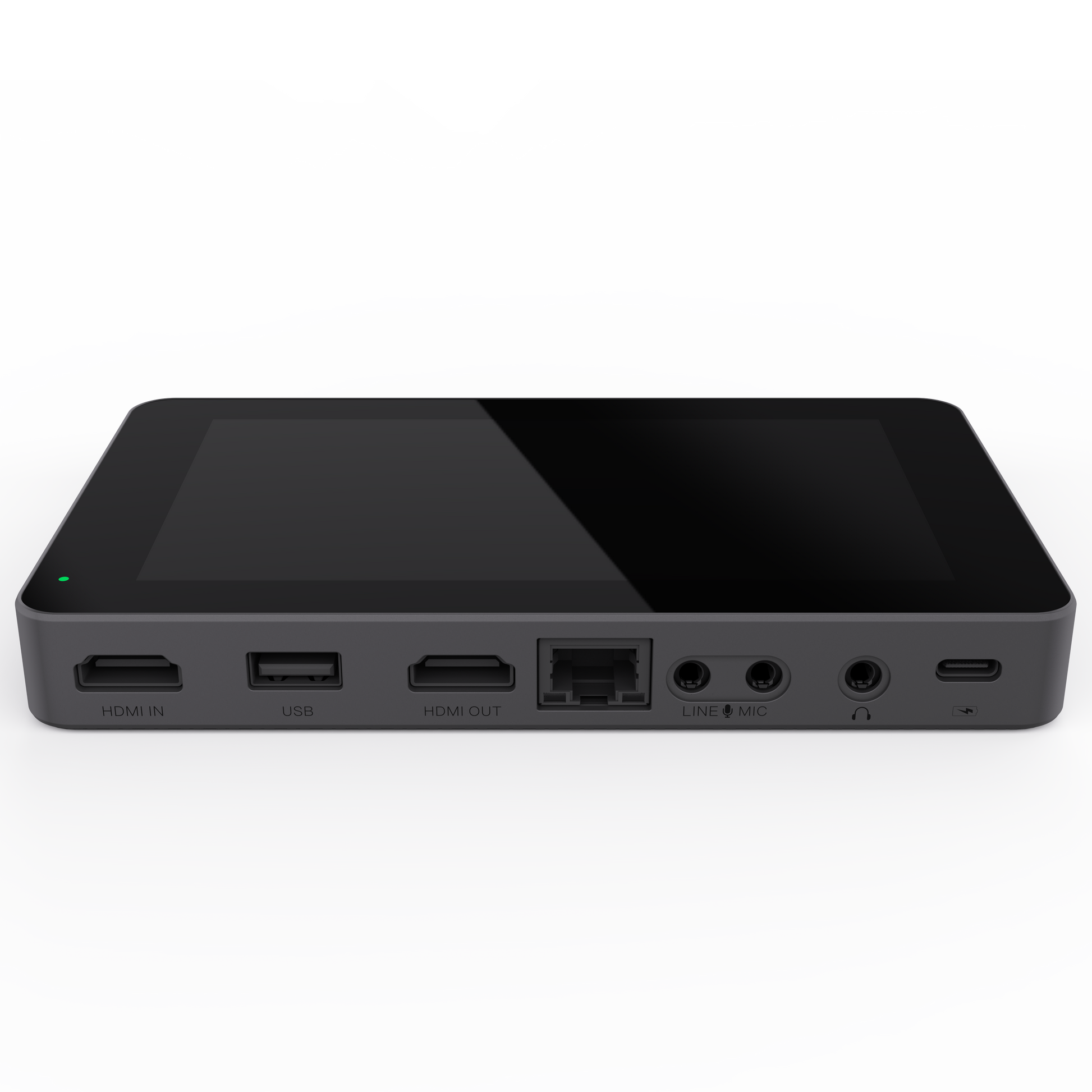

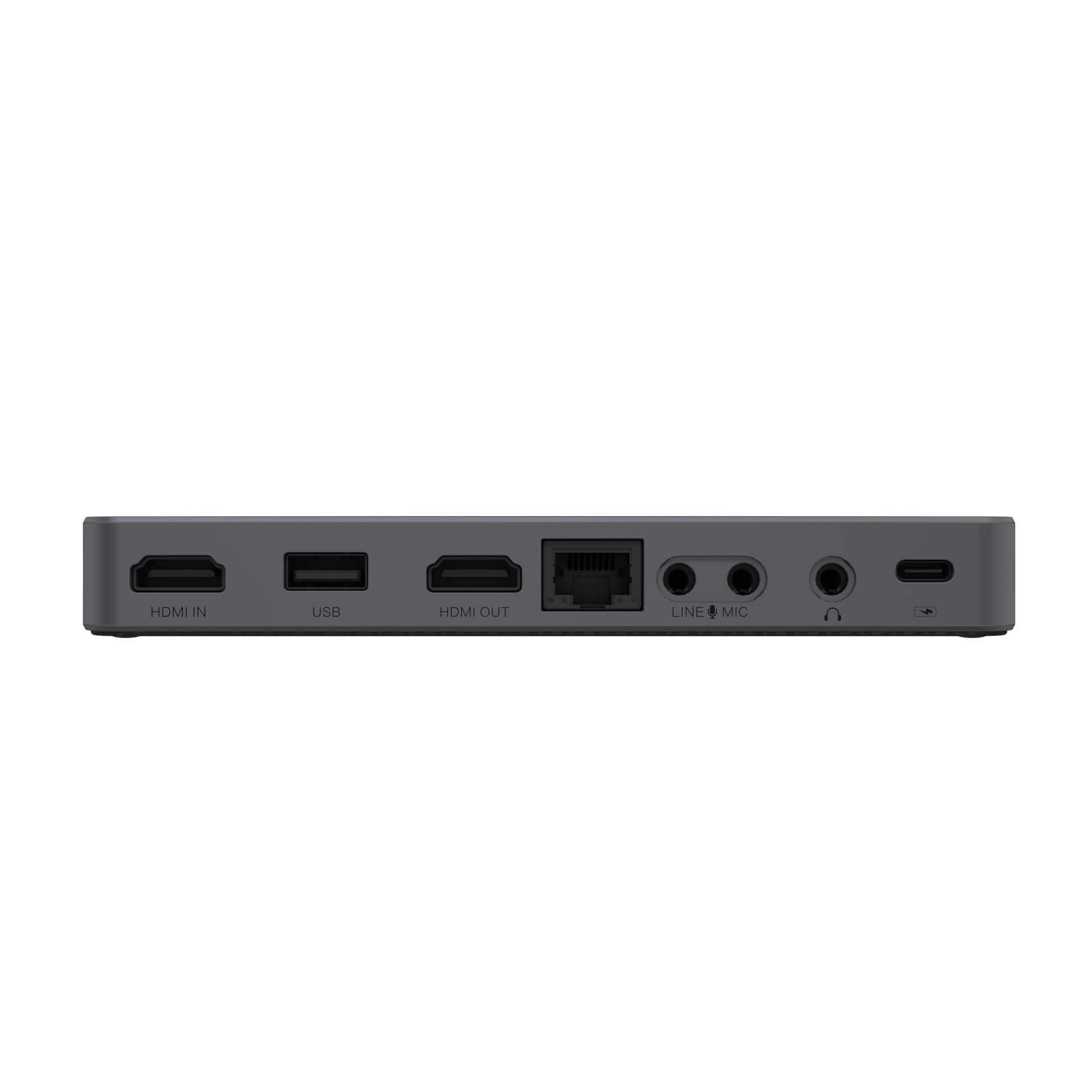

Ports
- HDMI IN: Video input
- USB IN: Video input
- (Please note in some USB webcams, only video can be captured. Also, HDMI IN and USB IN sources cannot be used at the same time)
- HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
- ETHERNET PORT: Connect to Internet by Ethernet cable
- LINE IN: Stereo, connect to electric guitar or synthesizer
- MIC IN: Mono, connect to microphone for recording
- AUDIO OUT: Connect with 3.5mm monitor headphones
- USB-C/TYPE-C: Power connector
- 1/4" Screw Hole: Mount YoloBox Mini with camera

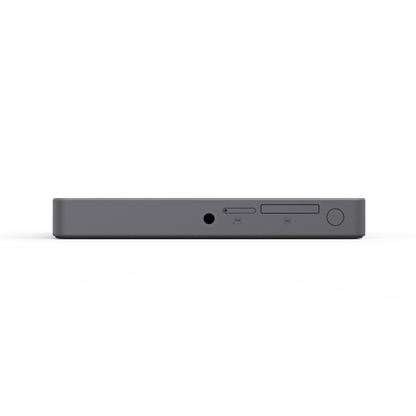

- SIM Card Slot: Insert SIM card to connect to Internet
- SD Card Slot: It's used for recording only
- Power Button: Turn on and turn off
- Video Encoded Format：H.264
- Audio Encoded Format：AAC (44.1k)
- Video Recorded format：MP4
- Audio Input Format：32kHz/44.1kHz/48kHz/16-bit/16kHz
- Video Input Format：1080i/720p/1080p
- Live Broadcast Resolution：480P/720P/1080P
- Frame Rate: Up to 60 fps
- Storage Card Type：SD Card
- Storage Card Capacity：Up to 1TB
- File System for SD Card: FAT32, exFAT, NTFS
- WiFi：2.4G/5G
- 4G Network Countries & Frequency Band For
- Users：[NA：Variant for North America（US/Canada/Mexico）]
- B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
- Notes：Mexico B4
- For Non-US/Canada/Mexico Users：（EM:Variant for EMEA/India/Korea/Taiwan/South
- Asia/Latin America/Australia/New Zealand）Users：
- B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B39/B40/B41
- Notes：Thailand B7
- Please note that the Yolobox complete machine certification corresponds to the mainstream frequencies and wavelengths of the local mainstream telecom operators.
- SIM Card Size：Nano card
- Power Interface：Type C, Quick Charge 3.0
- Battery Capacity：4700mAh
- Input power rating: 5V-2.5A;9V-2A;12V-1.5A;
- Output power rating: 5V@1.5A
- Network Protocol：RTMP/RTMPS
- Height: 20 mm
- Width: 92.6 mm
- Length: 155 mm
- Weight: 320 g
- Operating Temperature：0℃-40℃
- Operating Humidity: 15%-85%, No Condensation
In the box:
- YoloBox Mini
- YoloBox Mini User Manual
- Screen Protector
- SIM Card Eject Pin
- Hotshoe Mount
- USB Charge Cable
