PTZCam 4-channel SDI PCI Express capture card


Cost-effective 4-input SDI PCI Express capture card

Capture professional cameras and other broadcast equipment to your computer

Special Order

  • Free US shipping on all orders over $200
  • 30 day returns (restock fee applies for some items)
  • In stock items ship next business day
Guaranteed Safe Checkout

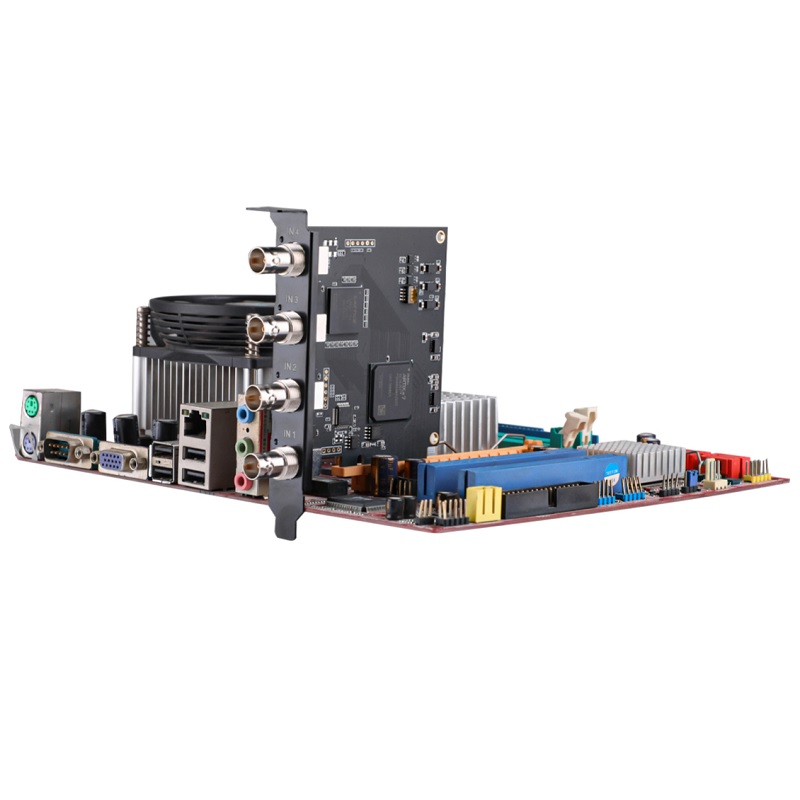

The CAP4-SDI capture card from PTZCam is a PCI Express x4 full-height card designed to capture up to four (4) SDI video signals into your Windows PC. The card supports up to 1080p at 60 fps video data rates, as well as stereo audio embedded in each SDI input.

This easy-to-use capture card is a simple and affordable to way to get multiple video signals into a computer. The applications for this include live event production, video conferencing, distance education, esports gaming, and medical device output capture.

Because the CAP4-HDMI runs on any standard Windows computer you can use it with virtually any Windows-based software that supports Microsoft DirectShow drivers, such as vMix, OBS, Xsplit, Wirecast, Adobe FMLE, and VLC.

Technical Specifications

  • Host interface: PCI Express 2.0 x4
  • Video inputs: 4x 3G-SDI
  • Audio inputs: 4x stereo LPCM audio signals
  • Video resolutions: Up to 1080p60
  • Color space: YUY2
  • Video processing: 1080i de-interlacing, 3D noise reduction
  • HDCP: Supports game console outputs; Other HDCP encrypted outputs no supported (DVD players, etc.)
  • Operating system support: Windows 10/8.1/7/XP 32-bit/64-bit
  • Compatible software: vMix, Wirecast, VLC, Xsplit, Windows Media Live Encoder, Adobe Flash Media Live Encoder, and more
  • Power consumption: less than 5W
  • Operating temperature: 0-85 degrees Celsius
  • Dimensions: 3.39-in (L) x 3.86-in (H) (86mm x 98mm)


Additional information

Weight1 lbs
Dimensions10 × 7 × 3 in
