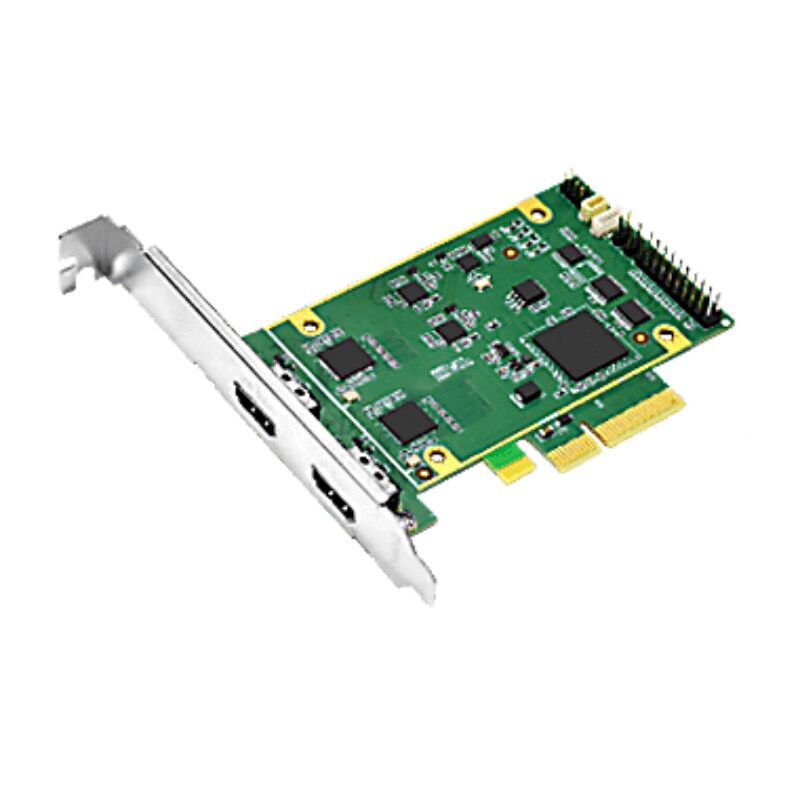

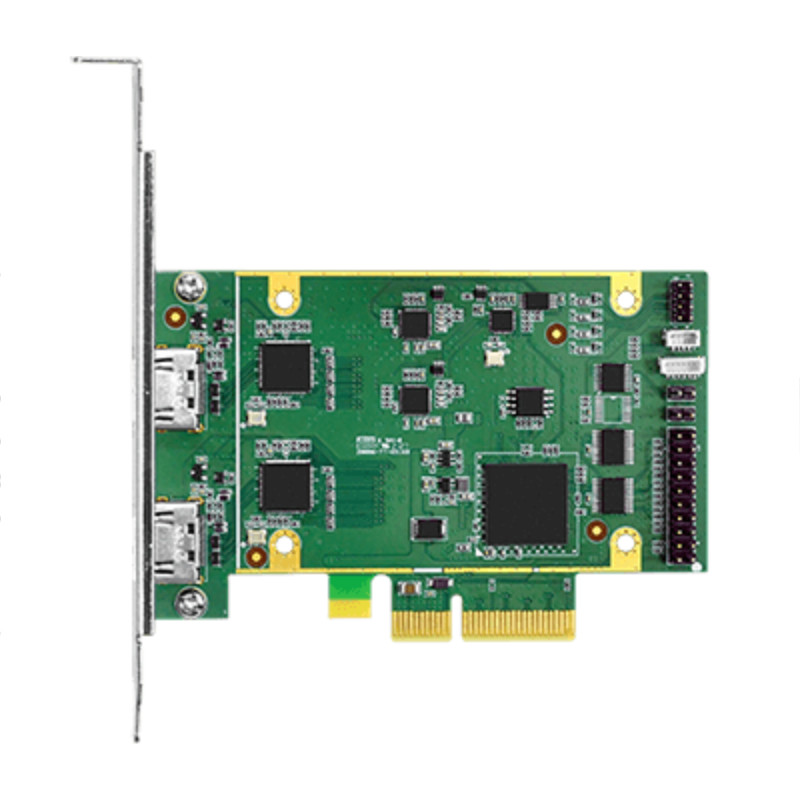

2-channel low-profile HDMI capture card. Up to 1080p60, PCI Express x4 interface
Technical Specifications
Main
| Max. Input Resolution | 1920×1080p@60/50fps |
| Video Input | 2×HDMI |
| Dimension | 104×68.9 ( mm ) PCIe Low Profile |
| Interface | PCIe×4 ( Gen2 ) |
| Feature | Multi Instances Multi Devices |
Video
| Video Input Detail | HDMI |
| Video Output | N/A |
| Color Format | Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 |
| Build-in Hardware Encode | N/A |
| Video Processing | Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions | HDMI : 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps※More resolution supported by SDK |
Audio
| Audio Input | 2×Stereo Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
Software
| Supported Software Applications | vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support | Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
Miscellaneous
| GPIO | 16 |
| WatchDog | ✓ |
