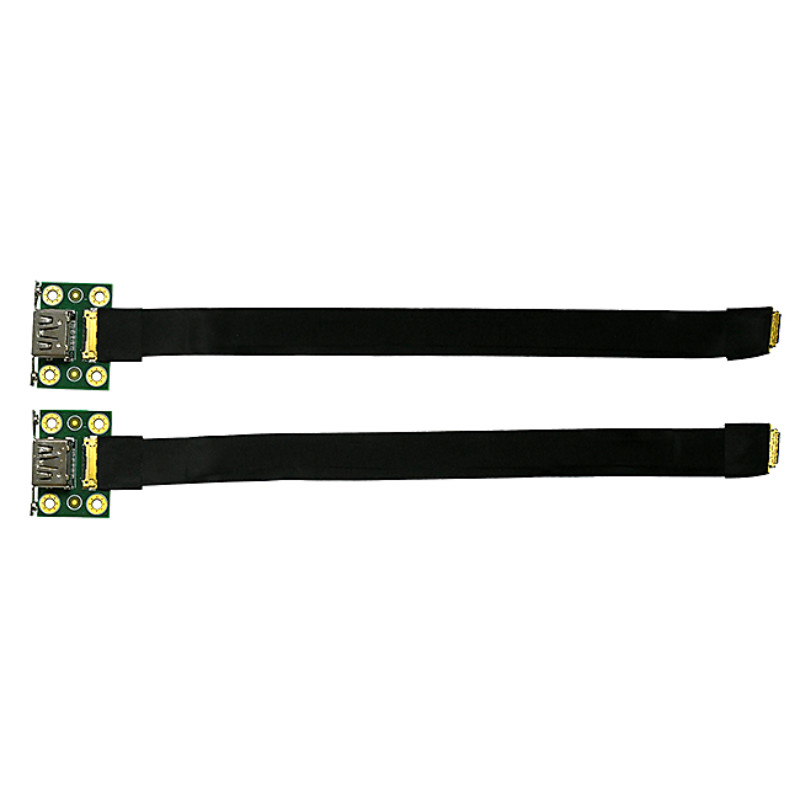

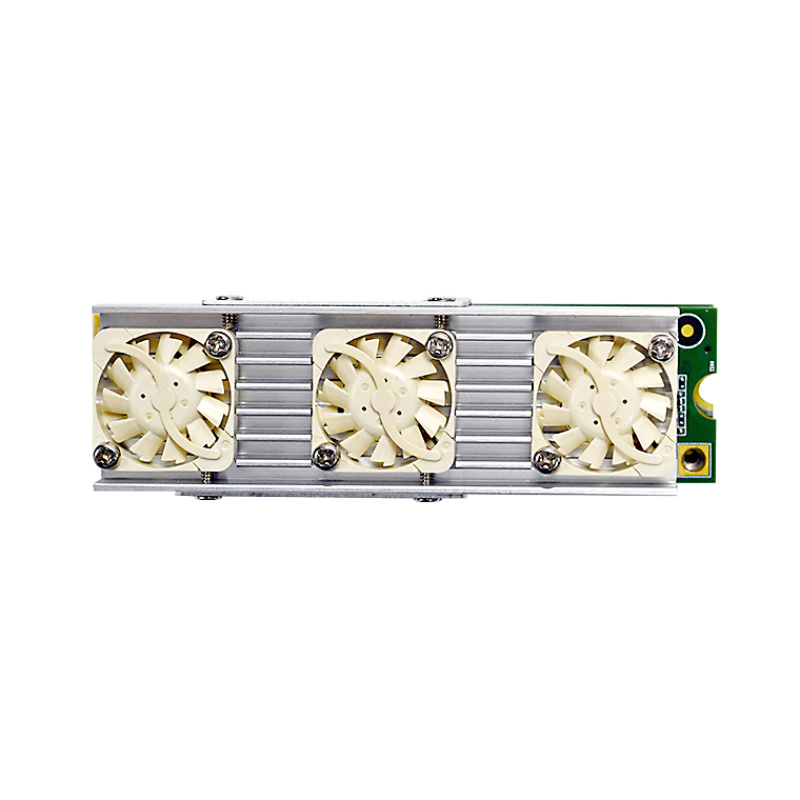

2-channel 4Kp60 HDMI capture card with cables and connectors. Up to 2160p60 for dual-channel or 8Kp3o using dual-link HDMI 2.0. M.2 2280 PCI Express x4 interface
Technical Specifications
Main
| Max. Input Resolution | 4096×2160p@60/50fps |
| Video Input | 2×HDMI2.0 |
| Dimension | 22×80 ( mm ) M.2 Type M |
| Interface | M.2 ( PCIe×4 ) |
| Feature | 8K30 Dual-Link HDMI 2.0 Multi Instances Multi Devices |
Video
| Video Input Detail | Single-Link HDMI 2.0 Dual-Link HDMI 2.0 |
| Video Output | N/A |
| Color Format | Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010 |
| Build-in Hardware Encode | N/A |
| Video Processing | Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions | 4096×2160@60/50/30/25/24fps 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps※More resolution supported by SDK |
Audio
| Audio Input | 2×Stereo Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
Software
| Supported Software Applications | vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support | Windows 7/Windows 8/Windows 8.1/Wind0ows 10 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
Miscellaneous
| GPIO | N/A |
| WatchDog | N/A |
