Yuan SC400N4 SDI – 4-channel Full HD 1080p60 3G-SDI PCIe Capture Card

$599.00

Capture up to 4x 3G-SDI video sources into your favorite streaming or recording software

10 in stock

Yuan SC400N4 SDI - 4-channel Full HD 1080p60 3G-SDI PCIe Capture Card $599.00
  • Free US shipping on all orders over $200
  • 30 day returns (restock fee applies for some items)
  • In stock items ship next business day
Guaranteed Safe Checkout

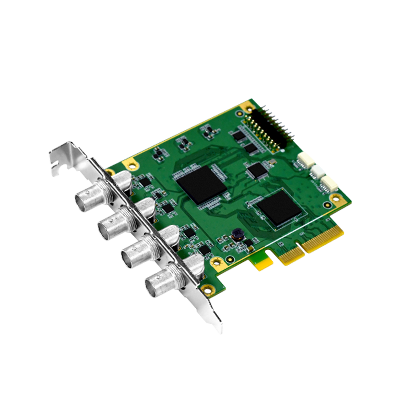

The SC400N4 SDI from Yuan High-Tech is a PCI Express Gen2 x4 video capture card capable of ingesting up to four (4) channels of simultaneous video and audio from SDI sources. With this board installed in any computer you can capture high-quality video into any supported streaming and recording software, such as vMix, OBS, Zoom, or Skype.

Each input supports up to Full HD (1920×1080) resolution at 60 fps. The SC400N4 SDI also supports high color depth at up to 4:4:4 8-bit RGB32 and 4:2:0 10-bit P010. This ensures that you are able to capture the most accurate reproduction of your video sources without quality loss.

Technical Specifications

Inputs:

4x 3G-SDI

Computer Interface:

PCI Express 2.0 x4

Dimensions:

3.6-in (H) x 3.7-in (L) (91.5mm  × 93.98mm)

Supported Video Resolutions:

3G-SDI:
1920×1080p@60/50fps
HD-SDI:
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI:
720×480i@60fps
720×576i@50fps

Video Processing:

Video, Audio and VANC Capture
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances

Color Formats:

4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010

Audio:

4x Embedded Stereo Audio Channels, Up to 16-bit / 48KHz

Supported Software:

vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting
(Other software applications that support Windows DirectShow or Linux V4L2 drivers are also generally compatible)

Operating System Support:

Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 2.6.14 or Higher (32-bit and 64-bit)
Linux ARM
NVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX

Additional information

Weight1 lbs
Dimensions10 × 7 × 3 in

Brand

YUAN High-Tech
