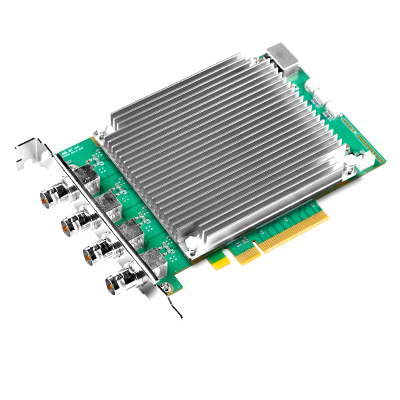

Yuan SC720N4 12G-SDI – 4-channel 4Kp60 SDI capture card


In stock

  • Free US shipping on all orders over $200
  • 30 day returns (restock fee applies for some items)
  • In stock items ship next business day
Guaranteed Safe Checkout

The SC720N4 12G-SDI from Yuan High-Tech is a PCI Express Gen2 x8 video capture card capable of ingesting up to four (4) channels of simultaneous video and audio from SDI sources. With this board installed in any computer you can capture high-quality video into any supported streaming and recording software, such as vMix, OBS, Zoom, or Skype.

Each input supports up to 4K (4096×2160) resolution at 60 fps. The SC720N4 12G-SDI also supports high color depth at up to 4:4:4 8-bit RGB32 and 4:2:0 10-bit P010. This ensures that you are able to capture the most accurate reproduction of your video sources without quality loss.

Technical Specifications


4x 12G-SDI

Computer Interface:

PCI Express 2.0 x8


3.976-in (H) x 5.55-in (L) (101.01mm  × 140.97mm)

Supported Video Resolutions:

12G-SDI: 4096×2160@60/50fps, 3840×2160@60/50fps
6G-SDI: 4096×2160@30/25/24fps, 3840×2160@30/25/24fps
3G-SDI: 1920×1080p@60/50fps
HD-SDI: 1920×1080p@30/25/24fps, 1920×1080i@60/50fps, 1280×720p@60/50fps
SD-SDI: 720×480i@60fps, 720×576i@50fps

Video Processing:

Video, Audio and VANC Capture
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances

Color Formats:

4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010


4x Embedded Stereo Audio Channels, Up to 16-bit / 48KHz

Supported Software:

Cisco Webex
(Other software applications that support Windows DirectShow or Linux V4L2 drivers are also generally compatible)

Operating System Support:

Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 2.6.14 or Higher (32-bit and 64-bit)
Linux ARM
NVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX

Additional information

Weight1 lbs
Dimensions10 × 7 × 3 in
